Cold water
Hot water
16A Creepage
Protect
1. Water supply: One piece of galvanized tube
shall be provided for hot and cold water
respectively 1300mm high from the ground and
the DN15 shut-off valve shall be mounted on the
wall: 0.25mPa≤pressure≤0.4mPa.
2. Power supply: 3.5KW,240V，single
phase and three wire system，BV=3x4mm², high
from the ground with one 32A water-proof
socket.The power socket shall be provided with
16A independent creepage protection switch,
which shall be erected in a position within reach
of hand and shall be free of water splash.
3. Water drainage: The floor drainage hole
shall be within the range of erection size .

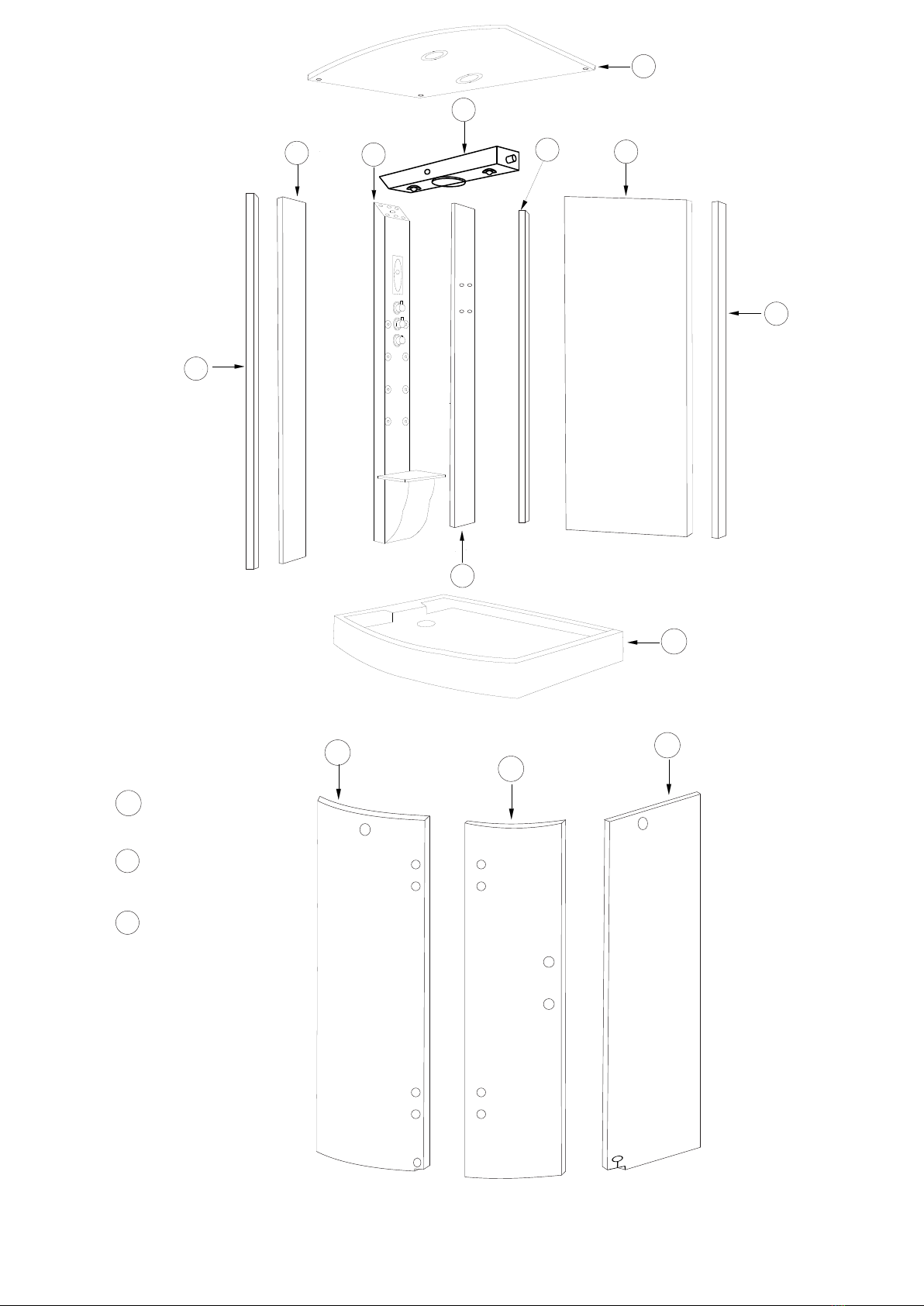

First Check the label outside is the same of products number ;

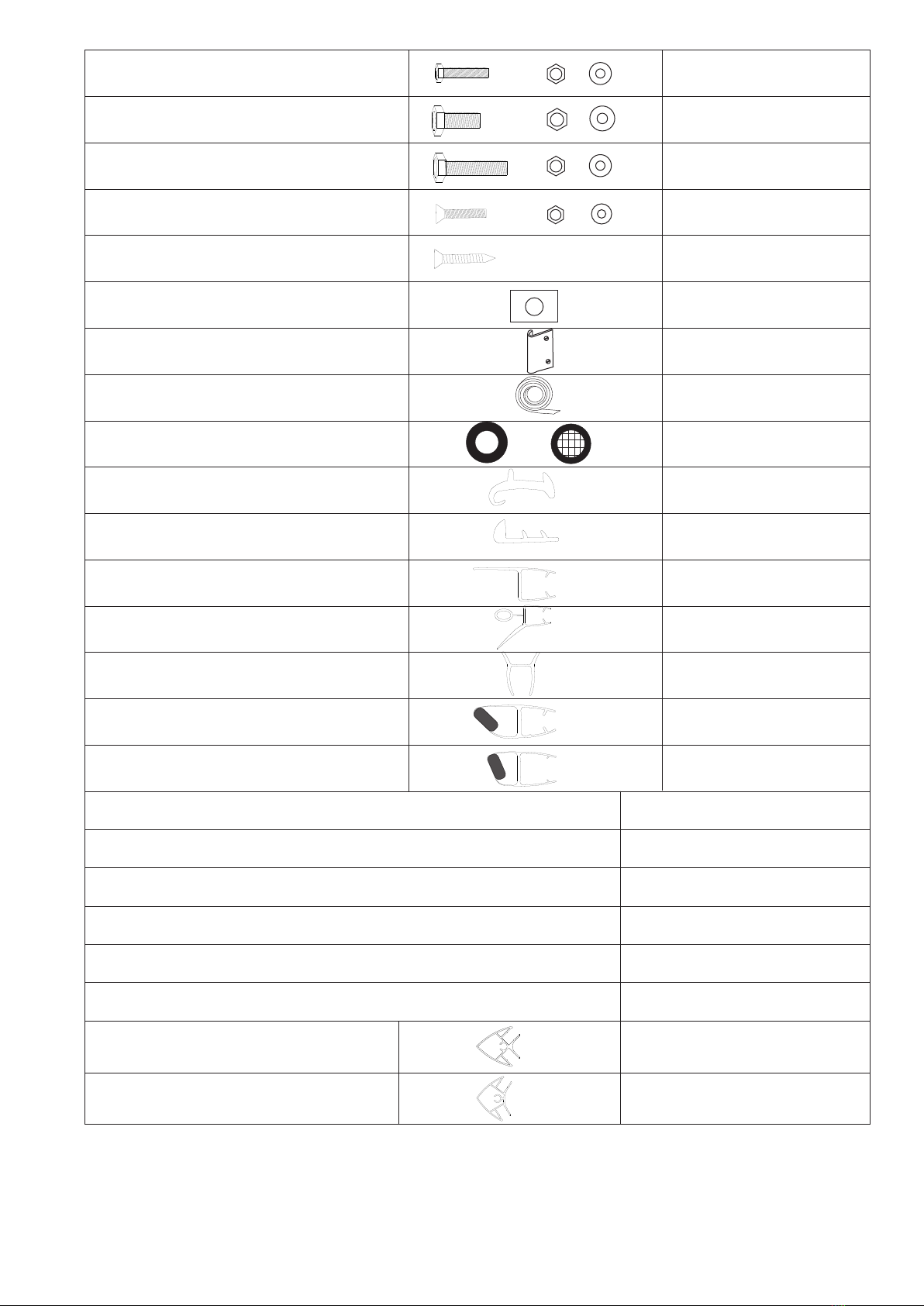

Setting tool: cross screwdriver 、6-30#spanner、level ruler、straight screwdriver、Glass Glue Wood Wedge , Plastic
hammer.

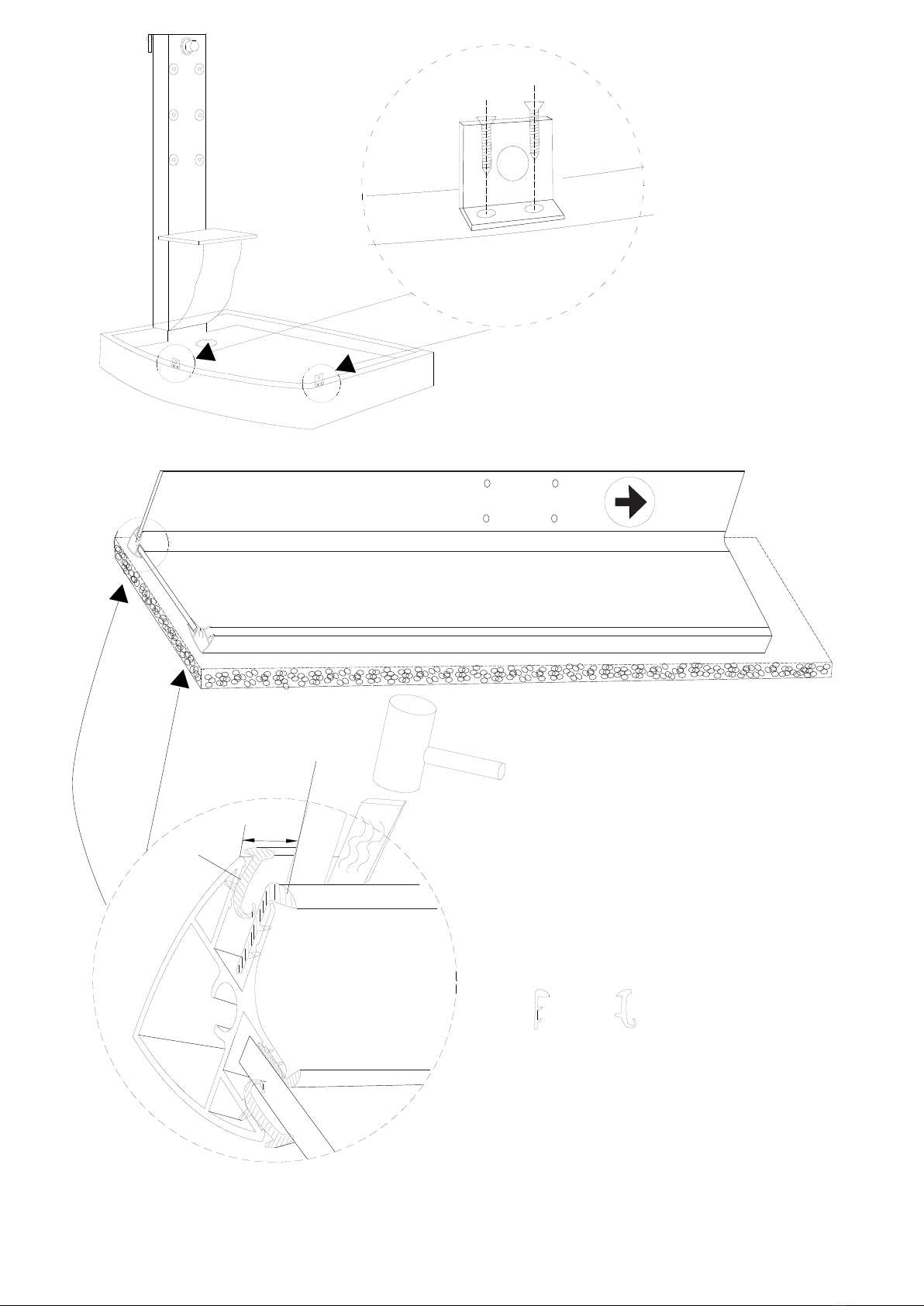

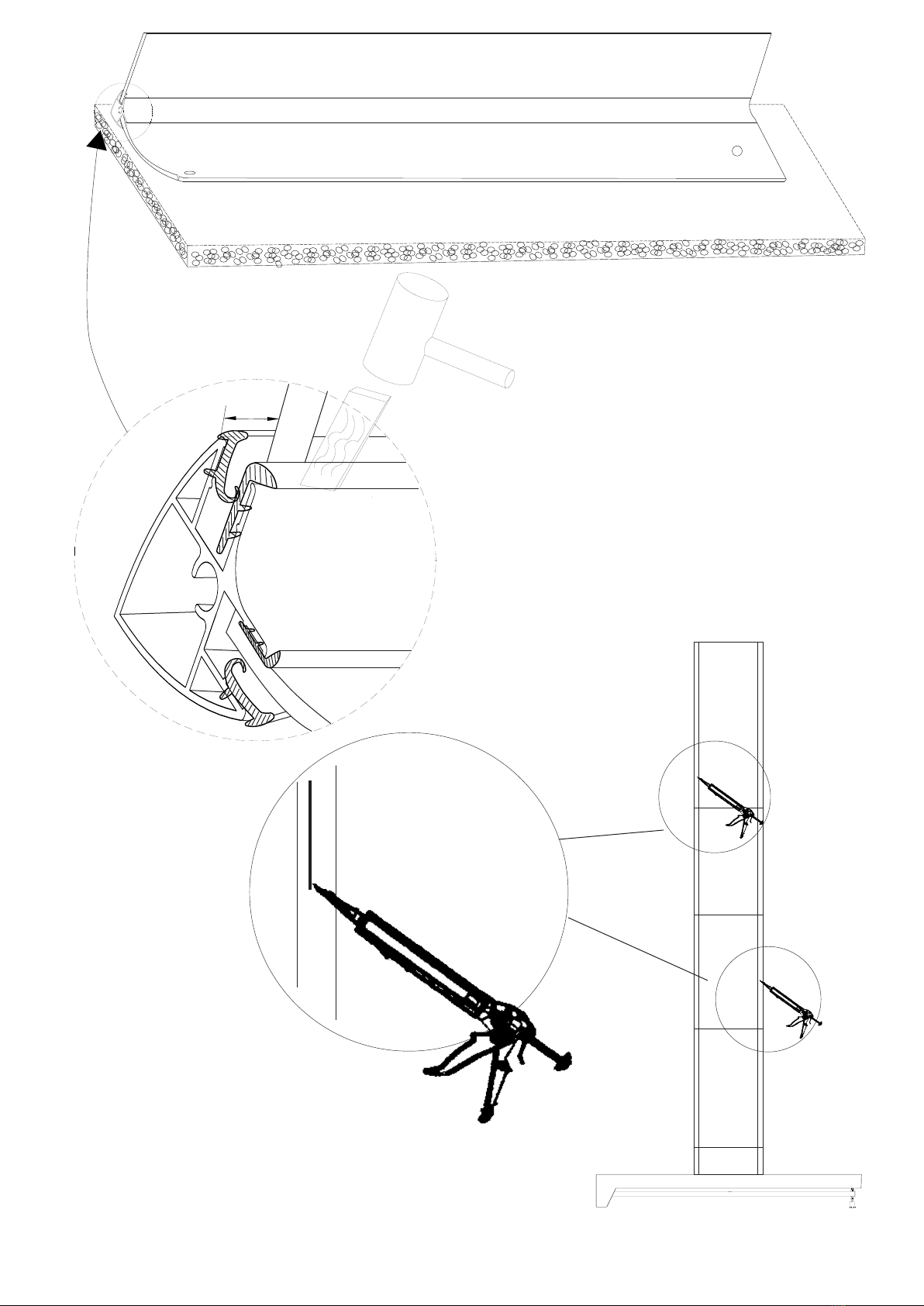

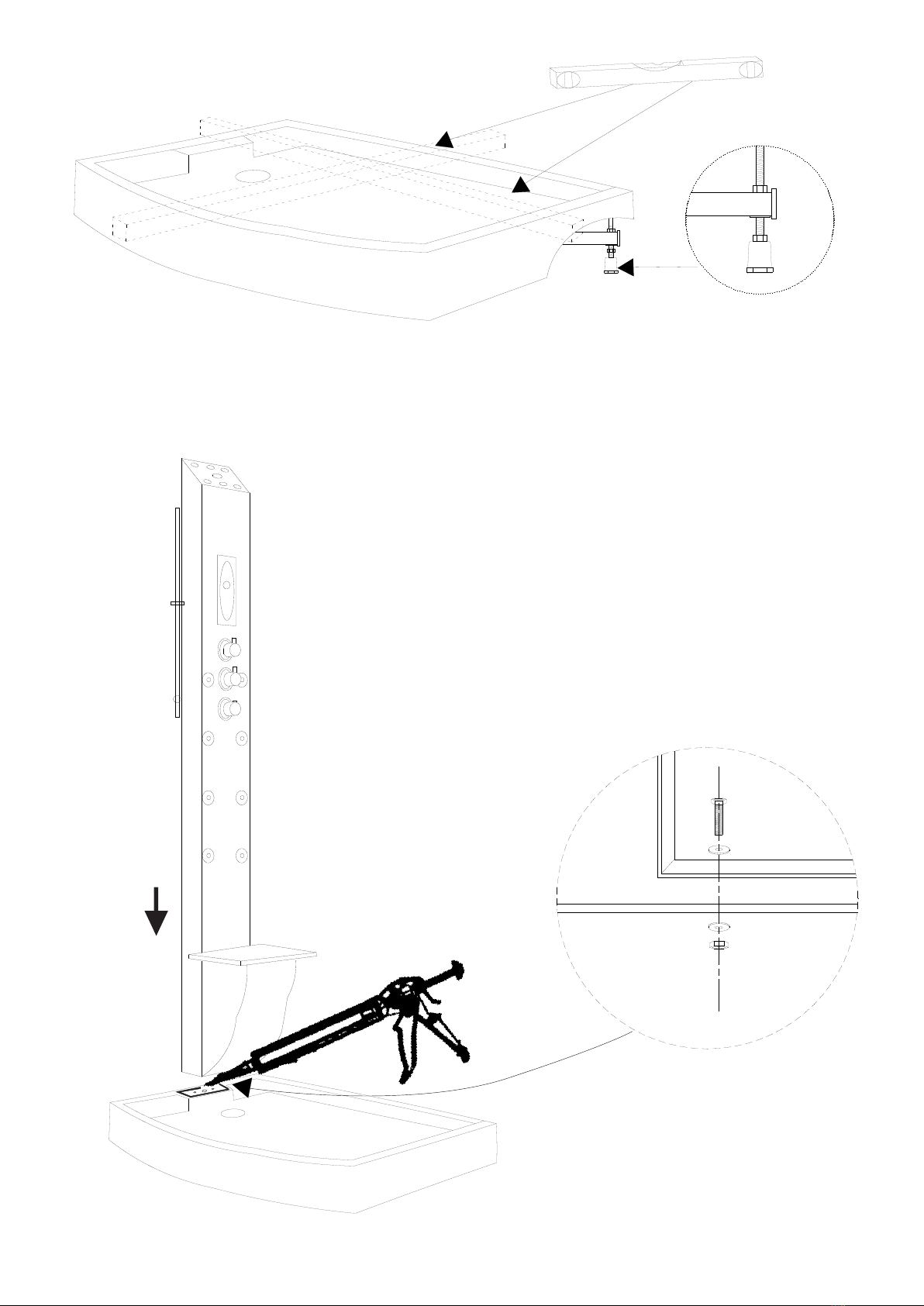

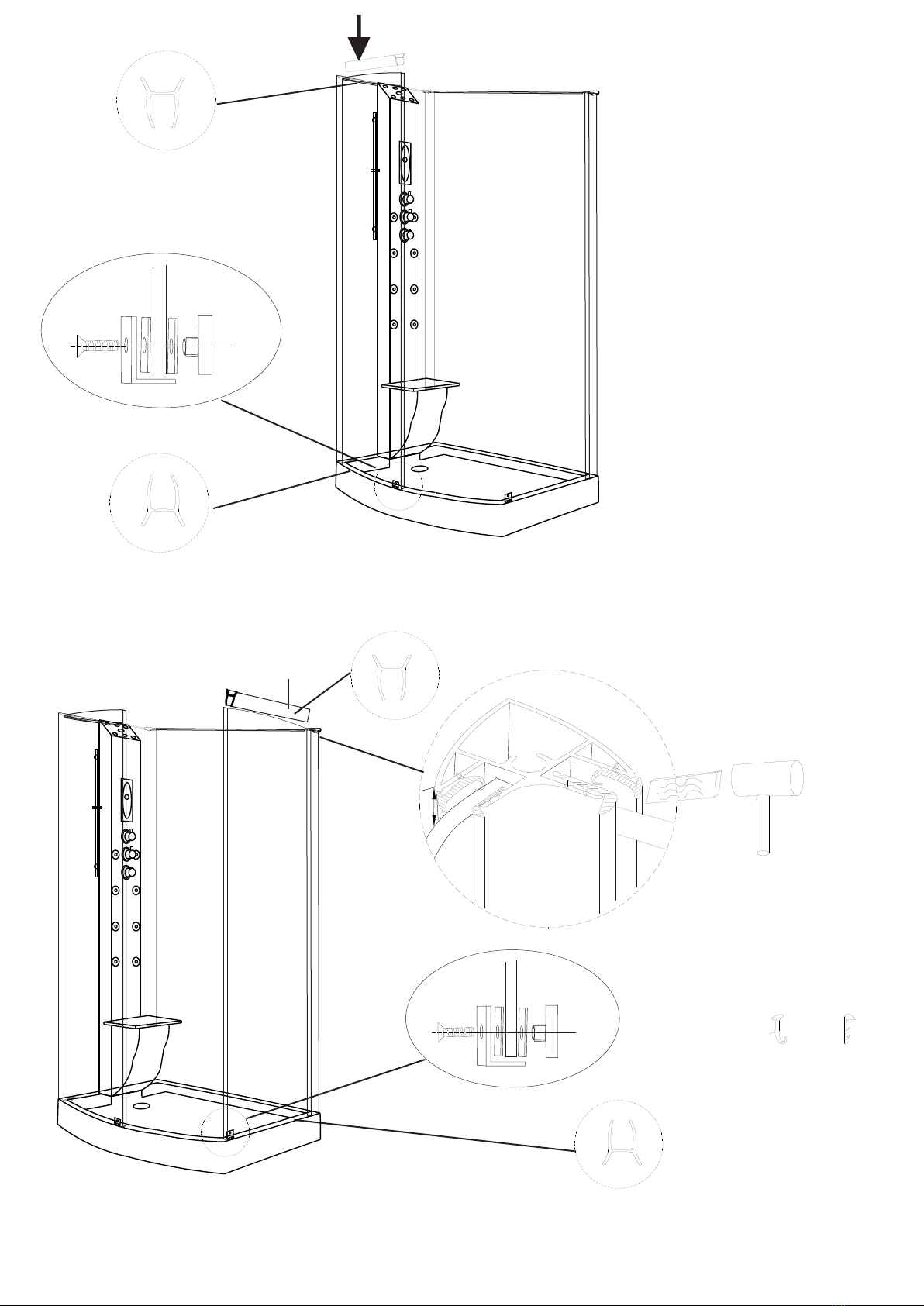

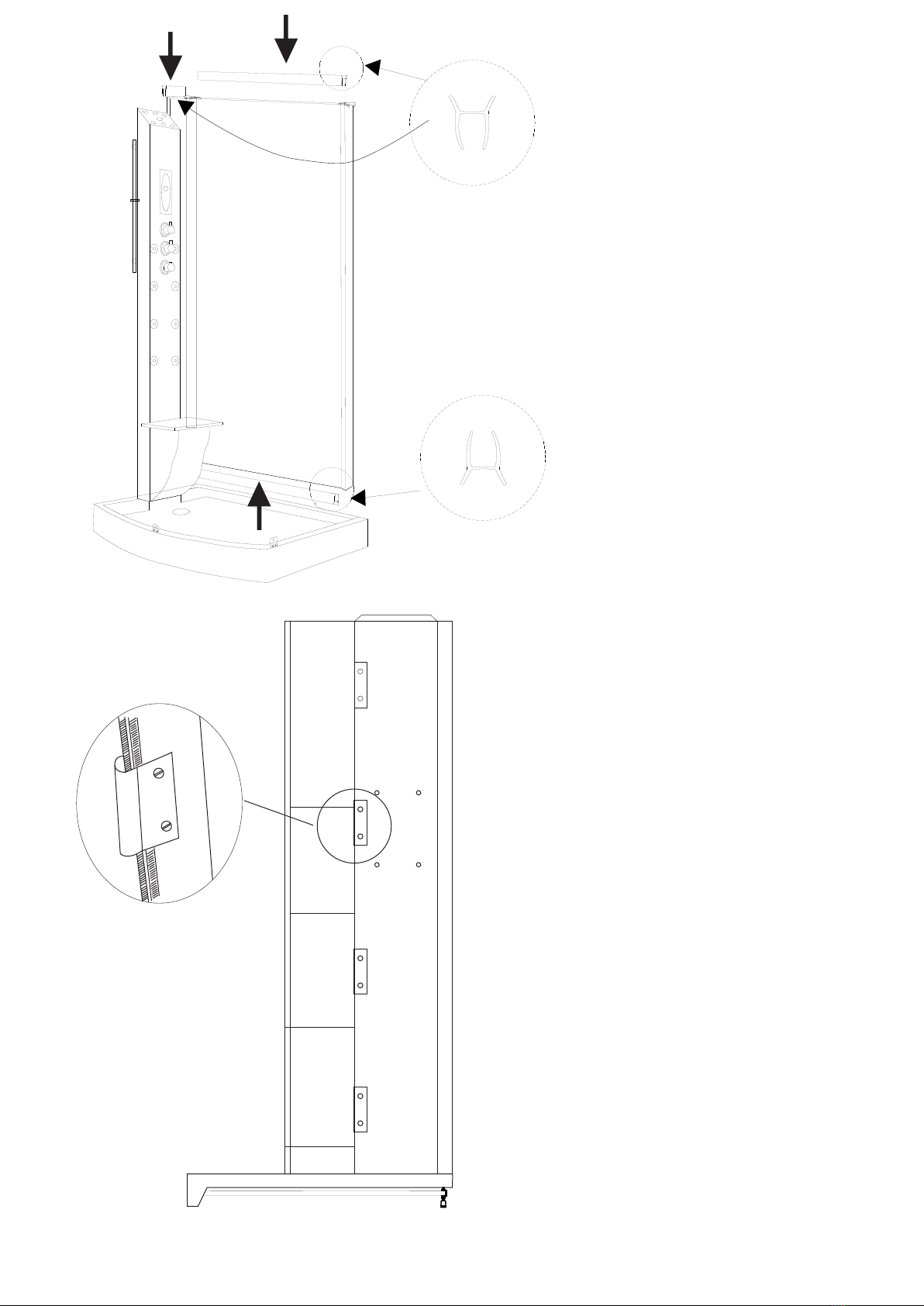

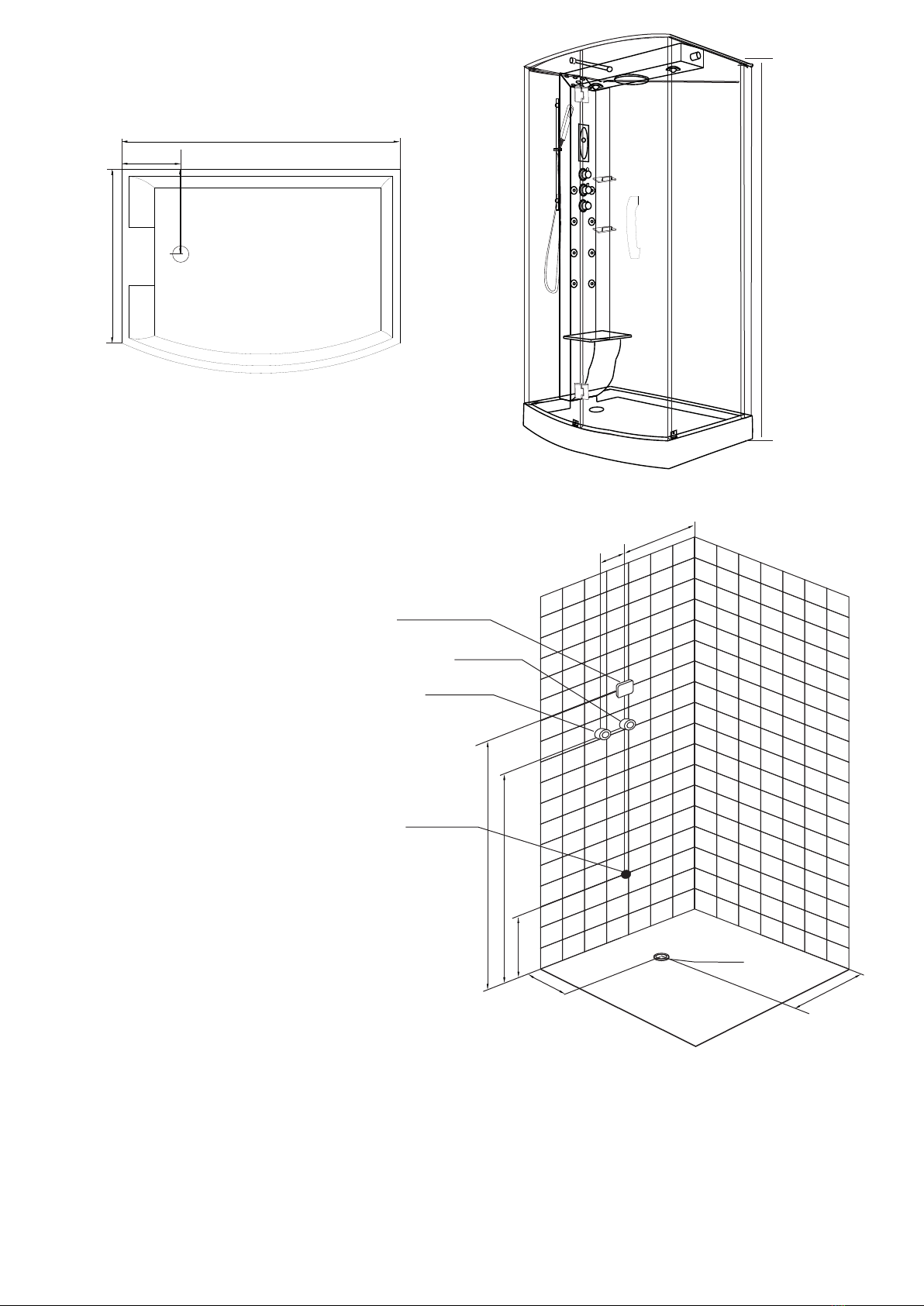

install prepare
300
1200
880
400
280
550
200
1300
1500
370
100
ground line
Drain outlet

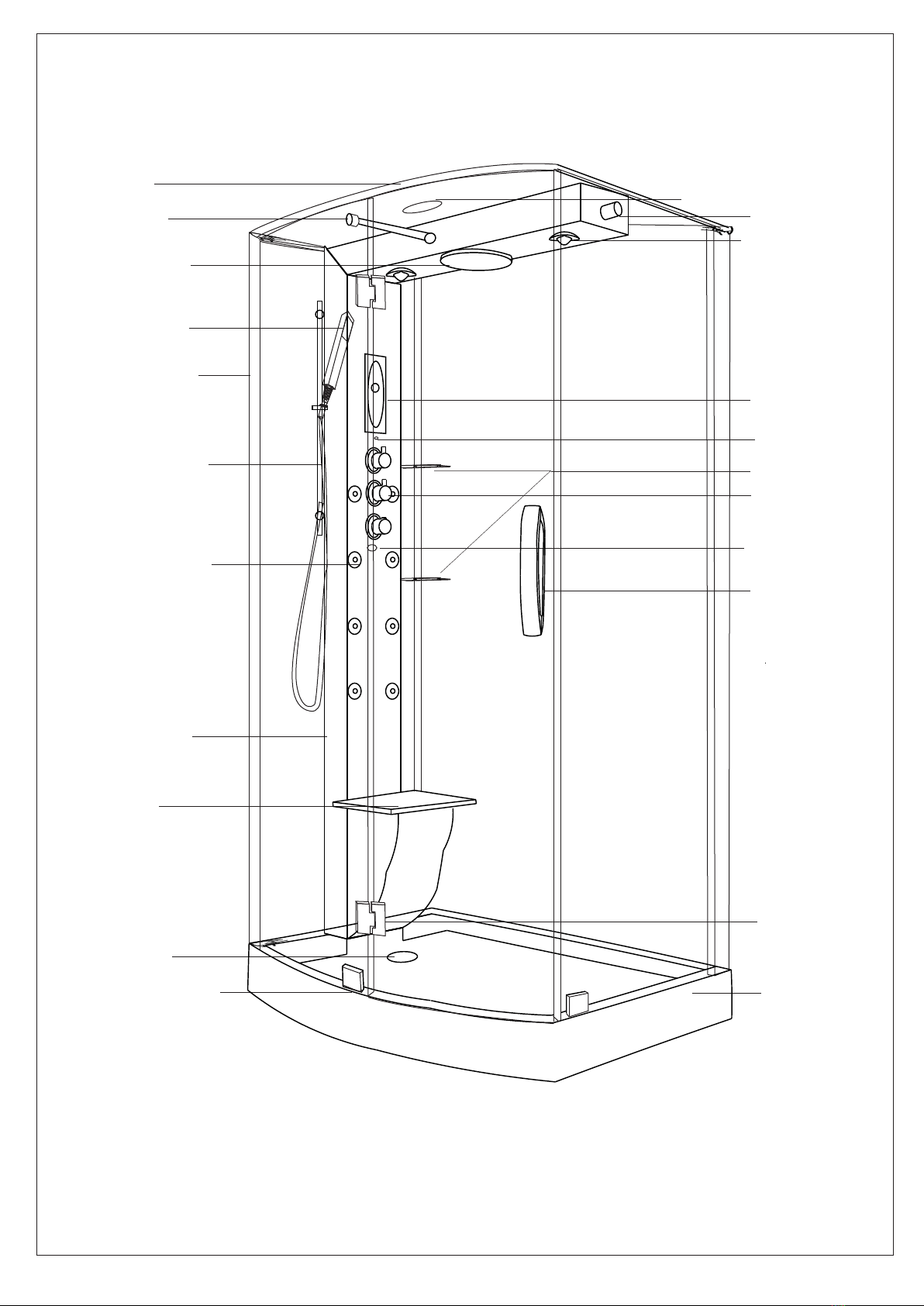

Size:1200x880x2250mm
2250
2
