FCC REQUIREMENT
Please read the user's manual carefully before using the product.
003 004
Wellness Steam Shower Cabins (S6)
SAFETY NOTES
The power supply must be installed according to the local standard and with
GFCI (Ground Fault Current Interrupter). Test the GFCI before using to confirm
its security and validity.
The earthing for electrical appliances should be connected to fixed earth wire
forever.
To avoid electric shock, replacing of power supply wire should be done by professional electri-
cian or distributor. User should not change it by himself.
To avoid electric shock, no extending power supply should be used.The socket
should be in right position. Broken electric wire should be changed in time.
It's forbidden to make any change, adding or cutting to the product.
It's forbidden to use the product after drinking or taking hypnotic medicine.
Children should use the product under custody from adults.
Adjust the low water temperature to high water temperature slowly to avoid scald.
Stop using the product in case user feels uncomfortable.
Rated Power: 3.0KW 4.5KW
Rated Voltage: Single Phase AC220V Double Phase AC240V
Single Phase AC110V
Rated Electric Current: 16A 20A
Frequency: 60Hz 50Hz
Power Supply Location: on wall On floor
Rated Water Pressure: 0.2--0.6 MPa
Water Supply: DN15 tie-in, hot/cold water
Water Supply Location: on wall on floor
Diameter of Drainage Plpe: 50 (drainage pipe supplied with products)
Length of Drainage Pipe:1000mm (the maximum length after stretched)
Parameter for Steam Cabin

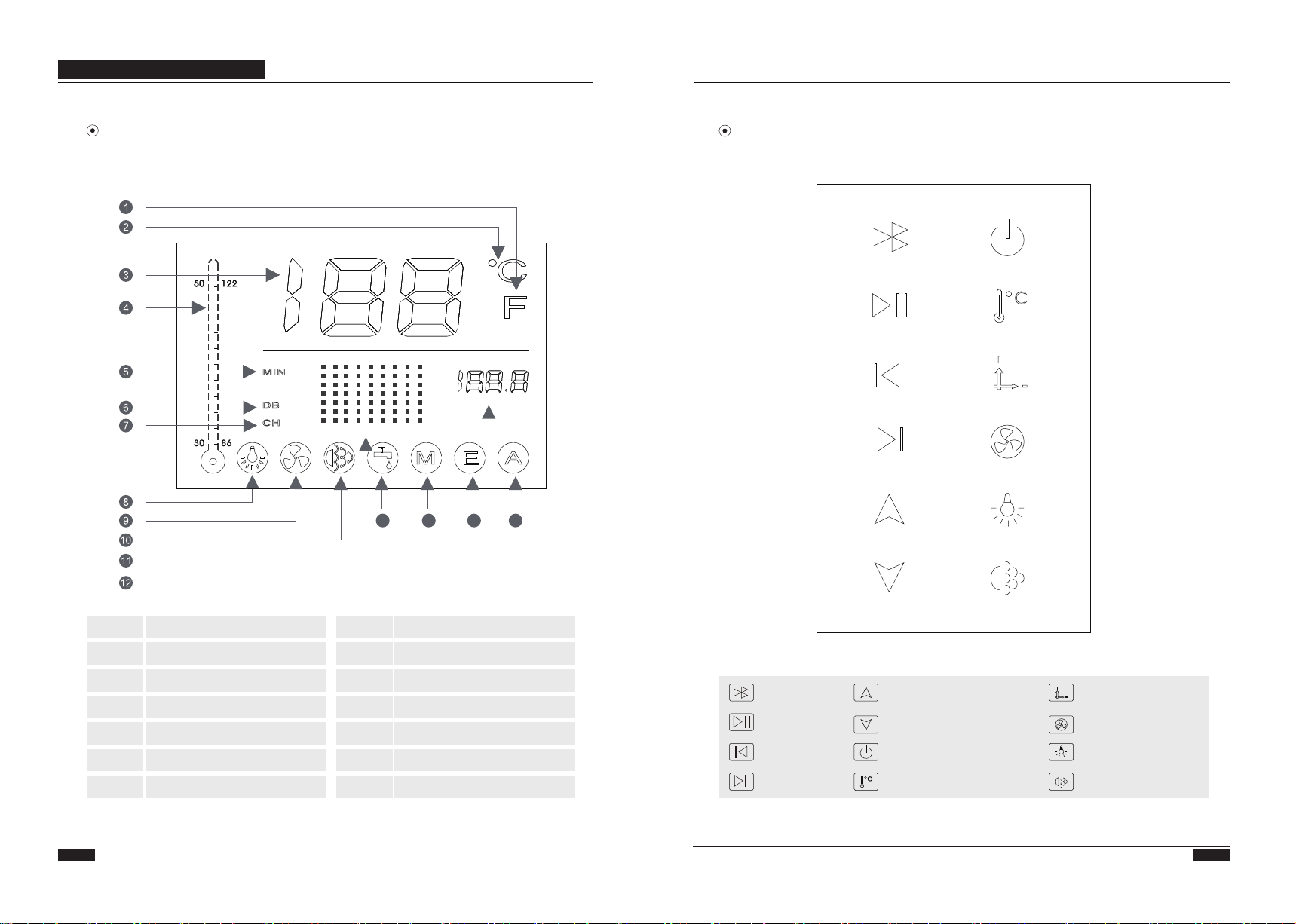

LCD DISPLAY
Fahrenheit degree
Celsius degree
Temperature
Temperature indicator
Time setting
Volume
Musical selection
Chromatherapy on/off
Ventilator on/off
Steam on/off
Power on indicator
Bluetooth on/off
Standby for S8 system
Standby for future upgrade
8
9
10
11
12
13/15
14/16
Parts Information Control Panel for steam cabin
13 14 15 16
1
2
3
4
5
6
7
Bluetooth
Play/Pause
Previous
Next
+ Adjustment
- Adjustment
Power on/off
Steam temperature setting
System time setting
Ventilator on/off
Chromatherapy on/off
Steam on/off
005 006
Wellness Steam Shower Cabins (S6)

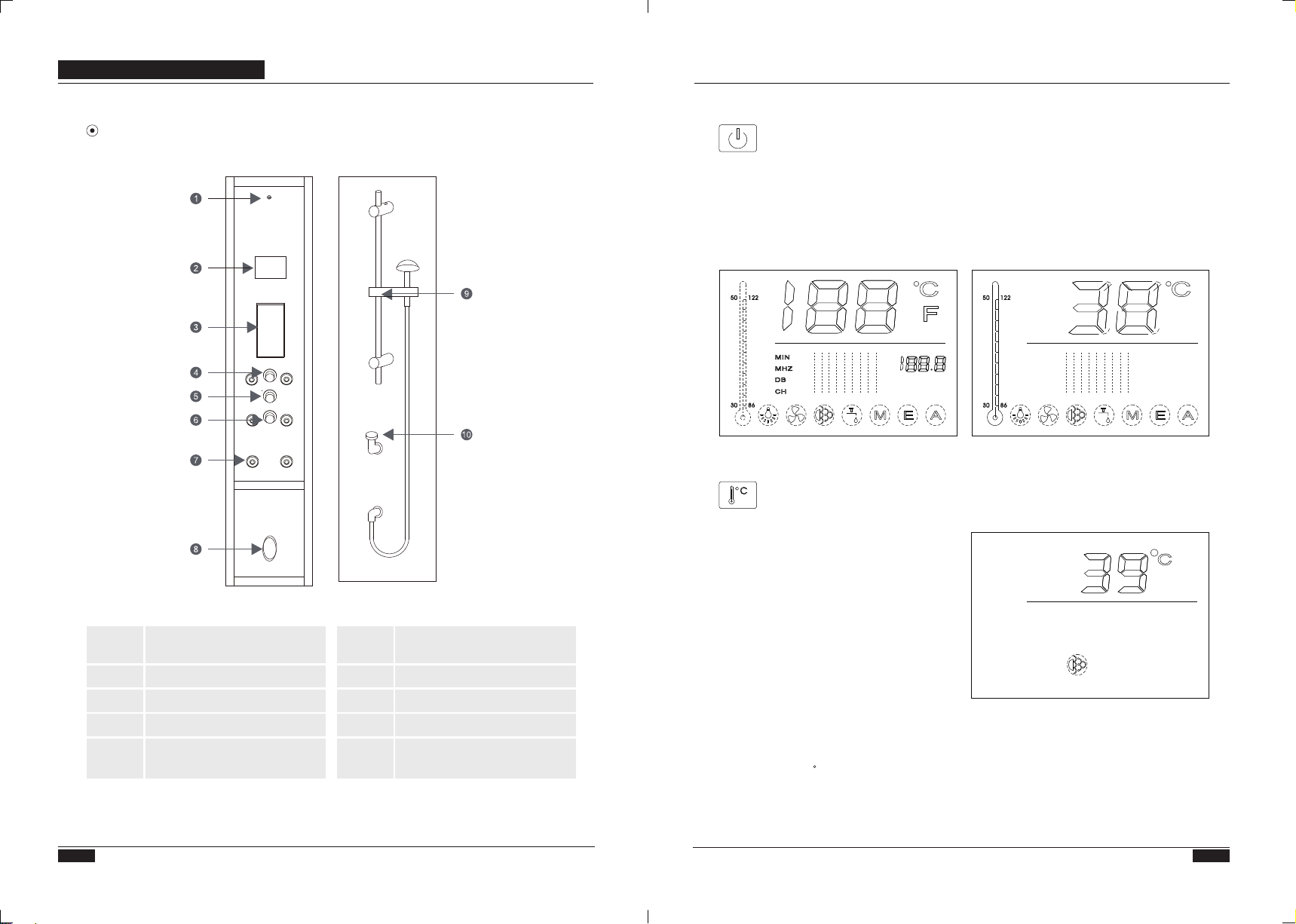

Control Parts Information for steam Cabin
Steam Temperature Sensor
A. Water Volume Adjustment
B. Vitamin dispenser
LCD Display
Control Panel
Water Diverter
A. Water Temperature Adjustment
B. Water Volume Adjustment
Back Massage Jet
Steam Outlet
Hand Shower Set
Steam Generator
Cleaning Liquid lnlet
1
2
3
4
5
6
7
8
9
10
Push any button to light the display and （Picture 1） shows on screen. Push power on/off button
now to start the system and （Picture 2） shows on the display. Push power on/off button again to
shut off the system. The display and background light for push buttons are turned off. The drain
valve for steam generator keeps on for 1 minute.
Keep on pushing this button and （Picture 3）
shows on display. The figure of temperature is
changing from 20 to 59 circularly. Loosen the
button when the figure reaches the desired
temperature and the figure is set as steam
setting temperature. The steam generator
stops working when the temperature inside
steam cabin is higher than setting temperature.
The steam generator starts working automati-
cally when the temperature is lower than setting
temperature. The default steam setting
temperature is 45 C/113F if the user does not
make any steam temperature setting.
Picture 3
Power on/off
Steam temprature setting
Picture 1 Picture 2
007 008
Wellness Steam Shower Cabins (S6)
Notes：A: Thermostatic faucet B: VC faucet
009 010
Wellness Steam Shower Cabins (S6)
Chromatherapy
System time setting

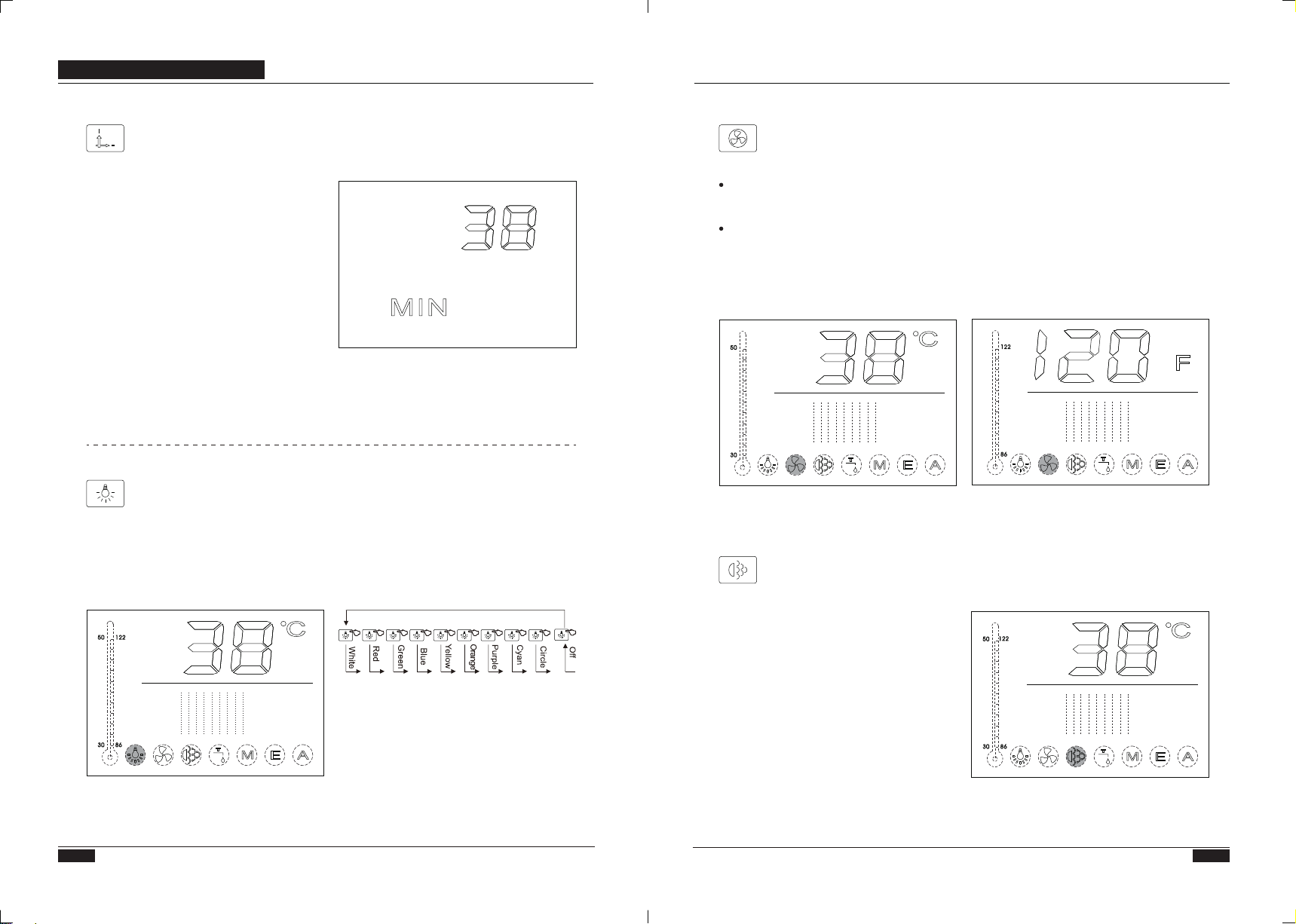

Keep on pushing this button and （Picture 4）
shows on display. The figure is changing from
20-59 circularly. Loosen the button when the
figure reaches the desired one and the figure
is set as working time for system.
The system is automatically shut off when the
working time reaches the setting time. The
default working time is 45 minutes if the user
does not make setting for working time of the
system.
Picture 4
This button controls the color of chromatherapy lamps. When chromatherapy function starts, the
lamp symbol on LCD display twinkles （Picture 5）.The order of light color is as below
（picture 6）.
picture 6
picture 5
Ventilator
Picture 7 Picture 8
Picture 9
This button turns steam on/off. Push this
button,
the steam symbol is twinkling on LCD
display.
The steam function is automatically
turned off
when the temperature inside steam
cabin is
higher than the set temperature. And
the steam function will be turned on automati-
cally when the temperature inside steam cabin
is lower than the set temperature.（Picture 9）
Steam on/off
This button turns ventilation on/off. When ventilation is on, the ventilation symbol on LCD
display twinkles.
Celsius/Fahrenheit Conversion: Keep on pushing this button for at least 3 seconds to make
conversion between Celsius degree and Fahrenheit degree. And the picture is changing
between （Picture 7） and （Picture 8）.
011 012
Wellness Steam Shower Cabins (S6)

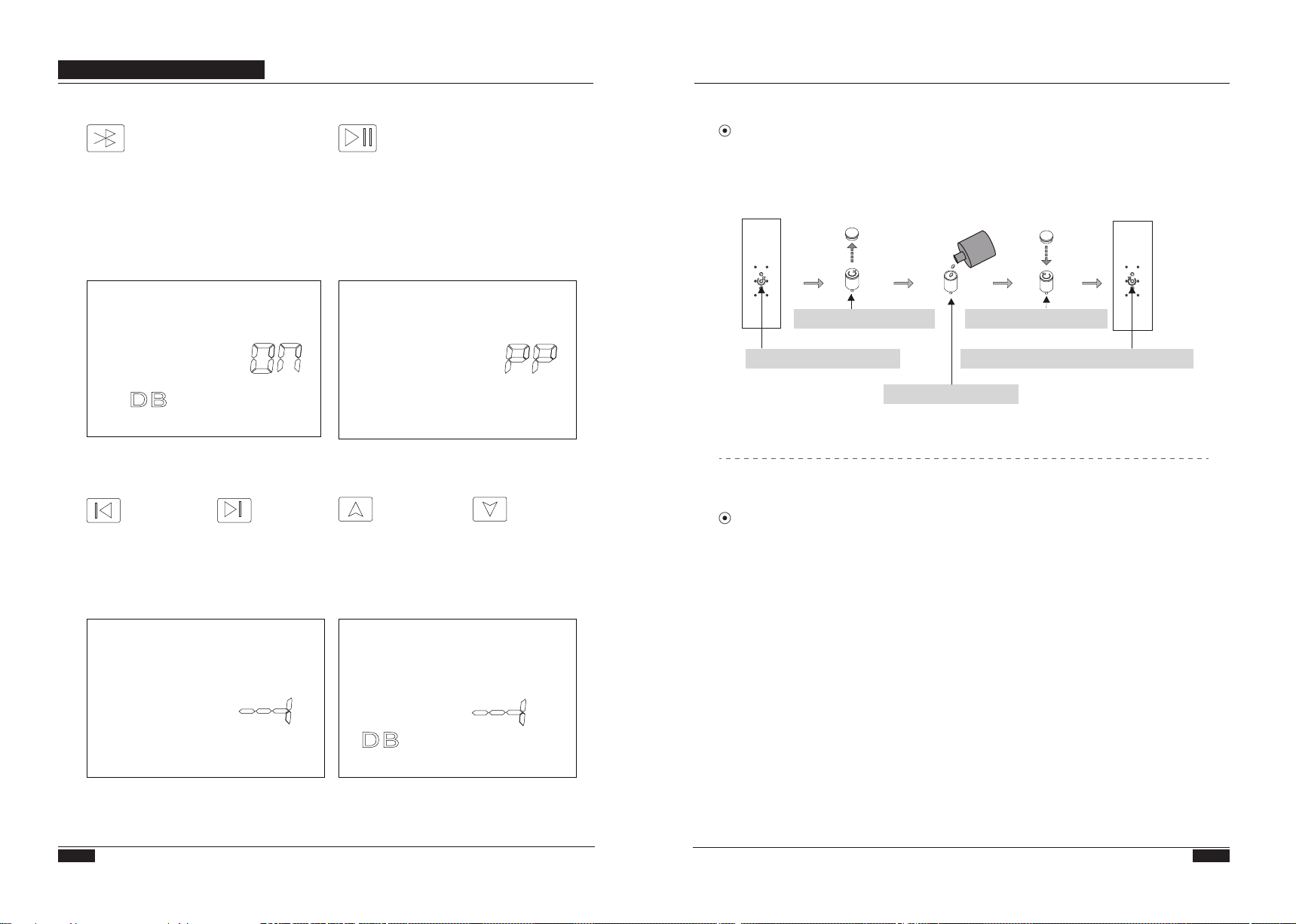

Bluetooth Play/Pause
Picture 10 Picture 11
Push the on/off button twice to start the
system and push this button. Then turn on
the bluetooth on the phone and select
'HW-Audio' to get paired.（Picture 10）
After pairing with mobile phone, push this
button to play/pause the music.（Picture 11）
Push previous/next to select music and CH
symbol on LCD display twinkles.（Picture 12）
CH
Picture 12
Previous Next
Push these two buttons to adjust the volume.
The DB symbol on the LCD twinkles.
（Picture 13）
Volume + Volume -
Picture 13
Bluetooth on: pair with mobile phone
Bluetooth version: 2.0
How to use Vitamin shower
How to put in Vitamin
How to use Vitamin shower
Vitamin C tablet could be put into Vitamin dispenser directly;
Vitamin E tablets usually has gel coat which should be punctured before it's put into Vitamin
dispenser; Please take out Vitamin C/E tablet if the shower is not used for a long time; Other skin
care materials such as olive oil could be put into the dispenser as well.
Take off Vitamin dispenser Install Vitamind ispenser onto shower panel
Open Vitamin dispenser Close Vitamin dispenser
Put in Vitamin C/E tablet
013 014

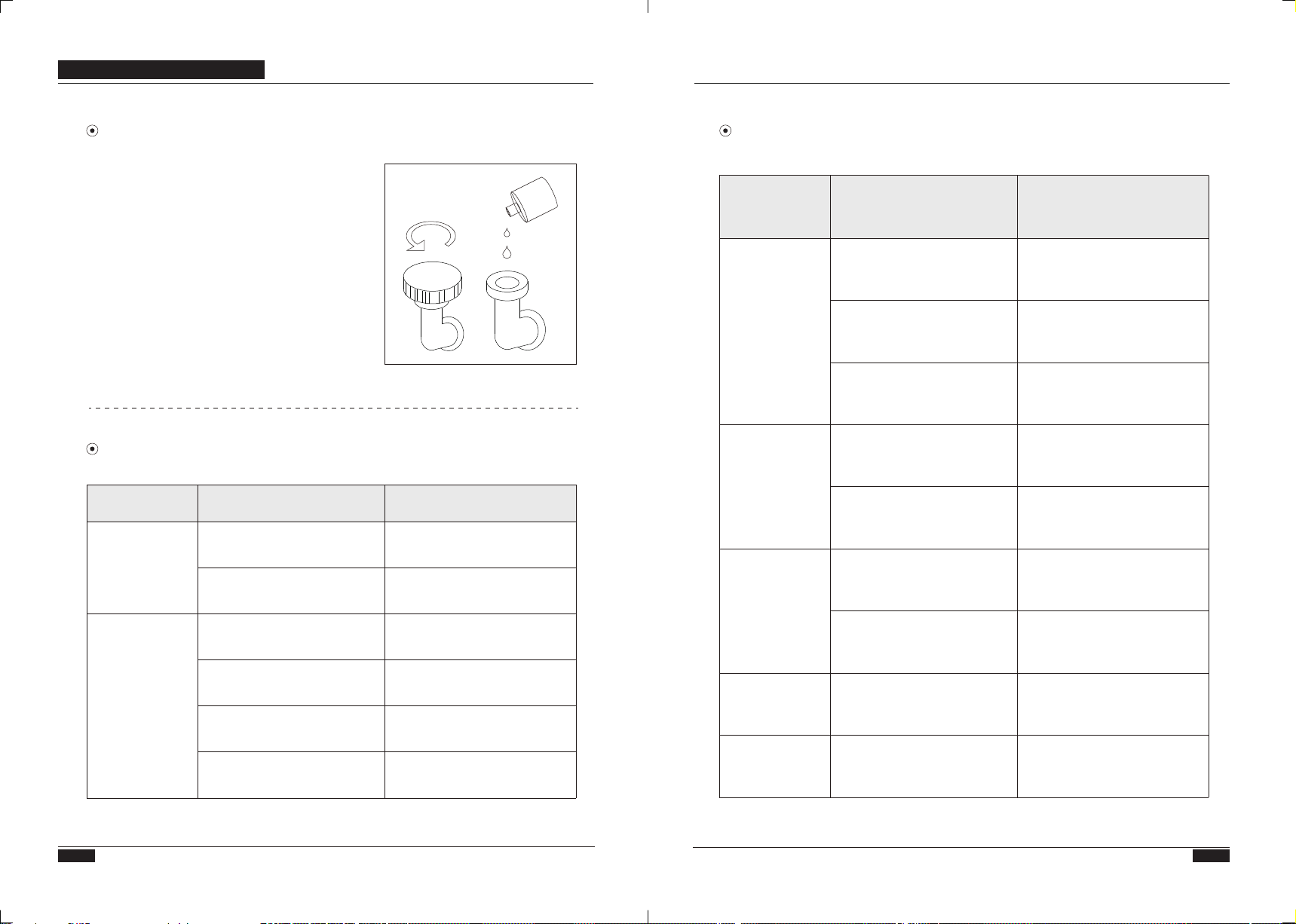

Wellness Steam Shower Cabins (S6)
CAUSE SOLUTION
TROUBLE
Thermal switch in the heater
is wrong.
The heater is wrong.
No Steam
Steam generator
keeps adding
water.
Power supply is
off when on/off
button is pushed.
Water leaks
from valve.
Water flow
volume is low.
Change thermal switch installed
inside the heater.
The set temperature is lower
than room temperature.
The water inlet electro-
magnetic valve is wrong.
Water level sensor could not
detect signal.
There is creepage from heater.
There is creepage from
thermal switch inside heater.
Water supply has impurities
and jammed the filter net. Get filter net cleaned.
Change the seal.
Replace thermal switch.
Replace heater.
Clean scale on water level
sensor or replace it.
Replace water inlet valve
The seal is damaged.
Reset temperature.
Change the heater.
Trouble Shooting for Steam Cabin
Remove the cover of cleaning liquid inlet and input
around 1L of citric acid or acetic acid. Then start steam
function to fill steam generator with water. Stop steam
function before steam coming out (acid steam has
causticity to plated parts. If a lot of acid steam come out,
the plated parts become cloudiness after some time.)
Do not shut off the control system and keep it on. The
scale in the steam generator dissolves in acid liquid and
the system drains the dirty water out automatically after
60 minutes. Clean the steam generator every 3 months.
Steam Generator Cleaning
CAUSE SOLUTIONTROUBLE
1.Communication line is short
circuit or open circuit.
Check connection between
control panel and power box.
Change control panel or
power box.
Turn on the water supply valve.
Use the product when water
supply is normal.
Check water inlet valve and
output signal from it.
Clean scale on water level
sensor or replace it.
2.The control system is wrong.
1.The water supply is shut off.
2.No water supply in this area.
3.The water inlet valve cannot
be turned on.
4.The water level sensor is wrong.
Touch panel
does not work.
No Steam
Trouble Shooting for Steam Cabin
015
Wellness Steam Shower Cabins (S6)

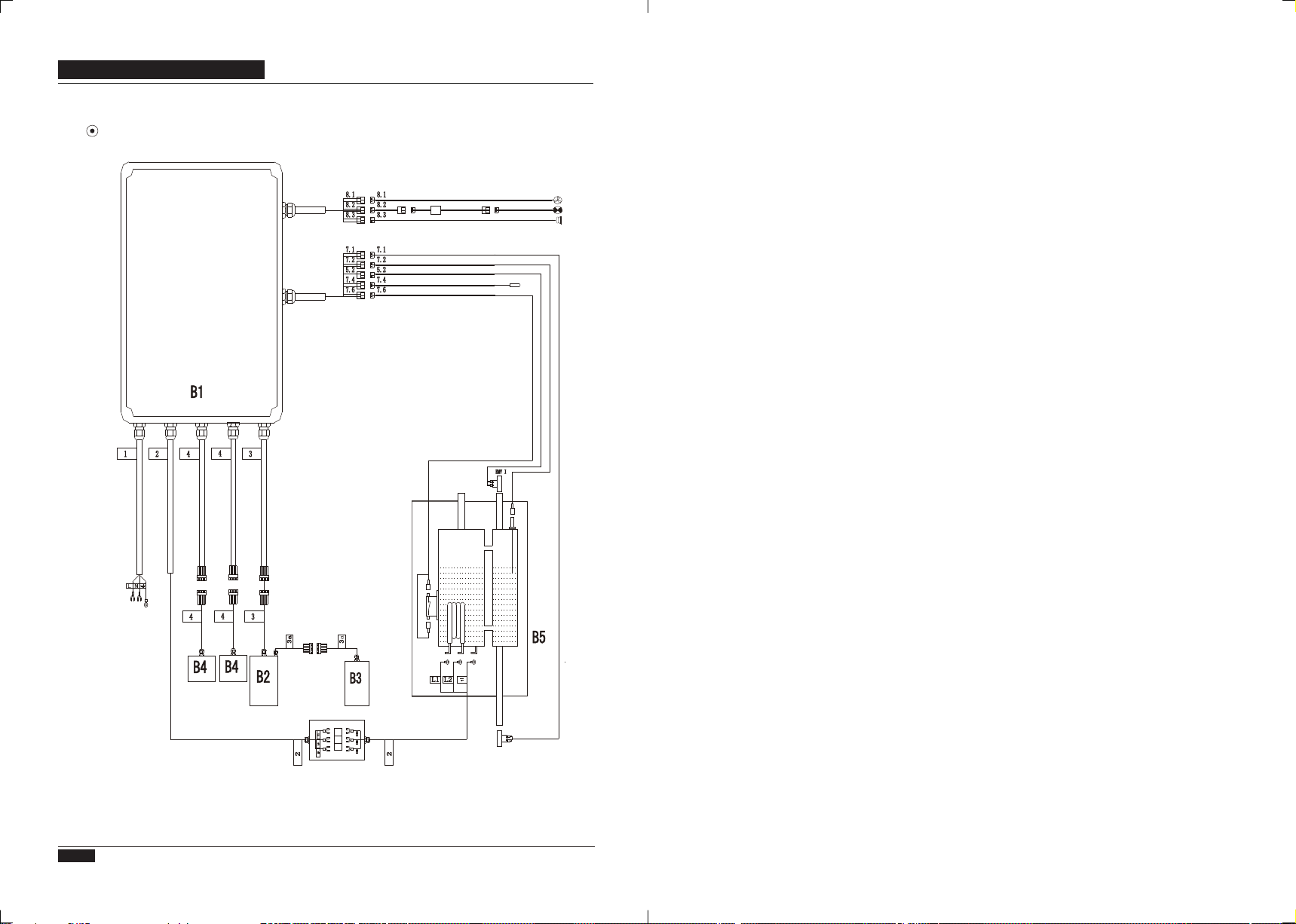

S6 Wiring Diagram
The shaded part is only for the steam room which have double-faced contorl system.
Junction box
Ventilator
Adapter Chromatherapy lamp
Drain for steam generator
Water level sensor
Water inlet for steam generator
Air temperature test
Overtemperature protection Air temperature sensor
EMV(Electro-magneticc Valve)
Heater
Power supply
Heater
B4 display
B4 display
B3 touch panel
B3 touch panel
Thermal switch
Water level sensor
Speaker
The yellow and
green wire must be
connected to the
earth.
EMV J
