APS iBoard IB-R296 Manuel utilisateur
iBoard
®
Customer Support: info@iboardauto.com
Rev. 20220301
1
iBoard® by APS PART#: IB-R296
READ INSTRUCTIONS CAREFULLY BEFORE START ING
INSTALLATION. REMOVE CONTENTS FROM BOX AND
VERIFY ALL PARTS ARE PRESENT. ASSISTANCE IS
RECOMMENDED.
*ROCKER PANEL MOUNT
*NO DRILLING REQUIRED
Fastener Size Tightening Torque (ft-lbs) Required
6mm 6-7 √
8mm 16-18 √
10mm 31-32 X
12mm 56-58 X
14mm 92-94 X
Front
1# 1#
1#
1#
Driver Passenger
iBoard
®
Customer Support: info@iboardauto.com
Rev. 20220301
2

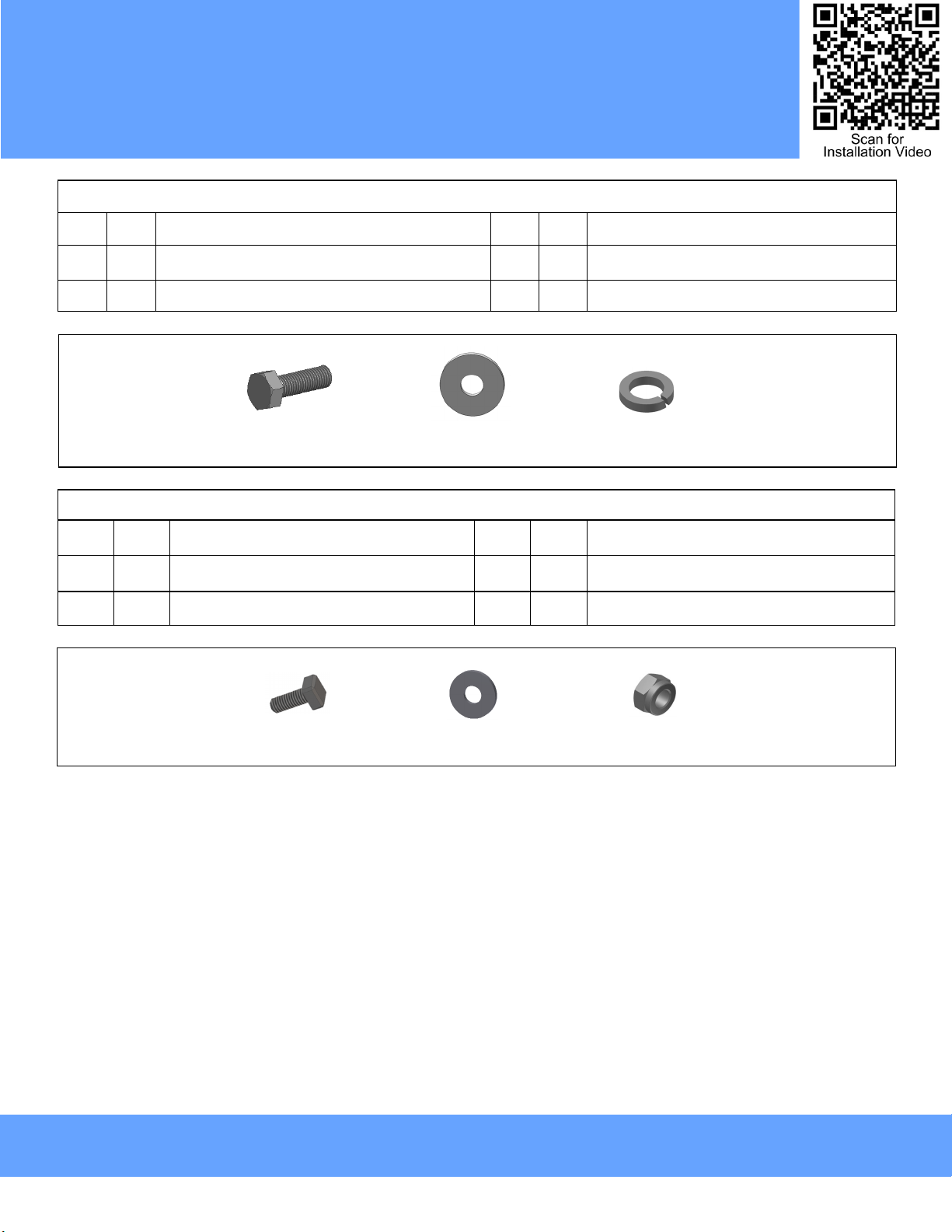

Hardware Package A (For Bracket Installation)
Item QTY Description Item QTY Description
1# 4Mounting Brackets 3# 8M8 Large Flat Washers
2# 8M8X1.25-30mm Hex Bolts 4# 8M8 Lock Washers
2 # 4 #3 #
2#
1# 3#
Hardware Package B (For Step Bar Installation)
Item QTY Description Item QTY Description
1# 8M6X1-20mm Square Head Bolts 3# 8 M6 Nylon Lock Nuts
2# 8M6 Large Flat Washers
iBoard
®
Customer Support: info@iboardauto.com
Rev. 20220301
3
STEP 1
Start installation from the driver side front of the vehicle. Locate
the plastic plugs along the bottom edge of the body, (Fig 1).
Remove the plastic plugs from the front mounting location. Di-
rectly above each threaded insert is a top mounting location on
the side of the body panel. Hold a Bracket up in place to help
determine the correct mounting holes to use along the body.
NOTE: Thread an M8 Hex Bolt into the threaded inserts to
clear paint as required.
STEP 2
Start from the driver front mounting location, (Fig 2). Select (1)
Mounting Bracket. Bolt the Mounting Bracket to the factory
threaded holes with (2) M8X1.25-30mm Hex Bolts, (2) M8 Lock
Washers and (2) M8 Large Flat Washers, (Fig 3). Do not fully
tighten hardware at this time.
(Fig 1) Remove The Plastic Plugs
Remove Plugs
Front
STEP 3
Continue move to the driver side rear of the vehicle, (Fig 4).
Repeat Steps 1 –2 to install the remaining driver side Bracket
in the rear location.
Note: (4) Mounting Brackets are universal.
(Fig 2) Driver Front Mounting Location
Front
(Fig 3) Driver Side Front Mounting Bracket Installation
Front
(Fig 4) Driver Side Rear Mounting Location
Front
(2) M8X1.25-30mm Hex Bolts
(2) M8 Lock Washers
(2) M8 Large Flat Washers
iBoard
®
Customer Support: info@iboardauto.com
Rev. 20220301
4

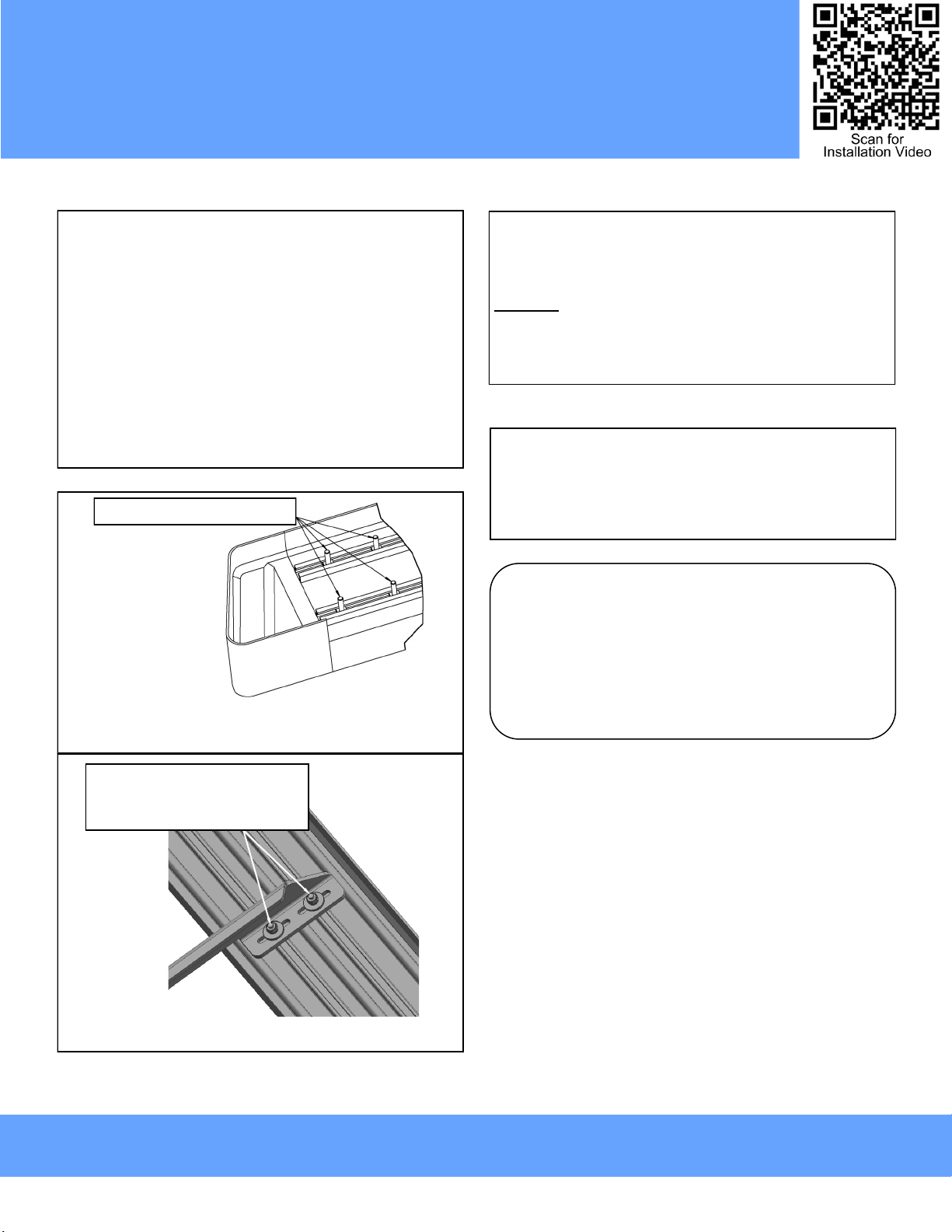

STEP 4
Once all (2) mounting brackets are installed. Select a Running
Board. Slip (2) M6X1-20mm Square Head Bolts into each bot-
tom channel (Fig 5). Carefully position the Running Board onto
the (2) Mounting Brackets. Attach the Running Board to each
Mounting Bracket with (2) M6X1-20mm Square Head Bolts, (2)
M6 Large Flat Washers and (2) M6 Nylon Lock Nuts (Fig 6).
Do not fully tighten at this time.
IMPORTANT: Do not slide the Running Board on the Brackets
or the bottom surface of the board will be damaged.
(Fig 6) Running Board Installed Onto Mounting Bracket
(2) M6X1-20mm Square Head Bolts
(2) M6 Large Flat Washers
(2) M6 Nylon Lock Nuts
(Fig 5) Slip M6X1-20mm Square Head Bolts Into The
Bottom Channels
M6X1-20mm Square Head Bolts
STEP 6
Repeat Steps 1-5 for the other side Running Board installation.
The installation is completed.
Attention
Do periodic inspections to the installation to make sure
that all hardware is secure and tight.
In order to protect your bars/boards, please use mild
soap/non-abrasive products for cleaning only.
STEP 5
Level and adjust the Running Board and fully tighten all hard-
ware.
Important: Please follow the recommended Tightening Tor-
ques shown in the table on page 1. Don’t over tighten, or
the nuts/bolts will be damaged.
