APS IBoard IB-R094 Manuel utilisateur

Customer Support: info@iboardauto.com

Rev. 20211001

iBoard

iBoard® by APS PART#: IB-R094/R095/R952

READ INSTRUCTIONS CAREFULLY BEFORE START ING

INSTALLATION. REMOVE CONTENTS FROM BOX AND

VERIFY ALL PARTS ARE PRESENT. ASSISTANCE IS

RECOMMENDED.

*ROCKER PANEL MOUNT

*NO DRILLING REQUIRED

Item QTY Description Item QTY Description

1# 6Mounting Brackets 4# 12 M6 Large Flat Washers

2# 12 M8 Hex Flange Nuts 5# 12 M6 Nylon Lock Nuts

3# 12 M6X1-20mm Square Head Bolts

2 # 5 #

4 #

3 #

Fastener Size Tightening Torque (ft-lbs) Required

6mm 6-7 √

8mm 16-18 √

10mm 31-32 X

12mm 56-58 X

14mm 92-94 X

Customer Support: info@iboardauto.com

Rev. 20211001

iBoard

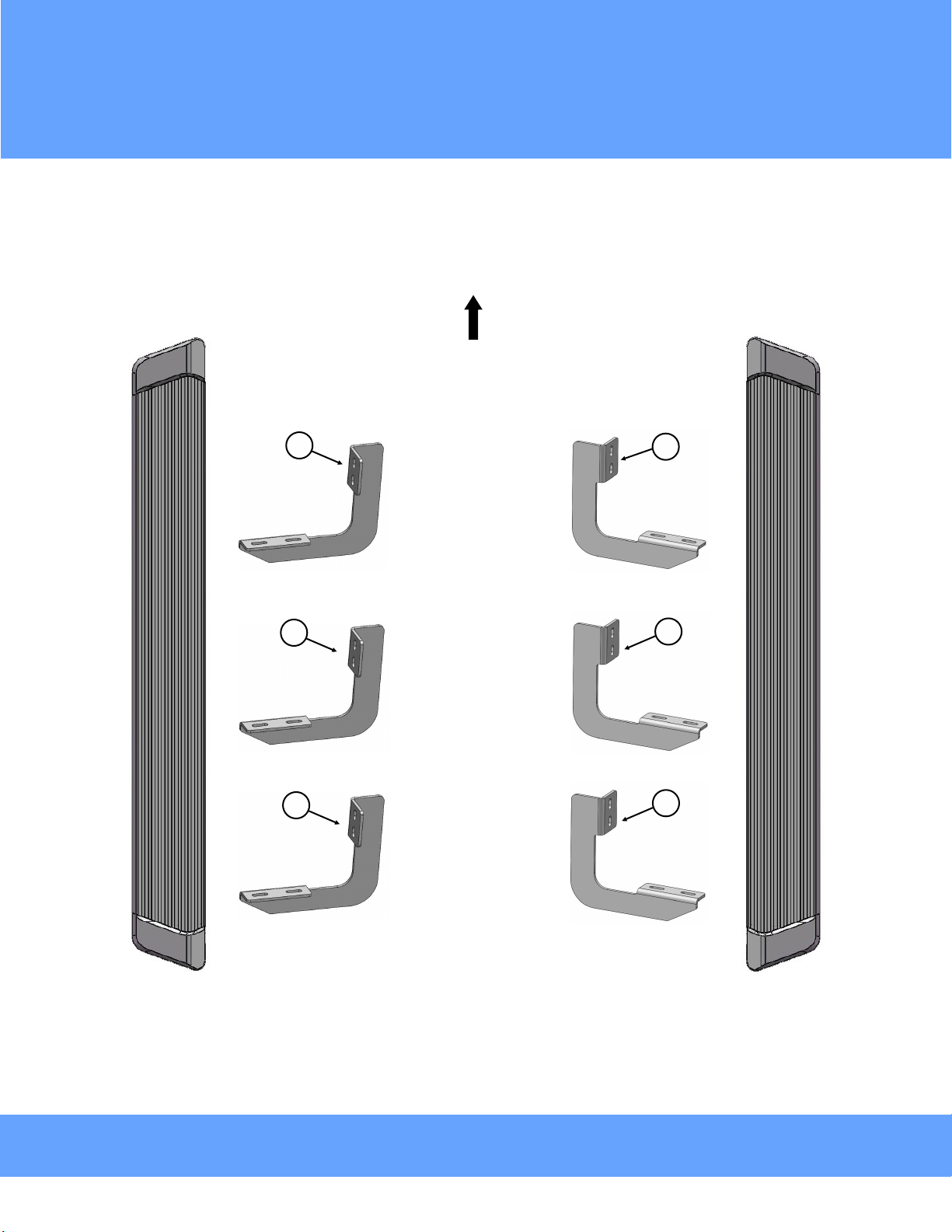

PassengerDriver Front

1# 1#

Customer Support: info@iboardauto.com

Rev. 20211001

iBoard

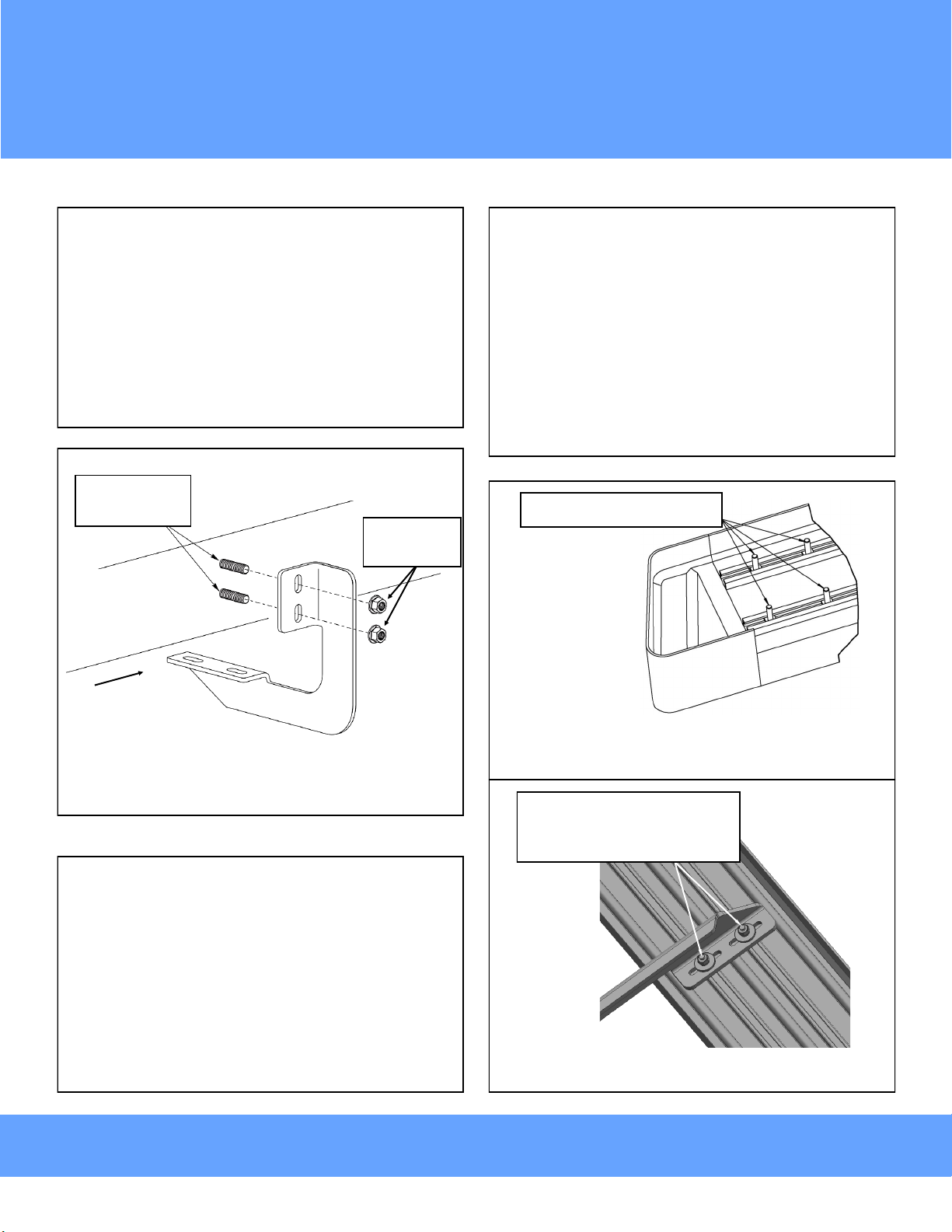

STEP 1

Start installation on the driver side of the vehicle. Locate the

driver side front bracket mounting location. Select (1) Mounting

Bracket, install with (2) M8 Hex Flange Nuts. Do not fully tight-

en hardware at this time.

STEP 2

Move to the Driver Side Center & Rear Mounting location. Re-

peat Step 1 to install the Driver Side Center & Rear Mounting

Bracket .

Note: (6) Mounting Brackets are universal.

STEP 3

Select a Running Board. Slip (3) M6x1-20mm Square Head

Bolts into each bottom channel (Fig 2). Carefully position the

Running Board onto the (3) Mounting Brackets.

IMPORTANT: Do not slide the Running Board on the Brackets

or the bottom surface of the board will be damaged. Attach the

Running Board to each Mounting Bracket with (2) M6x1-20mm

Square Head Bolts, (2) M6 Large Flat Washers and (2) M6

Nylon Lock Nuts (Fig 3). Do not fully tighten at this time.

(Fig 2) Slip M6X1-20mm Square Head Bolts Into The

Bottom Channels

M6X1-20mm Square Head Bolts

(Fig 1) Driver Side Front Mounting Bracket Installation

Front

Existing insert

In Body Panel

(Fig 3) Running Board Installed Onto Mounting Bracket

(2) M6X1-20mm Square Head Bolts

(2) M6 Large Flat Washers

(2) M6 Nylon Lock Nuts

(2) M8 Hex

Flange Nuts

Customer Support: info@iboardauto.com

Rev. 20211001

iBoard

STEP 4

Level and adjust the Running Board and fully tighten all hard-

ware.

Important: Please follow the recommended Tightening Tor-

ques shown in the table on page 1. Don’t over tighten, or

the nuts/bolts will be damaged.

STEP 5

Repeat Steps 1-4 for the other side Running Board installation.

The installation is completed .

Attention

Do periodic inspections to the installation to make

sure that all hardware is secure and tight.

In order to protect your bars/boards, please use only

mild soap/non-abrasive products for cleaning.
