AOpen S661FXm-7S Manuel utilisateur

Table of Contents

Table of Contents ................................................................................... 1

1.1 A Thank-you Note Before You Get Start..........................................................3

1.2 Features of This Manual ...............................................................................4

1.3 Safety Information ......................................................................................4

Chapter 2 Introduction to This Motherboard............................................... 5

2.1 How does your motherboard look like?...........................................................5

2.2 Specification...............................................................................................6

2.3 Block Diagram ............................................................................................7

Chapter 3 Hardware Installation............................................................... 8

3.1 Quick Installation Procedure .........................................................................8

3.2 Installation You Have to Know.......................................................................9

Installing CPU............................................................................................ 9

Installing CPU Fan.....................................................................................10

Installing CPU and System Fans..................................................................11

Installing Memory Modules .........................................................................12

Connecting IDE and Floppy Cables ..............................................................13

Connecting Front Panel Cable .....................................................................14

Connecting ATX Power Cables.....................................................................15

3.3 Other Installation for Your Reference ...........................................................16

Setting CPU Voltage and Frequency.............................................................16

Connecting Serial ATA (for s661FXm-7S only)...............................................17

Adjusting your Hard Disk Setting (for s661FXm-7S only)................................18

Connecting AGP 8X Expansion Slot ..............................................................19

Connecting IrDA........................................................................................20

10/100Mbps LAN Supported .......................................................................21

Connecting USB2.0....................................................................................22

Connecting S/PDIF ....................................................................................23

Tab

Super 5.1 Channel Audio Effect...................................................................24

Connecting Front Audio..............................................................................25

Connecting CD_IN.....................................................................................26

Connecting AUX_IN ...................................................................................27

Colored Coded Back Panel..........................................................................28

LED Indication ..........................................................................................29

3.4 Jumper Settings........................................................................................30

Chapter 4 Special Features and Utilities................................................... 31

RAID (Redundant Array of Independent Disks) ...................................................31

RAID BIOS Setting Utility (for s661FXm-7S only) ..........................................31

Other Useful Features......................................................................................32

Chapter 5 Setting BIOS......................................................................... 33

Introduction .............................................................................................33

How To Use Phoenix-Award™ BIOS Setup Program .......................................34

How To Enter BIOS Setup ..........................................................................34

BIOS Upgrade under Windows environment..................................................35

Vivid BIOS technology ...............................................................................37

Chapter 6 Installing Drivers................................................................... 38

6.1 Installing Drivers.......................................................................................39

6.2 Installing Utilities ......................................................................................40

Chapter 7 Troubleshooting..................................................................... 41

Chapter 8 Technical Support .................................................................. 42

Model Name and BIOS Version....................................................................43

Technical Support......................................................................................44

1.1 A Thank-you Note Before You Get Start

First of all, we would like to express our gratitude for purchasing AOpen products.

Once again, this motherboard is designed uniquely to meet all your personal

needs with our great industry-designing ability and our everlasting perseverance

to the quality of all our products.

This manual will introduce you how this motherboard is installed. Please keep it

well for your future reference. If you lost your printed manual, you may also go to

our website at http://www.aopen.com to download the updated file.

Now, we would like to invite you to personally experience this user-friendly

manual and all of the powerful functions this AOpen product offers.

The logos of Adobe and Acrobat are the registered trademarks of Adobe Systems

Incorporated.

The logos of AMD, Athlon, and Duron are the registered trademarks of Advanced Micro

Devices, Inc.

The logos of Intel, Intel Celeron, Pentium II, III and Pentium 4 are the registered

trademarks of Intel Corporation.

The logos of nVidia are the registered trademarks of nVidia Corporation.

The logos of Microsoft, Windows are the registered trademarks of Microsoft Corporation in

America and other countries.

All the titles of the products and the trademarks mentioned in this manual are for the

purpose of illustrative conveniences and are possessed by their respective firms.

We regret not informing about any changes in usage standards and other related

information. AOpen reserves the right of altering or modifying the content of this manual. In

case of any mistakes or incorrect descriptions, which include those on the products, AOpen

makes no guarantee or commitments.

This document is based on the copyright laws in order to protect our company and reserve

all rights.

Under no circumstances are any types of duplicating and loading this brochure in any

databases and media permitted except the permission signed on formal document by

AOpen Company.

1.2 Features of This Manual

To help you grab the useful information of this motherboard and aware of certain

conditions that you might need to know, you will see the icons below frequently:

1.3 Safety Information

This contains knowledge you should know in process

of assembling, or some helpful tips.

This tip tells you some useful information that will

make your installation smoothly.

Please be careful when you see this mark. It

highlights mistakes that occur often during

assembling, or something you need to pay attention

to.

Please wear a wrist strap and attach it to a metal part of the system unit

before handling a component. Alternatively, you can also touch an object

that is of ground connection or with metal surface.

Always unplug the power before you make any jumper setting.

Before you install or remove any components on the motherboard, please

make sure to disconnect the power first in case of damaging motherboard

or other components.

Note

Warning

Warning / Caution

Warning

Tip

Chapter 2 Introduction to This Motherboard

2.1 How does your motherboard look like?

1. JP28 PS2 KB/Mouse Wakeup Jumper 14. Onboard Realtek AC’97 CODEC

2. STBY LED 15. Front Audio Connector

3. AGP Protection LED 16. S/PDIF Connector

4. 4-pin 12V ATX Power Connector 17. AUX_IN Connector

5. SYSFAN1 18. CD_IN Connector

6. AGP Expansion Slot 19. 32-bit PCI Expansion Slots x 3

7. LGA775 CPU Socket supporting Intel

7. FC-LGA4 CPU 20. SYSFAN2 Connector

8. SiS 661FX/964 Chipsets (s661FXm-7S)

8. SiS 661FX/964L Chipsets (s661FXm-7) 21. USB2.0 Connectors x 2

9. CPUFAN Connector 22. DieHard BIOS Lite

10. 184-pin DIMMs x 2 23. Serial ATA Ports x 2 (s661FXm-7S)

11. ATA 133 Connectors x 2 24. JP14 CMOS Data Clear Jumper

12. 20-pin ATX Power Connector 25. Front Panel Connector

13. IRDA Connector 26. FDD Connector

Chapter 2 Introduction to This Motherboard

8 9

4 3

2.2 Specification

Here is the main function of your motherboard.

Models s661FXm-7S s661FXm-7

CPU Intel FC-LGA4 CPU

Socket T

800MHz

Intel FC-LGA4 CPU

Socket T

800MHz

Chipset SiS 661FX / SiS 964 SiS 661FX / SiS 964L

Main Memory

DDR 266/333/400MHz

DDR DIMM x 2

DIMM Type :

64/128/256/512MB & 1GB

Max Memory : 2GB

DDR 266/333/400MHz

DDR DIMM x 2

DIMM Type :

64/128/256/512MB & 1GB

Max Memory : 2GB

Graphics 8X AGP slot 8X AGP slot

IDE

Integrated ATA133 and Serial ATA

Controller (Raid 0, 1 supported)

Max Disk: 144,000,000GB [by 48 bits

LBA Spec.]

Integrated ATA133

Max Disk: 144,000,000GB [by 48 bits

LBA Spec.]

LAN SiS 10/100Mbps LAN Controller SiS 10/100Mbps LAN Controller

Sound Realtek AC'97 CODEC onboard,

support 5.1 Channel Realtek AC'97 CODEC onboard,

support 5.1 Channel

USB USB 2.0 x 8 USB 2.0 x 8

Slots AGP x 1

PCI x 3 AGP x 1

PCI x 3

Back Panel I/O

PS/2 Keyboard x 1

PS/2 Mouse x 1

USB Port x 4

LAN Port x 1,

COM Port x 1

VGA Port x 1

Printer Port x 1

Speaker_Out x 1

Line_In x 1, MIC_In x 1

PS/2 Keyboard x 1

PS/2 Mouse x 1

USB Port x 4

LAN Port x 1

COM Port x 1

VGA Port x 1

Printer Port x 1

Speaker_Out x 1

Line_In x 1, MIC_In x 1

On Board

Connector

FDD Connector x 1

ATA133 Connectors x 2

Serial ATA Connectors x 2

Front Panel x 1

Front Audio x 1

CPU FAN x 1,System FAN x 1,Chassis

FAN x 1, IrDA Connector x 1

S/PDIF Connector x 1,

CD_IN x 1, AUX_IN x 1

USB connector x 2

FDD Connector x 1

ATA133 Connectors x 2

Front Panel x 1

Front Audio x 1

CPU FAN x 1,System FAN x 1,Chassis

FAN x 1, IrDA Connector x 1

S/PDIF Connector x 1,

CD_IN x 1, AUX_IN x 1

USB connector x 2

BIOS Award PnP 4Mb Flash ROM BIOS Award PnP 4Mb Flash ROM BIOS

Board Size 244 mm x 220 mm 244 mm x 220 mm

2.3 Block Diagram

SiS 661FX

DIMM Sockets x2

DDR400/333/266

RAM Up to 2 GB

LGA 775

Socket

Intel

FC-LGA4

CPU

800MHz

System Bus

AGP bus

VGA Onboard

SiS 964

(s661FXm-7S)

SiS 964L

(s661FXm-7)

32-bit PCI Slots x3

PCI Bus

150MB

RealTek

AC97

CODEC

4Mbits FlashEEPROM

Parallel Port

Serial Port x1

USB Ports x8

Floppy Disk

Drive

AGP 8X Slot

LAN connect

Com

onent

SiS

10/100Mbps

LAN

Serial ATA Ports x 2

(

s661FXm-7S

)

IDE Drives x 4

ATA

66/100/133

Chapter 3 Hardware Installation

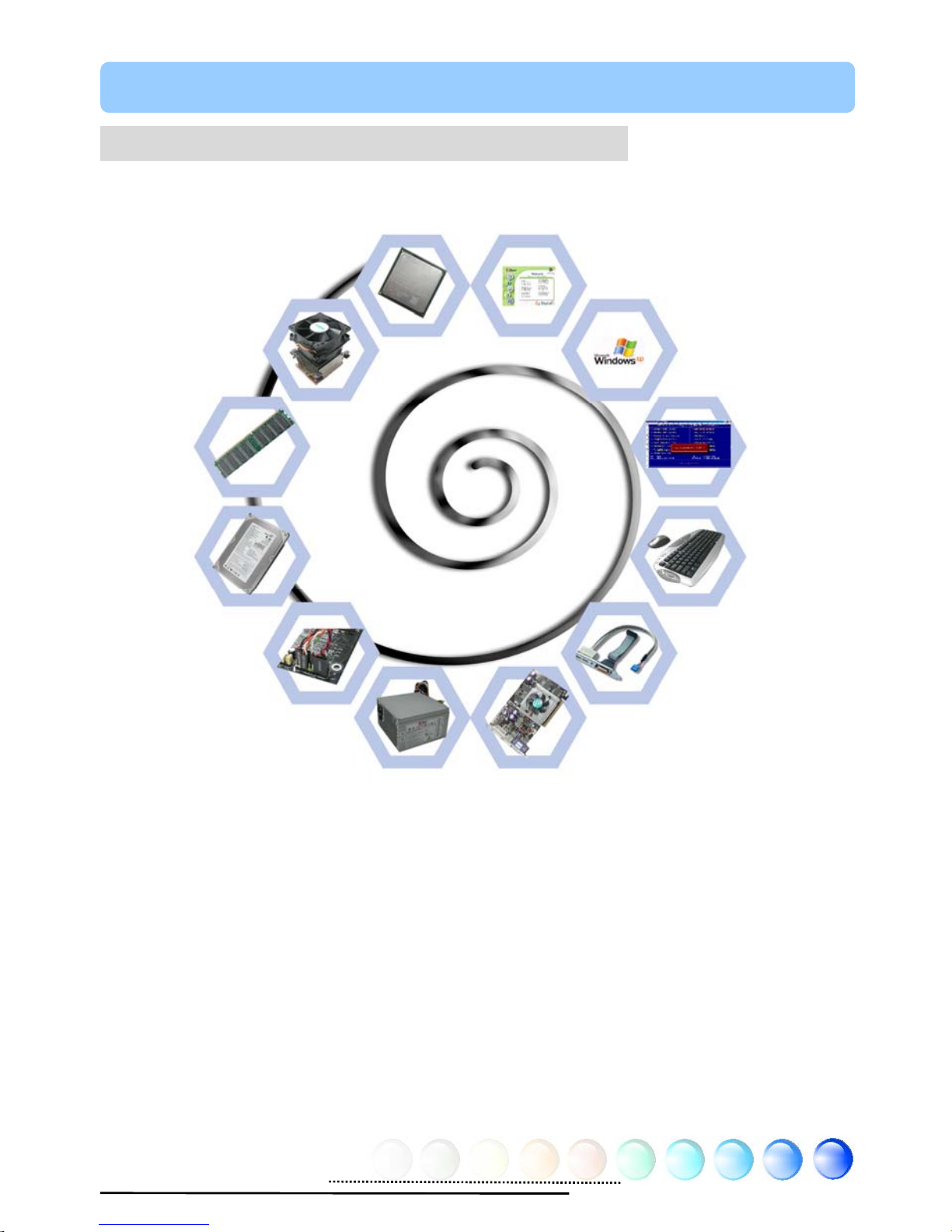

3.1 Quick Installation Procedure

1. Installing CPU

2. Installing CPU

Fan & System Fan

3. Installing

Memory Module

4. Installing HD,

CD-ROM and

SATA Disk, etc

6. Connecting ATX

Power Cable

5. Connecting Front

Panel Cable

7. Installing AGP & PCI

Cards

8. Installing Other

Devices (USB, Front

Audio, etc)

9. Connecting

Back Panel Ports

(Keyboard,

Mouse, etc)

10. Loading

Default BIOS,

Setting CPU

Fre

uenc

11. Installing

Operating System

(such as, Windows

XP)

12. Installing Drivers &

Utilities

3.2 Installation You Have to Know

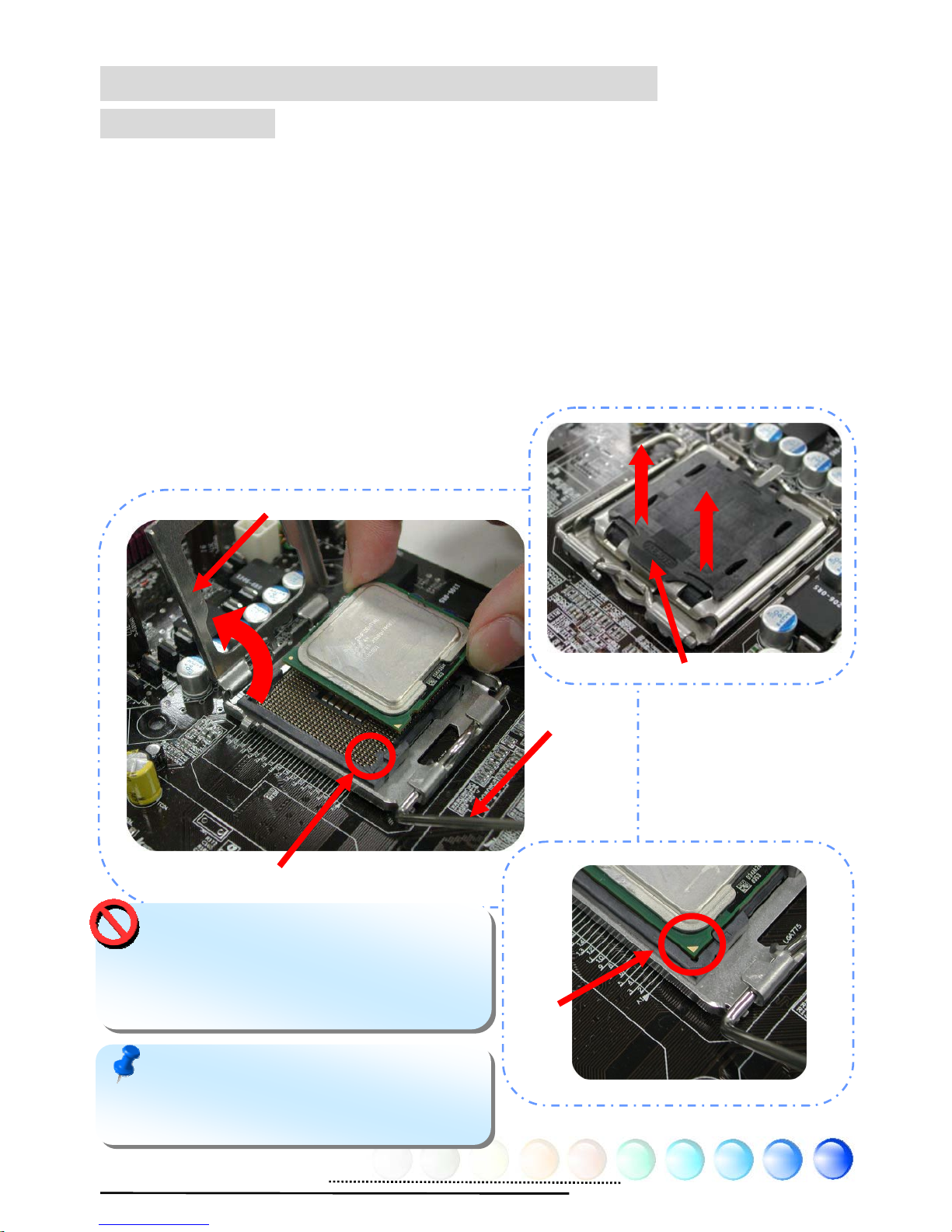

Installing CPU

This socket supports FC-LGA4 CPU, which is the latest CPU package developed by

Intel. Other forms of CPU package are impossible to be fitted in.

1. Pull CPU socket lever and plate up.

2. Remove plastic cap from CPU socket plate.

3. Locate Pin 1 in the socket and look for a golden arrow on the CPU upper

interface. Match Pin 1 and golden arrow. Then insert the CPU into the

socket.

4. Press down the CPU socket plate and lever to finish CPU installation.

Note: It’s strongly recommended by

Intel to use thermal paste properly to avoid

over-heat generated from Prescott CPU.

CPU socket plate

Socket Pin 1

Golden

arrow

CPU socket

lever

Plastic cap

Warning: If you do not match the CPU

socket Pin 1 and CPU golden arrow well,

you may damage the CPU. And please don’t

touch CPU socket pins when installing CPU.

Plastic cap

Mounting

hole

Mounting

hole

Installing CPU Fan

1. Gently put down the CPU fan on CPU socket with four sticks aiming correctly

to the four mounting holes.

2. Press down four fixing sticks into the holes one by one. Make sure the

sticks are firmly fixed into the holes.

Note:

The picture above may look different from the product you purchased.

Fixing

stick

Autres manuels pour s661FXm-7S

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels AOpen Carte mère

AOpen

AOpen AK77-333 Fiche technique

AOpen

AOpen MK77M Guide de configuration

AOpen

AOpen MK73LE-N Fiche technique

AOpen

AOpen AX45S-533 Fiche technique

AOpen

AOpen MX3W-E2 Guide de configuration

AOpen

AOpen AXPS-U Manuel utilisateur

AOpen

AOpen AK72 Guide de configuration

AOpen

AOpen AX4B-533 Tube Manuel utilisateur

AOpen

AOpen i915Gm-IE Manuel utilisateur

AOpen

AOpen s651M Fiche technique

AOpen

AOpen AX6LC Manuel utilisateur

AOpen

AOpen AX34II Manuel utilisateur

AOpen

AOpen AP5TC Manuel utilisateur

AOpen

AOpen MX46U2-VN Guide de configuration

AOpen

AOpen AX45F-1394 Manuel utilisateur

AOpen

AOpen Fortress 7000 Manuel utilisateur

AOpen

AOpen MX3W-E3 Guide de configuration

AOpen

AOpen MX4B Guide de configuration

AOpen

AOpen AP55CS Manuel utilisateur

AOpen

AOpen AX4T II-133 Guide de configuration

AOpen

AOpen AX64 PRO Guide de configuration

AOpen

AOpen AX45-533 PLUS Guide de configuration

AOpen

AOpen AK77-600GN Guide de configuration

AOpen

AOpen DXPS Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

AOpen s661FXm-7S Manuel utilisateur

Manuels Carte mère populaires d'autres marques
