AOpen MX4L Fiche technique

VGA Connector

MIDI/Game Port

SPP/EPP/ECP Parallel Port

CPU FAN connecto

FAN2 Connecto

& 3

USB2.0 Connectors

S/PDIF Connecto

4-pin ATX-12V Power Connector

TA/33/66/100 IDE Connector x2

TX Power Connecto

2200μF Low ESR Capacitors

Intel 845GL Chi

set

184-pin DIMMx2 supports DDR200 /

DDR266 maximum up to 2 GB

32-bit PCI Expansion Slot x3

DD Slot

(Support ADD Card Only)

478-pin CPU socket (Willamette/

Northwood) with Voltage and Frequency

uto-detection that supports Intel®

Pentium®4 1.4~2.4GHz+ CPU

Resettable Fuse

4Mbit Flash ROM

JP14 CMOS Clear Jumpe

Intrusion Detecto

Front Panel Connecto

IrDA Connecto

FDD Connecto

COM2 Connecto

Front Audio Connecto

MODEM-CN Connecto

Onboard AC’97 CODEC

CNR Connecto

CD-IN Connecto

COM 1 Port USB2.0 Port

PS/2 Keyboard

Connecto

PS/2 Mouse

Connecto

MIC-In

Line-In

Speaker Out

RJ45 LAN

Jack

FAN3 Connecto

JP28 Mouse/Keyboard Wake-up Jumpe

1. JP14 Clear CMOS

Tip: When should I Clear CMOS?

1. Boot fail because of overclocking…

2. Forget password…

3. Troubleshooting…

You can clear CMOS to restore system default setting. To

clear the CMOS, follow the procedure below.

1. Turn off the system and unplug the AC power.

2. Remove ATX power cable from connector PWR2.

3. Locate JP14 and short pins 2-3 for a few seconds.

4. Return JP14 to its normal setting by shorting pin 1 & pin 2.

5. Connect ATX power cable back to connector PWR2.

Everything you need to boot this

motherboard is included in this

Easy Installation Guide. For more

information, a complete Online

User's Manual can be found in the

Bonus Pack CD. Thanks for the

help of saving our earth. Pin 1

Normal

(

default

)

Clear CMOS

PART NO: 49.8B201.001 DOC. NO: MX4L-EG-E0204A

2. Connecting ATX Power Connector

Motherboard x1

This Easy Installation Guide x1

80-wire IDE Cable x1

Floppy Disk Drive Cable x1

Bonus Pack CD x1

IO Shield x1

Registration Card x1

Ground

12V

Ground

COM

-5V

+5V

+12V

5VSB

PO-OK

COM

+5V

COM

PS-ON

COM

-12V

+3.3V

COM

+5V

COM

This motherboard comes with a 20-pin and 4-pin ATX power connector as shown below. Make sure you plug

in the right direction. We strongly recommend you to insert the 4-pin connector before connecting the 20-pin

connector.

1. Pull up the CPU socket lever and up to

90-degree angle.

2. Locate Pin 1 in the socket and look fo

a (golden) cut edge on the CPU uppe

interface. Match Pin 1 and cut edge.

Then insert the CPU into the socket.

3. Press down the CPU socket lever and

finish CPU installation.

Plug in the CPU fan cable to the 3-pin CPU FAN connector. If you have chassis fan, you

can also plug it on FAN2 or FAN3 connector.

3. Installing Processor 5. Setting CPU Voltage & Frequency

This socket supports FC-PGA2 package CPU, which is the latest CPU package developed

by Intel. Other forms of CPU package are impossible to be fitted in.

Setting CPU Core Voltage

This motherboard supports CPU VID function. The CPU core voltage will be automaticall

detected.

Setting CPU Frequency

This motherboard is CPU jumper-less design, you can set CPU frequency through the

BIOS setup, and no jumpers or switches are needed. The default setting is "table selec

mode". You can adjust the FSB from "CPU Host/SDRAM/PCI Clock" for overclocking.

BIOS Setup > Frequency / Voltage Control > CPU Speed Setup

CPU socket lever

CPU Ratio 10x… 21x, 22x, 23x, 24x

CPU FSB (By BIOS table) 100~248MHz

Warning: Intel®

845GL chipset supports

maximum 400MHz

(100MHz*4) system

bus and 66MHz AGP

clock; higher clock

setting may cause

serious system

damage.

Northwood CPU CPU Core

Frequency

FSB

Clock

System

Bus Ratio

Pentium 4 1.6G 1600MHz 100MHz 400MHz 16x

Pentium 4 1.8G 1800MHz 100MHz 400MHz 18x

Pentium 4 2.0G 2000MHz 100MHz 400MHz 20x

Pentium 4 2.2G 2200MHz 100MHz 400MHz 22x

Pentium 4 2.4G 2400MHz 100MHz 400MHz 24x

Willamette CPU CPU Core

Frequency

FSB

Clock

System

Bus Ratio

Pentium 4 1.5G 1500MHz 100MHz 400MHz 15x

Pentium 4 1.6G 1600MHz 100MHz 400MHz 16x

Pentium 4 1.7G 1700MHz 100MHz 400MHz 17x

Pentium 4 1.8G 1800MHz 100MHz 400MHz 18x

Pentium 4 1.9G 1900MHz 100MHz 400MHz 19x

Pentium 4 2.0G 2000MHz 100MHz 400MHz 20x

Note: If you do not match the CPU

socket Pin 1 and CPU cut edge well,

you may damage the CPU.

CPU Pin 1 and cut edge

4. Installing CPU & System Fan

Note: Some CPU fans do not have

sensor pin so they cannot support fan

monitoring.

CPU Fan Connector

FAN2 Connector

FAN3 Connector

SENSOR

+12V

Note: Since the

latest processor,

Northwood, would

detect the clock ratio

automatically, you

may not be able to

adjust the clock ratio

in BIOS manually.

GND

+12V

SENSOR

GND

+12V

SENSOR

GND

Pin 1

udio

cable

+5V

SPDIFOUT

GND

SPDIFIN

Connecting to

Optical Cable

Connecting to

RCA Cable

SPDIF Module

(Optional)

S/PDIF (Sony/Philips Digital Interface) is a latest audio transfer file format that provides

impressive quality through optical fiber and allows you to enjoy digital audio instead o

analog. Normally there are two S/PDIF outputs as shown, one for RCA connector, the

most common one used for consumer audio products, and the other for optical connecto

with a even better audio quality. Through a specific audio cable, you can connect the

S/PDIF connector to a S/PDIF audio module bearing S/PDIF digital output. However, you

must have a S/PDIF supported speaker with S/PDIF digital input to make the most of this

function.

9. Connecting IrDA

8. S/PDIF Connector

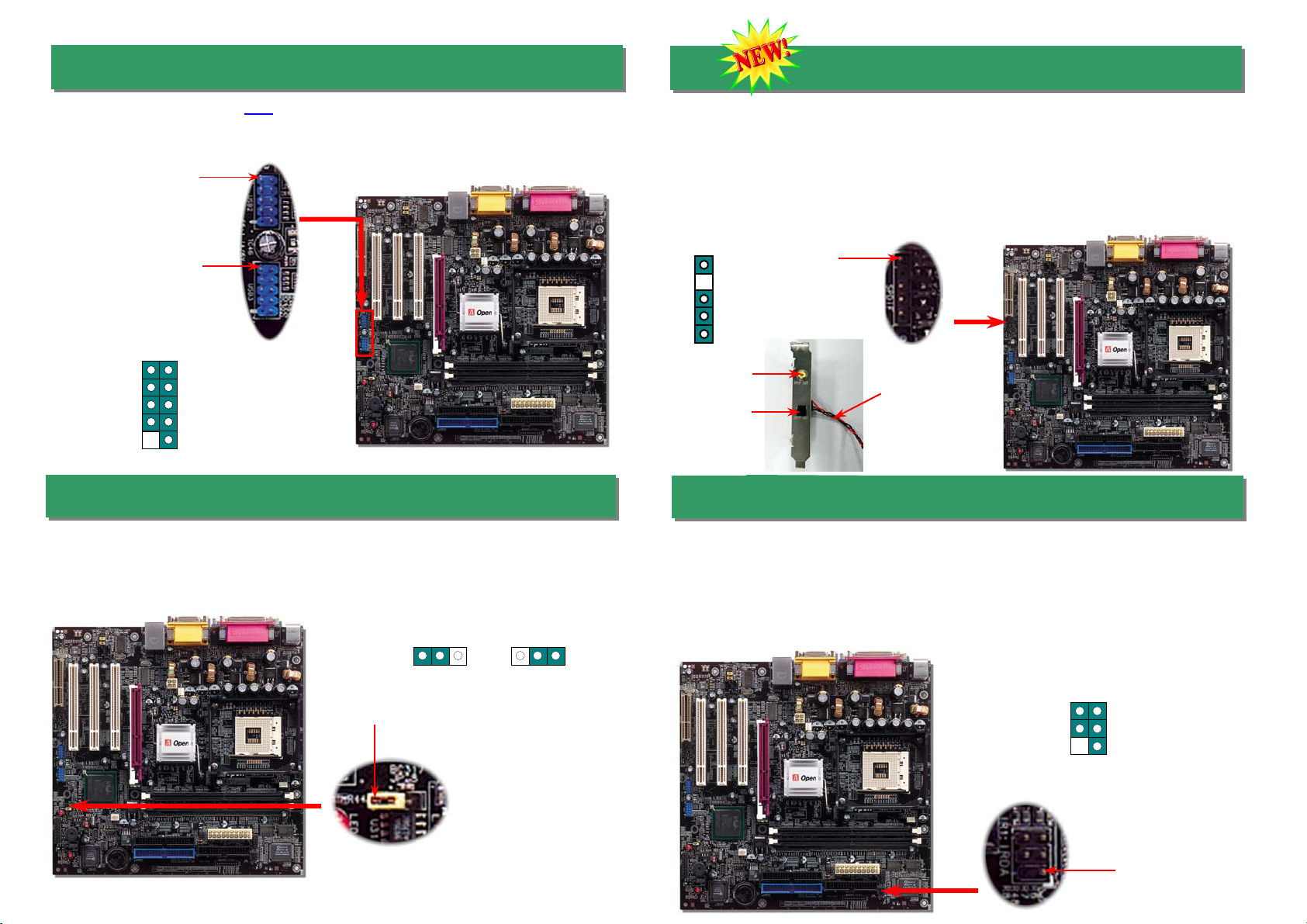

6. Support Six USB2.0 Connectors

This motherboard provides six USB connectors to connect USB devices, such as mouse,

keyboard, modem, printer, etc. There are two connectors on the PC99 back panel. You

can use proper cable to connect other USB connectors to the back panel or front panel of

chassis.

USB2 and USB3 Connector

Pin1

USBPWR1

USB_FP_P1-

USB_FP_P1+

GND

USB_FP_OC0

9 10

1 2

USBPWR0

USB_FP_P0-

USB_FP_P0+

GND

KEY

7. JP28 Keyboard/Mouse Wakeup Select Jumper

The IrDA connector can be configured to support wireless infrared module, with this

module and application software such as Laplink or Windows 95 Direct Cable Connection,

user can transfer files to or from laptops, notebooks, PDA devices and printers. This

connector supports HPSIR (115.2Kbps, 2 meters) and ASK-IR (56Kbps).

Install the infrared module onto the IrDA connector and enable the infrared function from

BIOS Setup, UART Mode, make sure when you plug the IrDA connector in right

orientation.

This motherboard provides keyboard / mouse wake-up function. You can use JP28 to

enable or disable this function, which could resume your system from suspend mode with

keyboard or mouse. The factory default setting is set to “Disable”(1-2), and you ma

enable this function by setting the jumper to 2-3.

IrDA Connector

Pin1

Disable

(Default)

Enable

IR_R

GND

KEY

IR_TX

+5V

JP28

KB/Mouse Wake-up Pin 1

12. Installing VGA Driver

10. Front Audio Connector

This motherboard comes with an Intel

10/100Mbps LAN controller embedded within ICH4.

You can find the LAN driver from the Bonus Pack CD.

If the housing has been designed with an audio port on the front panel, you’ll be able to

connect onboard audio to front panel through this connector. By the way, please remove

5-6 and 9-10 jumper caps from the Front Audio Connector before connecting the cable.

Please do not remove these 5-6 and 9-10 yellow jumper caps if there’s no audio port on

the front panel.

You can install Intel VGA Driver to get the best graphics function of the chipset. You can find it in

the AOpen Bonus Pack CD.

13. Installing LAN Driver

11. Support 10/100 Mbps LAN onboard

Pin 1

FP_MIC

FP_VREF

PHONE_R

PHONE_L

GND

+5V

JS1

KEY

Front Audio Connector

The South Bridge includes a fast Ethernet controller on chip. It provides 10/100M bps

Ethernet for office and home use, the Ethernet RJ45 connector is located on top of USB

connectors. The green LED indicates the link mode, it lights when linking to network and

blinking when transferring data. The orange LED indicates the transfer mode, and it lights

when data is transferring in 100Mbps mode. To enable or disable this function, you may

simply adjust it through BIOS.

Orange/Speed

Green/ACT

fter you finish the setting of jumpers and connect correct cables. Power on

and enter the BIOS Setup, press <Del> during POST (Power On Self Test).

Choose "Load Setup Defaults" for recommended optimal performance.

14. Power-on and Load BIOS Setup

Del

15. AOpen Bonus Pack CD 17. BIOS Upgrade under Windows Environment

This motherboard comes with an AC97 CODEC, you can find the audio driver from the

Bonus Pack CD auto-run menu.

You can use the autorun menu of Bonus CD. Choose the utility and driver and select

model name.

You may accomplish BIOS upgrade procedure with EZWinFlash by the following steps,

and it’s STRONGLY RECOMMMANDED to close all the applications before you start the

upgrading.

1. Download the new version of BIOS package zip file from AOpen official web site. (ex:

http://www.aopen.com)

2. Unzip the download BIOS package (ex: WMX4L102.ZIP) with WinZip

(http://www.winzip.com) in Windows environment.

3. Save the unzipped files into a folder, for example, WMX4L102.EXE &

WMX4L102.BIN.

4. Double click on the WMX4L102.EXE, EZWinFlash will detect the model name and

BIOS version of your motherboard. If you had got the wrong BIOS, you will not be

allowed to proceed with the flash steps.

5. You may select preferred language in the main menu, then click [Start Flash] to star

the BIOS upgrade procedure.

6. EZWinFlash will complete all the process automatically, and a dialogue box will pop

up to ask you to restart Windows. You may click [YES] to reboot Windows.

7. Press <Del> at POST to enter BIOS setup, choose "Load Setup Defaults", then

“Save & Exit Setup”. Done!

It is strongly recommended NOT to turn off the power or run any application during

FLASH PROCESS.

our system components (CPU, DRAM,

HDD, etc.) are good enough for turbo

settin

Warning: Please avoid of using "Load

Turbo Defaults", unless you are sure

16. Installing Onboard Audio Driver

Part Number and Serial Number

If you encounter any trouble to boot you system, follow the procedures

accordingly to resolve the problem.

The Part Number and Serial number are printed on bar code label. You can find this

bar code label on the outside packing, on PCI slot or on component side of PCB. Fo

example:

Serial No.

Part No.

Make sure if the jumper settings for CPU and DRAMs are correct.

Clear CMOS.

Install the VGA card. Then connect your monitor and keyboard.

The problem was probably caused

by power supply or motherboard

failure. Please contact your reselle

or local distributor for repairing.

Perhaps your VGA card or monito

is defective.

Yes

It is very possible that your keyboard

is defective.

During system rebooting, press Del to enter BIOS Setup. Choose

“Load Setup Default".

The problem should be caused by the

IDE cables or HDD itself.

Re-install Windows 95, Windows 98 or Windows NT.

Yes

Turn off the power and unplug the AC power cable, then remove all

of the addon cards and cables, including VGA, IDE, FDD, COM1,

COM2 and Printer.

Turn on the power, and check if

the power supply and CPU fan

work properly.

Start

Check if there is display.

Press Ctrl, and Alt key at the

same time, hold them and then

press Del to see if the

stem reboots.

Turn off the system and

re-connect the IDE cable.

Check if the system can

reboot successfully.

End

Part No. Serial No.

P/N: 91.88110.201 is part number, S/N: 91949378KN73 is serial number.

Model name and BIOS version

Model name and BIOS version can be found on upper left corner of first boot screen

(POST screen). For example:

MX4L R1.00 Mar. 15. 2002 AOpen Inc.

ward Plug and Play BIOS Extension v1.0A

MX4L is the model name of the motherboard; R1.00 is BIOS version

Online Manual: Please check the manual carefully and make sure the

jumper settings and installation procedure are correct.

http://www.aopen.com/tech/download/manual/default.htm

Test Report: We recommend choosing board/card/device from the

compatibility test reports for assembling your PC.

http://www.aopen.com/tech/report/default.htm

Dear Customer,

Thanks for choosing AOpen products. To provide the best and fastest service to

our customer is our first priority. However, we receive numerous emails and

hone-calls worldwide everyday, it is very hard for us to serve everyone on time.

We recommend you follow the procedures below and seek help before contact

us. With your help, we can then continue to provide the best quality service to

more customers.

Thanks very much for your understanding!

Open Technical Supporting Team

merica

Open America Inc.

Tel: 1-408-922-2100

Fax: 1-408-922-2935

Japan

Open Japan Inc.

Tel: 81-048-290-1800

Fax: 81-048-290-1820

China

艾尔鹏国际上海(股)

有限公司

Tel: 86-21-6225-8622

Fax: 86-21-6225-7926

Germany

Open Computer GmbH.

Tel: 49-2102-157700

Fax: 49-2102-157799

Europe

Open Computer b.v.

Tel: 31-73-645-9516

Fax: 31-73-645-9604

Pacific Rim

Open Inc.

Tel: 886-2-3789-5888

Fax: 886-2-3789-5399

Web Site: www.aopen.com

E-mail: Send us email by going through the contact form below.

English http://www.aopen.com/tech/contact/techusa.htm

Japanese http://www.aopen.co.jp/tech/contact/techjp.htm

Chinese http://www.aopen.com.tw/tech/contact/techtw.htm

German http://www.aopencom.de/tech/contact/techde.htm

Simplified Chinese http://www.aopen.com.cn/tech/contact/techcn.htm

FAQ: The latest FAQ (Frequently Asked Questions) may contain a

solution to your problem.

http://www.aopen.com/tech/faq/default.htm

Download Software: Check out this table to get the latest updated

BIOS/utility and drivers.

http://www.aopen.com/tech/download/default.htm

News Group: News posted by computer experts, you are welcome to join

any discussion here.

http://www.aopen.com/tech/newsgrp/default.htm

Contact Distributors/Resellers: We sell our products through resellers

and integrators. They should know your system configuration very well and

should be able to solve your problem efficiently and provide important

reference for you if next time you want to buy something else from them.

before contacting us. The part number, serial number and BIOS version

are also very helpful.

Autres manuels pour MX4L

Table des matières

Autres manuels AOpen Carte mère

AOpen

AOpen H300 Series Manuel utilisateur

AOpen

AOpen MX4GE Guide de configuration

AOpen

AOpen AX4G Guide de configuration

AOpen

AOpen AX4T II-133 Guide de configuration

AOpen

AOpen MX46U2-VN Guide de configuration

AOpen

AOpen MK89-N Guide de configuration

AOpen

AOpen MX3S Guide de configuration

AOpen

AOpen s760GXm-SL Manuel utilisateur

AOpen

AOpen AX4SG-U Fiche technique

AOpen

AOpen AX4B-G2 Fiche technique

AOpen

AOpen MX46L Fiche technique

AOpen

AOpen AX45-533 Max Guide de configuration

AOpen

AOpen AX3SP Pro-U Guide de configuration

AOpen

AOpen MK33IIA Manuel utilisateur

AOpen

AOpen MK79G-N Guide de configuration

AOpen

AOpen MX4SG-N Guide de configuration

AOpen

AOpen AX4BS Pro Fiche technique

AOpen

AOpen AK73-1394 Guide de configuration

AOpen

AOpen AX37 PRO Guide de configuration

AOpen

AOpen i915Ga-EFRII Manuel utilisateur

AOpen

AOpen AK79G MAX Manuel utilisateur

AOpen

AOpen AP5T Manuel utilisateur

AOpen

AOpen AK79G MAX Fiche technique

AOpen

AOpen MX34 Guide de configuration

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur
