AOpen AX34 Pro II Fiche technique

Battery-less

IrD

FDC JP14 Clear CMOS

VIA 694X Chipset

133MHz FSB Clock

WOL (Wake on LAN)

Resettable Fuse

PC99 Back Panel

1500uF Low ESR capacitor

Jumpe

-less Design

Over-current Protection

Thermal Protection

CPU Fan Connecto

System Voltage & Fan Monitoring

TX Power Connecto

C Power Auto Recovery

JP23/29 FSB/PCI Clock Ratio

Housing Fan

WOM (Wake on Modem)

Front Panel Connecto

PC133 DIMM

Suspend to RAM

ATA/66/100 IDE Connecto

(ATA/100 for optional)

RAM Power LED

Support 2nd USB Ports x2

Wake on Time

Multi-Language BIOS

4X AGP

AMR

JP12 Onboard

AC97 Audio

CD Audio

Video_Audio_In

Modem Audio PC99 Colored Back Panel

PS/2 Mouse

Connector

PS/2 Keyboard

Connector

USB Port

SPP/EPP/ECP

Parallel Port

COM 1 Port COM 2 Port

Game Port

MIC-In

Line-In

Speaker Out

ISA Slot x1 (Optional)

Hard Drive IDE Cable x 1

TA/66 IDE Cable x 1

Floppy Drive Cable x 1

Bonus Pack CD disc x 1

This Easy Installation Guide x 1

JP14 Clear CMOS

Normal Operation

(default) Clear CMOS

This motherboard has AC97 sound onboard. JP12 is used to

enable or disable onboard AD1885 CODEC chip. If you select

Disable, you can use your preferred AMR sound card.

JP12 Enable/Disable Onboard Audio

Everything you need to boot this

motherboard is included in this Easy

Installation Guide. For more

information, a complete Online User's

Manual can be found in the Bonus

Pack CD Disc. Thanks for the help of

saving our earth. Tip: When should I Clear CMOS?

1. Boot fail because of overclocking…

2. Forget password…

3. Troubleshooting…

You can clear CMOS to restore system default setting. To clear

the CMOS, follow the procedure below.

1. Turn off the system and unplug the AC power.

2. Remove ATX power cable from connector PWR2.

3. Locate JP14 and short pins 2-3 for a few seconds.

4. Return JP14 to its normal setting by shorting pins 1-2.

5. Connect ATX power cable back to connector PWR2.

PART NO.: 49.88902.002 DOC. NO.: AX34-EG-E0104C

DisableEnable

123 123

Installing CPU and Fan JP29/JP23 FSB/PCI Clock Ratio

Plug CPU to Socket 370 connector. Be careful of

CPU orientation. Plug in the fan cable to the 3-pin

CPUFAN or FAN connector.

GND

+12V

SENSOR

Setting CPU Frequency

The CPU frequency selection is set by going into:

BIOS Setup > Chipset Features Setup > CPU Voltage Setting

CPU Ratio 1.5x, 2x, 2.5x, 3x, 3.5x, 4x, 4.5x, 5x, 5.5x, 6x, 6.5x, 7x, 7.5x, and 8x

CPU FSB 66.8, 75, 83.3, 100, 103, 105, 110, 112, 115, 120, 124, 133, 140,

and 150 MHz.

Core Frequency = CPU FSB Clock * CPU Ratio

CPU CPU Core Frequency FSB Clock Ratio

CELERON 300A 300MHz 66MHz 4.5x

CELERON 533 533MHz 66MHz 8.0x

CELERON 600 600MHz 66MHz 9.0x

CELERON 667 667MHz 66MHz 10.0x

CELERON 700 700MHz 66MHz 10.5x

CELERON 733 733MHz 66MHz 11.0x

Pentium!!! 600E 600MHz 100MHZ 6.0x

Pentium!!! 700E 700MHz 100MHZ 7.0x

Pentium!!! 800E 800MHz 100MHZ 8.0x

Pentium!!! 850E 850MHz 100MHZ 8.5x

Pentium!!! 733EB 733MHz 133MHZ 5.5x

Pentium!!! 866EB 866MHz 133MHZ 6.5x

Pentium!!! 933EB 933MHz 133MHz 7x

Pentium!!! 1G 1000MHz 133MHz 7.5x

Pentium!!! 1.13G 1133MHz 133MHz 8.5x

Pentium!!! 1.2G 1200MHz 133MHz 9.0x

Note: Some CPU fans do not have

sensor pin, so that cannot support

fan monitoring.

Warning: VIA694x chipset supports maximum 133MHz FSB and

66MHz AGP clock, higher clock setting may cause serious system

damage.

Home

This jumper is used to specify the relationship of PCI and

FSB clock. Generally speaking, we suggest you do not

change the default setting. But for overclocking, changing

these jumper settings becomes necessary. For example,

you must set JP29 to “5-6” and JP23 to “3-4” if you want to

overclock a 66MHz FSB clock CPU to 100MHz or higher.

Tip: If your system hangs or fails to boot

because of overclocking, simply use

<Home> key to restore the default setting

(233MHz).

Clock Ratio CPU (Host) PCI AGP Memory

2X 66 33 66 PCI x2 or x3

3X 100 33 66 PCI x2 or x3 or x4

3X, overclocking 112 37.3 74.6 PCI x2 or x3 or x4

4X 133 33 66 PCI x3 or x4

4X, overclocking 150 37.5 75 PCI x3 or x4

1 2

Auto

(

default

)

JP29 JP23

1 2

5 6 5 6

JP29 JP23

(

133~150MHz

)

1 2

5 6

1 2

5 6

(

100~124MHz

)

JP29 JP23

1 2

5 6

1 2

5 6

(

66~83MHz

)

JP29 JP23

1 2

5 6

1 2

5 6

Tip: The driving capability of new generation

chipset is limited due to the lack of a memory

buffer (to improve performance). This makes

DRAM chip count an important factor to take

into consideration when you install DIMMs.

Unfortunately, there is no way that the BIOS

can identify the correct chip count, you need to

calculate the chip count by yourself. The

simple rule is: By visual inspection, use only

DIMMs which are less than 18 chips.

Connecting IDE and Floppy Cable

Connect 34-pin floppy cable and 40-pin IDE cable to floppy connector FDC and IDE

connector. The blue connector is IDE1 for clear identification. Be careful of the pin1

orientation. Wrong orientation may cause system damage.

ttach the power LED, speaker, and reset

switch connectors to the corresponding pins. I

you enable “Suspend Mode” item in BIOS

Setup, the ACPI & Power LED will keep

flashing while the system is in suspend mode.

Connecting Front Panel Cable

Locate the power switch cable from your AT

housing. It is 2-pin female connector from the

housing front panel. Plug this connector to the

soft-power switch connector marked SPWR.

Connecting CD/Modem/ Video_Audio_IN

Configuring System Memory

This motherboard has three 168pin DIMM sockets that

allow you to install system memory up to 1.5GB. SDRAM,

VCM SDRAM, Registered SDRAM are supported.

DIMM1

DIMM2

DIMM3

Pin 1

The Modem-CN connector is used to connect Mono

In/ Mic Out cable from internal modem card to

onboard sound circuit.

The black connector is used to connect CD Audio

cable from CDROM or DVD drive to onboard sound.

This green connector is used to connect MPEG

udio cable from MPEG card to onboard sound.

VIDEO_AUDIO_IN

Pin 1

Slave (4th)

Master (1st)Slave (2nd)

Master (3rd)

FDC

Pin 1

Speaker

IDE LED

SPWR

+ACPI &

Power LED

Reset

SPWR

GND

ACPI & PWR LED

GND

+5V

GND

RESET

GND

IDE LED

GND

SPEAKE

IDE2

IDE1

Modem-CN

CD-IN

Connector Pin1 Pin2 Pin3 Pin4

Modem-CN Mono In GND GND Mic Out

CD-IN Left GND GND Right

Video_Audio_IN Left GND GND Right

1. First, don’t install any add-on card except AGP card.

2. Install Windows 95 OSR2 v2.1, 1212 or 1214 version and later with USB

support. Otherwise, you need to install USBSUPP.EXE.

3. Install the VIA 4 in 1 driver, which includes VIAAGP Vxd driver, IRQ routing

driver, and VIA chipset function registry program.

4. Finally, Install other add-on cards and their drivers.

Installing Windows 95

Power-on and Load BIOS Setup

fter you finish the setting of jumpers and connect correct cables. Power

on and enter the BIOS Setup, press <Del> during POST (Power-On

Self Test). Choose "Load Setup Defaults" for recommended optimal

performance.

Del

Autorun Menu from Bonus CD Disc

You can use the autorun menu of Bonus CD disc. Choose the utility and driver and

select model name.

Warning: Please avoid of using

"Load Turbo Defaults", unless you

are sure your system components

(CPU, DRAM, HDD, etc.) are good

enough for turbo setting.

Installing Windows NT

Installing Windows 98

It is not necessary to install VIA 4 in 1 driver, just follow the installation guide of NT

and your add-on cards

1. First, don’t install any add-on card except AGP card.

2. Enable USB Controller in BIOS Setup > Integrated Peripherals > OnChip USB,

to make BIOS fully capable of controlling IRQ assignment.

3. Install Window 98 into your system.

4. Install the VIA 4 in 1 driver, which includes VIAAGP Vxd driver, IRQ routing

driver, and VIA chipset function registry program.

5. Finally, Install other add-on cards and their drivers.

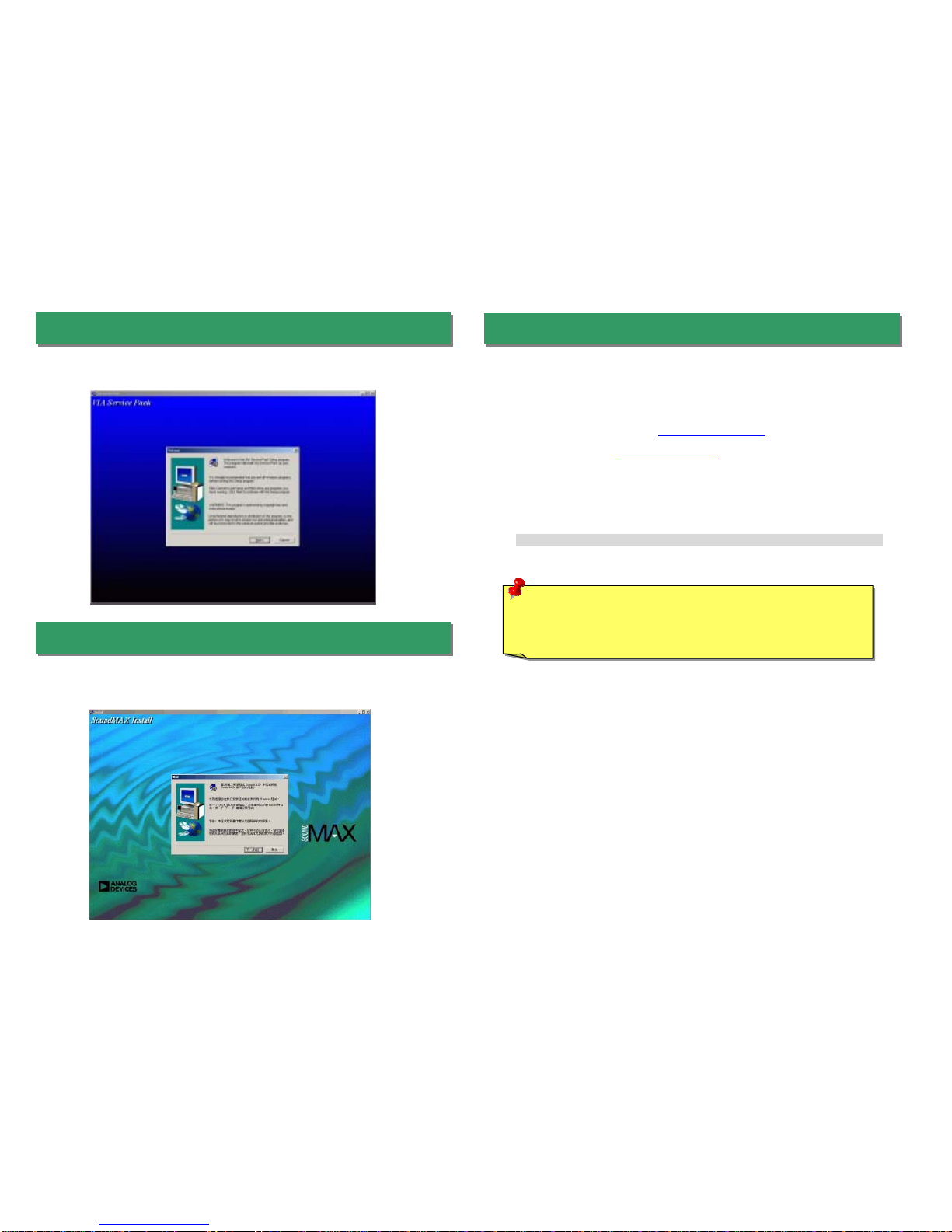

You can install the VIA 4 in 1 driver (IDE Bus master, VIAAGP, IRQ Routing Driver,

VIA Registry) from the Bonus Pack CD disc autorun menu.

Installing VIA 4 in 1 Driver

Installing Onboard Sound Driver

This motherboard comes with an AD 1885AC97 CODEC and the sound controller

is in VIA South Bridge chipset. You can find the audio driver from the Bonus Pack

CD disc autorun menu.

BIOS Upgrade

Open Easy Flash is user-friendlier than traditional flash method. The BIOS binary file

and flash routine are combined together and you simply run a single file to complete the

flash process.

1. Download new BIOS upgrade zipped file from AOpen's web site. For example,

AX34102.ZIP.

2. Run shareware PKUNZIP (http://www.pkware.com/) which supports

miscellaneous operation systems to extract the binary BIOS file and the flash

utility. Or Winzip (http://www.winzip.com/) in Windows environment.

3. Save the unzipped file into a bootable floppy disk.

For example, AX34102.BIN & AX34102.EXE

4. Reboot the system to DOS mode without loading any memory handler (such as

EMM386) or device driver. It needs around 520K free memory space.

5. Execute A:> AX34102 and the program will do the rest of it.

DO NOT turn off the power during FLASH PROCESS until you are asked to!!

6. Reboot system and press <Del> to enter BIOS Setup, Choose "Load Setup

Defaults", then “Save & Exit Setup” and finish the BIOS upgrade.

Warning: The upgrade of new BIOS will permanently replace your original

BIOS content after flashing. The original BIOS setting and Win95/Win98

PnP information will be refreshed and you probably need to re-configure

your system.

If you encounter any trouble to boot you system, follow the

procedures accordingly to resolve the problem.

Part Number and Serial Number

The Part Number and Serial number are printed on bar code label. You can find this

bar code label on the outside packing, on ISA/CPU slot or on component side of PCB.

For example:

Model name and BIOS version

AX34 R1.00 Jan.04.2000 AOpen Inc.

ward Plug and Play BIOS Extension v1.0A

Model name and BIOS version can be found on upper left corner of first boot screen

(POST screen). For example:

P/N: 91.88110.201 is part number, S/N: 91949378KN73 is serial number.

AX34 is model name of motherboard, R1.00 is BIOS version.

Make sure if the jumper settings for CPU and DRAMs are correct.

Clear CMOS.

Install the VGA card. Then connect your monitor and keyboard.

Turn on the power, and check if the power supply and

CPU fan work properly.

Start

The problem was probably caused by

power supply or motherboard failure.

Please contact your reseller or local

distributor for repairing.

Check if there is display. Perhaps your VGA card or monitor is

defective.

Yes

Press Ctrl, and Alt key at the same time, hold them and then

press Del to see if the system reboots. No It is very possible that your keyboard is

defective.

During system rebooting, press Del to enter BIOS Setup. Choose

“Load Setup Default".

Turn off the system and re-connect the IDE cable.

Check if the system can reboot successfully. The problem should be caused by the

IDE cables or HDD itself.

Re-install Windows 95, Windows 98 or Windows NT.

Yes

End

Turn off the power and unplug the AC power cable, then remove all of

the addon cards and cables, including VGA, IDE, FDD, COM1, COM

and Printer..

Part No. Serial No.

Dear Customer,

Thanks for choosing AOpen products. To provide the best and fastest service to

our customer is our first priority. However, we receive numerous emails and

hone-calls worldwide everyday, it is very hard for us to serve everyone on time.

We recommend you follow the procedures below and seek help before contact us.

With your help, we can then continue to provide the best quality service to more

customers.

Thanks very much for your understanding!

Open Technical Supporting Team

Online Manual: Please check the manual carefully and make sure the

jumper settings and installation procedure are correct.

http://www.aopen.com.tw/tech/download/manual/default.htm

Test Report: We recommend to choose board/card/device from the

compatibility test reports for assembling your PC.

http://www.aopen.com.tw/tech/report/default.htm

FAQ: The latest FAQ (FrequentlyAsked Questions) may contain a

solution to your problem.

http://www.aopen.com.tw/tech/faq/default.htm

Download Software: Check out this table to get the latest updated

BIOS/utility and drivers.

http://www.aopen.com.tw/tech/download/default.htm

News Group: Your problem probably had been answered by our support

engineer or professional users on the news group.

http://www.aopen.com.tw/tech/newsgrp/default.htm

Contact Distributors/Resellers: We sell our products through

resellers and integrators. They should know your system

configuration very well and should be able to solve your problem

more efficiently than us. After all, their attitude of service is an

important reference for you if next time you want to buy something

else from them.

before contacting us. The part number, serial number and BIOS version

are also very helpful.

Web Site: www.aopen.com

E-mail: Send us email by going through the contact form below.

English http://www.aopen.com/tech/contact/techusa.htm

Japanese http://www.aopen.co.jp/tech/contact/techjp.htm

Chinese http://www.aopen.com.tw/tech/contact/techtw.htm

German http://www.aopencom.de/tech/contact/techde.htm

French http://france.aopen.com.tw/tech/contact/techfr.htm

Simplified Chinese http://www.aopen.com.cn/tech/contact/techcn.htm

Pacific Rim

Open Inc.

Tel: 886-2-2696-1333

Fax: 886-2-8691-2233

merica

Open America Inc.

Tel: 1-510-498-8928

Fax: 1-408-922-2935, 1-408-432-0496

Europe

Open Computer b.v.

Tel: 31-73-645-9516

Fax: 31-73-645-9604

Germany

Open Computer GmbH.

Tel: 49-2102-157700

Fax: 49-2102-157799

China

艾尔鹏国际上海(股)

有限公司

Tel: 49-2102-157700

Fax: 49-2102-157799

Autres manuels pour AX34 Pro II

Table des matières

Autres manuels AOpen Carte mère

AOpen

AOpen AX3S-1394 Manuel utilisateur

AOpen

AOpen AX6BC Pro II Millennium Edition Manuel utilisateur

AOpen

AOpen AK77 Pro(A)-133 Guide de configuration

AOpen

AOpen AX4C-G Fiche technique

AOpen

AOpen MX46U2-GN Guide de configuration

AOpen

AOpen MT85 Manuel utilisateur

AOpen

AOpen AX59PRO Manuel utilisateur

AOpen

AOpen AX4B Pro-533 Fiche technique

AOpen

AOpen MX3W-E3 Guide de configuration

AOpen

AOpen MK77-333 Manuel utilisateur

AOpen

AOpen DX34 Plus Manuel utilisateur

AOpen

AOpen MX4LR-GN Fiche technique

AOpen

AOpen MK7A Fiche technique

AOpen

AOpen AX4PER-G Fiche technique

AOpen

AOpen AX4T II-133 Guide de configuration

AOpen

AOpen AX45-4D MAX Guide de configuration

AOpen

AOpen i855GMEm-LFS Manuel utilisateur

AOpen

AOpen MX36LE-UI Guide de configuration

AOpen

AOpen P5TC Manuel utilisateur

AOpen

AOpen AX45S-533 Fiche technique

AOpen

AOpen AX4SP Guide de configuration

AOpen

AOpen MX4LR-GN Guide de configuration

AOpen

AOpen AX4T II-533 Guide de configuration

AOpen

AOpen i915Ga-E Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur
