AOpen Digital Engine DE945-FL Manuel utilisateur

Assembly Guide for DE-945FL

V1.1

2007/07/10

Index

1. OPEN HOUSING ………………………………………………2

2. INSTALL KEY COMPONENTS ………………………………4

3. ASSEMBLE THE SUPPORTER & UPPER CASE …………8

4. CPU SUPPORT LIST ………………………………………….12

APPENDIX ……………………...…………………………………13

1

1. Open Housing

1-1 .

Unscrew the upper case (2@FPH M3 screws in

rear side)

1-3. Remove the Upper case

1-2. Unscrew the upper case (2@FH M3 screws

in top side ).

Front side

Rear side

2

1-4 Unscrew 4 screws from Heat sink

1-6. Remove the protection from Heat sink

thermal tape

1-5. Unscrew 3 screws from supporter

1-7. Remove the protection from supporter’s

thermal tape

3

2. Install Key components

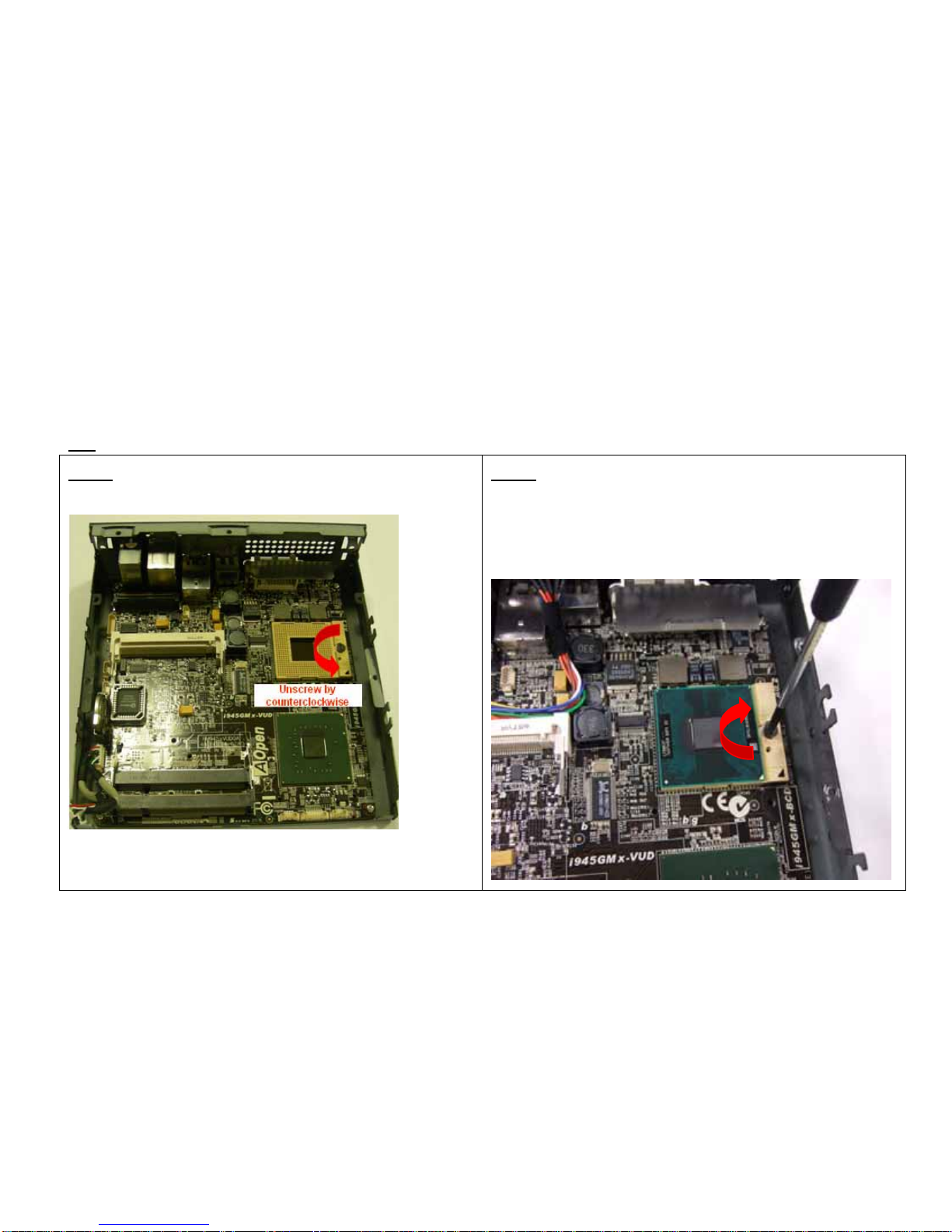

2-1 Install CPU

2-1-1. Rotate the screw in counterclockwise

direction

2-1-2. Put the CPU in the socket and make sure

that the triangle mark on the CPU is in the same

direction with the same mark on the socket.

Rotate the screw in clockwise direction

4

2-2 Insert memory module

Insert the memory module in upper slot in 30

degree angle as shown in the picture, push

down the memory module slowly till there's a

clipping sound.

5

2-3 . Assemble the hard disc

2-3-1. Insert the SATA hard disc into the

support with about 30 degree angle

2-3-2 Screw the hard disc on the supporter

with 4@FPH M3 screws

6

2-4. Assemble the internal card

2-4-1. Assemble the the internal card and the

hard disc

2-4-2. Screw the internal card on the

supporter with 2@M2 screws

7

3. Assemble the Supporter & Upper Case

3-1. Assemble the supporter and lower case

3-1-1 Insert the internal card into the slot on

motherboard

3-1-2 Screw the supporter on the lower

case with 2@FH M3 screws and

1@FPH M3 screw

8

3-1-3 FPHM3Screw

FH M3 Screw

3-2. Assemble the heatsinkk

Screw the heatsink on the lower case

9
