AOpen B2945 Instructions de montage



right to change the content of this publication without obligation to notify

any party of such changes or revisions. No part of this publication may be

reproduced, transcribed, transmitted, translated into any language, stored in

a retrieval system in any form or by any means electronically, mechanically,

optically without the prior written permission of this company.

Disclaimer

AOpen makes no warranties or representations, either expressed or implied,

with respect to the content herein and specically disclaims any warranties,

merchantability of tness for any particular purpose.

AOpen and AOpen logos used herein are registered trademarks of AOpen

Inc.All other brand names and trademarks are owned by their respective

owners.

AOpen Inc.



Safety Precautions

Read and follow the content of the Safety Precautions carefully so that you

will not cause damages to yourself or the system.

1. Pay attention to the warnings and notes in this manual to avoid causing

unexpected damages.

2. If you want to wipe the system with a wet cloth, make sure the power

cord is disconnected. We strongly suggest not to wipe the system with

chemical detergent or sprayed detergent.

3. When moving the system, do not put the system on uneven, unsteady

or slanting surfaces.

4. Do not put water cups or beverages near the PC system to protect the

system from being damaged by liquids.

5. There are ventilating holes on the backboard of the computer case

to dissipate heat from the machine. You should pay attention to the

position of the PC so that the ventilating holes will not be blocked.

Meanwhile, don’t put your PC on something not sturdy enough – like

rug or bed mattress – to ensure smooth air ow for heat dissipation.

6. Before plugging on power, make certain the electric voltage in your

area complies with that of the PC. If you are uncertain, consult your PC

dealer or power company rst.

7. Do not place your PC on power cords. Do not leave the power lines in

tangles which may cause people to stumble.

8. It normally takes several power sockets to meet the need of a PC

system. Make sure the extension power line is capable of handling

the total power load for all equipment. In other words, the combined

amperage of all electrical appliances on the same extension line must

not exceed the strength of electric currents or the fuse of the extension

line.



9. When your PC system runs into problems, do not try to x it unless

you possess adequate technical know-how concerning hardware

installation and system maintenance. It would advisable to seek

assistance from qualified maintenance personnel so as to avoid

improper disassembling.

10. When encountering the following more dangerous situations,

unplug the power to shut down the system and then seek help from

professional technicians to x the problems:

10.1 When liquids nd their way into the equipment.

10.2 When the PC is soaked by rain.

10.3 When power cords or power sockets are damaged.

10.4 When the PC system falls to the ground and is damaged.

10.5 When some problems cannot be solved even after you

installed the system according to the manual or the

troubleshooting procedures.

Macrovision

This product incorporates copyright protection technology that is protected

by method claims of certain U.S. patents and other intellectual property

rights owned by Macrovision Corporation and other rights owners. Use of

this copyright protection technology must be authorized by Macrovision

Corporation, and is intended for home and other limited viewing uses

only unless otherwise authorized by Macrovision Corporation. Reverse

engineering or disassembly is prohibited.



Disposal Instruction

For better protection of our earth, please don't throw this electronic device

into municipal trash bin when discarding. To minimize pollution and ensure

utmost protection of the global environment, please recycle the product.

For more information about the collection and recycling of Waste Electrical

and Electronic Equipment (WEEE), you are invited to visit our homepage

at www.aopen.com under “Green Products”.

Safety Instruction

Safety Caution Concerning Battery

Use the battery according to the manufacturer’s recommendation. When

replacing battery, use the battery which conforms to the manufacturer’

s specifications. When disposing the batteries, dispose the batteries to

a recycle center which is designated by your local authority to process

batteries. Follow all your local authority’s safety and waste disposal

regulations in disposing the batteries.

Safety Caution Concerning Laser Products

This equipment, built with DVD and/or CD disc drives using laser beam to

read or write data on optical discs, is classied as “Class 1 laser product”.

While the laser optical drive is reading data from or writing data to an

optical disc, do not force open the disc drive door. Press the Eject button to

retrieve the optical disc only after the in-use indicator goes off.



Content

Safety Precautions..................................................................................... 2

Disposal Instruction................................................................................... 4

Safety Instruction....................................................................................... 4

1. Hardware Installation......................................................................... 6

1.1 Unpacking Your System............................................................... 6

1.2 System Overview......................................................................... 8

1.2.1 Summary of Motherboard Features.............................................. 8

1.2.2 Summary of Audio Features......................................................... 8

1.2.3 Summary of General Input/Output Ports..................................... 8

1.3 Front View.................................................................................... 9

1.4 Rear View..................................................................................... 9

1.5 Get Ready for Installation............................................................ 10

1.6 Disassemble the System............................................................... 12

1.6.1 Remove Top Cover....................................................................... 12

1.6.2 Remove Hard Drive...................................................................... 15

1.6.3 Install HDD Drive........................................................................ 16

1.6.4 Install Memory Module................................................................ 16

1.6.5 Remove and Install Power Supply................................................ 17

1.6.6 Install CPU................................................................................... 17

2. BIOS Installation................................................................................. 19

2.1 Turn On the Power....................................................................... 19

2.2 Power Master................................................................................ 23

2.3 Jumper Setting.............................................................................. 26



1. Hardware Installation

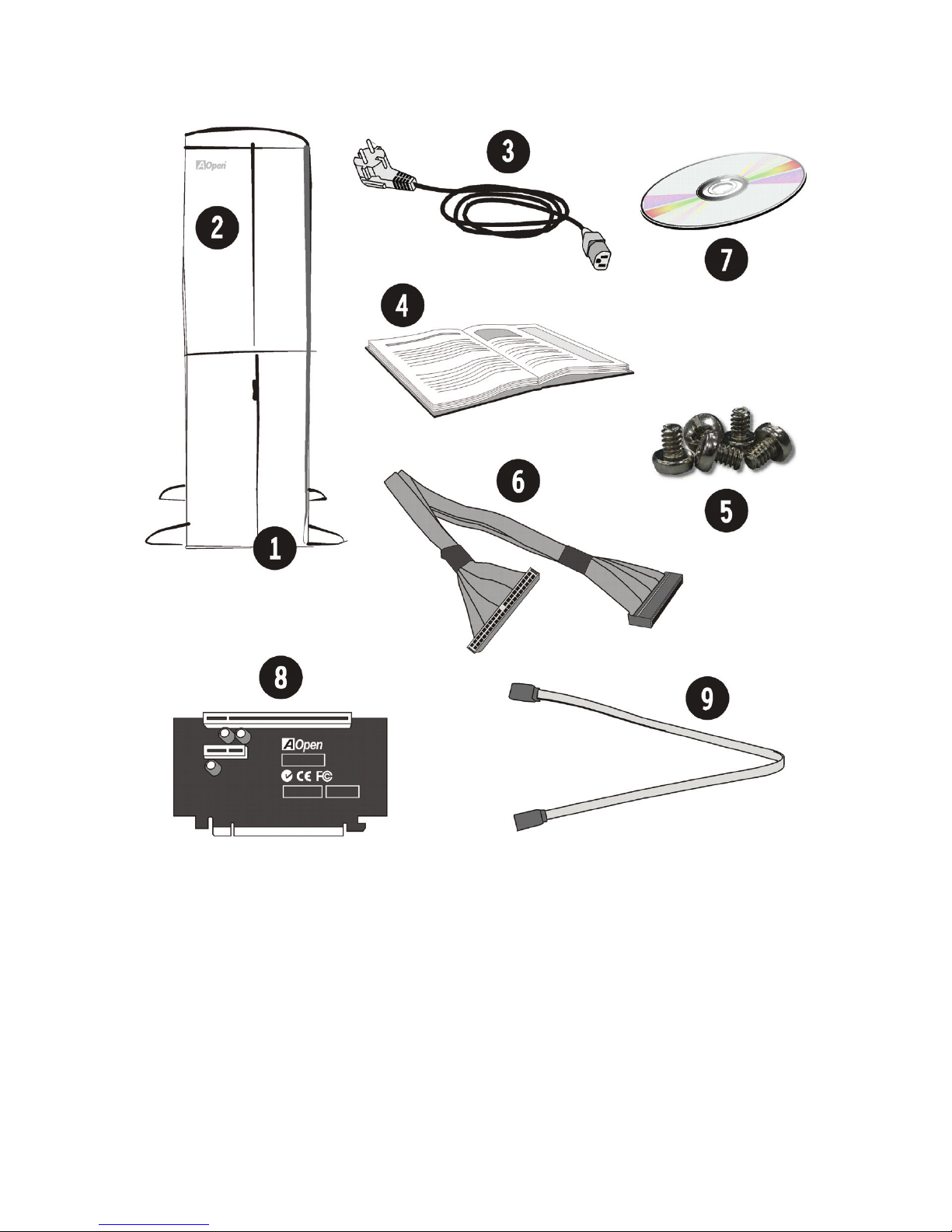

1.1 Unpacking Your System

The system is designed for easy installation and operation. When you open

the package, you will see the following items:

01. The system unit

02. Slim type oppy disc drive or 7-in-1 card reader

(depending on the model selected)

03. Power cable

04. User’s Manual

05. A pack of screws

06. 80-pin at IDE cable

07. AOpen bonus pack CD

08. Riser Card

09. SATA Cable

Option (depending on the model selected):

*. Combo disc drive

*. Software for burning CD

*. Keyboard

*. Mouse

*. Remote control (supplied with TV tuner/video capture card)

*. Installation CD for TV tuner/video capture card

(supplied with TV tuner/video capture card)

*. Installation Guide for TV tuner/video capture card

(supplied with TV tuner/video capture card)

*. Video to YPbPr/S-Video/Composite connector

*. Warranty Card





1.2 System Overview

1.2.1 Summary of Motherboard Features

● The system is designed to support Intel pro

cessors under 115 W, 3xx/5xx/6xx/820/920/930

sequence.

● The system is built with two memory slots

supporting DDR2 667/533 memory modules.

The total system memory can be expanded to

2GB.

● Provides six USB 2.0 ports.

● Supports one slim-type exible disc drive or a 7-in-1

card reader. (depending on the model selected)

● Supports one PCI Express slot.

● Supports ATA100 and SATA II drives

● Supports automatic power recovery function

1.2.2 Summary of Audio Features

● Supports Azalia Codec on-Board (Realtek ALC880 support

7.1 Channel) which provides stereo sound effects

● Provides earphone output and microphone input on front

and rear panels

1.2.3 Summary of General Input/output Ports

● One Serial port

● Parallel/printer port

● One PS/2 keyboard port

● One PS/2 mouse port



1.3 Front View

1.4 Rear View

Note: The illustrations show installation and disassembly concepts and

processes, the specications and look of the chassis are subject to change

without prior notice.

Earphone / Mic-In

2 x USB 2.0

4-pin or 6-pin 1394

Slim Card Reader or FDD

Power Button w/ Power LED

ODD

ODD Eject Button

HDD LED

Voltage Slide Switch

Power Cord Connector

Gigabit LAN

Thermal Hole

D-SUBs

6-pin 1394

Com port

Riser Card (option)

- 1 x PCIe(x16)

- 1 x PCIe(x1) Low Prole

(Standard one comes with

only one low prole card slot)

8cm Fan w/ Noise Killer

HD Audio

2 x USB 2.0

D4 (option)

2 x USB 2.0

SPDIF Out

S-Video Out (option)

PS2 Keyboard/Mouse

Thermal Holes

Key Lock

- 1 x PCIe(x16)

- 1 x PCIe(x1) Low Prole

(Standard one comes with

only one low prole card slot)

0

1.5 Get Ready for Installation

Before building your PC, clear a good-size workspace. Open the

components pack. Follow these steps:

Step 1

Carefully select the workspace. Avoid places with heavy dusts, wet or

high temperature. Stay away from other electric equipment. Especially,

the electric source and connecting parts should have a distance from

other electrical appliances to avoid electromagnetic or wireless frequency

interference. This generally should not be a problem at home. But you

should pay special attention when building the PC in other places to stay

away from heating equipment, air conditioners, copy machines, TV sets,

and wireless broadcasting stations or antennas.

Step 2

Open the components pack and count all parts in the pack. Such information

is available at the front section of this manual and make sure all the listed

items are included. Carefully secure the pack because you will need the

pack to collect the items when you have to move the PC to a new place

in the future. In case there are items missing in the pack, contact your PC

dealer immediately to make up all components and accessories.

Step 3

Connecting parts and components: Connect all cables with respective

sockets and plug power cable into power source socket.

Caution: Make sure all wires and cables are connected before you connect

power cable and switch on power source.

Table des matières

Autres manuels AOpen Ordinateur de bureau

AOpen

AOpen DE3650-S Manuel utilisateur

AOpen

AOpen DE67 Series Manuel utilisateur

AOpen

AOpen XC Mini MP45-DR Manuel utilisateur

AOpen

AOpen XCube Manuel utilisateur

AOpen

AOpen XC Cube TZ915 Manuel utilisateur

AOpen

AOpen XC Mini MP57 Manuel utilisateur

AOpen

AOpen DE6200 R Series Manuel utilisateur

AOpen

AOpen miniPC Duo MP965-DR Manuel utilisateur

AOpen

AOpen eTILE WT15M-FB Manuel utilisateur

AOpen

AOpen DE57 series Manuel utilisateur

AOpen

AOpen eTILE WT19M-FP2 Manuel utilisateur

AOpen

AOpen DEX2750 Manuel utilisateur

AOpen

AOpen DE6140 Series Manuel utilisateur

AOpen

AOpen eTILE AT19M-FB Manuel utilisateur

AOpen

AOpen DE3250 Series Manuel utilisateur

AOpen

AOpen EPC945-M8 Manuel utilisateur

AOpen

AOpen WB5500 Series Manuel utilisateur

AOpen

AOpen DE3100 Series Manuel utilisateur

AOpen

AOpen DE7200 Series Manuel utilisateur

AOpen

AOpen DE7400 Series Manuel utilisateur

AOpen

AOpen Digital Engine DE965 Manuel utilisateur

AOpen

AOpen DE6340 Series Manuel utilisateur

AOpen

AOpen eTILE AT10M-FP Manuel utilisateur

AOpen

AOpen eTILE-FKB Series Manuel utilisateur

Manuels Ordinateur de bureau populaires d'autres marques

HP m9060n - Pavilion - Elite Fiche technique

Asus

Asus E210 Series Manuel utilisateur

Dell

Dell Inspiron 600m Manuel utilisateur

Dell

Dell Inspiron 3662 Manuel utilisateur

TotalFlow

TotalFlow uFLO Manuel utilisateur

HP Presario SV7000 - Desktop PC Manuel utilisateur

HP ProDesk 400 G5 Manuel

Logitech

Logitech MK320 Manuel utilisateur

Dell

Dell XPS 730 H2C Manuel utilisateur

Sony

Sony Vaio Series Manuel utilisateur

Sony

Sony VGC-LT32E - Vaio All-in-one Desktop Computer Manuel utilisateur

Alto

Alto MD 250 Manuel utilisateur

Lenovo

Lenovo ThinkCentre Edge 72 Manuel

Lenovo

Lenovo ThinkStation D20 Manuel

Arbor Technology

Arbor Technology FPC-7800 Series Manuel utilisateur

Sony

Sony VAIO VGX-TP1 Series Manuel utilisateur

Asus

Asus Eee Box B204 Manuel utilisateur

Dell

Dell Optiplex 9010 All In One Manuel utilisateur
