Anzzi SP-AZ078 Manuel utilisateur

DON’T WAIT!

recognized as an purchase and is for warranty

coverage.

in the registry card (Pg. 2) or register

at www.swcorp.com/register

ITEM: SP-AZ078

ANZZI AURA SHOWER PANEL

INSTALL & OPERATION MANUAL

V2.0

Have questions? Call us at 305-614-4070or visit us at www.ANZZI.com

PRODUCT REGISTRATION∗

IMPORTANT: YOURWARRANTYWILLNOT BE RECOGNIZEDUNLESSTHISCARD IS

FULLY COMPLETEDAND RETURNEDORONLINEREGISTRATIONIS COMPLETED.

To ensure that your warranty is registered and conﬁrmed please do one of the following:

information you would in the registration card. Registering online is fast, secure and

ensures we receive your information.

Complete, cut-out and mail the registration card below.By returning this registration

card we conﬁrm the date of purchase for your new product. This conﬁrmation will allow

us to process any warranty claims.

Mail the card to: 5701 NW 35 Avenue, Miami, FL 33142

Product Registration Card

Name

.....................................................................................

Address

...........................................................................................................................

City...............................................State

...........................

Zip

..............................

Phone

...........................................

...........................

.........................................

Date of Purchase ...........................

Installer’s Name

.....................................................................

Phone ................................................................................

I have read the Owner’s Manual carefully and understand and agree that any installation, operation or maintenance of the product must be

done strictly in accordance with instructions and guidelines contained in the owner’s manual and installation guide.

Signature____________________________________________________________Date______________________________________________

CUT ALONG

DOTTED LINE.

pg. 1

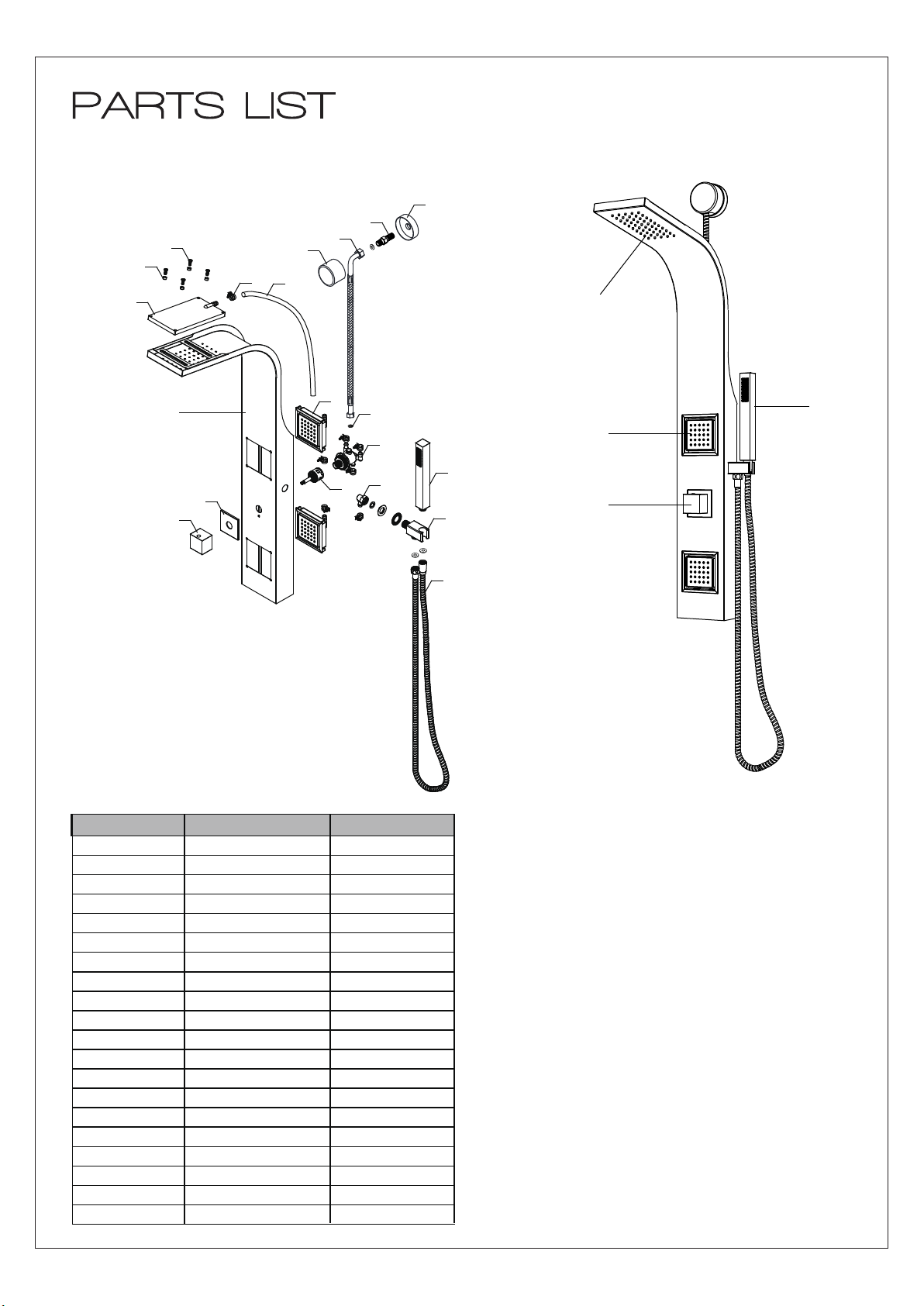

PARTS LIST

C. Body Jets

A. Shower Head

B. Diverter

D. Hand Shower

910

Component no. Component Material

body

s/s

head shower

pad

EPDM

screw 1

s/s

clip

s/s

pvc hose

pvc

ABS

braided hose

s/s

knob

knob plate cover

zinc

ABS

various

cap

ABS

base

flow restricter

hand shower

ABS

hand shower holder

ABS

flexible hose

s/s

body jets

ABS

one way joint

ABS

faucet

brass

long- short connector

brass

function cartridge

pg. 2

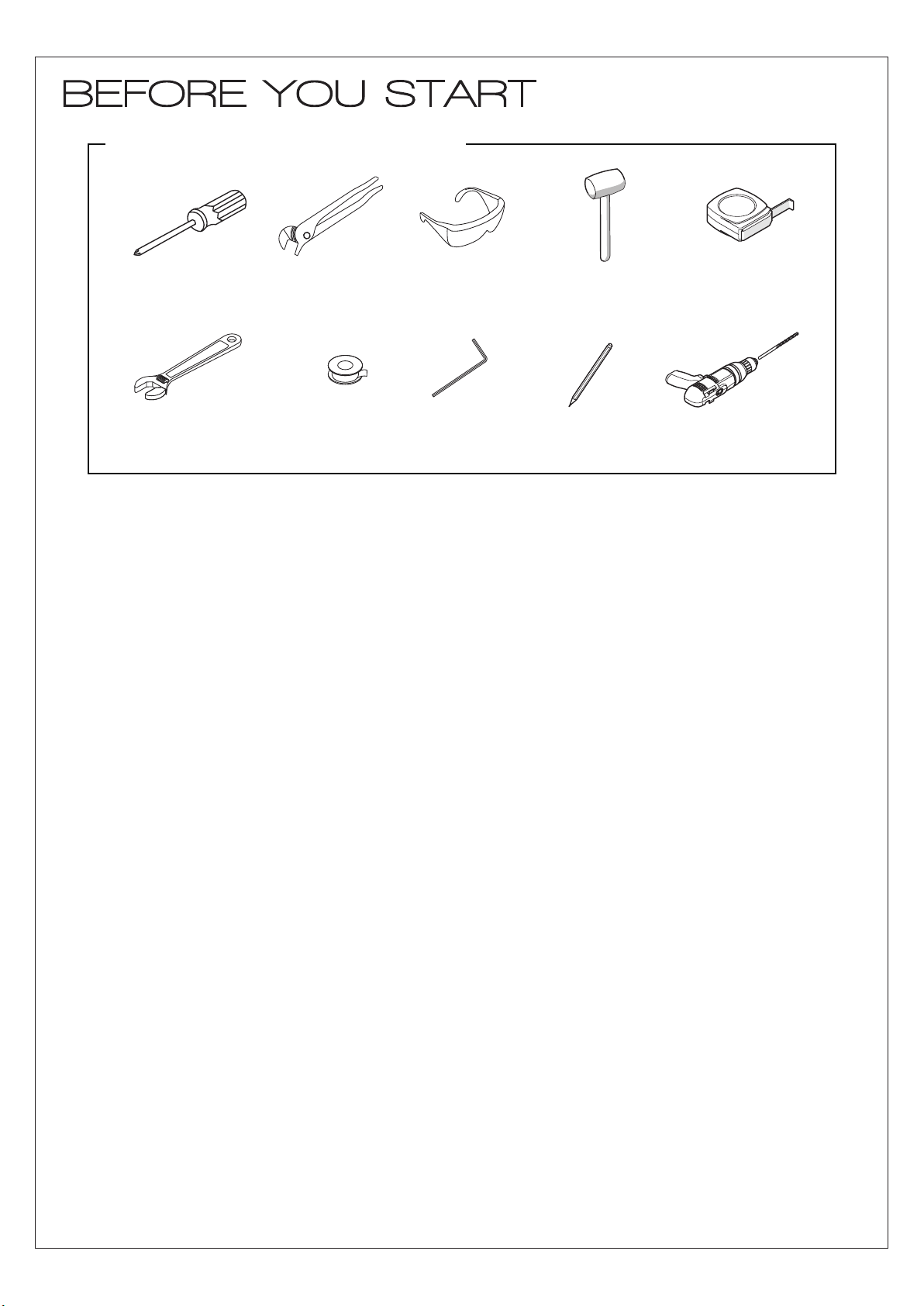

BEFORE YOU START

Recommended Items

Screwdriver Channel Locks

Adjustable Wrench Allen key Pencil Electric drill

G TapeRubber hammeroggles

Teflon tape

Read Before Using Your New Shower Panel

Congratulations on purchasing our Shower Panel. Your new shower panel will be a great addition to

your bathroom for years to come. Our luxury Shower Panel brings a spa experience into your life in

the comfort of your personal bathroom. Adding the shower panel as a modification to your present

shower will allow you to enjoy the pleasures of massaging body spray jets. Furthermore. The shower

panel will operate with your existing plumbing supply lines with standard line pressure and flow rates.

Before using our Shower Panel, please read this document carefully and thoroughly.

The instructions and safety information in this document are essential to the safe operation of your

new unit. Additionally, neglect or improper or incorrectly performed installation, maintenance or repair,

including failure to follow the applicable care and cleaning instructions may affect your new product's

warranty.

IMPORTANT.

1. Prior to installation. please make sure your package is intact. Look over the product and contact

your dealer or ANZZI if you find damaged sections.

2. In order to install this shower panel, simple understanding of plumbing techniques will be necessary.

Please contact your dealer or a professional plumber if you are unfamiliar with plumbing techniques

or have questions.

3. This shower panel is designed for indoor use only. It is not intended for outdoor or other uses.

4. The product is provided with flexible supply hoses. It would be better putting stop valves between the

hoses and water supplies.

5. Product could function between 20-125 supply pressure. Using pressure reducing valve while the

pressure is too high.

Have questions? Call us at 305-614-4070or visit us at www.ANZZI.com

pg. 3

70"

17.71"

12.68"

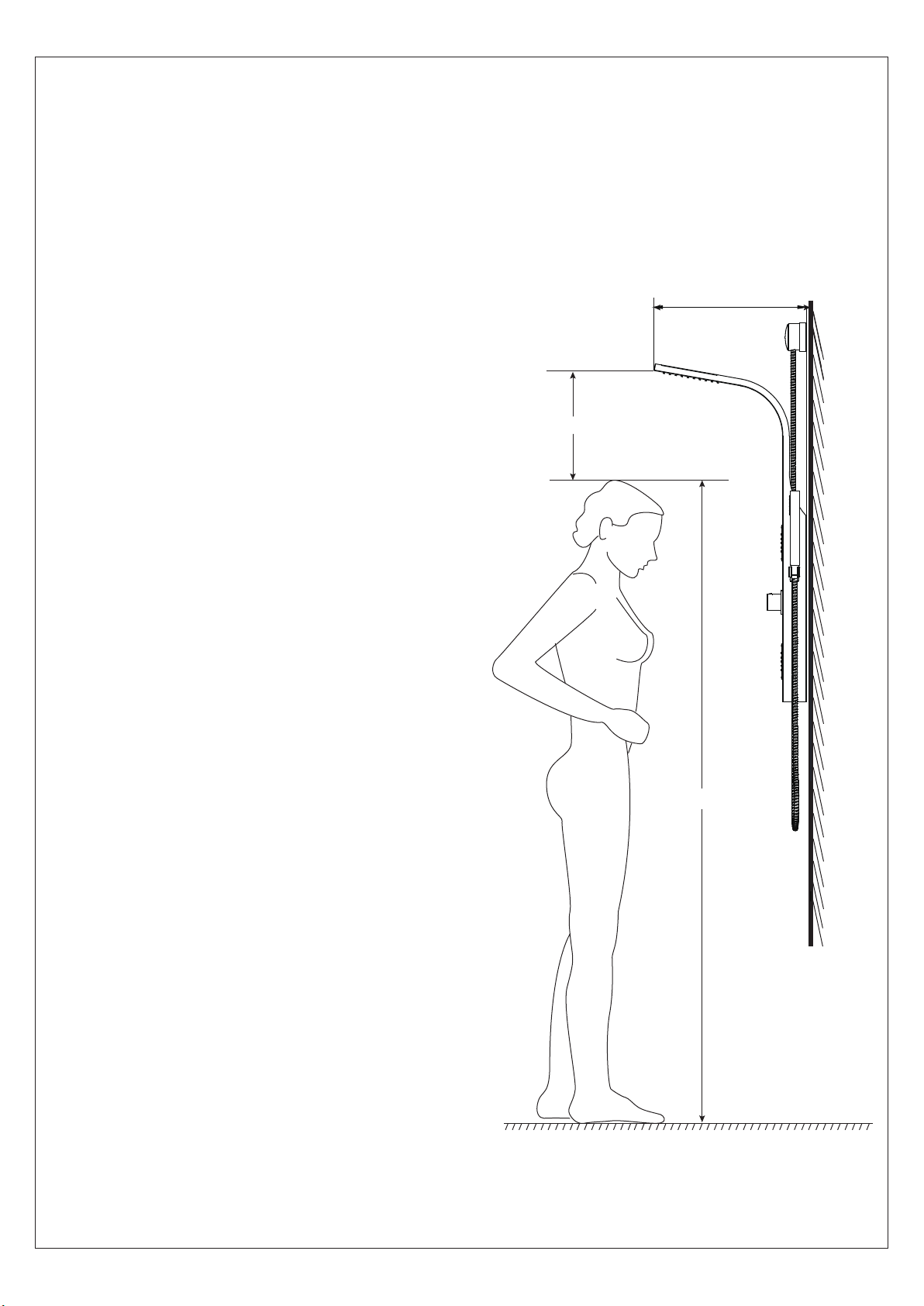

Mounting the Brackets of the Shower Panel

-It is recommended that the shower panel be mounted at a

height that will make the unit accessible to people with varying

heights. Establish the percise height and position of the unit on

the wall. We recommend to leave a 12.68"(32cm) space between

the shower head and the average height of the people in the

house as well as a minimum distance of 1"(2.5cm) from the

ceiling.(Figure A)

-The height you choose shall allow the shower panel to

completely cover up the connection points for the cold and

hot water supplies. In order to determine your installation

location of the shower panel, you should use a tape

measure and a pencil.

(or some type of marking tool).

Figure A

pg. 4

STEP 1

13.4"

1-1 Measure the distance Abetween the floor and the bottom of the shower column.

Measure the distance Bbetween the bottom of the shower column and the back bracket.Measure the distance Cbetween the brackets at the back of the shower column body (1)

1-2 Project this measurement onto the wall in order to install the mounting brackets (2)

1-3 Mark the postion of each screw holes of both mounting brackets(2) on the wall using a pencil.

②Tape

①5"-16.5"

1-4 The recommended height of water is 5-16.5 inches.

Have questions? Call us at 305-614-4070or visit us at www.ANZZI.com

pg. 5

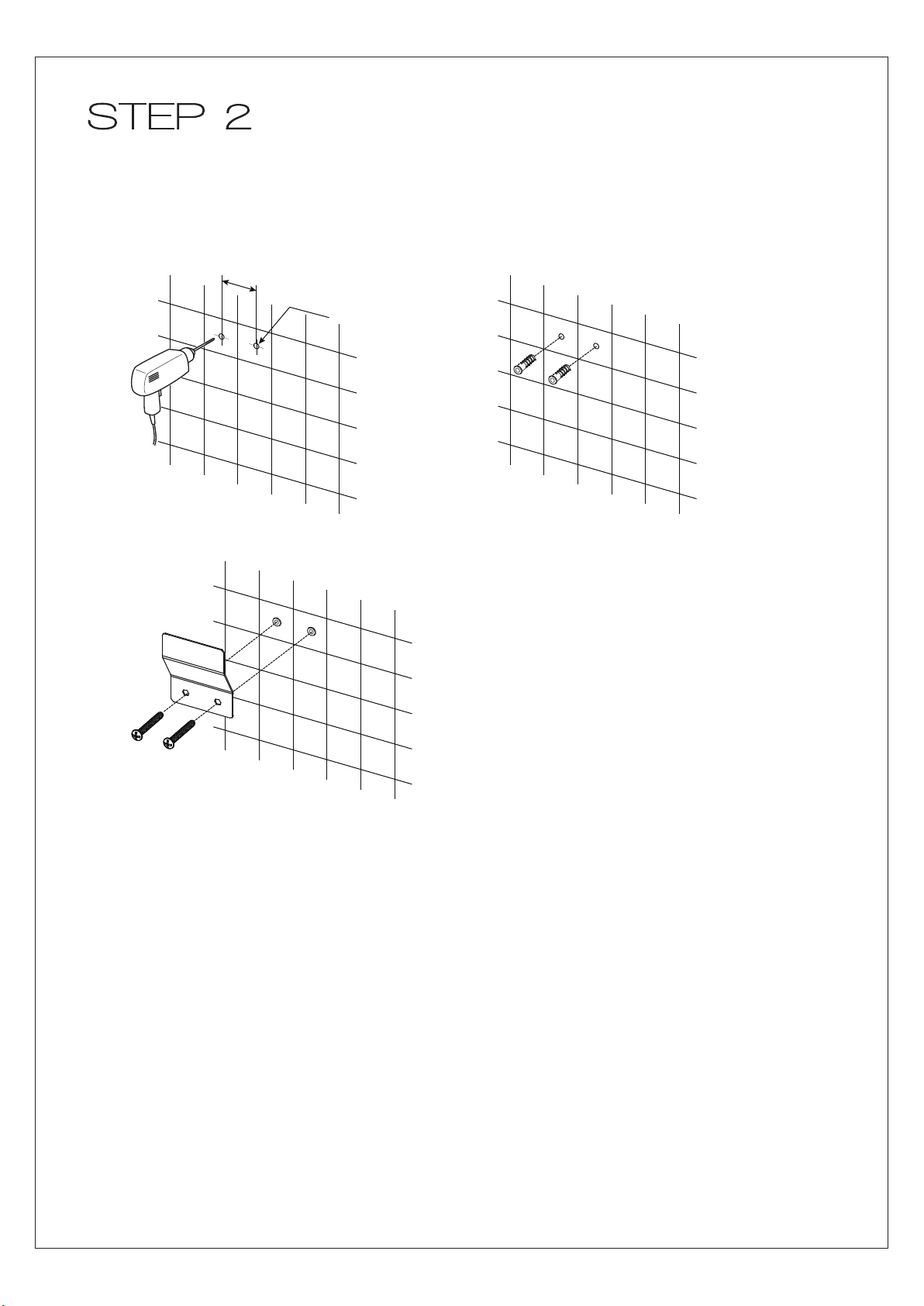

STEP 2

Figure A

Before drilling any holes for the shower panel brackets, be sure there are no hidden

cables or pipelines aligned with the desired drilling position.

2-1 Drill the two holes for the top bracket 1” apart at the desired height.

2-2 Drill the two holes for the bottom bracket 1” apart below the top bracket.

IMPORTANT

Figure B

2-3 Insert the wall anchors into the pre-drilled holes as shown in Figure B.

2-4 Place the shower panel brackets aligned with the drilled holes and secure the brackets

by tightening the screws.

Figure C

Ø0.24"

Have questions? Call us at 305-614-4070or visit us at www.ANZZI.com

pg. 6

STEP 3

INSTALLATION (HANDSHOWER)

Insert the shower holder through the pre-drilled hole on the shower panel.

Connect the water supply hose to the shower holder,as shown.

Make sure all washers are inserted to prevent leakage.

Once the shower panel is fully installed and hung on the bracket, you can install the hand

shower hose to the holder connection.

3-1

Connecting the hand shower to the hose, as shown.3-4

3-2

3-3

Have questions? Call us at 305-614-4070or visit us at www.ANZZI.com

pg. 7

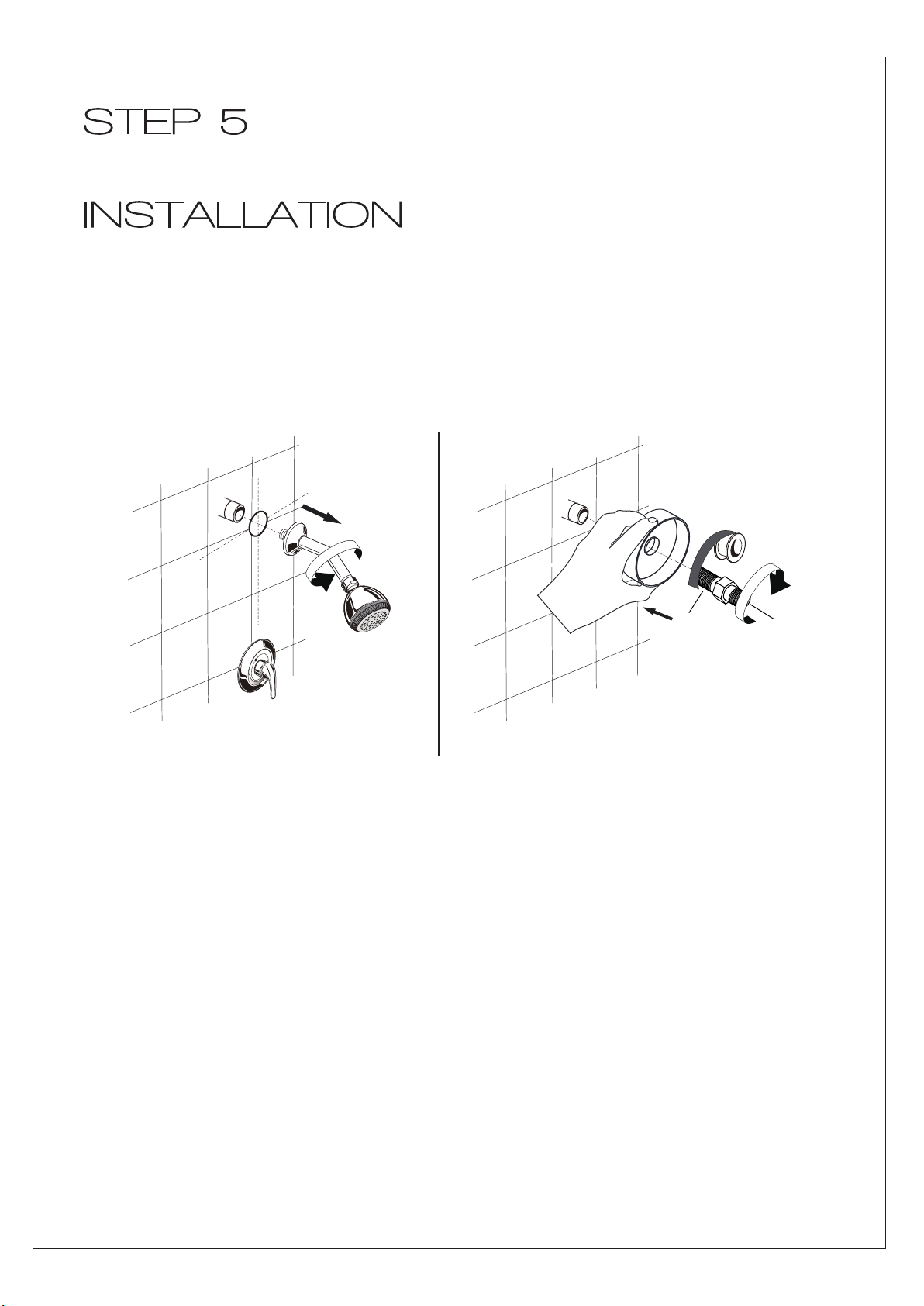

STEP 5

INSTALLATION

Remove the existing shower head and shower arm assembly.

Hold the plastic base against the wall.Wrap plumber tape around "A"position

of adapter threads. Connect the adapter to the existing outlet.

5-1

5-2

A long

B short

Have questions? Call us at 305-614-4070or visit us at www.ANZZI.com

pg. 8

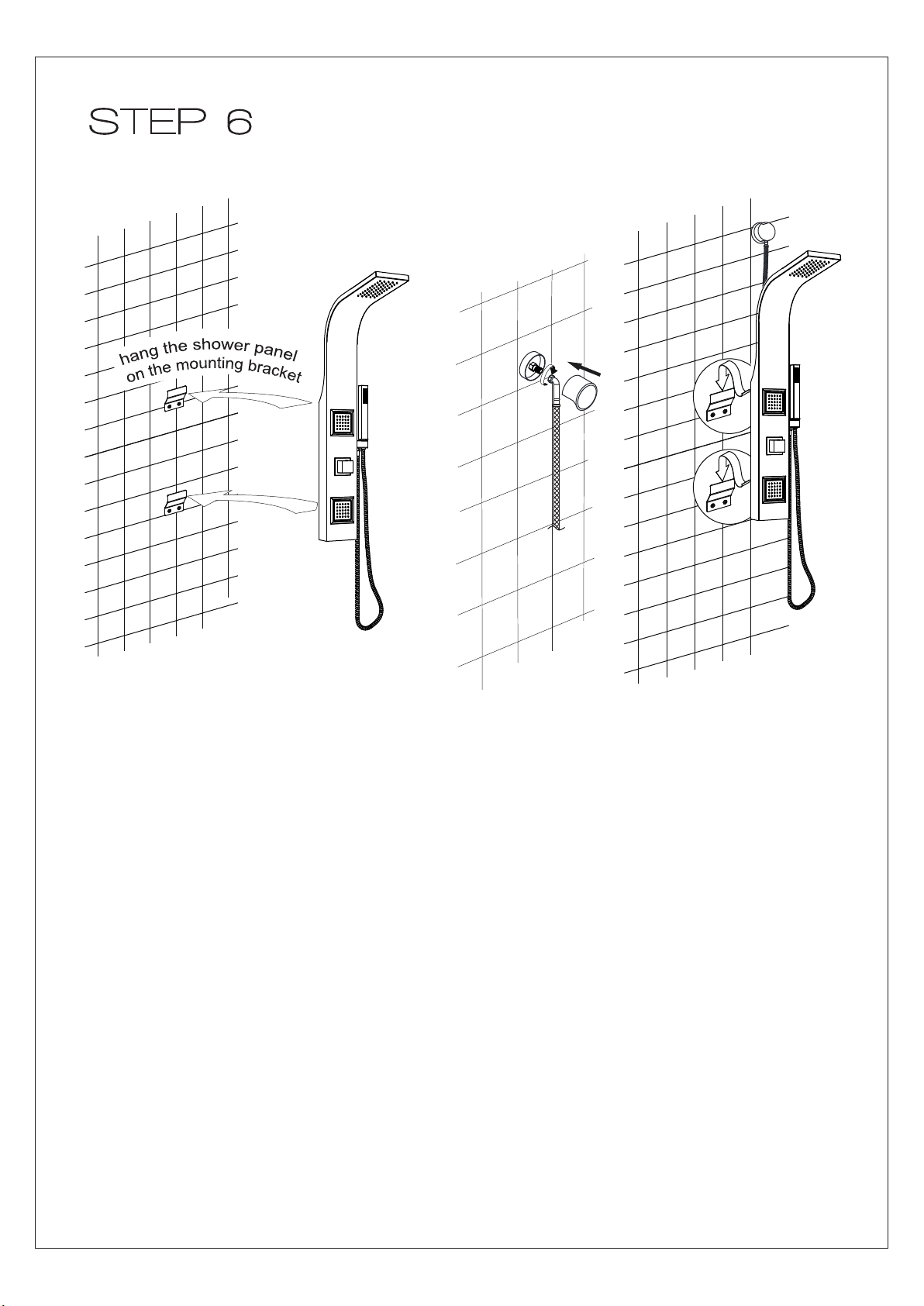

STEP 6

The mixing valve will not function properly if the connections are incorrect.

Before hanging the shower panel onto the wall, turn on shut-off valves and test all water

functions of the shower panel and check all connections for leaks.

Make sure that the hoses are in the shower panel enclosure.

Connect shower panel water supply hose to the existing plumbing and the mixing valve.

6-1

6-2

Slide the shower panel down until it rests on the mounting brackets you installed. The shower

panel must be seated onto the mounting brackets by pulling down the shower panel.

6-3

Have questions? Call us at 305-614-4070or visit us at www.ANZZI.com
