ANZZI SHOWER BASE
INSTALL & OPERATION MANUAL
V1.0
DON’T WAIT!
REGISTER NOW!
Register your product within 90 days to ensure your product is
recognized as an ofcial purchase and is eligible for warranly
coverage.
Mail in the completed registry card (Pg. 2) or register online
at www.swcorp.com/register.
Need assistance? Call our technical support line at 305-614-4070 or visit us at www.ANZZI.com
PRODUCT REGISTRATION*
IMPORTANT:YOURWARRANTY WILLNOTBE RECOGNIZED UNLESS THIS CARD IS
FULLY COMPLETED AND RETURNED OR ONLINE REGISTRATION IS COMPLETED.
1.
Register online at
www.swcorp.com/register.
You will be asked to fill out the same
information you would in the registration card. Registering online is fast, secure and
ensures we receive your information.
2. Complete,cut-outandmailtheregistrationcardbelow.Byreturningthisregistration
card we confirm the date of purchase for your new product. This confirmation will allow
us to process any warranty claims.
Mail the card to: 5701 NW 35 Avenue, Miami, FL 33142
Product Registration Card
Name ..................................................................................... Address ...........................................................................................................................
City ............................................... State ........................... Zip ..............................
Phone ........................................... Email....................................................................
Date of Purchase...........................
Installer’s Name ..................................................................... Phone ................................................................................
I have read the Owner’s Manual carefully and understand and agree that any installation, operation or maintenance of the product must be done
strictly in accordance with instructions and guidelines contained in the owner’s manual and installation guide.
Signature____________________________________________________________Date______________________________________________
CUT ALONG
DOTTED LINE.
INSTALLATION GUIDE
BEFORE YOU BEGIN
Prior to installation, examine all boxes and packages for shipping damage. If the unit has been
damaged, has a finishing defect, or has missing parts, please contact our customer support
department within 5 business days of the delivery date. Please note that we will not replace any
damaged products or missing parts free of charge after 10 business days or if the product has
been installed.
●
●These instructions include suggestions for rough construction and plumbing installation. Local
building codes vary and could supersede those suggestions. If you are not confident in your
ability to perform these tasks, contract out those tasks you need help with or use a professional
installer.
●Failure to read these instructions prior to installation may result in personal injury, property
damage, or product failure. Manufacturer assumes no responsibility for product failure due to
improper installation.
●Confirm that your model will fit in intended location and plumbing fixtures are located where
required before beginning installation. Do not install in areas where temperature may drop
below 32ºF (0ºC).
●Walls and sub-floor must be solid, plumb, and square.
●Use drop cloth to protect shower base from damage during installation.
●Allow product to reach room temperature for 30 minutes before installation.
●Drain cutout 5” diameter max.
●IF INSTALLING MATCHING ENCLOSURE, refer to Enclosure Installation Manual for specific
lumber sizes and placement. Additional studs will be required and need to be installed at this
point.
●Check the corresponding specification drawings for the detail dimensions.
●Do not use plumber’s putty. May result in product failure. Use latex/acrylic sealant or a gasket.
IMPORTANT: Dimensions provided are for reference only. You must measure the actual
shower tray sizes before installation, this includes overall dimensions and drain location.
1
2
TOOLS AND MATERIALS REQUIRED

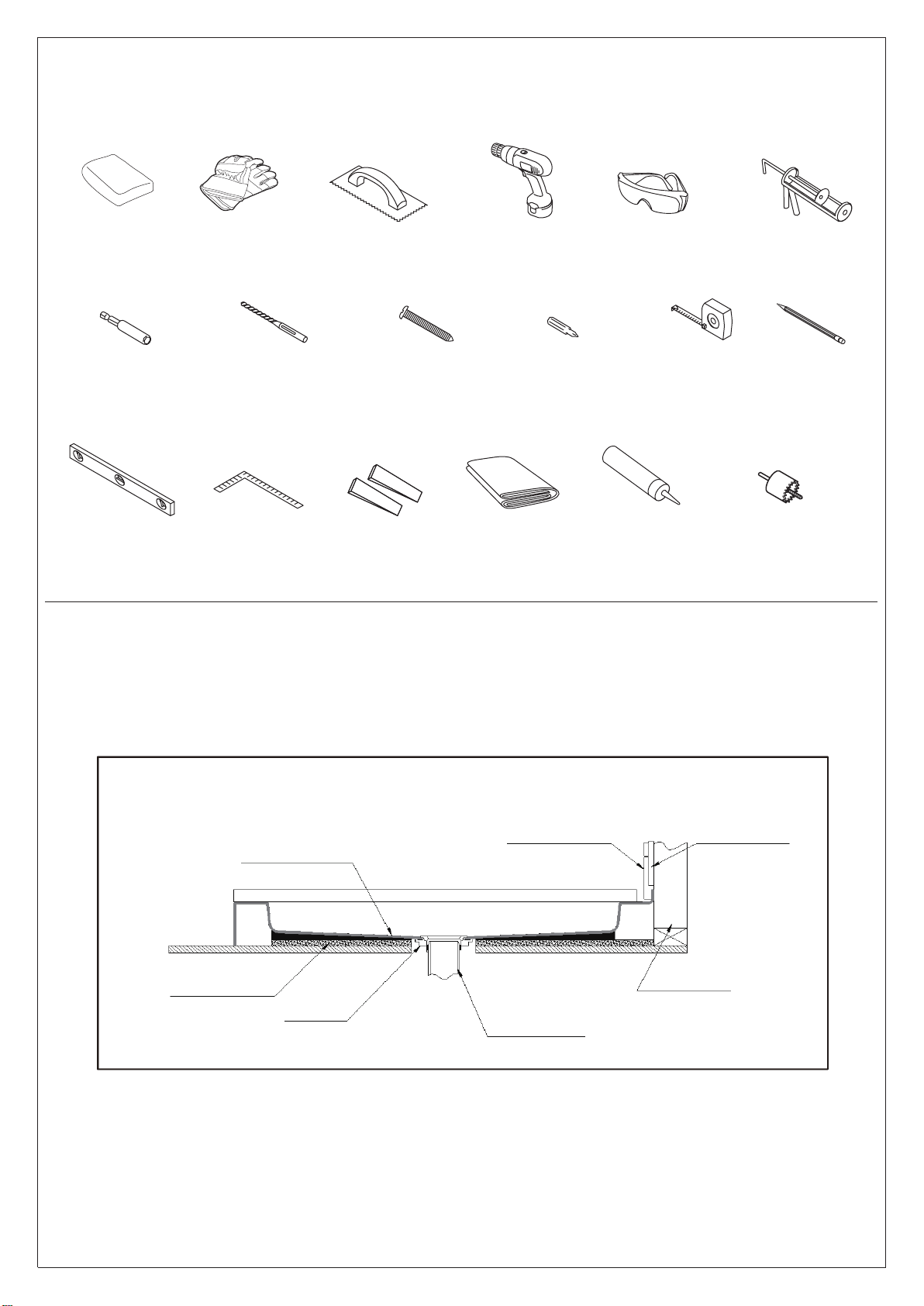

SHOWER TRAY CROSS SECTION DRAWING
Mortar
DrillMortar Safety GlassesGloves Caulk Gun1/4” Square Notched
Trowel
Driver Bit (for use with
extension bit holder)
Drill Bit 3/16” (5 mm)Extension Bit Holder PencilScrews #8 x 1 1/2” (zinc
or stainless; panhead or
roundhead)
Tape Measure
Shims Drop Cloth Sealant (2 tubes)Level Square Hole Saw (sized to
accomodate plumbing
fixtures)
Finished Wall
Cement board
Shower Tray
Mortar
Drain
2"PVC Waste Pipe
(2"×4") Stud
3
INSTALLATION INSTRUCTIONS
●The following steps are for the corner
shower tray.
●
●
●
●
●
●
●
●
Ensure that the floor and the studs
are at right angles.Provide a 5”×5” opening
in the subfloor for the drain.
The 2” PVC waste pipe should extend above
the surface of the sub-floor according to the
drain installation instructions and the height
of the Shower Tray.

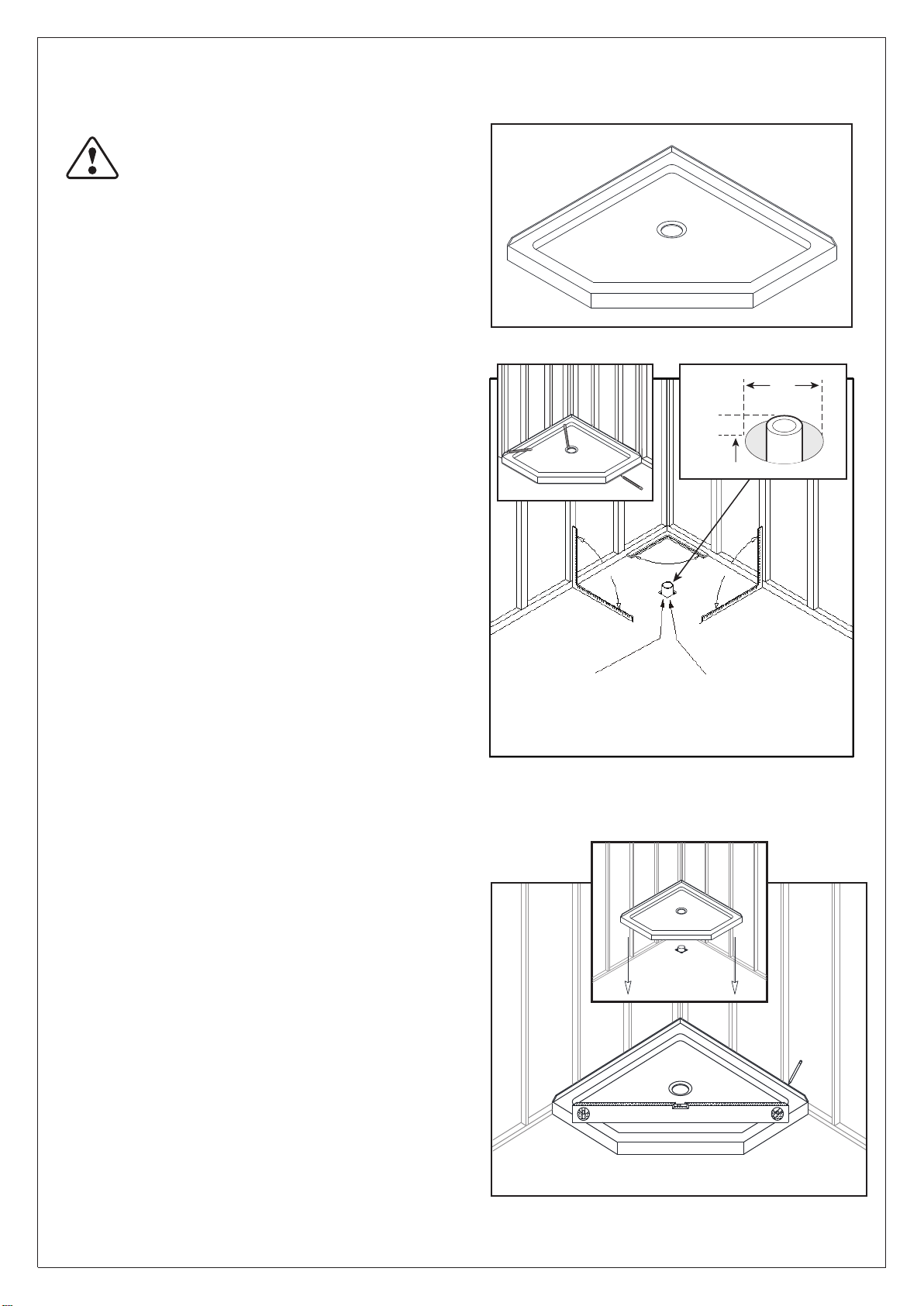

Mark unit position on floor and through
drain opening.
Mark the locations of the studs on the flange
of the base.
These marks are used to verify base location
after drain is installed. (Fig 1)
The pipe height (A) shall be determined
according to the products on hand.
Place the tray into the designated position
so that the Drain Body drops around the
Drain Pipe and put the Shower Tray up
against the studs.
Level the tray and place marks on the studs
above the upper edge of the tile flange.
If the subfloor is not flat and level, use leveling
compound or mortar bed to ensure that the
base is level (shown in Step 5).(Fig 2)
ATTENTION
STEP 1
STEP 2
Fig. 1
(See Product Chart for Drain Location)
(5"×5") Opening
2" PVC Waste Pipe
90°
90°
90°
5"
(12.7 cm)
A
Fig.2
Level base in two directions
4
Fig. 3

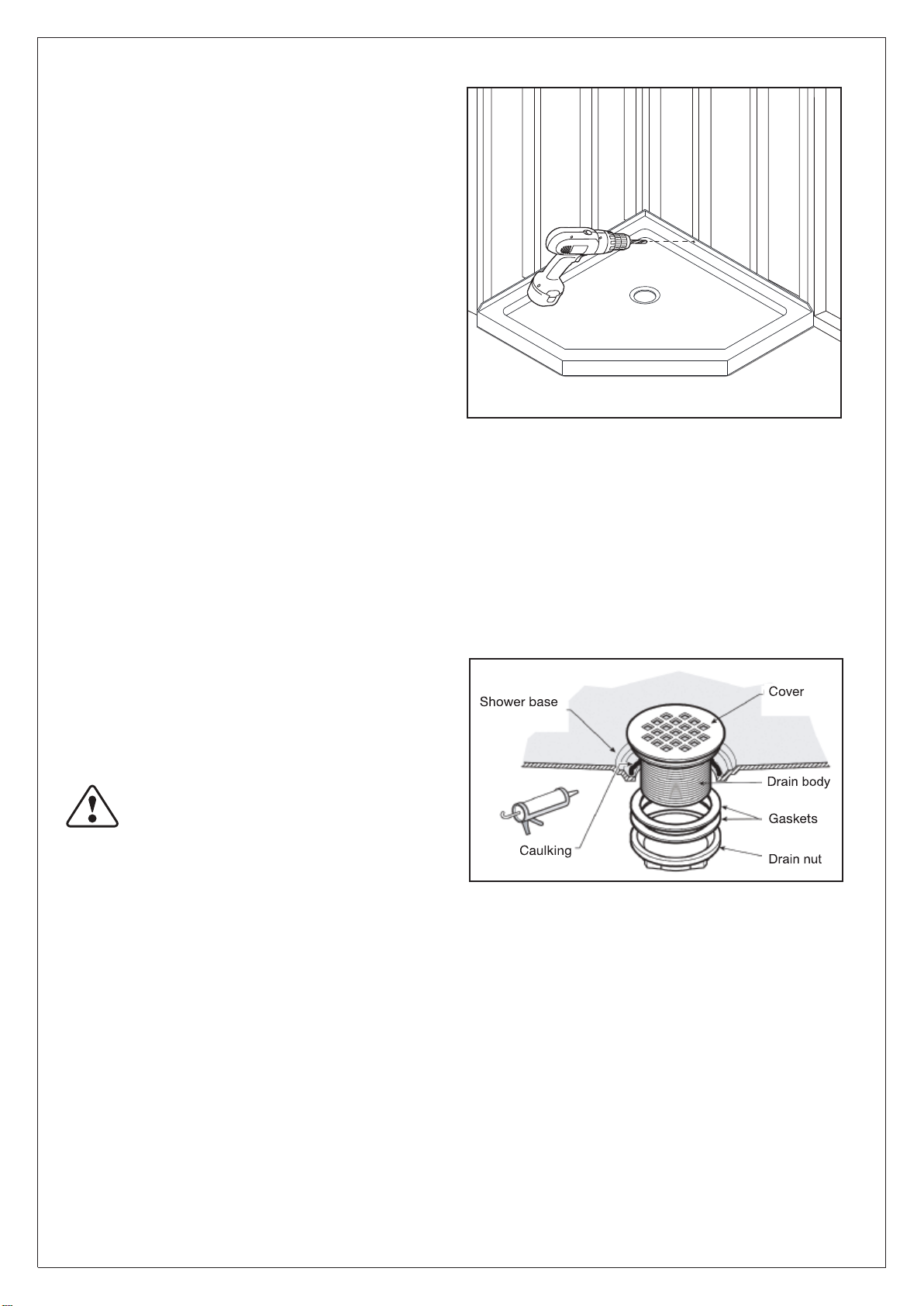

●Drill 3/16” holes at all stud locations on top
flanges. (Fig 3)
IMPORTANT: Drill 3/16” clearance holes into
flanges only. Do not drill 3/16” holes directly
into studs. Drill chuck can damage base. Use
an extended bit holder to reduce risk of drill
chuck hitting base.
STEP 3
Fig. 4
●Install the shower drain (NOT INCLUDED)
according to the drain installation manual
(supplied with the drain). (Fig 4)
●Plumber’s putty will degrade base material,
causing cracks and potential property
damage. DO NOT use plumber’s putty to
seal between drain and base. Use sealant
or gasket.
STEP 4
ATTENTION
5
Fig. 6
Fig. 5

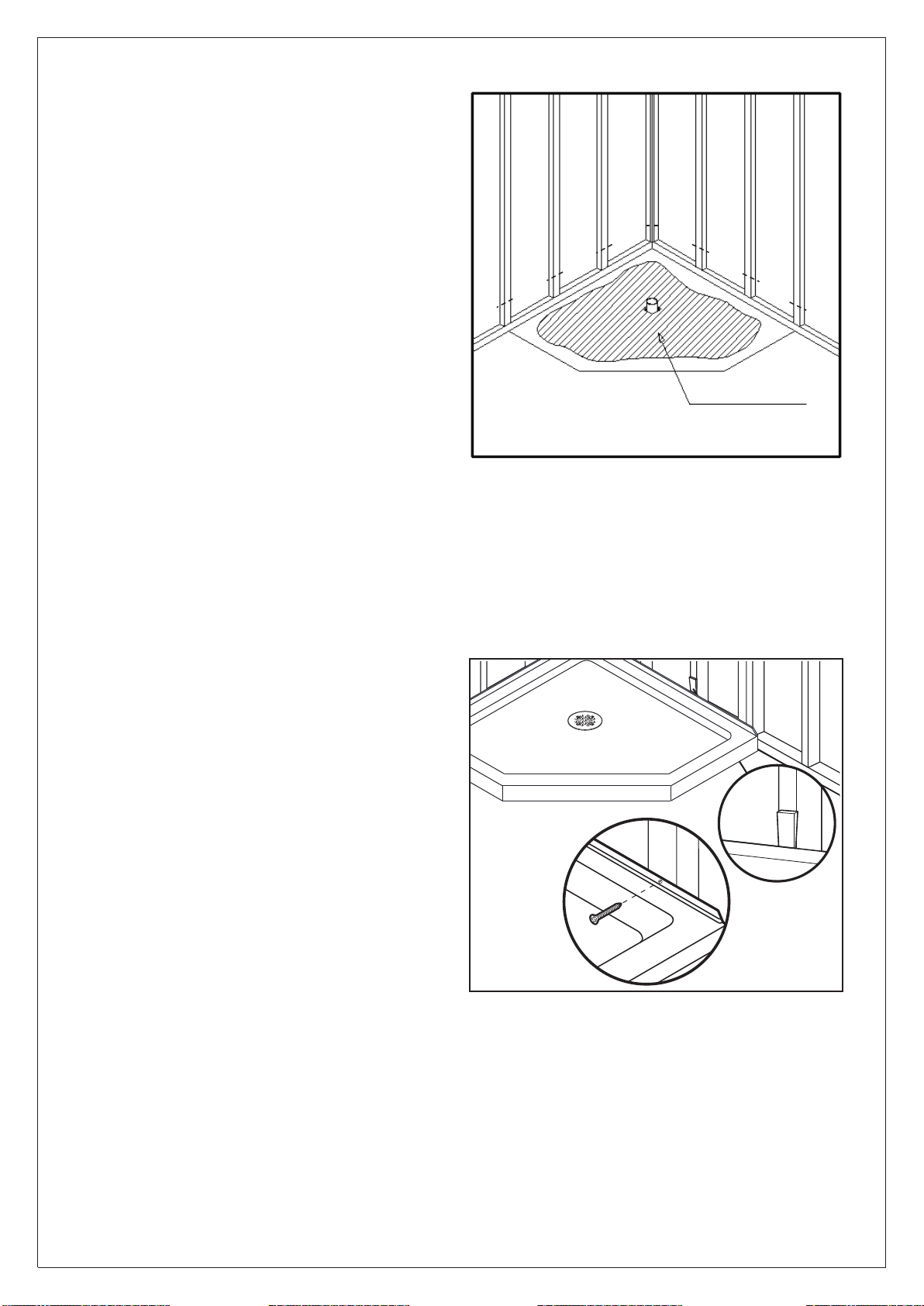

●Apply a generous amount of mortar that
has been mixed to a thick consistency.
Place the base in the wet mortar, adjust
until it is level, and let mortar cure for
24 hours. Proceed to the next step. (Fig 5)
STEP 5
●It is recommended not to stand in base
while securing to wall. Set base in corner
and press it into mortar.
Secure flanges to all studs with #8(1-1/2”)
screws through previously drilled holes.
(Fig 6)
IMPORTANT: Gaps between flanges and
studs must be less than 1/8”. Insert shims
to fill gaps if needed.
STEP 6
Shim
Mortar
6
Waterproof Drywall to the
top of the tile flange
Caulk Finished wall overlaps the
dry wall and tile flange
Stud
1 2
Drywall
e
43
Side View
1/8”
gap
Base
●Apply a bead of sealant between the apron
and finished floor and wait for 24 hours
before using the shower. (Fig.8)
STEP 8
●
●
●
Allow the mortar to completely harden before applying weight to the bottom of the shower
tray.
Install the Drywall above the tile flanges and secure it to the studs.
Put the tiles (or other finishing wall material) over the drywall leaving 1/8” gap between the
bottom of the tile and the splash rim of the shower tray. Use caulk to fill that gap. (Fig.7)
STEP 7
Fig. 7
Fig. 8
2
3
7
●
●
●
●
●
Ensure that the floor and the studs are at right angles.Provide a 5”×5” opening in the subfloor
for the drain. The 2” PVC waste pipe should extend above the surface of the sub-floor according
to the drain installation instructions and the height of the Shower Tray.
Mark unit position on floor and through drain opening.
Mark the locations of the studs on the flange of the base.
These marks are used to verify base location after drain is installed. (Fig 1)
The pipe height (A) shall be determined according to the products on hand.
STEP 1
●The following steps are for the rectangle
shower tray.
ATTENTION
C
5"
(12.7 cm)
A
8

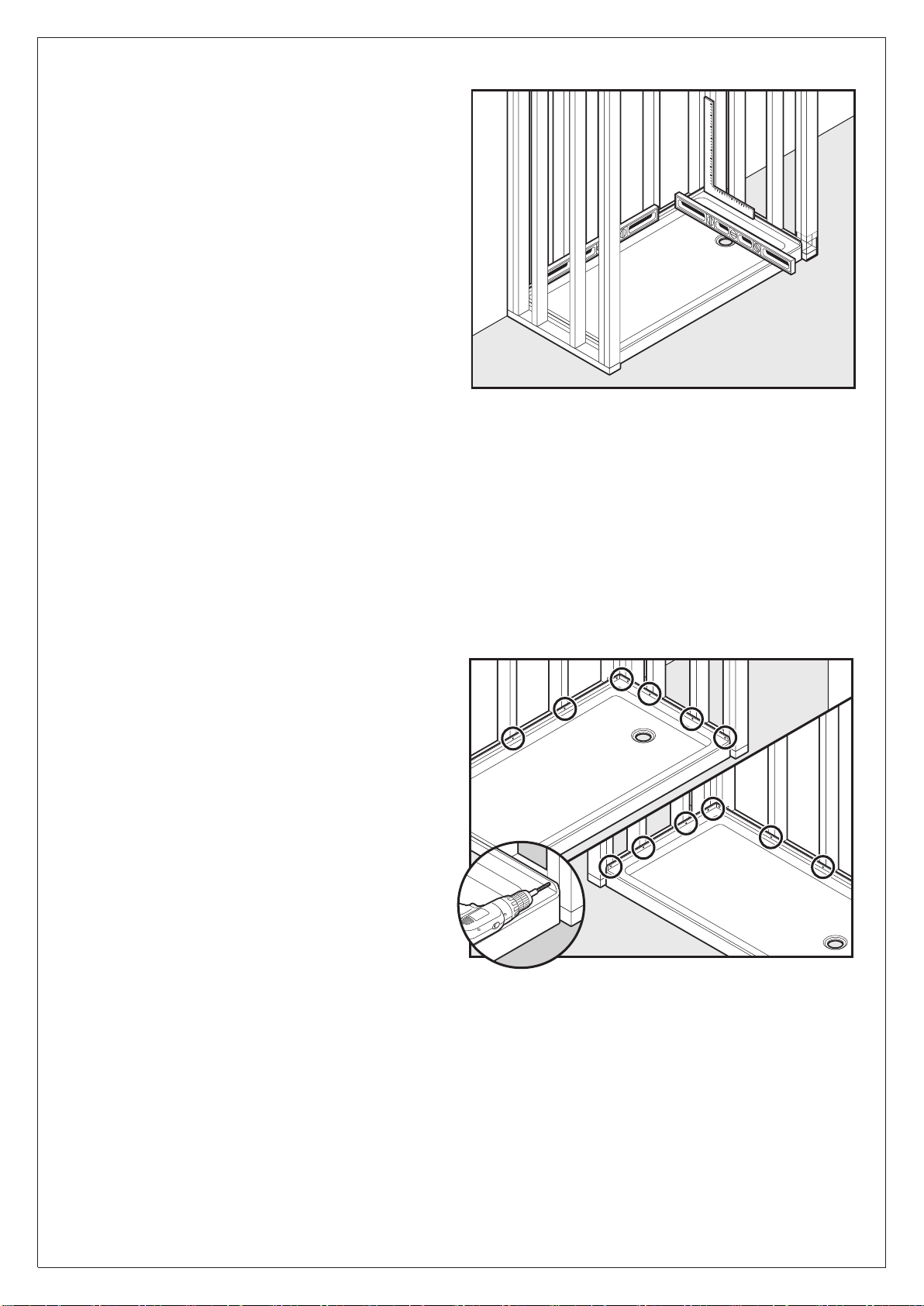

Fig. 2
Fig. 3
●
●
●
Place the tray into the designated position
so that the Drain Body drops around the
Drain Pipe and put the Shower Base up
against the studs.
Level the tray and place marks on the studs
above the upper edge of the tile flange.
If the subfloor is not flat and level, use
leveling compound or mortar bed to
ensure that the base is level (shown in Step 5).
(Fig 2)
STEP 2
●Drill 3/16” holes at all stud locations on top
flanges.(Fig 3)
IMPORTANT: Drill 3/16” clearance holes
into flanges only. Do not drill 3/16” holes
directly into studs. Drill chuck can damage
base. Use an extended bit holder to reduce
risk of drill chuck hitting base.
STEP 3
