ANTAIRA LMX-0501G-SFP-T Manuel utilisateur

Antaira Industrial Ethernet Switches

LMP-0501G-SFP Series User Manual V1.0

LMX-0501G-SFP Series

5-Port Industrial Gigabit Managed Ethernet Switch, with

4*10/100/1000Tx and 1*100/1000 SFP Slot,

12~48VDC Power Input

User Manual

Version 1.1

Antaira Industrial Ethernet Switches

LMX-0501G-SFP Series User Manual V1.1

This document contains information, which is protected by copyright. Reproduction, adaptation or translation

without prior permission is prohibited, except as allowed under the copyright laws.

Trademark Information

Antaira is a registered trademark of Antaira Technologies, LLC, Microsoft Windows and the Windows logo are the

trademarks of Microsoft Corp. NetWare is the registered trademark of Novell Inc. WMM and WPA are the

registered trademarks of Wi-Fi Alliance. All other brand and product names are trademarks or registered

trademarks of their respective owners.

translation without prior permission of Antaira Technologies, LLC is prohibited, except as allowed under the

Disclaimer

Antaira Technologies, LLC provides this manual without warranty of any kind, expressed or implied, including but

not limited to the implied warranties of merchantability and fitness for a particular purpose. Antaira Technologies,

LLC may make improvements and/or changes to the product and/or specifications of the product described in this

manual, without prior notice. Antaira Technologies, LLC will not be liable for any technical inaccuracies or

typographical errors found in this guide. Changes are periodically made to the information contained herein and

will be incorporated into later versions of the manual. The information contained is subject to change without prior

notice.

Antaira Industrial Ethernet Switches

LMX-0501G-SFP Series User Manual V1.1

iii

FCC Warning

This equipment has been tested and found to comply with the limits for a Class-A digital device, pursuant to Part

15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses, and can radiate radio frequency energy. It may cause

harmful interference to radio communications if the equipment is not installed and used in accordance with the

instructions. However, there is no guarantee that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following

measures:

 Reorient or relocate the receiving antenna.

 Increase the separation between the equipment and receiver.

 Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

 Consult the dealer or an experienced radio/TV technician for help.

Caution: Any changes or modifications not expressly approved by the grantee of this device could void the user's

authority to operate the equipment.

CE Mark Warning

This is a Class-A product. In a domestic environment this product may cause radio interference in which case the

user may be required to take adequate measures.

Industrial Ethernet Switches

Industrial Grade Gigabit Managed Ethernet Switches

User Manual

Version 1.1 (March 2018)

This manual supports the following models:

 LMX-0501G-SFP

 LMX-0501G-SFP-T

This document is the current official release manual. Please check our website (www.antaira.com) for any

updated manual or contact us by e-mail ([email protected]).

Antaira Industrial Ethernet Switches

LMX-0501G-SFP Series User Manual V1.1

Table of Contents

1. Introduction................................................................................................ 1

1.1 Product Overview .......................................................................... 1

1.2 Product Software Features ............................................................ 1

1.3 Product Hardware Features ........................................................... 2

1.4 Package Contents ......................................................................... 2

1.5 Safety Precaution .......................................................................... 2

2. Hardware Description ............................................................................... 3

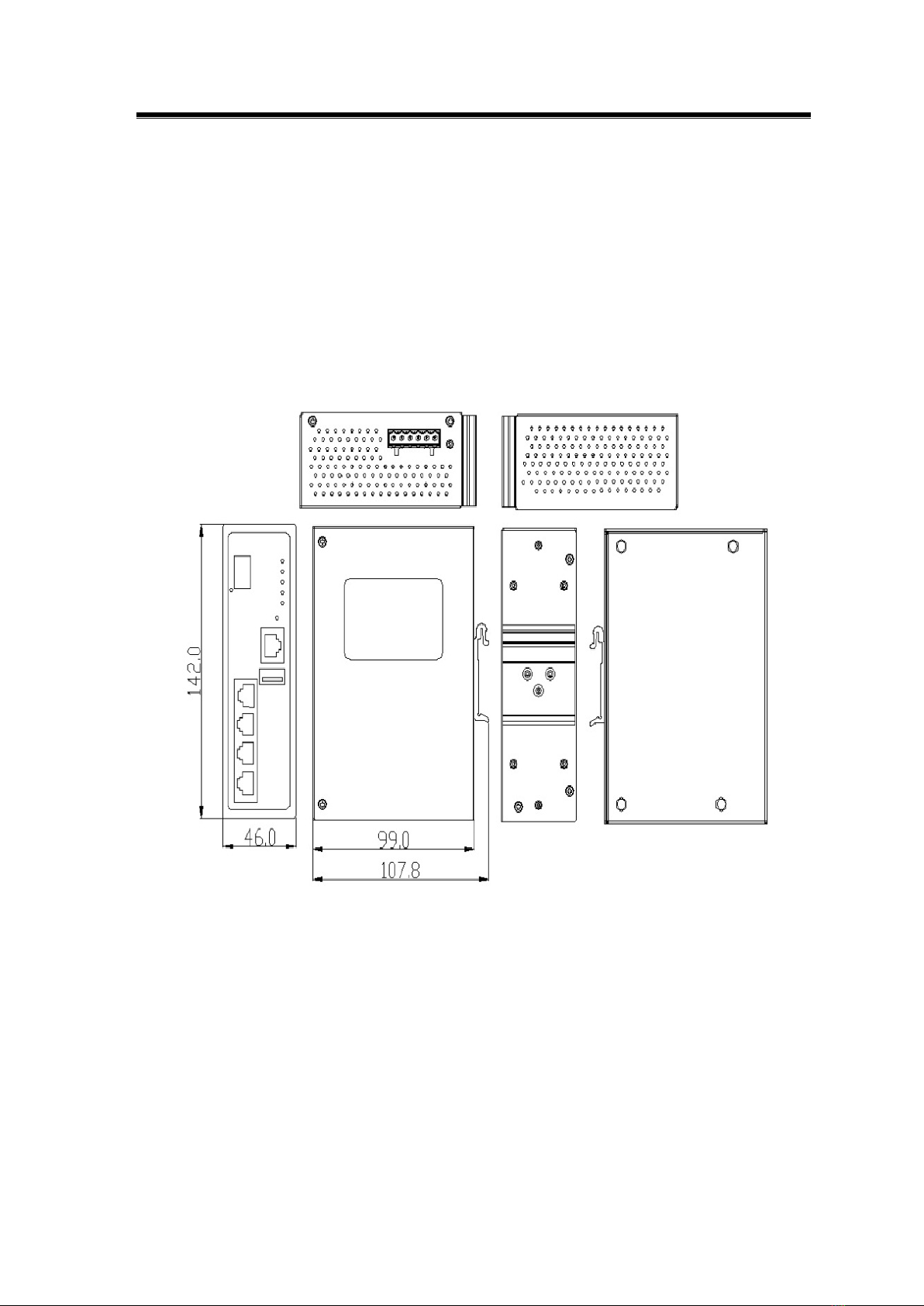

2.1 Physical Dimensions ..................................................................... 3

2.2 Front Panel.. .................................................................................. 4

2.3 Top View ........................................................................................ 4

2.4 LED Indicators ............................................................................... 5

2.5 Ethernet Ports ................................................................................ 6

2.6 Cabling .......................................................................................... 7

2.7 Wiring the Power Inputs............................................................... 10

2.8 Wiring the Fault Alarm Contact .................................................... 11

3. Mounting Installation ............................................................................... 12

3.1 DIN-Rail Mounting ....................................................................... 12

3.2 Wall Mounting .............................................................................. 13

4. Hardware Installation .............................................................................. 14

4.1 Installation Steps ......................................................................... 14

5. Web Management .................................................................................... 15

5.1 Web Console Configuration ......................................................... 15

5.1.1 About Web-Based Management ............................................ 15

5.2 Basic Setting ................................................................................ 16

5.2.1 System Information ................................................................ 16

5.2.2 Admin &Password .................................................................. 17

5.2.3 IP Setting ............................................................................... 18

5.2.4 System Time .......................................................................... 19

5.3Port Management ......................................................................... 20

5.3.1 Port Status ............................................................................. 20

Antaira Industrial Ethernet Switches

LMX-0501G-SFP Series User Manual V1.1

5.3.2 Port Configuration .................................................................. 20

5.5 ERPS ........................................................................................... 22

5.5.1 ERPS Status .......................................................................... 23

5.5.2 ERPS Configuration ............................................................... 23

5.5.3 Before Configuring ERPS ...................................................... 25

5.6 Spanning Tree ............................................................................. 32

5.6.1 RSTP Status .......................................................................... 33

5.6.2 RSTP Configuration ............................................................... 33

5.6.3 MSTI Status ........................................................................... 35

5.6.4 MSTI Configuration ................................................................ 36

5.7. 802.1Q VLAN ............................................................................. 38

5.7.1 802.1Q VLAN settings ........................................................... 38

5.7.2 802.1Q VLAN Settings ........................................................... 39

5.8. IGMP Snooping .......................................................................... 39

5.8.1 IGMP Settings ........................................................................ 40

5.8.2 IGMP Snooping Status Table ................................................ 41

5.9 QoS (Traffic Prioritization) ........................................................... 41

5.9.1 QoS Classification .................................................................. 42

5.9.2 CoS Mapping ......................................................................... 43

5.9.3 ToS Mapping .......................................................................... 44

5.10 Port Mirroring ............................................................................. 45

5.11 SNMP……… ............................................................................. 46

5.11.1 SNMP Agent ........................................................................ 46

5.11.2 SNMP Trap setting ............................................................... 47

5.12 System Warning ........................................................................ 48

5.12.1 Syslog Setting ...................................................................... 48

Antaira Industrial Ethernet Switches

LMX-0501G-SFP Series User Manual V1.1

5.12.2 System Event Log ................................................................ 49

5.12.3 SMTP Setting ....................................................................... 50

5.12.4 Event Selection .................................................................... 51

5.12.5 Fault Alarm.. ......................................................................... 51

5.13 MAC Table… ............................................................................. 52

5.13.1 MAC Address Table ............................................................. 52

5.13.2 MAC Table Configuration..................................................... 52

5.14 Maintenance .............................................................................. 53

5.14.1 Upgrade ............................................................................... 53

5.14.2 Reboot ................................................................................. 54

5.14.3 Default .................................................................................. 54

5.15 Configuration ............................................................................. 54

5.15.1 Save……….. ........................................................................ 55

5.15.2 Backup & Store .................................................................... 55

5.15.3 Auto Load & Backup ............................................................ 56

5.16 Logout……… ............................................................................. 56

6. Command Line Interface Management .................................................. 57

6.1 About CLI Management ............................................................ 57

7. Technical Specification ........................................................................... 74

Antaira Industrial Ethernet Switches

LMP-0501G-SFP Series User Manual V1.0

1. Introduction

All Antaira industrial managed switches come with a pre-installed “user friendly” web console interface,

which allows users to easily configure and manage the units, whether one is using a serial console

and command line interface(CLI) commands like Telnet, SSH, HTTP (Web GUI) or simple network

management protocols (SNMP).

1.1 Product Overview

Antaira’s LMX-0501G-SFP series is a 5-Port Industrial Gigabit Managed Ethernet Switch which

embedded with 4*10/100/1000Tx Ethernet ports and 1*100/1000 dual rate SFP slot for fiber

connection. This series is a full manageable Industrial Ethernet Switch pre-loaded with standard

Layer 2 network management software, and supports a user friendly Web Console interface for

easy configuration.

LMX-0501G-SFP series is IP30 rated and DIN-rail mountable design and provides wide

operating temperature range models in STD: -10°C to 70°C, and EOT: -40°C to 75°C, and it also

provided high EFT and ESD protection for any industrial networking application in factory

automation, ITS, Power/Utility, Water Wastewater Treatment plants, any outdoor or harsh

environment.

1.2 Product Software Features

 Network Redundancy

 STP, RSTP, MSTP, ITU-T G.8032 Ethernet Ring Protection Switch (ERPS) for

network redundancy

 Network Management

 Web UI based management, SNMP v1/v2, Serial Console

 Qos, traffic classification QoS, Cos, bandwidth control for Ingress and Egress,

broadcast storm control, Diffserv

 IEEE802.1q VLAN, port-based VLAN support

 IGMP snooping v1/v2, IGMP filtering / throttling, IGMP query up to 256 group

 Supports RMON, MIB II, port mirroring, event syslog, DNS, NTP/SNTP, SSH/SSL,

TFTP.

 Port Configuration

 Status, statistics, mirroring, rate limiting, event syslog

 Event Handling

 Event notification by Email: Cold/Warm Start, Power Failure, Authentication, SNMP

trap and Fault Alarm Relay Output

Antaira Industrial Ethernet Switches

LMX-0501G-SFP Series User Manual V1.1

 Software Upgrade via TFTP and HTTP

 Configuration Backup – USB Port

1.3 Product Hardware Features

 System Interface and Performance

 All RJ-45 ports support Auto MDI/MDI-X Function

 Embedded 4*10/100/1000Tx Ethernet ports, and 1*100/1000 SFP slot

 Store-and-forward switching architecture

 8K MAC address table

 Power line EFT protection: 2,000VDC; Ethernet ESD protection: 6,000VDC

 Power Input

 DC 12~48V redundant with a 6-pin removal terminal block

 One user programmable alarm relay contact

 Operating Temperature

 Standard operating temperature models: -10°C to 70°C

 Extended operating temperature models: -40°C to 75°C

 Case/Installation

 IP-30 protection metal housing

 Installation in pollution degree to environment

 DIN-Rail and wall mount design

1.4 Package Contents

 1– LMX-0501G-SFP series: 5-Port industrial managed Ethernet switch, with 4*10/100/1000Tx,

and 1*100/1000 SFP Slot

 1-Product CD

 2-Wall mounting brackets and screws

 1-RJ45 to DB9 Serial Console cable

 1-DC cable –18 AWG & DC jack 5.5x2.1mm

1.5 Safety Precaution

Attention: If the DC voltage is supplied by an external circuit, please use a protection

device on the power supply input. The industrial Ethernet switch’s

hardware specs, ports, cabling information, and wiring installation will be

described within this user manual.

Antaira Industrial Ethernet Switches

LMX-0501G-SFP Series User Manual V1.1

2. Hardware Description

2.1 Physical Dimensions

Figure 2.1, below, shows the physical dimensions of Antaira’s LMX-0501G-SFP series: 5-Port

industrial managed Ethernet switch with 4*10/100/1000Tx, and 1*100/1000 SFP slot; 12~48VDC

power input.

(W x D x H) is 46mm x 99mm x 142mm

Figure2.1

LMX-0501G-SFP Series Physical Dimensions

Antaira Industrial Ethernet Switches

LMX-0501G-SFP Series User Manual V1.1

2.2 Front Panel

The front panel of the LMX-0501G-SFP series industrial

managed Ethernet

switches is shown

below in Figure 2.2.

2.3 Top View

Figure 2.3, below, shows the top panel of the LMX-0501G-SFP series switch that is

equipped with one 6-pin removal terminal block connector for dual DC power inputs

(12~48VDC).

Figure 2.2 - The Front Panel of LMX-0501G-SFP Series

Figure2.3 - Top Panel View of LMX-0501G-SFP Series

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels ANTAIRA Changer

ANTAIRA

ANTAIRA LNP-0602-M Manuel utilisateur

ANTAIRA

ANTAIRA LMP-1600G Series Manuel utilisateur

ANTAIRA

ANTAIRA LNP-C501G-SFP-bt-24 Series Manuel utilisateur

ANTAIRA

ANTAIRA LNP-0702G-SFP-24 Series Manuel utilisateur

ANTAIRA

ANTAIRA LNX-1604G-SFP Series Manuel utilisateur

ANTAIRA

ANTAIRA LMP-1204G-SFP-bt Series Manuel utilisateur

ANTAIRA

ANTAIRA LMX-0600-V2 Series Manuel utilisateur

ANTAIRA

ANTAIRA LMP-C602G-SFP-bt-V2 Series Manuel utilisateur

ANTAIRA

ANTAIRA LMX-C602G-SFP-T-V2 Manuel utilisateur

ANTAIRA

ANTAIRA LNX-2012GN-SFP Manuel utilisateur

ANTAIRA

ANTAIRA LNP-800AGH Series Manuel utilisateur

ANTAIRA

ANTAIRA LMX-1202M-SFP Series Manuel utilisateur

ANTAIRA

ANTAIRA LNX-1802G Manuel utilisateur

ANTAIRA

ANTAIRA LMX-0501G-SFP-V2 Series Manuel utilisateur

ANTAIRA

ANTAIRA LMP-1204G-SFP Series Manuel utilisateur

ANTAIRA

ANTAIRA LNP-1600G Series Manuel utilisateur

ANTAIRA

ANTAIRA LMP-0600-24-V2 Series Manuel utilisateur

ANTAIRA

ANTAIRA LMP-1202M-SFP Series Manuel utilisateur

ANTAIRA

ANTAIRA LNX-C800 Series Manuel utilisateur

ANTAIRA

ANTAIRA LNP-1204G-SFP Series Manuel utilisateur

ANTAIRA

ANTAIRA LNX-1802G-SFP Series Manuel utilisateur

ANTAIRA

ANTAIRA LMP-2012G-SFP Series Manuel utilisateur

ANTAIRA

ANTAIRA LMX-1202M-SFP Series Manuel utilisateur

ANTAIRA

ANTAIRA LMX-1600G Series Manuel utilisateur

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

D-Link

D-Link DES-1226G Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Ruijie

Ruijie RG-PF2920 Series Manuel d'installation et d'exploitation

Altinex

Altinex DA1914SX Manuel utilisateur

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur
