ANTAIRA LMP-0500 Series Manuel utilisateur

Antaira Industrial Ethernet Switches

LMP-0500 Series User Manual V1.1

LMX-0500 Series

5-Port Industrial Managed Ethernet Switch, with

5*10/100Tx, 12~48VDC Power Input

User Manual

Version 1.1

All manuals and user guides at all-guides.com

Antaira Industrial Ethernet Switches

LMX-0500 Series User Manual V1.1

This document contains information, which is protected by copyright. Reproduction, adaptation or translation

without prior permission is prohibited, except as allowed under the copyright laws.

Trademark Information

Antaira is a registered trademark of Antaira Technologies, LLC, Microsoft Windows and the Windows logo are the

trademarks of Microsoft Corp. NetWare is the registered trademark of Novell Inc. WMM and WPA are the

registered trademarks of Wi-Fi Alliance. All other brand and product names are trademarks or registered

trademarks of their respective owners.

translation without prior permission of Antaira Technologies, LLC is prohibited, except as allowed under the

Disclaimer

Antaira Technologies, LLC provides this manual without warranty of any kind, expressed or implied, including but

not limited to the implied warranties of merchantability and fitness for a particular purpose. Antaira Technologies,

LLC may make improvements and/or changes to the product and/or specifications of the product described in this

manual, without prior notice. Antaira Technologies, LLC will not be liable for any technical inaccuracies or

typographical errors found in this guide. Changes are periodically made to the information contained herein and

will be incorporated into later versions of the manual. The information contained is subject to change without prior

notice.

All manuals and user guides at all-guides.com

Antaira Industrial Ethernet Switches

LMX-0500 Series User Manual V1.1

iii

FCC Warning

This equipment has been tested and found to comply with the limits for a Class-A digital device, pursuant to Part

15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses, and can radiate radio frequency energy. It may cause

harmful interference to radio communications if the equipment is not installed and used in accordance with the

instructions. However, there is no guarantee that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following

measures:

 Reorient or relocate the receiving antenna.

 Increase the separation between the equipment and receiver.

 Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

 Consult the dealer or an experienced radio/TV technician for help.

Caution: Any changes or modifications not expressly approved by the grantee of this device could void the user's

authority to operate the equipment.

CE Mark Warning

This is a Class-A product. In a domestic environment this product may cause radio interference in which case the

user may be required to take adequate measures.

Industrial Ethernet Switches

Industrial Grade Managed Ethernet Switches

User Manual

Version 1.1 (March 2018)

This manual supports the following models:

 LMX-0500

 LMX-0500-T

This document is the current official release manual. Please check our website (www.antaira.com) for any

updated manual or contact us by e-mail (support@antaira.com).

All manuals and user guides at all-guides.com

Antaira Industrial Ethernet Switches

LMX-0500 Series User Manual V1.1

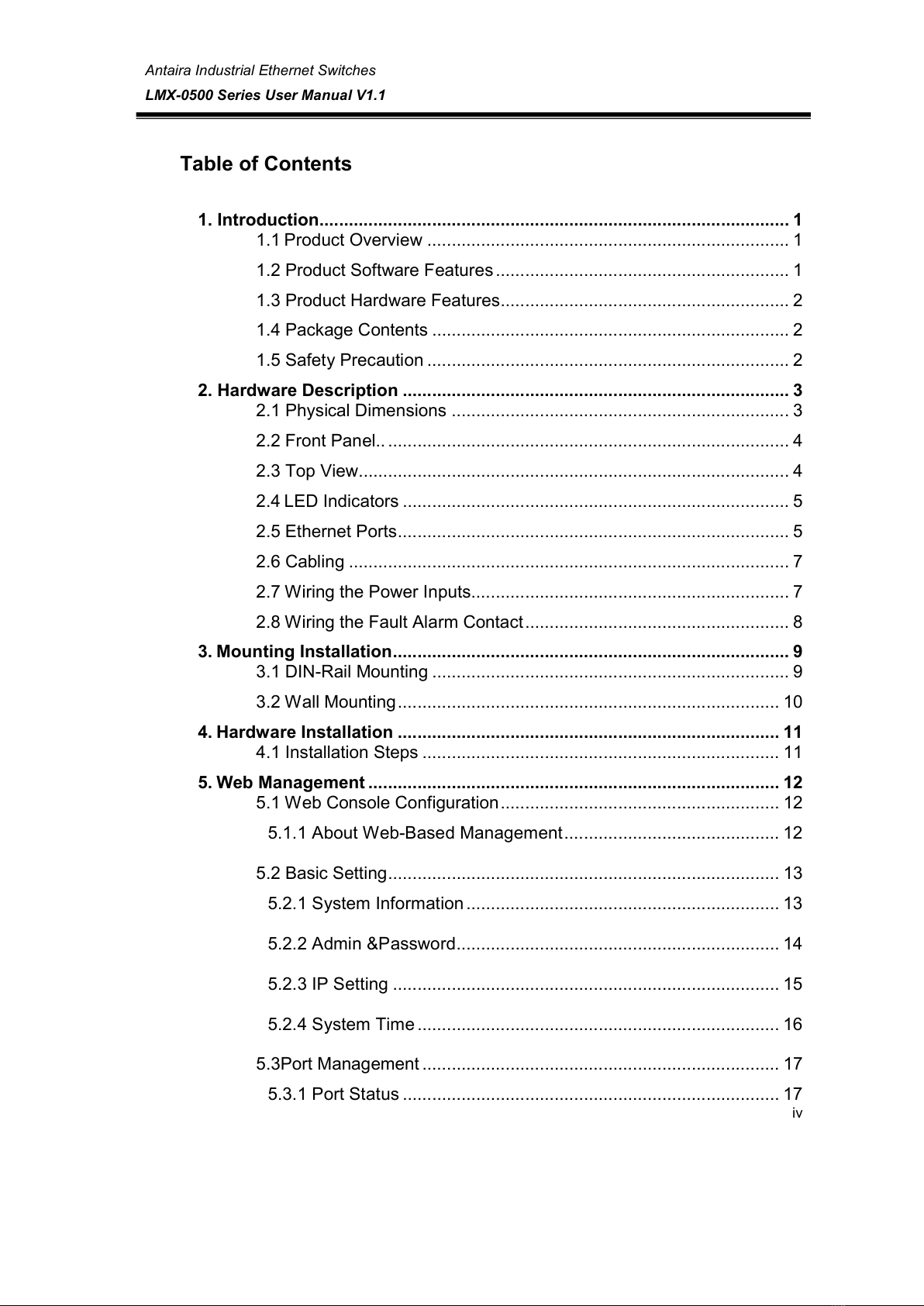

Table of Contents

1. Introduction................................................................................................ 1

1.1 Product Overview .......................................................................... 1

1.2 Product Software Features ............................................................ 1

1.3 Product Hardware Features ........................................................... 2

1.4 Package Contents ......................................................................... 2

1.5 Safety Precaution .......................................................................... 2

2. Hardware Description ............................................................................... 3

2.1 Physical Dimensions ..................................................................... 3

2.2 Front Panel.. .................................................................................. 4

2.3 Top View ........................................................................................ 4

2.4 LED Indicators ............................................................................... 5

2.5 Ethernet Ports ................................................................................ 5

2.6 Cabling .......................................................................................... 7

2.7 Wiring the Power Inputs................................................................. 7

2.8 Wiring the Fault Alarm Contact ...................................................... 8

3. Mounting Installation ................................................................................. 9

3.1 DIN-Rail Mounting ......................................................................... 9

3.2 Wall Mounting .............................................................................. 10

4. Hardware Installation .............................................................................. 11

4.1 Installation Steps ......................................................................... 11

5. Web Management .................................................................................... 12

5.1 Web Console Configuration ......................................................... 12

5.1.1 About Web-Based Management ............................................ 12

5.2 Basic Setting ................................................................................ 13

5.2.1 System Information ................................................................ 13

5.2.2 Admin &Password .................................................................. 14

5.2.3 IP Setting ............................................................................... 15

5.2.4 System Time .......................................................................... 16

5.3Port Management ......................................................................... 17

5.3.1 Port Status ............................................................................. 17

All manuals and user guides at all-guides.com

Antaira Industrial Ethernet Switches

LMX-0500 Series User Manual V1.1

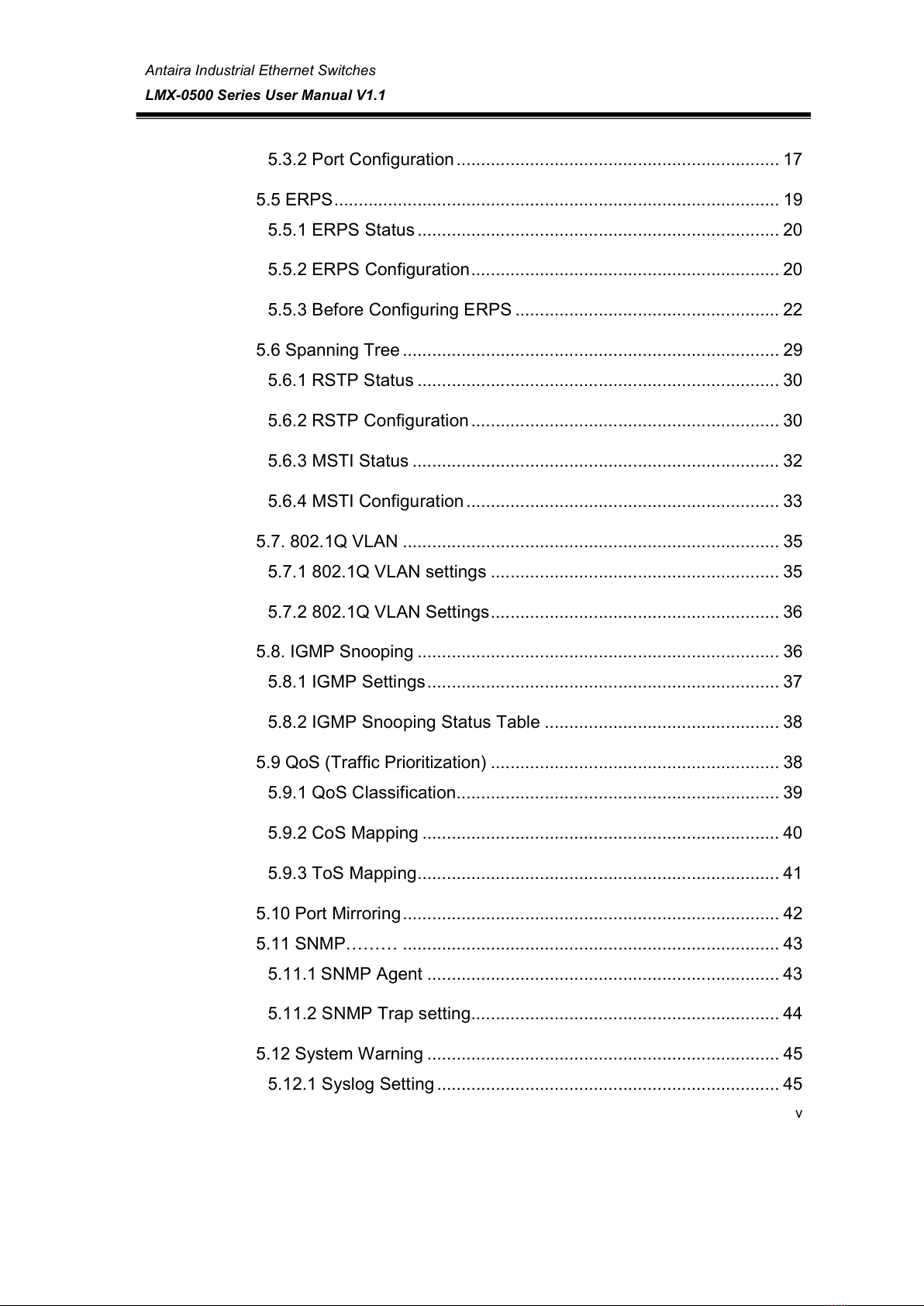

5.3.2 Port Configuration .................................................................. 17

5.5 ERPS ........................................................................................... 19

5.5.1 ERPS Status .......................................................................... 20

5.5.2 ERPS Configuration ............................................................... 20

5.5.3 Before Configuring ERPS ...................................................... 22

5.6 Spanning Tree ............................................................................. 29

5.6.1 RSTP Status .......................................................................... 30

5.6.2 RSTP Configuration ............................................................... 30

5.6.3 MSTI Status ........................................................................... 32

5.6.4 MSTI Configuration ................................................................ 33

5.7. 802.1Q VLAN ............................................................................. 35

5.7.1 802.1Q VLAN settings ........................................................... 35

5.7.2 802.1Q VLAN Settings ........................................................... 36

5.8. IGMP Snooping .......................................................................... 36

5.8.1 IGMP Settings ........................................................................ 37

5.8.2 IGMP Snooping Status Table ................................................ 38

5.9 QoS (Traffic Prioritization) ........................................................... 38

5.9.1 QoS Classification .................................................................. 39

5.9.2 CoS Mapping ......................................................................... 40

5.9.3 ToS Mapping .......................................................................... 41

5.10 Port Mirroring ............................................................................. 42

5.11 SNMP……… ............................................................................. 43

5.11.1 SNMP Agent ........................................................................ 43

5.11.2 SNMP Trap setting ............................................................... 44

5.12 System Warning ........................................................................ 45

5.12.1 Syslog Setting ...................................................................... 45

All manuals and user guides at all-guides.com

Antaira Industrial Ethernet Switches

LMX-0500 Series User Manual V1.1

5.12.2 System Event Log ................................................................ 46

5.12.3 SMTP Setting ....................................................................... 47

5.12.4 Event Selection .................................................................... 48

5.12.5 Fault Alarm.. ......................................................................... 48

5.13 MAC Table… ............................................................................. 49

5.13.1 MAC Address Table ............................................................. 49

5.13.2 MAC Table Configuration..................................................... 49

5.14 Maintenance .............................................................................. 50

5.14.1 Upgrade ............................................................................... 50

5.14.2 Reboot ................................................................................. 51

5.14.3 Default .................................................................................. 51

5.15 Configuration ............................................................................. 51

5.15.1 Save……….. ........................................................................ 52

5.15.2 Backup & Store .................................................................... 52

5.15.3 Auto Load & Backup ............................................................ 53

5.16 Logout……… ............................................................................. 53

6. Command Line Interface Management .................................................. 54

6.1 About CLI Management ............................................................ 54

7. Technical Specification ........................................................................... 71

All manuals and user guides at all-guides.com

Antaira Industrial Ethernet Switches

LMP-0500 Series User Manual V1.1

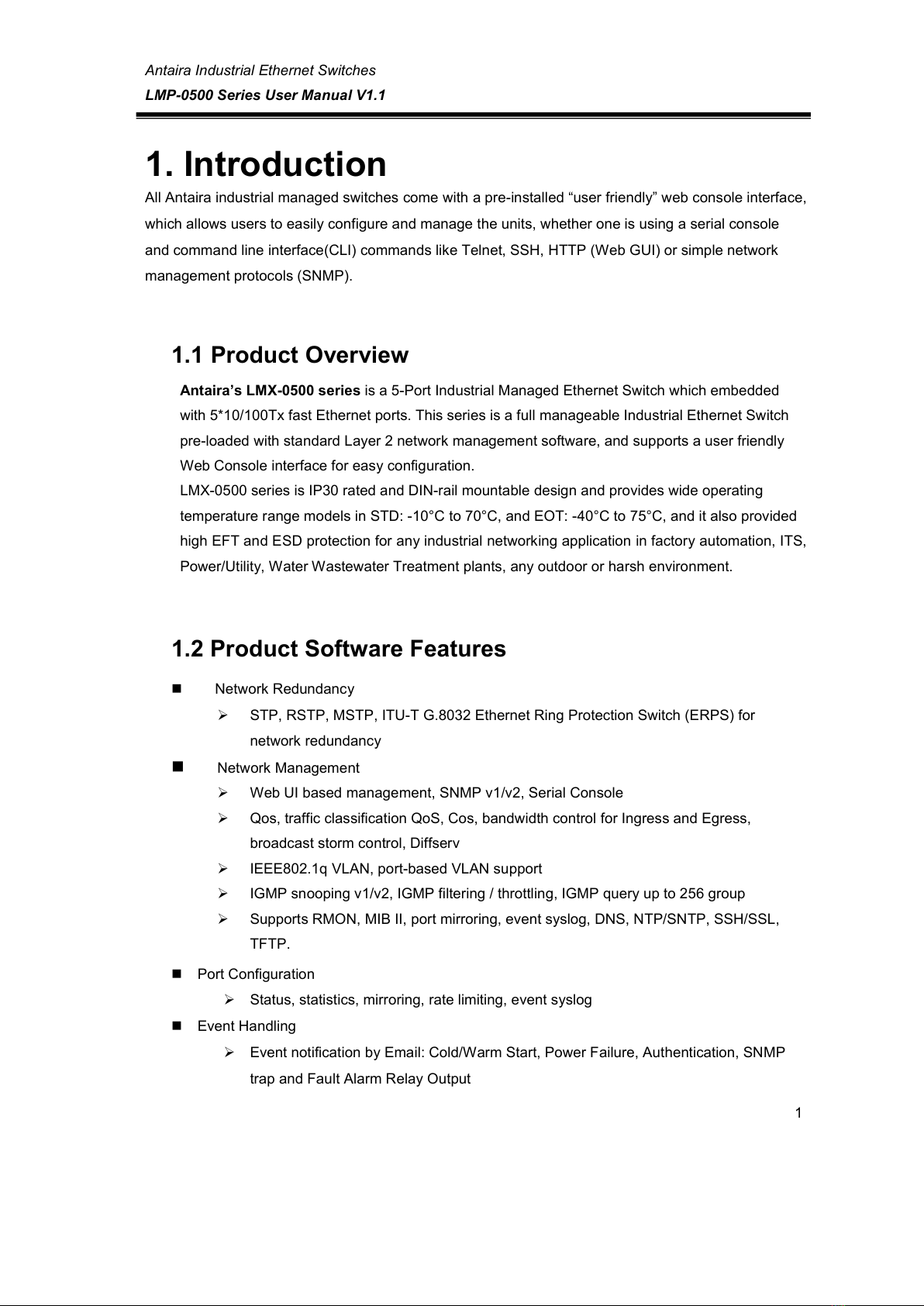

1. Introduction

All Antaira industrial managed switches come with a pre-installed “user friendly” web console interface,

which allows users to easily configure and manage the units, whether one is using a serial console

and command line interface(CLI) commands like Telnet, SSH, HTTP (Web GUI) or simple network

management protocols (SNMP).

1.1 Product Overview

Antaira’s LMX-0500 series is a 5-Port Industrial Managed Ethernet Switch which embedded

with 5*10/100Tx fast Ethernet ports. This series is a full manageable Industrial Ethernet Switch

pre-loaded with standard Layer 2 network management software, and supports a user friendly

Web Console interface for easy configuration.

LMX-0500 series is IP30 rated and DIN-rail mountable design and provides wide operating

temperature range models in STD: -10°C to 70°C, and EOT: -40°C to 75°C, and it also provided

high EFT and ESD protection for any industrial networking application in factory automation, ITS,

Power/Utility, Water Wastewater Treatment plants, any outdoor or harsh environment.

1.2 Product Software Features

 Network Redundancy

 STP, RSTP, MSTP, ITU-T G.8032 Ethernet Ring Protection Switch (ERPS) for

network redundancy

 Network Management

 Web UI based management, SNMP v1/v2, Serial Console

 Qos, traffic classification QoS, Cos, bandwidth control for Ingress and Egress,

broadcast storm control, Diffserv

 IEEE802.1q VLAN, port-based VLAN support

 IGMP snooping v1/v2, IGMP filtering / throttling, IGMP query up to 256 group

 Supports RMON, MIB II, port mirroring, event syslog, DNS, NTP/SNTP, SSH/SSL,

TFTP.

 Port Configuration

 Status, statistics, mirroring, rate limiting, event syslog

 Event Handling

 Event notification by Email: Cold/Warm Start, Power Failure, Authentication, SNMP

trap and Fault Alarm Relay Output

All manuals and user guides at all-guides.com

Antaira Industrial Ethernet Switches

LMX-0500 Series User Manual V1.1

 Software Upgrade via TFTP and HTTP

 Configuration Backup – USB Port

1.3 Product Hardware Features

 System Interface and Performance

 All RJ-45 ports support Auto MDI/MDI-X Function

 Embedded 5*10/100Tx Fast Ethernet ports

 Store-and-forward switching architecture

 8K MAC address table

 Power line EFT protection: 2,000VDC; Ethernet ESD protection: 6,000VDC

 Power Input

 DC 12~48V redundant with a 6-pin removal terminal block

 One user programmable alarm relay contact

 Operating Temperature

 Standard operating temperature models: -10°C to 70°C

 Extended operating temperature models: -40°C to 75°C

 Case/Installation

 IP-30 protection metal housing

 Installation in pollution degree to environment

 DIN-Rail and wall mount design

1.4 Package Contents

 1– LMX-0500 series: 5-Port industrial managed Ethernet switch, with 5*10/100Tx

 1-Product CD

 2-Wall mounting brackets and screws

 1-RJ45 to DB9 Serial Console cable

 1-DC cable –18 AWG & DC jack 5.5x2.1mm

1.5 Safety Precaution

Attention: If the DC voltage is supplied by an external circuit, please use a protection

device on the power supply input. The industrial Ethernet switch’s

hardware specs, ports, cabling information, and wiring installation will be

described within this user manual.

All manuals and user guides at all-guides.com

Antaira Industrial Ethernet Switches

LMX-0500 Series User Manual V1.1

2. Hardware Description

2.1 Physical Dimensions

Figure 2.1, below, shows the physical dimensions of Antaira’s LMX-0500 series: 5-Port industrial

managed Ethernet switch with 5*10/100Tx; 12~48VDC power input.

(W x D x H) is 46mm x 99mm x 142mm

Figure2.1

LMX-0500 Series Physical Dimensions

All manuals and user guides at all-guides.com

Antaira Industrial Ethernet Switches

LMX-0500 Series User Manual V1.1

2.2 Front Panel

The front panel of the LMX-0500 series industrial

managed Ethernet

switches is shown below in

Figure 2.2.

2.3 Top View

Figure 2.3, below, shows the top panel of the LMX-0500 series switch that is equipped with

one 6-pin removal terminal block connector for dual DC power inputs (12~48VDC).

Figure 2.2 - The Front Panel of LMX-0500 Series

Figure2.3

Top Panel View of LMX-0500 Series

All manuals and user guides at all-guides.com

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels ANTAIRA Changer

ANTAIRA

ANTAIRA LNX-2004G-SFP Series Manuel utilisateur

ANTAIRA

ANTAIRA LNP-C501G-SFP-bt Series Manuel utilisateur

ANTAIRA

ANTAIRA LMX-3228G-10G-SFP Series Manuel utilisateur

ANTAIRA

ANTAIRA LNX-C800G Series Manuel utilisateur

ANTAIRA

ANTAIRA LMX-1202M-SFP Series Manuel utilisateur

ANTAIRA

ANTAIRA LMX-1002C-SFP Manuel utilisateur

ANTAIRA

ANTAIRA LMP-0804G-SFP Series Manuel utilisateur

ANTAIRA

ANTAIRA LMX-2602G-SFP Series Manuel utilisateur

ANTAIRA

ANTAIRA LMX-0702G-SFP-V2 Series Manuel utilisateur

ANTAIRA

ANTAIRA LMX-1600G-M12-67 Series Manuel utilisateur

ANTAIRA

ANTAIRA LMP-2004G-SFP Series Manuel utilisateur

ANTAIRA

ANTAIRA LNP-0802C-SFP Series Manuel utilisateur

ANTAIRA

ANTAIRA LNX-0501 Series Manuel utilisateur

ANTAIRA

ANTAIRA LNP-0500G-24 Series Manuel utilisateur

ANTAIRA

ANTAIRA LMX-0804G-SFP Series Manuel utilisateur

ANTAIRA

ANTAIRA LNX-0500-M12-67 Series Manuel utilisateur

ANTAIRA

ANTAIRA LNP-C800G Series Manuel utilisateur

ANTAIRA

ANTAIRA LMX-0802 Series Manuel utilisateur

ANTAIRA

ANTAIRA LNX-C800G Series Manuel utilisateur

ANTAIRA

ANTAIRA LNX-602N Manuel utilisateur

ANTAIRA

ANTAIRA LMX-C602G-SFP-V2 Series Manuel utilisateur

ANTAIRA

ANTAIRA LNP-1204G-10G-SFP Manuel utilisateur

ANTAIRA

ANTAIRA LNP-0602-M Manuel utilisateur

ANTAIRA

ANTAIRA LNP-0602 Series Manuel utilisateur

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

D-Link

D-Link DES-1226G Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Ruijie

Ruijie RG-PF2920 Series Manuel d'installation et d'exploitation

Altinex

Altinex DA1914SX Manuel utilisateur

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur
