1. Introduction to the Quick Start Guide

QSG-2 PN: 10410-00766 Rev. C 3-2300-610 Verification Kits/PVS QSG

1. Introduction to the Quick Start Guide

This quick start guide provides a brief overview of the installation and use of ShockLineTM Verification Kits

and the 3-2300-610 Performance Verification Software (PVS) with ShockLine™ Series VNAs.

2. Verification Kit Components

The supplied Verification Kit components are listed in the general reference figure below. The actual

appearance of individual verification/calibration kits and components varies.

Note The ShockLine “A” models use a different performance verification software than the “B” model as

described in the Figure 1 below.

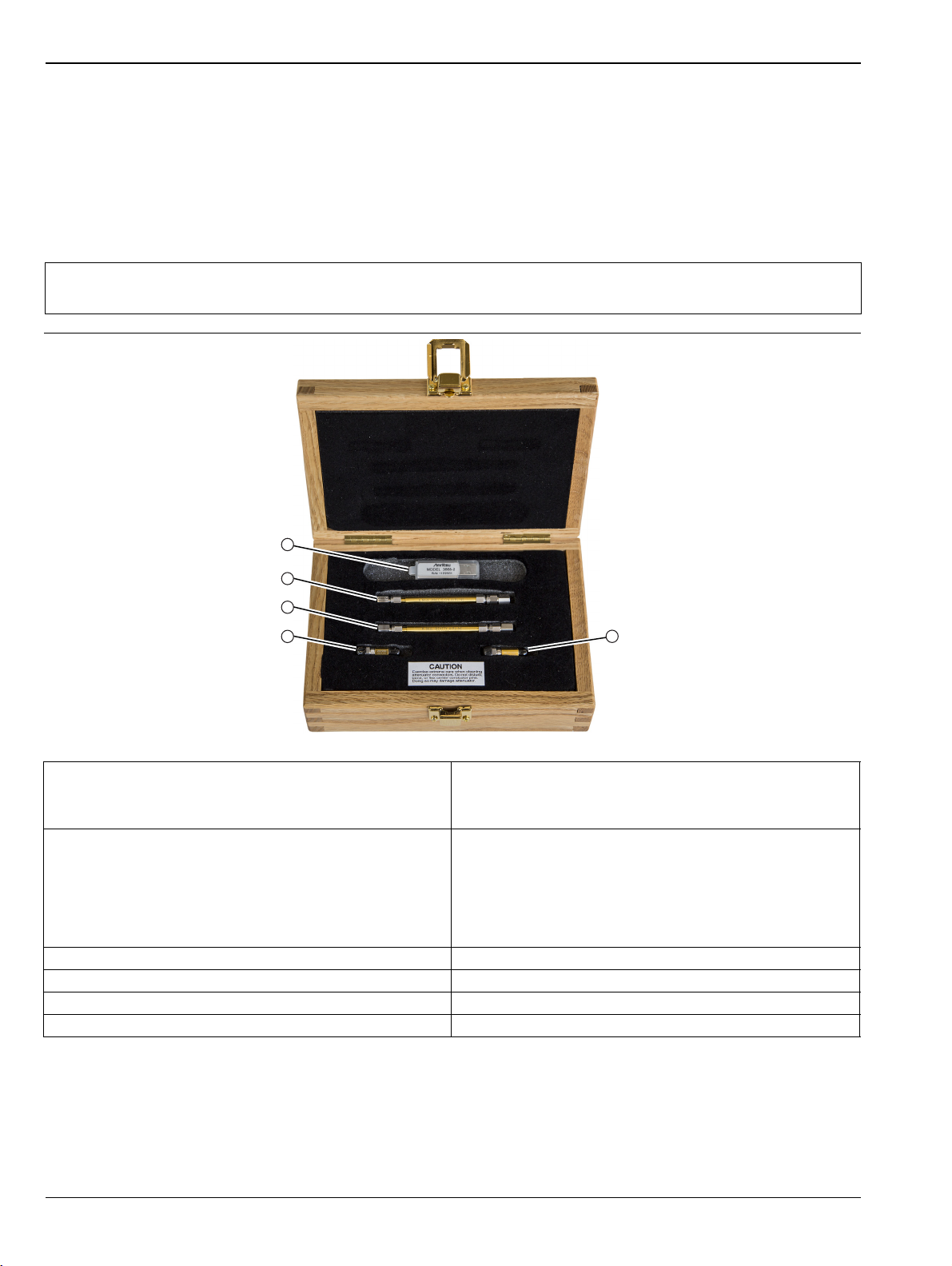

Figure 1. ShockLine Verification Kit Components

3668-3 K Connector Verification Kit Shown

MS46xxxB Models

3668-3 K Connector

Verification Kit

MS46xxxB Models

3663-3 N Connector

Verification Kit

1. USB Flash Drive with

Software and Documentation containing:

• Performance Verification Software and Test

Definition Data

• Quick Start Guide – 10410-00766

• Characterization Data

USB Flash Drive with

Software and Documentation containing:

• Performance Verification Software and Test

Definition Data

• Quick Start Guide – 10410-00766

• Characterization Data

2. Precision Airline (m-f) Precision Airline (m-f)

3. Beatty Airline (m-f) Beatty Airline (m-f)

4. 20 dB Offset (Pad) Attenuator (m-f) 20 dB Offset (Pad) Attenuator (m-f)

5. 50 dB Offset (Pad) Attenuator (m-f) 50 dB Offset (Pad) Attenuator (m-f)

2. Verification Kit Components

3-2300-610 Verification Kits/PVS QSG PN: 10410-00766 Rev. C QSG-3

Calibration/Verification Kit Components

Summary of Required Hardware

The table below summarizes the required support hardware for each verification kit. Only one calibration kit,

automatic or manual, is required. Note also that the PC Controller and the connecting GPIB cable are required

for all VNAs and all verification kits.

Table QSG-1.Summary of Required Hardware

Ver Kit

VNAs

Adapters

VNA Test Port

Required

Adapter and/or

Through Line

Compatible

Manual

Calibration

Kits

Recommended

Test Port Cables

3668-4 Type K

Connector

Verification

Kit

MS46524B-043

MS46522B-043

MS46322B-043

MS46122B-043

ME7868A-043

Two

Adapters

• Test Port 1 K (m)

• 33KFKF50C K (f) to K (f) Adapter on

Port 1

TOSLKF50A-43.5 – K(f)

TOSL CAL 43.5 GHz

TOSLK50A-43.5 – K(m)

TOSL CAL 43.5 GHz

3670K50-2

Test Port Cable Ruggedized

Semi-Rigid

61 cm (24”) – K (f) to K (m)

• Test Port 2 K (m)

• Through Line Cable on Port 2

• 33KKF50C K (m) to K (f) on cable

above

3671KFK50-100

Test Port Cable Flexible

Phase Stable

100 cm (39.4")- K (f) to K (m)

3668-3 Type K

Connector

Verification

Kit

MS46524B-020

MS46522B-020

MS46322B-020

MS46322B-040

MS46122B-020

MS46122B-040

ME7868A-020

Two

Adapters

• Test Port 1 K (m)

• 33KFKF50B K (f) to K (f) Adapter on

Port 1

TOSLKF50A-40 – K(f)

TOSL CAL 40 GHz

TOSLK50A-40 – K(m)

TOSL CAL 40 GHz

3670K50-2

Test Port Cable Ruggedized

Semi-Rigid

61 cm (24”) – K (f) to K (m)

• Test Port 2 K (m)

• Through Line Cable on Port 2

• 33KKF50B K (m) to K (f) on cable

above

3671KFK50-100

Test Port Cable Flexible

Phase Stable

100 cm (39.4")- K (f) to K (m)

3663-3 Type N

Connector

Verification

Kit

MS46524B-010

MS46522B-010

MS46322B-010

MS46122B-010

ME7868A-010

Three Adapters

• Test Port 1 K (m)

• Test Port Cable on Port 2

• 71693-R K (f) to N (f) Adapter on

cable above TOSLNF50A-18 N(f)

TOSL CAL 18 GHz

TOSLN50A-18 N(m)

TOSL CAL 18 GHz

3671KFK50-60

Test Port Cable Flexible

Phase Stable

60 cm (23.6") - K (f) to K (m)

• Test Port 2 K (m)

• Test Port Cable on Port 2

• 71693-R K (f) to N (f) Adapter on

cable above

• 33NN50B N (m) to N (m) Adapter on

adapter above

3671KFK50-60

Test Port Cable Flexible

Phase Stable

60 cm (23.6") - K (f) to K (m)

3. Required PC Controller Equipment

QSG-4 PN: 10410-00766 Rev. C 3-2300-610 Verification Kits/PVS QSG

3. Required PC Controller Equipment

The following Personal Computer (PC) Controller equipment and software are required to control the

ShockLine Series VNA. The PC Controller and the VNA are connected over an Ethernet network. The required

Ethernet cable, test port adapters, and phase-stable through line with any required adapters are not included

in the verification kit.

The PVS must be run on a PC controller equipped as described in Table 1, with NI-VISA library and NI-VISA

Run-Time Engine 4.1 or later. The NI-VISA Run-Time license is available from National Instruments (NI) as a

stand-alone software package. Please contact NI for additional details.

Table 1. Required PC Controller Equipment

Component Description

PC Controller Personal computer with:

• Microsoft Windows XP SP3, 7, or Microsoft Windows 10

• Minimum 233 MHz single or dual processor (recommended: Intel Pentium/Celeron

processor or AMD K6/Athlon-/Duron processor)

•1 GB RAM

• USB 2.0 Type A Ports

• 20 MB of free hard disk space

•Mouse

• Keyboard

• Monitor with minimum display resolution of 1024 x 786

National Instruments The following software is required from NI:

• NI-VISA 4.1 or higher (no later than version 18.0)

4. PC Controller Cable Connections to VNA

3-2300-610 Verification Kits/PVS QSG PN: 10410-00766 Rev. C QSG-5

4. PC Controller Cable Connections to VNA

ME7868A Verification Component Connection

The basic connections between the PC Controller, the ME7868A VNA, and the verification components are

shown below. See Figure 2 below.

Figure 2. ME7868A VNA Connections

USB

1. ShockLine Series VNA

2. PC Controller:

• With installed NI VISA Library

• With installed 3-2300-610 R PVS application

3. USB connectivity

4. Verification Kit USB Device with characterization data

5. Port 1 Adapter (if needed)

6. Test Port Through Line M-F Cable

7. Adapter attached to Through Line and Port 2

8. Insert calibration or verification components here.

9. PhaseLync Cable

Note that the setup for any given verification kit varies

slightly with additional adapters.

4. PC Controller Cable Connections to VNA

QSG-6 PN: 10410-00766 Rev. C 3-2300-610 Verification Kits/PVS QSG

MS46524B Verification Component Connection

The basic connections between the PC Controller, the MS46524B VNA, and the verification components are

shown below. See Figure 3 below. Note: For the MS46524B: Port-1/Port-2 are verified as a set and Port-3 and

Port-4 are verified as a set.

Figure 3. MS46524B VNA Connections

USB

1. ShockLine Series VNA

2. PC Controller:

• With installed NI VISA Library

• With installed 3-2300-610 PVS application

3. Ethernet connectivity

4. Verification Kit USB Device with characterization data

5. Port 1 Adapter (if needed)

6. Test Port Through Line M-F Cable

7. Adapter attached to Through Line and Port 2

8. Insert calibration or verification components here.

Note that the setup for any given verification kit varies

slightly with additional adapters.

MS46522B Verification Component Connection

The basic connections between the PC Controller, the MS46522B VNA, and the verification components are

shown below. See Figure 4

Figure 4. MS46522B VNA Connections

USB

1. ShockLine Series VNA

2. PC Controller:

• With installed NI VISA Library

• With installed 3-2300-610 PVS application

3. Ethernet connectivity

4. Verification Kit USB Device with characterization data

5. Port 1 Adapter (if needed)

6. Test Port Through Line M-F Cable

7. Adapter attached to Through Line and Port 2

8. Insert calibration or verification components here.

Note that the setup for any given verification kit varies

slightly with additional adapters.

below.

4. PC Controller Cable Connections to VNA

3-2300-610 Verification Kits/PVS QSG PN: 10410-00766 Rev. C QSG-7

MS46322B Verification Component Connection

The basic connections between the PC Controller, the MS46322B VNA, and the verification components are

shown below. See Figure 5 below.

Figure 5. MS46322B VNA Connections

USB

1. ShockLine Series VNA

2. PC Controller:

• With installed NI VISA Library

• With installed 3-2300-610 R PVS application

3. Ethernet connectivity

4. Verification Kit USB Device with characterization data

5. Port 1 Adapter (if needed)

6. Test Port Through Line M-F Cable

7. Adapter attached to Through Line and Port 2

8. Insert calibration or verification components here.

Note that the setup for any given verification kit varies

slightly with additional adapters.

MS46122B Verification Component Connection

The basic connections between the PC Controller, the MS46122B VNA, and the verification components are

shown below. See Figure 6 below.

Figure 6. MS46122B VNA Connections

USB

1. ShockLine Series VNA

2. PC Controller:

• With installed NI VISA Library

• With installed 3-2300-610 R PVS application

3. USB connectivity

4. Verification Kit USB Device with characterization data

5. Port 1 Adapter (if needed)

6. Test Port Through Line M-F Cable

7. Adapter attached to Through Line and Port 2

8. Insert calibration or verification components here.

Note that the setup for any given verification kit varies

slightly with additional adapters.

5. Installing the ShockLine Performance Verification Software (PVS).

QSG-8 PN: 10410-00766 Rev. C 3-2300-610 Verification Kits/PVS QSG

5. Installing the ShockLine Performance Verification Software (PVS).

This section describes how to install the Performance Verification Software (PVS) application and how to use

the PVS user interface functions.

Installing the Software

The software is contained on the USB Memory Device supplied with each Verification Kit. Refer to

Section 2. “Verification Kit Components” on page QSG-2 for a listing of the Verification Kit components and

software.

1. Insert the USB Memory Device into a USB port on the PC Controller.

2. Click through the next several screens that appear during the installation process as prompted.

Figure 7. Anritsu ShockLine Verification Application Setup Wizard screens

1. Welcome to the Anritsu ShockLine Verification

Application Setup Wizard Screen

2. License Agreement Screen

3. Select Installer Folder Screen

4. Confirm Installation screen

5. Installation In-process Screen

6. Installation Complete Screen

3. Double-click the ShockLine Verification desktop icon to open the Anritsu ShockLine Verification Application.

•The splash screen appears when the application has loaded.

5. Installing the ShockLine Performance Verification Software (PVS).

3-2300-610 Verification Kits/PVS QSG PN: 10410-00766 Rev. C QSG-9

Anritsu ShockLine Verification Program Screen

When the PVS Installation is complete, the Verification Software navigation page will then appear. See

Figure 8.

Figure 8. PVS Verification Program Main Screen and User Interface Controls

1. Menu Bar – File, Utilities, Help

2. Communication Type – TCPIP, USB, TCPIP Socket

3. VNA Network Address– Network Address Field

4. Testing – Start testing, Close Session, Finish

Session

5. View Report – Test results

6. Activity Log– Scrolling log of test events

7. Info - Display Tab - Test Progress - display shows

testing progress

8. Test Result– Test results Display

9. Test Selection Window – Test selection and status

10.VNA Model / Interface Display – Displays Model

and Interface

11. Test Status – Tab selection displays Test Status

12.Run Test / Abort Test – To run or Abort Test

5. Installing the ShockLine Performance Verification Software (PVS).

QSG-10 PN: 10410-00766 Rev. C 3-2300-610 Verification Kits/PVS QSG

Setup the VNA and Verification Performance Software communication

The Performance Verification Software program must be set-up to communicate with the VNA. To locate the

VNA Network Address, on the VNA select: Main Menu | System | Network Interface.

Refer to Figure 9. To set-up the VNA/Performance Verification Software (PVS) program communication:

1. From the PVS Select Interface pull down menu:

a. For MS46122B, select TcpipSocket (TCP port number is 5001).

b. For MS46322B, MS46522B, and MS46524B, select Tcpi p , either raw socket with TCP port number

5001) or VXI-11.

c. For ME7868A, select Tc p i p raw socket (TCP port number is 5001).

2. Locate the PVS Address field.

3. Enter the IP Address as is displayed from the VNA Network Interface IP Address.

4. Enter the TCP Port number from the Network Interface menu into the Port field.

Note

ShockLine Software must be running when running PVS with a single controller on a MS46122B.

When running the PVS for a MS46122B, enter local host address (127.0.0.1) into the PVS Address

field and enter 5001 into the Port field.

Figure 9. Instrument Address

2 43

1. ShockLine VNA Address

2. Select Interface

3. Address Field

4. Port Field

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Anritsu Instrument de mesure

Anritsu

Anritsu 56100A Manuel du propriétaire

Anritsu

Anritsu CMA 5000 - UTA Manuel utilisateur

Anritsu

Anritsu MS2722C Manuel utilisateur

Anritsu

Anritsu ShockLine MS46131A-010 Manuel utilisateur

Anritsu

Anritsu MS2665C Manuel utilisateur

Anritsu

Anritsu MT8801C Manuel utilisateur

Anritsu

Anritsu IQ Fiber Master MT2780A Manuel utilisateur

Anritsu

Anritsu Lightning 37 E Series Manuel utilisateur

Anritsu

Anritsu MX269017A Manuel utilisateur

Anritsu

Anritsu VNA Master MS2024B Manuel utilisateur

Anritsu

Anritsu HA-100 Series Manuel utilisateur

Anritsu

Anritsu VectorStar ME7848A-0272 Manuel utilisateur

Anritsu

Anritsu MS2711B Manuel utilisateur

Anritsu

Anritsu BTS Master MT8222A Manuel utilisateur

Anritsu

Anritsu Network Master MU909020A Manuel utilisateur

Anritsu

Anritsu Spectrum Master MS2711E Manuel utilisateur

Anritsu

Anritsu Cell Master MT8212B Manuel utilisateur

Anritsu

Anritsu MS2830A Manuel utilisateur

Anritsu

Anritsu MP2100A BERTWave Manuel utilisateur

Anritsu

Anritsu MS27101A-IBCM Manuel utilisateur

Anritsu

Anritsu MW9060A Manuel utilisateur

Anritsu

Anritsu MS2840A Manuel utilisateur

Anritsu

Anritsu MS2690A Manuel utilisateur

Anritsu

Anritsu ML2480B Series Manuel utilisateur

Manuels Instrument de mesure populaires d'autres marques

Suaoki

Suaoki D40 Manuel utilisateur

Elster

Elster BK-G1.6 Manuel utilisateur

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuel

Duratool

Duratool D03128 Manuel utilisateur

Vega

Vega VEGAPULS 65 Manuel utilisateur

Tonghui

Tonghui TH2618B Manuel utilisateur

Tenmars

Tenmars TM-801 Manuel utilisateur

MSR

MSR 145 Manuel utilisateur

TPS

TPS WP-82 Manuel utilisateur

ELMETRON

ELMETRON CP-511 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 003C30 Manuel utilisateur

Tenma

Tenma 72-10465 Manuel utilisateur

Endress+Hauser

Endress+Hauser Proline Promag 50 Caractéristiques techniques

Siemens

Siemens SITRANS F Coriolis FCT030 Manuel de la liste des pièces

KLINGER

KLINGER CMF V Series Manuel utilisateur

EXFO

EXFO FTB-2 Manuel d'exploitation et d'entretien

Keysight

Keysight M8290A Manuel utilisateur

ADTEK

ADTEK MW-5 Manuel utilisateur
