EVAL-ADCM / EVAL-ADCM-1 User Guide

Date: Jan 18, 2020

ADcmXL Evaluation Wiki link:

https://wiki.analog.com/resources/eval/user-guides/inertial-mems/imu/adcmxl-pc-eval

Contents

EVAL-ADCM / EVAL-ADCM-1 User Guide............................................................................................ 1

Orderable Part Numbers....................................................................................................................... 1

Minimum PC System Requirements ................................................................................................... 2

Minimum Required Hardware............................................................................................................... 2

EVAL-ADCM Hardware Setup............................................................................................................. 3

Software Installation............................................................................................................................... 5

Troubleshooting.................................................................................................................................. 6

Verifying the USB Connection.......................................................................................................... 6

Application Functional Overview and User Guide............................................................................. 6

Devices................................................................................................................................................ 6

Register Access.................................................................................................................................. 7

Alarms.................................................................................................................................................. 8

Data Capture..................................................................................................................................... 10

View.................................................................................................................................................... 11

Comm................................................................................................................................................. 11

Help.................................................................................................................................................... 11

About.................................................................................................................................................. 11

Mode Selection (AFFT, MFFT, MTC and RT) ............................................................................. 11

Orderable Part Numbers

•The EVAL-ADCM is an orderable kit that includes ADcmXL3021 module and all necessary

boards to interface with a PC.

•The EVAL-ADCM-1 is an orderable kit that includes ADcmXL1021-1 module and all

necessary boards to interface with a PC.

Note: EVAL-ADCM and EVAL-ADCM-1 are identical kits except for included ADcmXL modules.

As such, one can evaluate both ADcmXL3021 and ADcmXL1021-1 using EVAL-ADCM (or EVAL-

ADCM-1) provided that an ADcmXL1021-1 (or ADcmXL3021) module is ordered separately.

Minimum PC System Requirements

•Windows XP, Vista, 7 or 10

•.NET Framework 4.5

Minimum Required Hardware

•Cypress Semiconductor EZ-USB® FX3 Development Kit (with included USB3.0 A to B

cable), shown in Figure 1.

•ADCMXL_BRKOUT/PCBZ, shown in Figure 2.

•ADcmXL FX3 Interface board, shown in Figure 3

•ADcmXL device, shown in Figure 4.

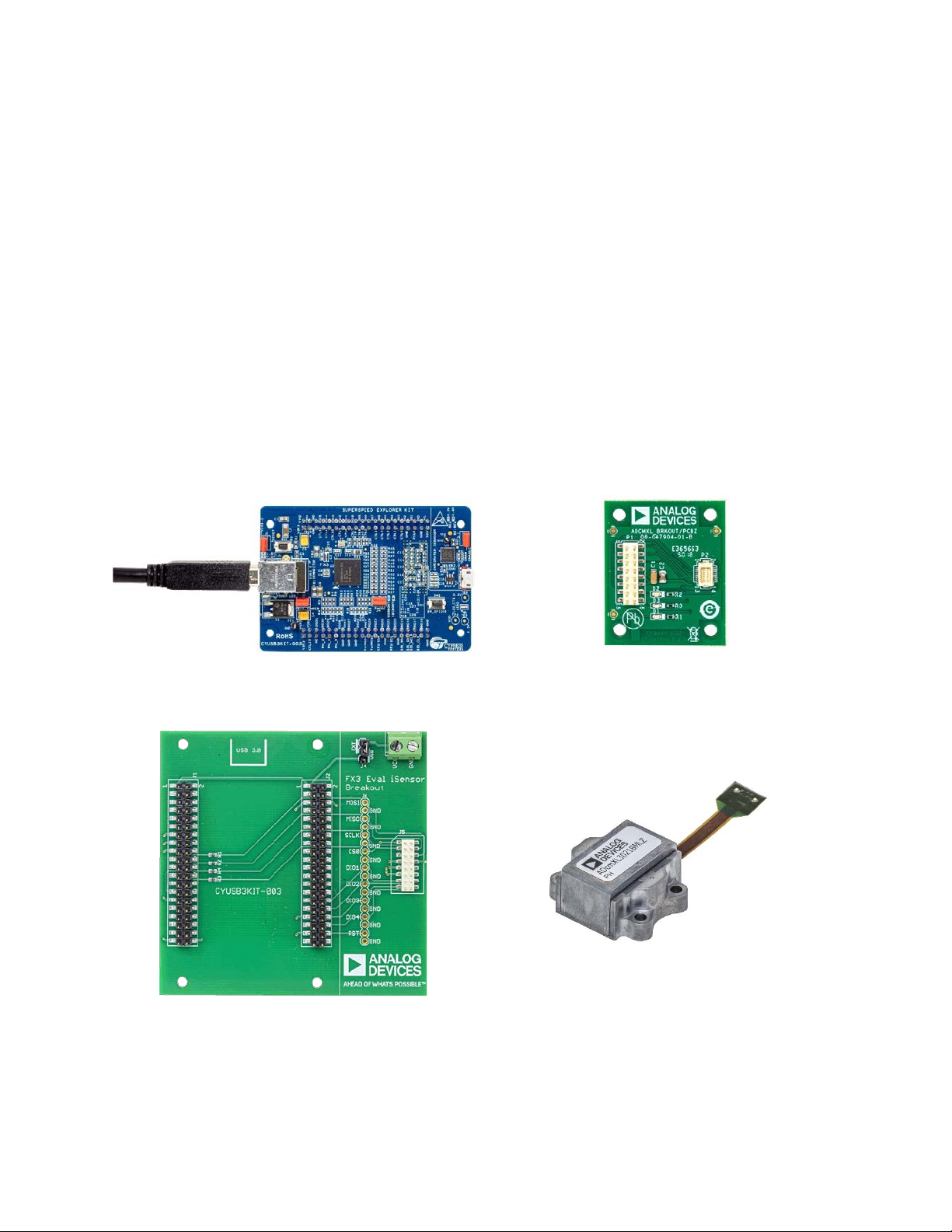

Figure 1 CypresFX3USBKit-003

Figure 2 ADCMXL_BRKOUT/PCBZ

Figure 3 ADcmXL FX3 Interface Board

Figure 4 ADcmXL3021 module

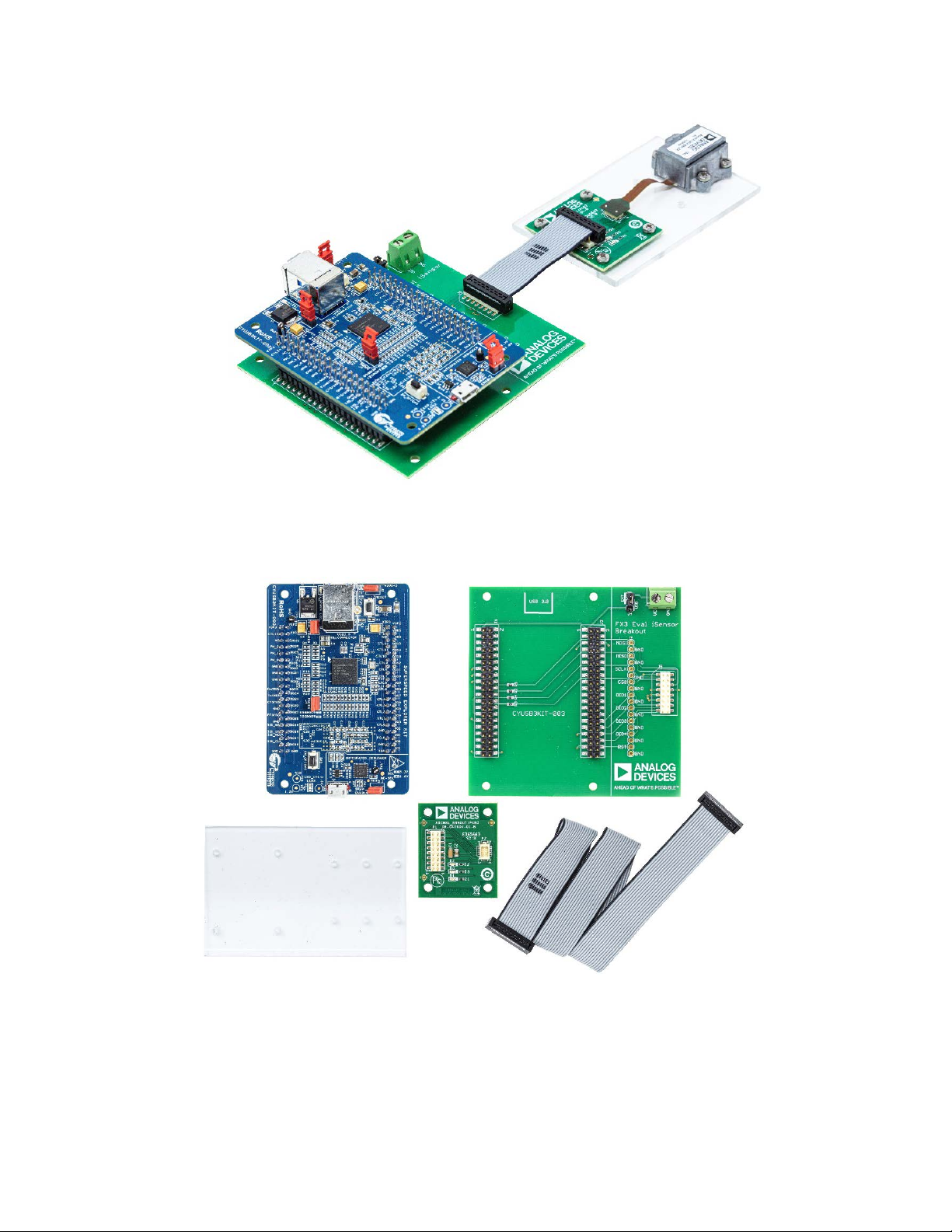

Figure 5 Assembled Hardware EVAL-ADCM (or EVAL-ADCM-1)

EVAL-ADCM Hardware Setup

Figure 6 Hardware included with EVAL-ADCM (or EVAL-ADCM-1) kit. Not shown are 8

mounting screws, short ribbon cable option and an ADcmXL3021 (or ADcmXL1021-1)

device.

Step 1

Plug in the ADcmXL FX3 Interface Board to the Cypress FX3 Evaluation Board.

Figure 7 Pin 3 on both J1 and J2 should be cut.

Note: On the ADcmXL FX3 Interface Board, the 2 connectors that interface to FX3 board must

have Pin 3 on both headers cut. If not already snipped, these pins must be cut or bent out of the

way otherwise the FX3 board will not plug in together as these pins are keyed on the FX3 Board.

Step 2

Connect the FX3 and ADcmXL FX3 Interface Board together and connect additional 2 jumpers

for the Cypress FX3 Evaluation Kit. (There are 4 jumpers in total and all should be placed on the

FX3 board as shown in the figure below).

Figure 8 All four jumpers should be connected.

Step 3

Connect either available ribbon cables (short or long) from J5 of the ADcmXL FX3 Interface Board

to the pre-assembled ADcmXL3021 (or ADcmXL1021-1) and the ADCMXL_BRKOUT/PCBZ.

Note 1: The shorter ribbon cable (2”) is required for RTS Mode but may be used in any of the

operation mode. The longer ribbon cable is provided for easier handling and in situ measurements

but could result in packet errors when operating in RTS mode. The longer ribbon cable is best of

MTC, AFFT and MFFT modes of operation.

Figure 9 Fx3 Interface connected to ADCMXL_BRKOUT/PCBZ using the 12” cable

Figure 10 ADcmXL module connected to the ADCMXL_BRKOUT/PCBZ, note the direction of the ADcmXL module

with respect to the board.

Note 2: ADcmXL module and the ADCMXL_BRKOUT/PCBZ are pre-assembled (both secured to

the acrylic plate) to reduce possible stresses on the Flex tail. Depending on the application, the

ADcmXL module and the ADCMXL_BRKOUT/PCBZ can be unmounted from the plate and be

secured to the platform of choice.

Step 4

Connect the FX3 Evaluation Board to the PC with the ADCMXL Evaluation Software using the

provided USB3.0 cable that is shipped with the Cypress FX3 Evaluation kit box.

Software Installation

In order to use the ADCMXL Evaluation Software, FX3 Driver needs to be downloaded and

installed before ADCMXL Evaluation Software. Follow the steps below:

1. Un-compress the file FX3Driver.zip from the Wiki page.

(Note: The FX3 board will have driver software available on Cypress website or other

platforms, that may be different than the one provided on ADI’s wiki page. The driver

provided is the one tested with the ADcmXL Evaluation Software and in some cases other

drivers may not be supported.)

2. Run the executable DriverSetup.exe

3. Connect the ADCMXL3021 (or ADcmXL1021-1) device, breakout boards, and the FX3

through the interface board.

4. Connect the FX3 board to a PC USB port. LED indicates power. One LED on the FX3

board and one on the BR-047904 adapter board should be lit by default when the USB

cable is plugged into the PC

5. Run the application ADCMXL_Evaluation_n_n_n.exe. Note: This application and the

required DLLs must be in the same folder.

Troubleshooting

No light on the ADCMXL_BRKOUT/PCBZ board are lit:

-Check to make sure the ADcmXL module is plugged into P2.

-Check that ribbon cable is firmly and correctly plugged into both boards.

-Check that USB is plugged into the FX3 board, the FX3 board is plugged into the ADcmXL

FX3 Interface board.

More or less than 1 LED is lit on the FX3 board

-Check that the USB 3.0 A to B cable is plugged into the PC and the FX3 board.

-Use a different USB port on the PC.

-Be sure 4 jumpers are placed on the FX3 board.

When running software, get a message similar to “Unable to connect to an FX3 Board”

-Be sure ADcmXL Evaluation software is in a folder with all provided .dll files

-FX3 driver not installed properly or at all, Install provided FX3 driver

-Unplug and re-plug USB cable to power cycle the FX3 board

Verifying the USB Connection

Before starting the ADcmXL Evaluation Software, when the Cypress FX3 board is connected it

should be listed in Universal Serial Bus controllers as “Cypress FX3 USB BootLaoder Device”.

This is confirmation that the Cypress USB drivers have been installed. When the ADcmXL

Evaluation Software application is started the device should reconnect as an “Analog Devices

iSensor FX3 Demonstration Platform”.

Application Functional Overview and User Guide

Devices

Select the product, either ADcmXL1021-1 or ADcmXL3021. Note that once ADcmXL1021-1 is

selected, some of the features relating to 3-axis is disabled.

Provides an interface for reading andwriting the registers of the device. The leftside panel shows

Registers grouped into Categories: Control/Status, Output, Calibration and Filter Bank. The panel

on the right displays the bit fields of a selected control register selected from the pull down menu

at the top. The center of the window provides access to read and write registers and allows the

saving of registers to a file and loading register settings from a file.

Figure 11 Register Access Window

Setting Registers

1. Open Register Access Window by selecting “Register Access” on the top bar of the

Evaluation Software window.

2. The left panel of the window lists registers from the category selected from the pull down

menu on the top of the Register Access Window. There are 9 Categories: Output,

Control/Status, Calibration and Filter Banks A-F which include a subset of the complete

3. On the left panel, the slider is used to find the desired Register. Use the pointer to select

the desired register after which the register name will appear in the top center of the

a. To read the current value from the register, push the “Read Selected Register”

button and the current register value will be the value in the “Current Hex Value”

indicator.

b. To write a new value into the register, enter a hex value in the New Hex Value

entry location and push the “Write” button

4. The right panel breaks out the individual control bit of 6 registers: GLOB_CMD,

REC_CTRL1, REC_CTRL2, REC_PRD, ALM_CTRL and DIO_CTRL.

Saving and Loading Register Files

1. Select “Register Access” in the menu of the Main form.

2. In the Register Access windows press the Save Registers to file button.

3. In the dialog box select the register category you want to save. Click Save.

4. To read register values from a file and load the values to the ADCMXL. Press the Read

button in the Register Access Form. Use the file open dialog to select a properly formatted

RegDump.csv file. Press Open. The values will be written to the registers of the ADCMXL

device.

Alarms

Alarm Values Form

Allows for the entry of Alarm frequency band values for each of the six bands and four Sample

Rate Options. Default values are stored in the application. Alarms must be enabled by setting

values in the ALM_CTRL register available in the Register Access Form. Alarm values can be

saved in non-volatile memory of the DUT by accessing the Command register available in the

Figure 12 Alarm Values Form, the default values are loaded from the nonvolatile memory of the DUT.

Alarm Status Form

Displays the alarm status for the current capture. Alarm band line values are shown on FFT plots

if the Alarm Status Form is visible.

Figure 13 Alarm Status form.

Setting Alarms and Reading Alarm Status

Reading Default Values

1. Open Alarm Values Window by selecting “Alarm” on the top bar of the Evaluation Software

window and then “Alarm Values”, which will open a window.

2. Readback the current register values by pressing the “Read Default Values”.

Reading from current active values and writing values in table to DUT

1. Open Alarm Values Window by selecting “Alarm” on the top bar of the Evaluation Software

window and then “Alarm Values”, which will open a window.

2. Select “Read From DUT” and the table will get updated with current active alarm settings

from the DUT.

3. To change a value in the table, select the appropriate box and enterthe new desired value.

To set the values, select “Write to DUT” and the table values will be loaded into the DUT.

Reading from values from a file to table and saving values in table to DUT

1. Open Alarm Values Window by selecting “Alarm” on the top bar of the Evaluation Software

window and then “Alarm Values”, which will open a window.

2. Select “Read from File” and a dialog window will open. Select the desired CSV file and

the table will get updated with values stored in the file.

3. To change a value in the table, select the appropriate box and enter the new desired value.

To save the values to a file, select “Write to File” and a dialog will open. Select a file name

and press save. The displayed table values will be saved to a file.

Checking Alarm Status

1. Open Alarm Values Window by selecting “Alarm” on the top bar of the Evaluation Software

window and then “Alarm Status”, which will open a new window.

2. The Alarm Status Window will display the current state of the 6 configurable alarms across

the 3 different axes.

Example: In the example below, the Y and Z axis alarms are enabled, however, X -axis is not

enabled. Note that the Alarm Status form shows normal (0) for X-axis, while the in five out of six

bands the alarm should have been raised.

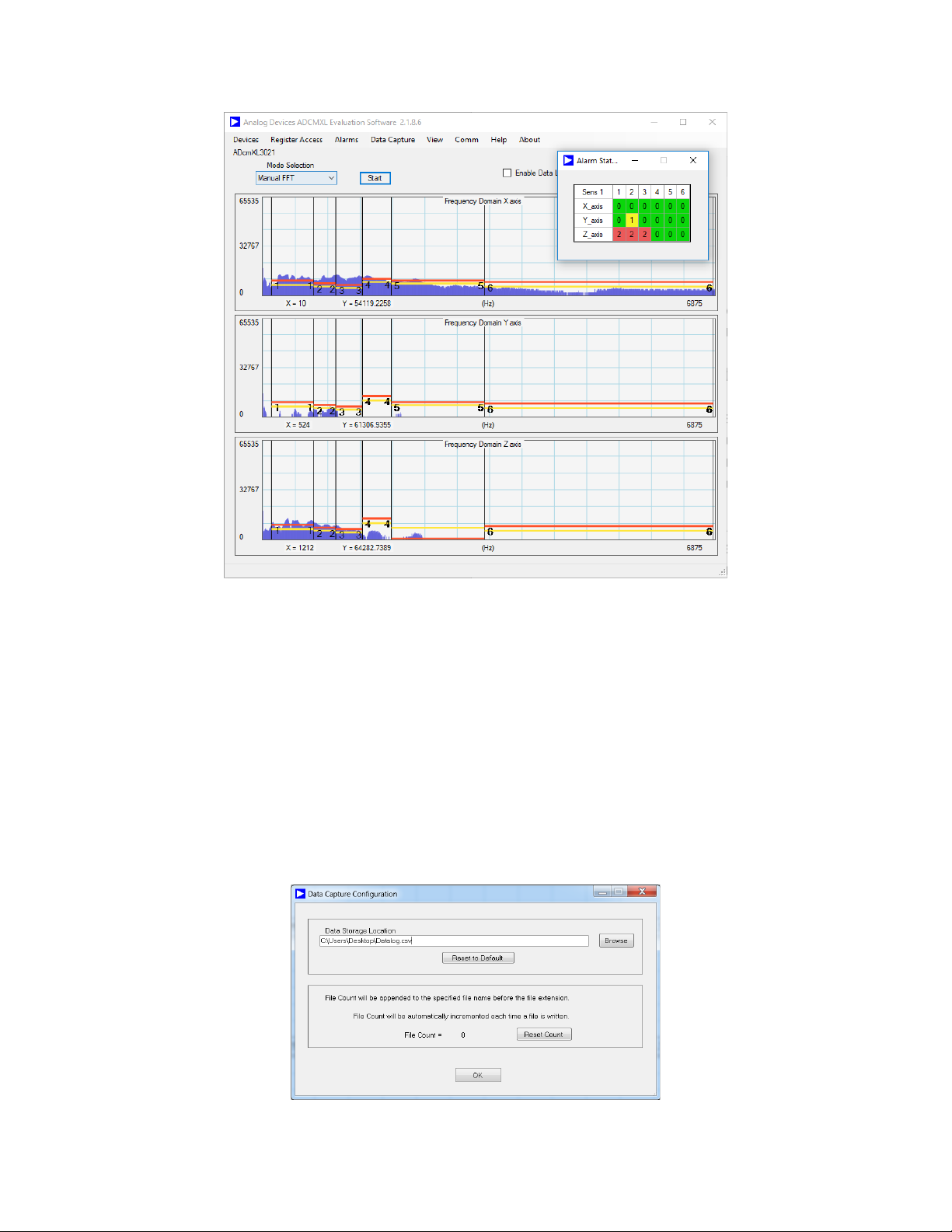

Figure 14 Alarm band lines and Alarm Status form (overlay) shown in an example vibration measurement. X-axis

alarm is disabled.

Data Capture

The user can configure where the files to be stored and reset the file count. To set the Data

Capture options, open the Data Capture Configuration dialog window by selecting “Data Capture”

on the top bar of the Evaluation Software window and then the “Data Capture Configuration”

window will open. A file location and name can be set. Press OK when done with configuration.

Note: Data logging can be enabled by checking the “Enable Data Log” box on the Main Form.

The File Number will increment to show how many files have been written. The Default path for

data files is My Documents. The default data file name is Datalog.csv. The file name is appended

with the file count number. Datalog_001.csv, Datalog_002.csv. The path and name of files can

be changed in the Data Capture Configuration Form. File Access is “overwrite.”

Figure 15 Data Capture Configuration Window

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Analog Devices Carte mère

Analog Devices

Analog Devices EVAL-ADRF5301 Manuel utilisateur

Analog Devices

Analog Devices AD9551 Manuel utilisateur

Analog Devices

Analog Devices SHARC ADSP-21375 Manuel utilisateur

Analog Devices

Analog Devices ADL6012-EVALZ Manuel utilisateur

Analog Devices

Analog Devices DC2910A Guide de configuration rapide

Analog Devices

Analog Devices EVAL-ADGS1412SDZ Manuel utilisateur

Analog Devices

Analog Devices DC2665B-B Guide de configuration rapide

Analog Devices

Analog Devices EVAL-ADIN1110EBZ Manuel utilisateur

Analog Devices

Analog Devices EVAL-SSM2311 Manuel utilisateur

Analog Devices

Analog Devices MAX22200 Manuel utilisateur

Analog Devices

Analog Devices Linear ADI Power SCP-LT8618-BEVALZ Guide de configuration rapide

Analog Devices

Analog Devices UG-442 Manuel utilisateur

Analog Devices

Analog Devices EVAL-ADD8504 Manuel utilisateur

Analog Devices

Analog Devices Linear Technology DC2085 Guide de configuration rapide

Analog Devices

Analog Devices ADSP-TS101S EZ-KIT Lite Manuel utilisateur

Analog Devices

Analog Devices EVAL-AD7175-8SDZ Manuel utilisateur

Analog Devices

Analog Devices ADSP2192-12 EZ-KIT LITE Manuel utilisateur

Analog Devices

Analog Devices ADN8831 Instructions d'installation et d'utilisation

Analog Devices

Analog Devices EVAL-AD7605-4SDZ Manuel utilisateur

Analog Devices

Analog Devices MICROCONVERTER ADUC812 Fiche technique

Analog Devices

Analog Devices AD9142A-M5372-EBZ Manuel utilisateur

Analog Devices

Analog Devices EVAL-ADGM1144SDZ Manuel utilisateur

Analog Devices

Analog Devices ADSP-21161N Manuel utilisateur

Analog Devices

Analog Devices MAX77857 Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur
