EVAL-AD5679RSDZ User Guide

UG-1463

One Technology Way •P. O . Box 9106 •Norwood, MA 02062-9106, U.S.A. •Tel: 781.329.4700 •Fax: 781.461.3113 •www.analog.com

Evaluation Board for the AD5679R 16-Bit, 16-Channel, Voltage Output DAC

PLEASE SEE THE LAST PAGE FOR AN IMPORTANT

WARNING AND LEGAL TERMS AND CONDITIONS. Rev. 0 | Page 1 of 13

FEATURES

Full featured evaluation board for the AD5679R

Various link options

PC control in conjunction with the Analog Devices, Inc., SDP

board

EVALUATION KIT CONTENTS

EVAL-AD5679RSDZ

USB cable

HARDWARE REQUIRED

EVAL-SDP-CB1Z (SDP-B) board, must be purchased separately

SOFTWARE REQUIRED

Analysis | Control | Evaluation software, available for

download from the EVAL-AD5679RSDZ product page

GENERAL DESCRIPTION

This user guide details the operation of the EVAL-AD5679RSDZ

for the AD5679R 16-bit, 16-channel, voltage output, digital-to-

analog converter (DAC).

The EVAL-AD5679RSDZ allows users to quickly prototype

AD5679R circuits and reduce design time. The AD5679R

operates from a single 2.7 V to 5.5 V supply range. The

AD5679R incorporates an internal 2.5 V reference to give an

output voltage of 2.5 V or 5 V. The EVAL-AD5679RSDZ also

incorporates additional voltage references.

The EVAL-AD5679RSDZ interfaces to the USB port of a PC

via a system demonstration platform (SDP-B) board. The

Analysis | Control | Evaluation (ACE) software is available for

download from the EVAL-AD5679RSDZ product page to use

with the evaluation board to allow the user to program the

AD5679R. A peripheral module interface (PMOD) connection

is also available to allow the connection of microcontrollers to

the evaluation board without the SDP-B board. When a

microcontroller is used through the PMOD connection, the

SDP-B board must be disconnected, and the user is unable to

operate the ACE software.

The EVAL-AD5679RSDZ is compatible with any Analog

Devices, Inc., SDP-B board, which can be purchased separately.

A typical connection between the EVAL-AD5679RSDZ and the

SDP-B controller board is shown in Figure 1.

For full details, see the AD5679R data sheet, which must be

used in conjunction with this user guide when using the EVAL-

AD5679RSDZ.

EVALUATION BOARD PHOTOGRAPH

17275-001

Figure 1. EVAL-AD5679RSDZ

UG-1463 EVAL-AD5679RSDZ User Guide

Rev. 0 | Page 2 of 13

TABLE OF CONTENTS

Features .............................................................................................. 1

Evaluation Kit Contents................................................................... 1

Hardware Required .......................................................................... 1

Software Required ............................................................................ 1

General Description......................................................................... 1

Evaluation Board Photograph......................................................... 1

Revision History ............................................................................... 2

Evaluation Board Software Quick Start Procedures .................... 3

Installing the Software ................................................................. 3

Initial Setup ................................................................................... 3

Functional Block Diagram and Description..................................4

Memory Map .................................................................................5

Evaluation Board Hardware.............................................................6

Power Supplies...............................................................................6

Link Options ..................................................................................6

On-Board Connectors ..................................................................6

Evaluation Board Schematics and Artwork...................................7

Ordering Information.................................................................... 12

Bill of Materials........................................................................... 12

REVISION HISTORY

8/2019—Revision 0: Initial Version

EVAL-AD5679RSDZ User Guide UG-1463

Rev. 0 | Page 3 of 13

EVALUATION BOARD SOFTWARE QUICK START PROCEDURES

INSTALLING THE SOFTWARE

The E VA L -AD5679RSDZ uses the ACE evaluation

software, which allows the evaluation and control of multiple

evaluation systems.

The ACE installer installs the necessary SDP-B drivers and the

Microsoft® .NET Framework 4 by default. The ACE software is

available for download from the E VA L-AD5679RSDZ product

page and must be installed before connecting the SDP-B board

to the USB port of the PC to ensure that the SDP-B board is

recognized connected to the PC. For full instructions on how to

install and use this software, see the ACE software page on the

Analog Devices website.

After the installation is finished, the E VA L -AD5679RSDZ plug-

in appears when the ACE software is opened.

INITIAL SETUP

To se t up the evaluation board, take the following steps:

1. Connect the evaluation board to the SDP-B board, and

then connect the USB cable between the SDP-B board and

the PC.

2. Run the ACE application. The EVAL-AD5679RSDZ plug-

ins appear in the attached hardware section of the Start

tab.

3. Double-click the board plug-in to open the board view

seen in Figure 2.

4. Double-click the AD5679Rchip to access the chip block

diagram. This view provides a basic representation of the

functionality of the board. The main functions of the board

are labeled in Figure 3.

17275-002

Figure 2. Board View of the EVAL-AD5679RSDZ

17275-003

Figure 3. Chip Block Diagram of the AD5679R

UG-1463 EVAL-AD5679RSDZ User Guide

Rev. 0 | Page 4 of 13

FUNCTIONAL BLOCK DIAGRAM AND DESCRIPTION

The EVAL-AD5679RSDZ software is organized to appear

similarly to the functional block diagram shown in the

AD5679R data sheet, which simplifies correlating the functions

on the E VA L -AD5679RSDZ with the description in the

AD5679R data sheet.

For a full description of each block, register, and its settings, see

the AD5679R data sheet.

Some of the blocks and their functions are described in this

section as they pertain to the evaluation board. The full screen

block diagram is shown in Figure 4. Table 1 describes the

functionality of each block.

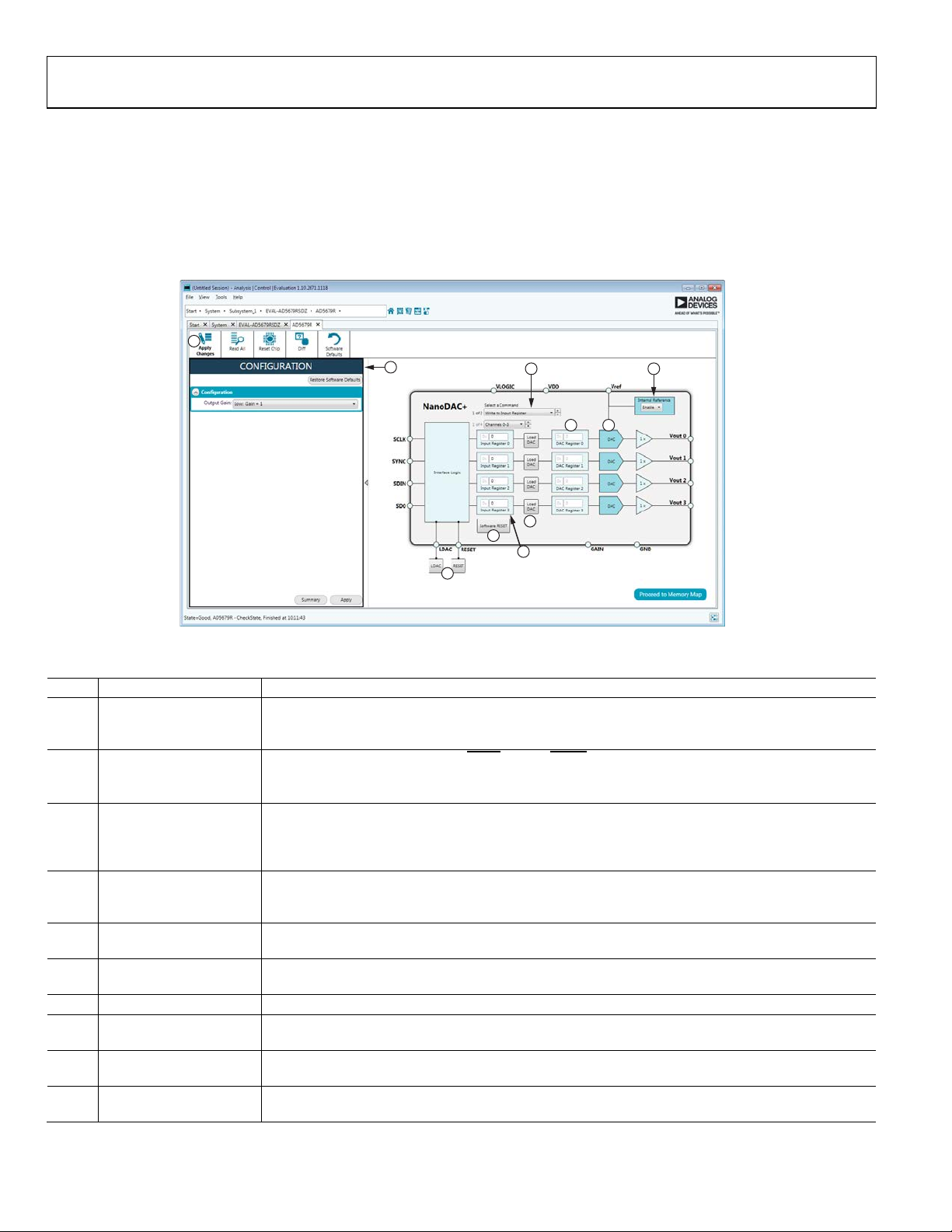

17275-004

Figure 4. AD5679R Block Diagram with Labels

Table 1. Block Diagram Functions (See Figure 4)

Label Button/Function Name Function

A CONFIGURATION

wizard

Used to set the initial configuration for the board. Select the reference gain case from the Output Gain

dropdown menu. A gain of 1 is the default. After setting up the initial configuration, click Apply to

apply the values. These settings can be modified at any stage while evaluating the board.

B LDAC and RESET (GPIO

buttons)

Act as external GPIO pulses to the LDAC pin and RESET pin. The LDAC button pushes data from both

input registers (Label D) to the DAC registers (Label E). The RESET button clears all data from input

registers and DAC registers. These buttons are live and there is no need to click Apply Changes (Label J).

C Select a Command Command option dropdown menu selects how the data being transferred to the device affects the

input registers and DAC registers. After a data value is entered in an input register (Label D), this menu

determines if the data is transferred to the input register only, or to the channel input register (Label D)

and the channel DAC register (Label E).

D Input Register 0

through Input

16-bit data word to be transferred to the device. Click Apply Changes (Label J) to transfer this 16-bit

data word to the device.

E DAC Register 0 through

DAC Register 3

Displays the value that is currently present in the DAC register on the device. Update the DAC registers

by selecting the appropriate command option or by toggling LDAC (Label B).

F Software RESET Returns the evaluation board and software to default values. This button is live. Therefore, there is no

need to click Apply Changes.

G Load DAC Users can individually control which channel loads the values from the input registers to the DAC register.

H DAC

DAC configuration options provide access to individual channel configuration options such as power-

down options and hardware LDAC mask enable and disable settings.

I Internal Reference Select Enable from this setting to enable the on-chip reference for the evaluation board. If Disable is

selected, an external reference must be applied. This control is only available on the AD5679R.

J Apply Changes Applies all modified values to the device. Note that if an evaluation board is not connected, values

entered in the input registers are not transferred to the DAC registers.

EVAL-AD5679RSDZ User Guide UG-1463

Rev. 0 | Page 5 of 13

MEMORY MAP

All registers are fully accessible from the AD5679R Memory

Map tab, shown in Figure 5. This tab allows registers to be

edited at bit level. The bits shaded in dark gray are read-only

bits and cannot be accessed from the ACE software. All other

bits are toggled.

Clicking the Apply Changes button transfers data to the device.

All changes made in the memory map tab correspond to the

block diagram. For example, if the internal register bit is enabled,

it displays as enabled on the block diagram. Any bits or registers

that are shown in bold in the memory map tab are modified

values that have not been transferred to the evaluation board

(see Figure 6). Click Apply Changes to transfer the data to the

evaluation board.

17275-005

Figure 5. AD5679R Memory Map Tab

17275-006

Figure 6. AD5679R Memory Map with Unapplied Changes in the

DAC0_Input Register

UG-1463 EVAL-AD5679RSDZ User Guide

Rev. 0 | Page 6 of 13

EVALUATION BOARD HARDWARE

POWER SUPPLIES

The EVAL-AD5679RSDZ provides on-board 3.3 V and 5 V

regulators powered through the USB supply or from an external

source. If a different supply is required or if the evaluation board

is controlled through the PMOD connector, an external supply

must be provided by the external supply voltage (EXTSUP)

connector. See Table 2 for more details.

Every supply is decoupled to ground with 10 µF tantalum and

0.1 µF ceramic capacitors.

LINK OPTIONS

A number of link options are incorporated on the E VA L -

AD5679RSDZ and must be set for the required operating

conditions before using the board. The functions of these link

options are described in Table 3.

Table 2. Power Supply Connectors

Connector Label External Voltage Supplies Description

EXT S U P, Pin 1 External analog power supply from 2.7 V to 5.5 V.

E X T S U P, Pin 2 Analog ground.

VREF_CONN External voltage reference.

Table 3. Link Functions

Link Description

LK1

This link selects the primary analog voltage source for the 3.3 V output and 5 V output for LK2. There are two options,

as follows:

The USB option selects the USB supply from Pin 5 of the 120-pin connector of the SDP-B board.

The EXT option selects an EXTSUP connector. Voltage applied to EXTSUP must be between 2.7 V to 5.5 V.

LK2 This link selects the DAC analog voltage source. There are three options, as follows:

The 5V0 option selects the on-board 5 V source from the LTC3536.

The 3V3 option selects the on-board 3.3 V source from the ADM7160.

The EXT option selects an EXTSUP connector. Voltage applied to EXTSUP must be between 2.7 V to 5.5 V.

LK3 This link selects the gain setting for the DAC. There are three options, as follows:

The gain option allows the ACE plugin to control the gain setting of the device.

The high option selects gain = 2.

The low option selects gain = 1.

ON-BOARD CONNECTORS

Table 4 shows the connectors on EVAL-AD5679RSDZ.

Table 4. On-Board Connectors

Connector Function

EXTSUP

External analog power supply from 2.7 V to 5.5 V.

VREF_CONN External voltage reference.

P2 DAC outputs from VOUT0 to VOUT7.

P3 DAC outputs from VOUT8 to VOUT15.

EVAL-AD5679RSDZ User Guide UG-1463

Rev. 0 | Page 7 of 13

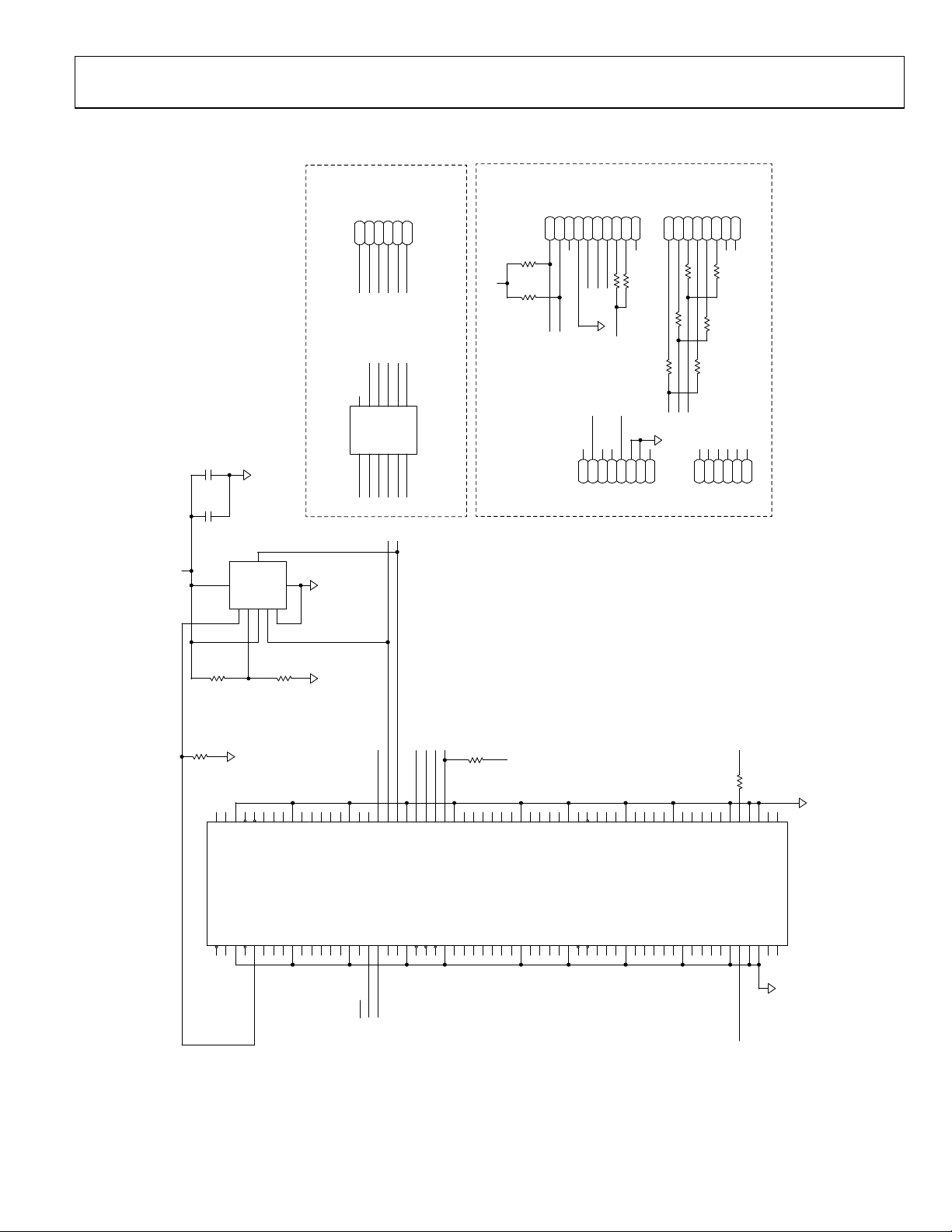

EVALUATION BOARD SCHEMATICS AND ARTWORK

SDP, PMOD AND ARDUINO INTERFACE

AGND

GAIN

6-PIN I2C PMOD CONNECTOR

SDIN

SDO

SCLK

SDA_0

SCL_0

LDACB

VDD

VIO

VIO: USE TO SET IO VOLTAGE MAX DRAW 20MA

USE ONLY TOPOWER THE EEPROM(3MA MAX DRAW)

12-PIN SPI PMOD CONNECTOR

VIO

AGND

SDA_0

SCL_0

RESETB

THE SDP CONNECTOR IMPLEMENTS THE E13 CONNECTOR SPECIFICATIONS STANDARD. THIS IS A STANDARD FOR USE ACROSS ADIAND CANNOT BE MODIFIED

LDACB

VIN:USE THIS PIN TO POWER

THE SDP REQUIRES 5V 300MA

BMODE1:PULL UP WITH A 10K RESISTOR

TO SET SDP TOBOOT FROM A SPI FLASH

ON THEDAUGHTER BOARD

WHEN USINGSPI INTERFACE,BE AWARE OFADDING A PULL UP

SYNCB

RESETB

ARDUINOINTERFACE HEADERS

SINCE SPIIS A SHARED BUS, ENSURE THAT ANY SPI DEVICE ON DAUGHTER BOARD

IS NOT ACTIVELY DRIVING THE MISODATA LINE UNLESS PROPERLY ADDRESSED WITH

AN ACTIVE LOW CHIP SELECT. ENSURE ALSOTHAT THE SPI CLK LINE IS NOT HELD

RESULT TO A NON-FUNCTIONAL SYSTEM.

SPI_SEL1/SPI_SS MUST BE ONLY USED

WITH EXTERNAL SPI FLASH

12C BUS 1 IS COMMON ACROSS BOTH

CONNECTORS ON SDP - PULL UP RESISTORS

REQUIRED (CONNECTED TOBLACKFIN

GPIO - USE 12C_0 FIRST)

MAIN 12C BUS (CONNECTED TO BLACKFIN TWI- PULL UP RESISTORS NOT REQUIRED)

HIGH OR LOWBY YOUR BOARD AT POWER UP. FAILURE TOMEET THIS

ON THE SPI_SEL_A/B/C LINES THAT ARE ACTIVE LOW ENABLED

SDP CONNECTOR

FX8-120S-SV(21)

DNI

0DNI

SSQ-106-03-G-S

DNI 0

DNI SSQ-108-03-G-S

SSQ-108-03-G-S

DNI

2.7K

DNI

2.7K

DNI

DNI SSQ-110-03-G-S

DNI

TSW-106-08-G-D TSW-106-08-G-S

DNI

TOL = 1

DNI

24LC32A-I/ST

EEPROM

BOARD ID EEPROM(24LC32)MUST BE ON I2C BUS 0

TSSOP8

TOL=1

R43

R44

R42

R41

R39

R38

R37

R12

SPI_PMOD

R32

R31

I2C_PMOD

10UF

SDP C25

0.1UF

100K

R0603

100K

R0603

100K

R0603

R20

R0603

100K

R13

SDIN

SDO

SCLK

LDACB

RESET

GAIN

USB_SUPPLY

RESETB

LDACB

GAIN

VIO

SDO

SYNCB

SCLK

SDIN

SDA_0

SCL_0

VIO

VDD

RESETB

LDACB

GAIN

AGND

RESETB

SYNCB

VIO

LDACB

SCL_0

SDA_0

VIO

AGND

SDIN

VIO

SDO

SCLK

VIO

SYNCB

SCL_0

SDA_0

VIO

AGND

126

115

116

6259

7249

7348

29 92

41 80

42 79

10021

26 95

7114

8113

9112

10 111

110

13 108

14 107

15 106

16 105

18 103

19 102

20 101

24 97

25 96

120

119

6655

7447

7645

7744

7843

118

117

115

109

104

6358

VCC

GND

P10

VCC

GND

AGND

SPI_SEL_A_N

CLKOUT

GND

VIO

GND

PAR_D22

PAR_D20

PAR_D18

PAR_D16

PAR_D15

GND

PAR_D12

PAR_D10

PAR_D8

PAR_D6

GND

PAR_D4

PAR_D2

PAR_D0

PAR_WR_N

PAR_INT

GND

PAR_A2

PAR_A0

PAR_FS2

PAR_CLK

GND

SPORT_RSCLK

SPORT_DR0

SPORT_RFS

SPORT_TFS

SPORT_DT0

SPORT_TSCLK

GND

SPI_MOSI

SPI_MISO

SPI_CLK

GND

SDA_0

SCL_0

GPIO1

GPIO3

GPIO5

GND

GPIO7

TMR_B

TMR_D

GND

WAKE_N

SLEEP_N

GND

UART_TX

BMODE1RESET_IN_N

UART_RX

GND

RESET_OUT_N

EEPROM_A0

GND

TMR_C

TMR_A

GPIO6

GND

GPIO4

GPIO2

GPIO0

SCL_1

SDA_1

GND

SPI_SEL1/SPI_SS_N

SPI_SEL_C_N

SPI_SEL_B_N

GND

SERIAL_INT

SPI_D3

SPI_D2

SPORT_DT1

SPORT_DR1

SPORT_TDV1

SPORT_TDV0

GND

PAR_FS1

PAR_FS3

PAR_A1

PAR_A3

GND

PAR_CS_N

PAR_RD_N

PAR_D1

PAR_D3

PAR_D5

GND

PAR_D7

PAR_D9

PAR_D11

PAR_D13

PAR_D14

GND

PAR_D17

PAR_D19

PAR_D21

PAR_D23

GND

USB_VBUS

GND

VIN

VSS

VCC

SCL

SDA

17275-007

Figure 7. EVAL-AD5679RSDZ Schematic, SDP, Arduino®-Compatible, PMOD Connectors

UG-1463 EVAL-AD5679RSDZ User Guide

Rev. 0 | Page 8 of 13

LABEL LINKS:

A: USB_SUPPLY

B: EXTSUP

PWR_SEL

CONNECT PGND AND AGND IN SUCH A WAY

TO MINIMIZE THE NOISE TO COUPLE

VDD_SEL

VDD CIRCUIT

PGND AGND INTERCONNECT

VREF CIRCUIT

MAIN CIRCUIT

–

LABEL LINKS:

1–2: 5V

3–4: 3.3V

5–6: EXT_SUP

LABEL LINKS:

1-2: GAIN

DAC CIRCUIT

5-6: LOW

3-4: HIGH

SPI <-> I2C OPTION

GAIN_SEL

1UF

M20-9990345

LTC3536EDD#PBF

4.7UH

100K

150K

DNI

15PF

68PF

150K

21.5K 15PF

1.1MEG

22UF

1UF

OSTTC022162

RED

DNI

TSW-103-08-G-D

AD5679RBCPZ-1

0.1UF 10UF

DNI

0.1UF

DNI

0DNI

4.7UF

0.1UF

10UF

1-1337482-0

ADM7160ACPZN3.3

TSW-103-08-G-D

BLK

C22

C23

R46

R45

C21

C33

R35

R47

R36

R40

TP1

TP2

VREF_CONN

C12

C11

LK3

C18

LK1

R33

R34

C4 C6

R14

R15

R16

R17

LK2

EXTSUP

USB_SUPPLY

VIO VREF

VDD

GAIN_IN

GAIN

SYNCB_SCL

VOUT0

VOUT1

VOUT14

RESETB

SYNC_SCL

SCLK_A0

SDIN_A1

VREF

VOUT15

VOUT11

SDIN

LDACB VDD

VIO

SDIN_A1

VOUT5

SDO

VIO

SDO_SDA

VOUT12

GAIN_IN

SDO_SDA

SDA_0

VOUT7

SCLK_A0

SCL_0

VOUT2

VOUT3

VOUT4

VOUT13

SYNCB

SCLK

VIO

VREF

VOUT10

VOUT8

VOUT9

VOUT6

VDD

PAD

3 9

5432

65 43 21

N P

PAD

5 2

2 81

PAD

15 61

65 43 21

B A

PAD

VIN

ENGND NC

VOUT

AGNDAGND

AGND

VREFOUT

VLOGICVDD

SYNC

SDO

SDI

SCLK

RESET

LDAC

GAIN

EPAD

DAC15

DAC14

DAC13

DAC12

DAC11

DAC10

DAC9

DAC8

DAC7

DAC6

DAC5

DAC4

DAC3

DAC2

DAC1

DAC0

AGNDAGND

PGND

SHDN_N

VIN VOUT

SW2SW1

MODE/SYNC

SGND

PGND

PGNDPGND

PGND

AGNDPGND

PGND

PGNDPGNDPGND

AGND

17275-008

RESET

LDAC

Figure 8. EVAL-AD5679RSDZ Schematic, Main Circuit

EVAL-AD5679RSDZ User Guide UG-1463

Rev. 0 | Page 9 of 13

BNC OUTPUTS

HEADER OUTPUTS

VOUT1

VOUT0

VOUT2

VOUT3

VOUT4

VOUT5

VOUT6

VOUT7

VOUT8

VOUT9

VOUT10

VOUT11

VOUT12

VOUT13

VOUT14

VOUT15

200PF 2.0K

1-1337482-0

200PF

DNI

1-1337482-0

DNI

67996-416HLF

DNI

2.0K

DNI

1-1337482-01-1337482-0

DNI

2.0K

DNI

DNIDNI

1-1337482-0

DNIDNI

2.0K

DNI

2.0K

DNI

1-1337482-0

DNI

200PF

DNI

200PF

DNI

200PF

DNI

200PF

DNI

200PF

DNI

200PF

DNI

200PF

DNI

2.0K

DNI

2.0K

1-1337482-0

200PF

2.0K

1-1337482-0

DNI

DNIDNI

1-1337482-0 1-1337482-0

DNI

1-1337482-0

2.0K

DNI

1-1337482-0

DNI

DNI DNI

1-1337482-0

67996-416HLF

DNI DNI

2.0K

200PF

DNI

2.0K

DNI

200PF

DNI

200PF

DNI

2.0K

C24

C26

C27

C28

C29

C30

C31

C32C20

C19

C17

C16

C15

C14

C13

VOUT_0

R30

R29

R28

R27

R26

R25

VOUT_15

VOUT_14

VOUT_13

VOUT_12

VOUT_11

VOUT_10

R24

R23

VOUT_9

VOUT_8

R22

VOUT_7

VOUT_6

R21

VOUT_5

R19

VOUT_4

R18

VOUT_3

R11

VOUT_2

R10

VOUT_1

VOUT5

VOUT7

VOUT3

VOUT9

VOUT8

VOUT6

VOUT7

VOUT3

VOUT4

VOUT14

VOUT0

VOUT4

VOUT5

VOUT1

VOUT6

VOUT10

VOUT2

VOUT11

VOUT13

VOUT12

VOUT15

VOUT11

VOUT14

VOUT0

VOUT2

VOUT13

VOUT12

VOUT10

VOUT1

VOUT15

VOUT9

VOUT8

AGND

AGND AGND

AGND

17275-009

Figure 9. EVAL-AD5679RSDZ Schematic, Output Connectors

UG-1463 EVAL-AD5679RSDZ User Guide

Rev. 0 | Page 10 of 13

17275-010

Figure 10. EVAL-AD5679RSDZ Top Side Component Placement

17275-011

Figure 11. EVAL-AD5679RSDZ Top Side Routing

17275-012

Figure 12. EVAL-AD5679RSDZ Bottom Side Component Placement

Table des matières

Autres manuels Analog Devices Carte mère

Analog Devices

Analog Devices Linear Technology DC2085 Guide de configuration rapide

Analog Devices

Analog Devices EVAL-ADF4360-8EBZ1 Manuel utilisateur

Analog Devices

Analog Devices EVAL-ADP2311 Manuel utilisateur

Analog Devices

Analog Devices EVAL-ADV7612-7511 Manuel utilisateur

Analog Devices

Analog Devices ADP5140-EVALZ Manuel utilisateur

Analog Devices

Analog Devices DC2630A Manuel utilisateur

Analog Devices

Analog Devices EV-ADF5355SD1Z Manuel utilisateur

Analog Devices

Analog Devices ADRF5519-EVALZ Manuel utilisateur

Analog Devices

Analog Devices ADL6316-EVALZ Manuel utilisateur

Analog Devices

Analog Devices LTC3302A Manuel utilisateur

Analog Devices

Analog Devices ADUX1020-EVAL-SDP Manuel utilisateur

Analog Devices

Analog Devices DC2702B-B Guide de configuration rapide

Analog Devices

Analog Devices EZ-KIT Lite ADSP-BF506F Guide de l'utilisateur

Analog Devices

Analog Devices ADV7604 Manuel utilisateur

Analog Devices

Analog Devices EVAL-SSM3525Z Manuel utilisateur

Analog Devices

Analog Devices Linear Technology DC2737A Guide de configuration rapide

Analog Devices

Analog Devices EVAL-AD5317RDBZ Manuel utilisateur

Analog Devices

Analog Devices EVAL-ADUCM300QSPZ Manuel utilisateur

Analog Devices

Analog Devices EVAL-AD5680DBZ Manuel utilisateur

Analog Devices

Analog Devices AD5282 Manuel utilisateur

Analog Devices

Analog Devices ADMV8513-EVALZ Manuel utilisateur

Analog Devices

Analog Devices EVAL-AD7903SDZ Manuel utilisateur

Analog Devices

Analog Devices AD1887 Manuel utilisateur

Analog Devices

Analog Devices MICROCONVERTER ADUC7020 Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur
