AMS AS5 Series Manuel utilisateur

Application Note

[Document ID]

ams Application Note, Confidential

Page 1

[v1-20] 2014-Dec-03

Document Feedback

AS5xxx-EK-USB-

UART Programmer Operation Manual

AS5xxx-EK-USB-PB –UART Programmer Operation Manual

ams Application Note, Confidential

Page 2

[v1-20] 2014-Dec-03

Document Feedback

Content Guide

1General Description ............................................................................................................. 3

1.1 Communication.................................................................................................................... 4

1.2 Power supply........................................................................................................................ 4

2Connecting options .............................................................................................................. 5

2.1 AS5x6y................................................................................................................................. 5

2.2 Universal Connector socket................................................................................................. 6

3AS5xxx-EK-USB-PB Hardware............................................................................................ 7

3.1 AS5xxx-EK-USB-PB PCB layout......................................................................................... 7

3.2 AS5xxx-EK-USB-PB schematic........................................................................................... 8

4Contact Information.............................................................................................................. 9

5Copyrights & Disclaimer..................................................................................................... 10

Revision History

Revision

Date

Owner

Description

1.0

28.08.2013

dsch

Initial version

1.1

13.08.2014

ekno

Updates and corrections

1.2

04.12.2014

mzie

Updated to latest corporate template

1.3

03.02.2015

mzie

Minor corrections

AS5xxx-EK-USB-PB –UART Programmer Operation Manual

ams Application Note, Confidential

Page 3

[v1-20] 2014-Dec-03

Document Feedback

1 General Description

This application note describes more in detail the usage of the AS5xxx-EK-USB-PB UART

Programmer.

Figure 1: AS5xxx-EK-USB-PB UART Programmer

Figure 2: Connector description

Pos.

Item

Universal connector (e.g. AS5403X)

Connector for AS5x6y devices

External power supply connectors

Mini-USB socket

AS5xxx-EK-USB-PB –UART Programmer Operation Manual

ams Application Note, Confidential

Page 4

[v1-20] 2014-Dec-03

Document Feedback

1.1 Communication

The Mini-USB socket is used for communicating with the computer. Therefore, a Mini-USB to USB

cable is necessary. The board is using a FT232R –USB-to-UART IC by FTDI. Therefore the

installation of the VCP (Virtual COM Port) is necessary to detect the USB device as a COM Port.

The driver can be downloaded from the official FTDI website using following link:

http://www.ftdichip.com/Drivers/VCP.htm

1.2 Power supply

By default the 5V supply voltage is provided by the USB interface. Depending if the jumpers J3, J4

and J5 are open or closed the supply source can be switched to external power supply.

Figure 3: Jumper configuration

Supply source

SET

External

SET

USB

AS5xxx-EK-USB-PB –UART Programmer Operation Manual

ams Application Note, Confidential

Page 5

[v1-20] 2014-Dec-03

Document Feedback

2 Connecting options

2.1 AS5x6y

For connecting AS5x6y devices the connector P1 is used. When connecting a single die IC

(AS5161 or AS5162) the bottom (BOT) interface has to be used. The required pull-up resistor for

the UART communication is also included on this board.

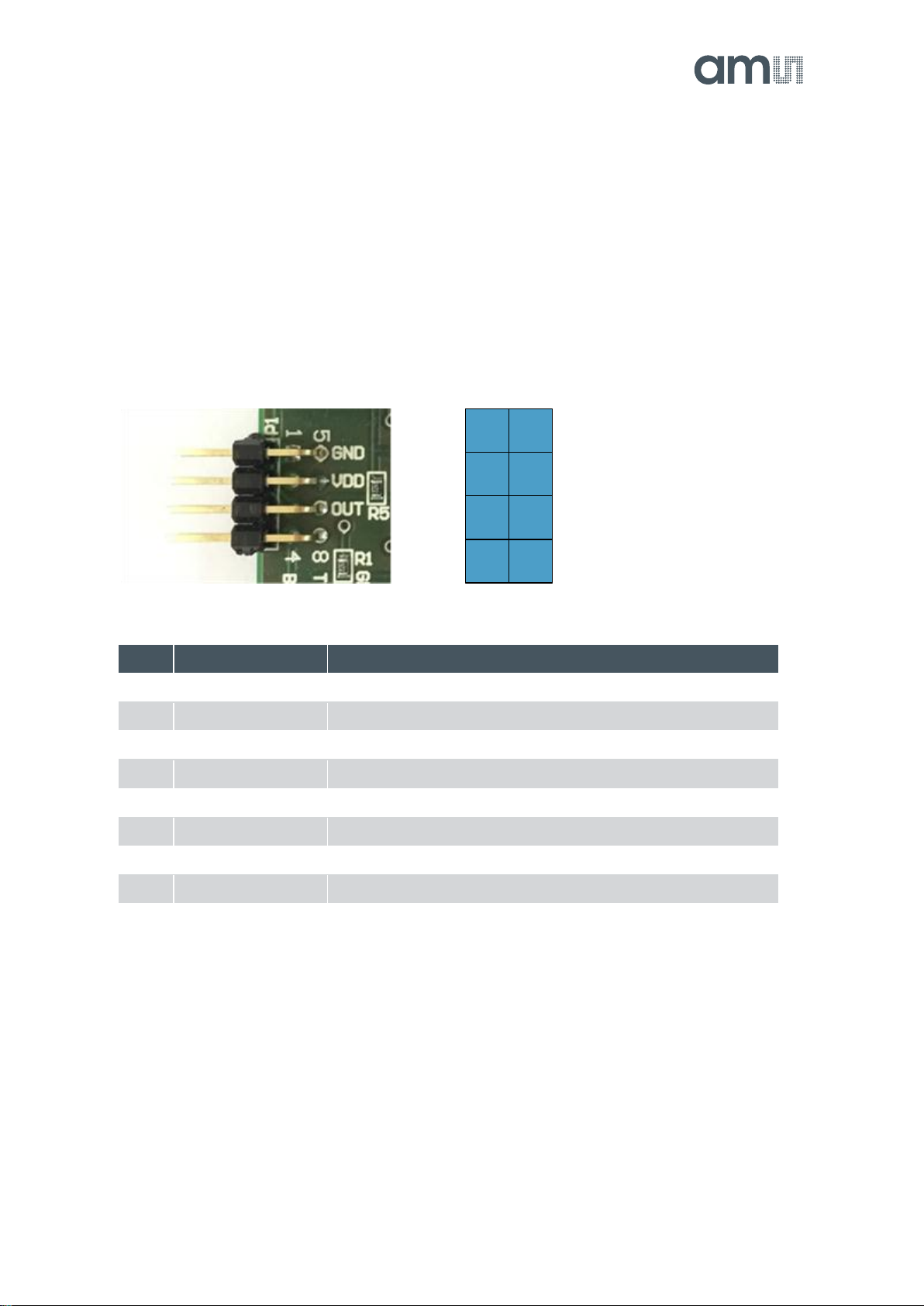

Figure 4: Connector P1

1 5

2 6

3 7

4 8

Pin #

Symbol

Description

GND Bottom

Ground Bottom die

VDD Bottom

Supply voltage Bottom die

OUT Bottom

Output signal Bottom die

OUT Bottom

Output signal Bottom die

GND Top

Ground Top die

VDD Top

Supply voltage Top die

OUT Top

Output signal Top die

OUT Top

Output signal Top die

AS5xxx-EK-USB-PB –UART Programmer Operation Manual

ams Application Note, Confidential

Page 6

[v1-20] 2014-Dec-03

Document Feedback

2.2 Universal Connector socket

For more connecting options the board offers a universal connector socket. This socket provides

access to GND, VDD and OUT (BOT) signals. This may be used to connect to an AS5403X adapter

board. Also in this case the required pull-up resistor for UART communication is included.

Figure 5: Universal Connector socket

AS5xxx-EK-USB-PB –UART Programmer Operation Manual

ams Application Note, Confidential

Page 7

[v1-20] 2014-Dec-03

Document Feedback

3 AS5xxx-EK-USB-PB Hardware

3.1 AS5xxx-EK-USB-PB PCB layout

Figure 6: AS5xxx-EK-USB-PB PCB layout

AS5xxx-EK-USB-PB –UART Programmer Operation Manual

ams Application Note, Confidential

Page 8

[v1-20] 2014-Dec-03

Document Feedback

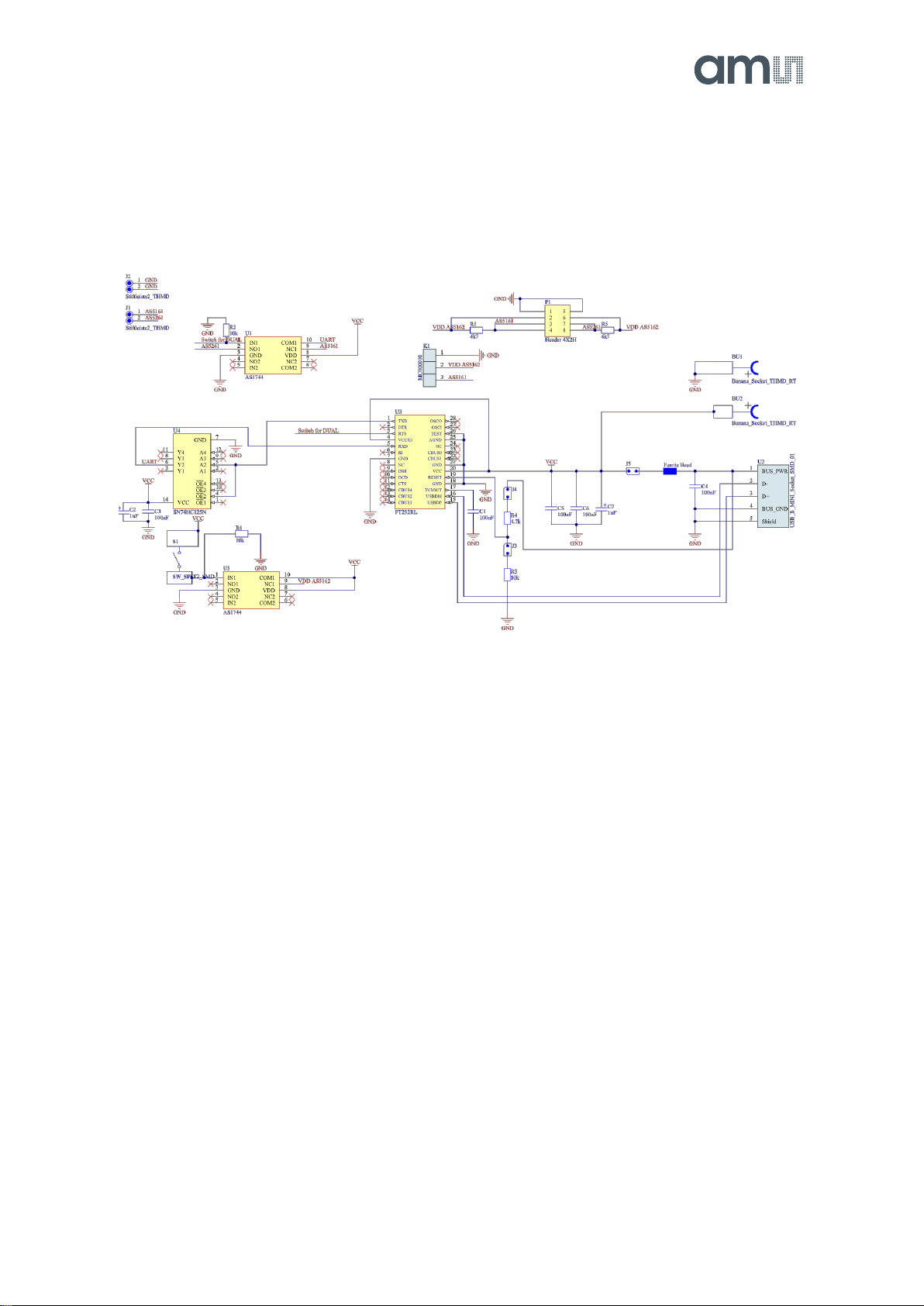

3.2 AS5xxx-EK-USB-PB schematic

Figure 7: AS5xxx-EK-USB-PB schematic

AS5xxx-EK-USB-PB –UART Programmer Operation Manual

ams Application Note, Confidential

Page 9

[v1-20] 2014-Dec-03

Document Feedback

4 Contact Information

Buy our products or get free samples online at:

www.ams.com/ICdirect

Technical Support is available at:

www.ams.com/Technical-Support

Provide feedback about this document at:

www.ams.com/Document-Feedback

For further information and requests, e-mail us at:

ams_sales@ams.com

For sales offices, distributors and representatives, please visit:

www.ams.com/contact

Headquarters

ams AG

Tobelbaderstrasse 30

8141 Unterpremstaetten

Austria, Europe

Tel: +43 (0) 3136 500 0

Website: www.ams.com

AS5xxx-EK-USB-PB –UART Programmer Operation Manual

ams Application Note, Confidential

Page 10

[v1-20] 2014-Dec-03

Document Feedback

5 Copyrights & Disclaimer

translated, stored, or used without the prior written consent of the copyright owner.

Information in this document is believed to be accurate and reliable. However, ams AG does not

give any representations or warranties, expressed or implied, as to the accuracy or completeness of

such information and shall have no liability for the consequences of use of such information.

Applications that are described herein are for illustrative purposes only. ams AG makes no

representation or warranty that such applications will be appropriate for the specified use without

further testing or modification. ams AG takes no responsibility for the design, operation and testing

of the applications and end-products as well as assistance with the applications or end-product

designs when using ams AG products. ams AG is not liable for the suitability and fit of ams AG

products in applications and end-products planned.

ams AG shall not be liable to recipient or any third party for any damages, including but not limited

to personal injury, property damage, loss of profits, loss of use, interruption of business or indirect,

special, incidental or consequential damages, of any kind, in connection with or arising out of the

furnishing, performance or use of the technical data or applications described herein. No obligation

or liability to recipient or any third party shall arise or flow out of ams AG rendering of technical or

other services.

ams AG reserves the right to change information in this document at any time and without notice.
