Amprobe SOLAR-100 Manuel utilisateur

Users Manual









SOLAR-100

Solar Power Meter

SOLAR-100

Solar Power Meter

Users Manual

July 2009, Rev.1

English



Your Amprobe product will be free from defects in material

and workmanship for 1 year from the date of purchase. This

warranty does not cover fuses, disposable batteries or damage

from accident, neglect, misuse, alteration, contamination, or

abnormal conditions of operation or handling. Resellers are not

authorized to extend any other warranty on Amprobe’s behalf.

To obtain service during the warranty period, return the product

with proof of purchase to an authorized Amprobe Test Tools

Service Center or to an Amprobe dealer or distributor. See Repair

Section for details. THIS WARRANTY IS YOUR ONLY REMEDY.

ALL OTHER WARRANTIES - WHETHER EXPRESS, IMPLIED OR

STAUTORY - INCLUDING IMPLIED WARRANTIES OF FITNESS FOR

A PARTICULAR PURPOSE OR MERCHANTABILITY, ARE HEREBY

DISCLAIMED. MANUFACTURER SHALL NOT BE LIABLE FOR ANY

SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES

OR LOSSES, ARISING FROM ANY CAUSE OR THEORY. Since some

states or countries do not allow the exclusion or limitation of an

implied warranty or of incidental or consequential damages, this

limitation of liability may not apply to you.



All test tools returned for warranty or non-warranty repair or

for calibration should be accompanied by the following: your

name, company’s name, address, telephone number, and proof of

purchase. Additionally, please include a brief description of the

problem or the service requested and include the test leads with

the meter. Non-warranty repair or replacement charges should be

remitted in the form of a check, a money order, credit card with

expiration date, or a purchase order made payable to Amprobe®

Test Tools.



Please read the warranty statement and check your battery before

requesting repair. During the warranty period any defective test

tool can be returned to your Amprobe® Test Tools distributor

for an exchange for the same or like product. Please check the

“Where to Buy” section on www.amprobe.com for a list of

distributors near you. Additionally, in the United States and

Canada In-Warranty repair and replacement units can also be sent

to a Amprobe® Test Tools Service Center (see address below).



Non-warranty repairs in the United States and Canada should be

sent to a Amprobe® Test Tools Service Center. Call Amprobe® Test

Tools or inquire at your point of purchase for current repair and

replacement rates.

In USA In Canada

Amprobe Test Tools Amprobe Test Tools

Everett, WA 98203 Mississauga, ON L4Z 1X9

Tel: 877-AMPROBE (267-7623) Tel: 905-890-7600



European non-warranty units can be replaced by your Amprobe®

Test Tools distributor for a nominalv charge. Please check the

“Where to Buy” section on www.amprobe.com for a list of

distributors near you.

European Correspondence Address*

Amprobe® Test Tools Europe

In den Engematten 14

79286 Glottertal, Germany

Tel.: +49 (0) 7684 8009 - 0

*(Correspondence only – no repair or replacement available from

this address. European customers please contact your distributor.)

SOLAR-100 Solar Power Meter















4 7



...........................................................................2

Warning and Precautions .............................................2

 ........................................3

 .................................................................3

........................................................................4

..................................................................7

 ............................................8

 ..................................................8



Caution! Refer to the explanation in this Manual

Conforms to relevant Australian standards

Complies with European Directives

Do not dispose of this clamp meter as unsorted

municipal waste. Contact a qualiﬁed recycler for

disposal.



For your own safety and to avoid damaging the

instrument follow the procedures described in this

instruction manual and read carefully all notes preceded

by this symbol



• Avoid doing that in humid or wet places or using

in rooms where explosive gas, combustible gas,

steam or excessive dust is present.

• Avoid doing that if you notice anomalous

conditions such as breakages, deformations,

fractures, leakages of battery liquid, blind display

etc.

• Operating environment: for indoor use, expose to

pollution level II.

• Do not put this device in direct sunlight or where

it is hot and/or damp.

Remember to turn OFF the power after use. For

long storage, remove the battery to prevent the

battery from leaking to cause damage to the parts

inside.

• This is a precision device. During use or storage,

do not go beyond its spec. to prevent any possible

damage or danger



Your shipping carton should include:

1 SOLAR-100 Solar Power Meter

1 9 volt battery

1 User manual

If any of the items are damaged or missing, return

the complete package to the place of purchase for an

exchange.



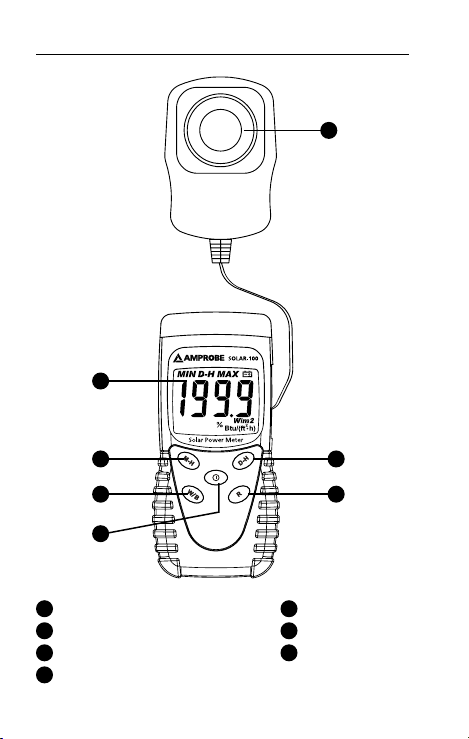

The SOLAR-100 measures the solar energy and radiation,

the typical application for this model are:

• Transmission measurement is most suitable for

measuring the effectiveness of the solar ﬁlm.

• Solar radiation measurement.

• Car windows light intensity measurement.

• Optimal incident angle for the solar panel.

• Measurement of the sun’s transmission through

transparent and ﬁlm glass.

• Convenient, no need to adjust, data displayed

clearly.







• Use a screw driver to adjust the hole of “0 ADJ”

for the zero adjustment if any digits is appear

• If performing the zero adjustment after powering

on, several digits may not disappear. In this case,

perform the zero adjustment again.

• Measure your car’s headlights

• Turn ON your car’s headlights. Then turn ON

the SOLAR-100 meter, and “00.0” appears on

the screen. Put the device down close to the

headlights. Switch between high beam and low

beam, and light intensity values appear on the

screen. Both the right and left headlights must be

tested. Note the values and put them in your car

for reference. (Picture 1)

• Measure the effect of solar insulation of your

vehicle’s windows

• Press the “ ” button to turn ON the SOLAR-100

meter, “00.0” appears on the screen. Aim the

device at the sun and close to a window, and the

intensity appears on the screen. Open the window

and aim the device at the sun. Compare the value

against that acquired when the window is closed

to understand the efﬁciency of the window’s

solar ﬁlm. Test your new car and preserve the

measurements in it. After that, test it at least once

every year. (Picture 1)

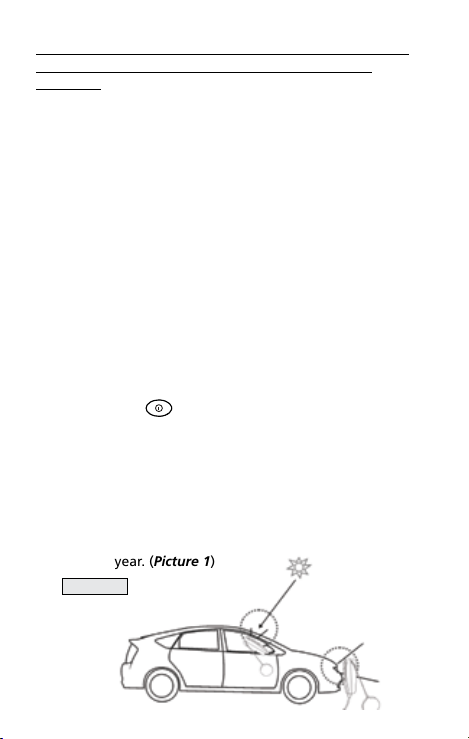

Picture 1.
