Amica 10132.3EX Manuel utilisateur
10132.3EX
10132.3EW
10132.3ES
INSTRUCTION MANUAL
IO-CBI-0213 / 8065664
(02.2017 / v3)
BUILT-IN ELECTRIC OVEN
C
O
2
DEAR CUSTOMER,
The oven is exceptionally easy to use and extremely ecient. After reading the instruction
manual, operating the oven will be easy.
Before being packaged and leaving the manufacturer, the oven was thoroughly checked with
regard to safety and functionality.
Before using the appliance, please read the instruction manual carefully.
By following these instructions carefully you will be able to avoid any problems in using the
appliance.
It is important to keep the instruction manual and store it in a safe place so that it can be
consulted at any time.
It is necessary to follow the instructions in the manual carefully in order to avoid possible
accidents.
Caution!
Do not use the oven until you have read this instruction manual.
The oven is intended for household use only.
The manufacturer reserves the right to introduce changes which do not aect the
operation of the appliance.
3
TABLE OF CONTENTS
Safety instructions ............................................................................................................. 4
Description of the appliance ............................................................................................. 8
Installation......................................................................................................................... 10
Operation........................................................................................................................... 12
Baking in the oven – practical hints ............................................................................... 16
Cleaning and maintenance.............................................................................................. 18
Technical data................................................................................................................... 22
4
SAFETY INSTRUCTIONS
Warning: The appliance and its accessible parts
become hot during use. Care should be taken to
avoid touching heating elements. Children less than 8
years of age shall be kept away unless continuously
supervised.
This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children
shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without
supervision.
During use the appliance becomes hot. Care should
be taken to avoid touching heating elements inside
the oven.
Accessible parts may become hot during use. Young
children should be kept away.
Warning: Do not use harsh abrasive cleaners or
sharp metal scrapers to clean the oven door glass
since they can scratch the surface, which may result
in shattering of the glass.
5
SAFETY INSTRUCTIONS
● Ensurethatsmallitemsofhouseholdequipment,includingconnectionleads,do
nottouchthehotovenastheinsulationmaterialofthisequipmentisusuallynot
resistant to high temperatures.
● Donotleavetheovenunattendedwhenfrying.Oilsandfatsmaycatchredue
to overheating or boiling over.
● Donotputpansweighingover15kgontheopeneddooroftheoven.
● Donotuseharshcleaningagentsorsharpmetalobjectstocleanthedoorasthey
can scratch the surface, which could then result in the glass cracking.
● Donotusetheovenintheeventofatechnicalfault.Anyfaultsmustbexedby
anappropriatelyqualiedandauthorisedperson.
● Intheeventofanyincidentcausedbyatechnicalfault,disconnectthepowerand
report the fault to the service centre to be repaired.
● Therulesandprovisionscontainedinthisinstructionmanualshouldbestrictly
observed. Do not allow anybody who is not familiar with the contents of this instruc-
tion manual to operate the oven.
● Theappliancehasbeendesignedonlyforcooking.Anyotheruse(forexample
forheating)doesnotcomplywithitsoperatingproleandmaycausedanger.
Warning:Ensurethattheapplianceisswitchedo
before replacing the lamp to avoid the possibillity of
electric shock.
You should not use steam cleaning devices to clean
the appliance.
6
Using energy in a respon-
sible way not only saves
money but also helps the
environment. So let’s save
energy! And this is how you
can do it:
Do not uncover the pan too often
(a watched pot never boils!).
Do not open the oven door unnecessarily
often.
Switch o the oven in good time and
make use of residual heat.
For long cooking times, switch o heating
zones5to10minutesbeforenishingcook-
ing. This saves up to 20% on energy.
Only use the oven when cooking larger
dishes.
Meat of up to 1 kg can be prepared more
economically in a pan on the cooker hob.
Make use of residual heat from the
oven.
If the cooking time is greater than 40 minutes
switch o the oven 10 minutes before the
end time.
Important! When using the timer,
set appropriately shorter cooking
times according to the dish being
prepared.
Make sure the oven door is properly
closed.
Heat can leak through spillages on the door
seals. Clean up any spillages immediately.
Do not install the oven in the direct
vicinity of refrigerators/freezers.
Otherwise energy consumption increases
unnecessarily.
HOW TO SAVE ENERGY
7
During transportation, protec-
tive packaging was used to
protect the appliance against
any damage. After unpacking,
please dispose of all elements
of packaging in a way that will
not cause damage to the environment.
All materials used for packaging the appli-
ance are environmentally friendly; they are
100% recyclable and are marked with the
appropriate symbol.
Caution! During unpacking, the packag-
ing materials (polythene bags, polystyrene
pieces, etc.) should be kept out of reach of
children.
UNPACKING DISPOSAL OF THE APPLIANCE
Old appliances should not sim-
ply be disposed of with normal
household waste, but should
be delivered to a collection and
recycling centre for electric and
electronicequipment.Asymbol
shown on the product, the in-
struction manual or the packaging shows that
it is suitable for recycling.
Materials used inside the appliance are
recyclable and are labelled with information
concerning this. By recycling materials or
other parts from used devices you are making
asignicantcontributiontotheprotectionof
our environment.
Information on appropriate disposal centres
for used devices can be provided by your
local authority.
8
C
O
DESCRIPTION OF THE APPLIANCE
Oven function
selector knob
Temperature adjust-
ment knob
Temperatureregula-
torsignal light L
Cooker operation
signal light R
9
SPECIFICATIONS OF THE APPLIANCE
Cookerttings:
*optional
Baking tray* Grill grate
(drying rack)
Roasting tray*
10
Installing the oven
The kitchen area should be dry and aired
and equipped with ecient ventillation.
When installing the oven, easy access to
all control elements should be ensured.
This is a Y–type design built–in oven,
which means that its back wall and one
side wall can be placed next to a high
piece of furniture or a wall. Coating or
veneerusedonttedfurnituremust be
applied with a heat–resistant adhesive
(100°C). This prevents surface deforma-
tion or detachment of the coating.
Hoods should be installed according to
the manufacturer’s instructions.

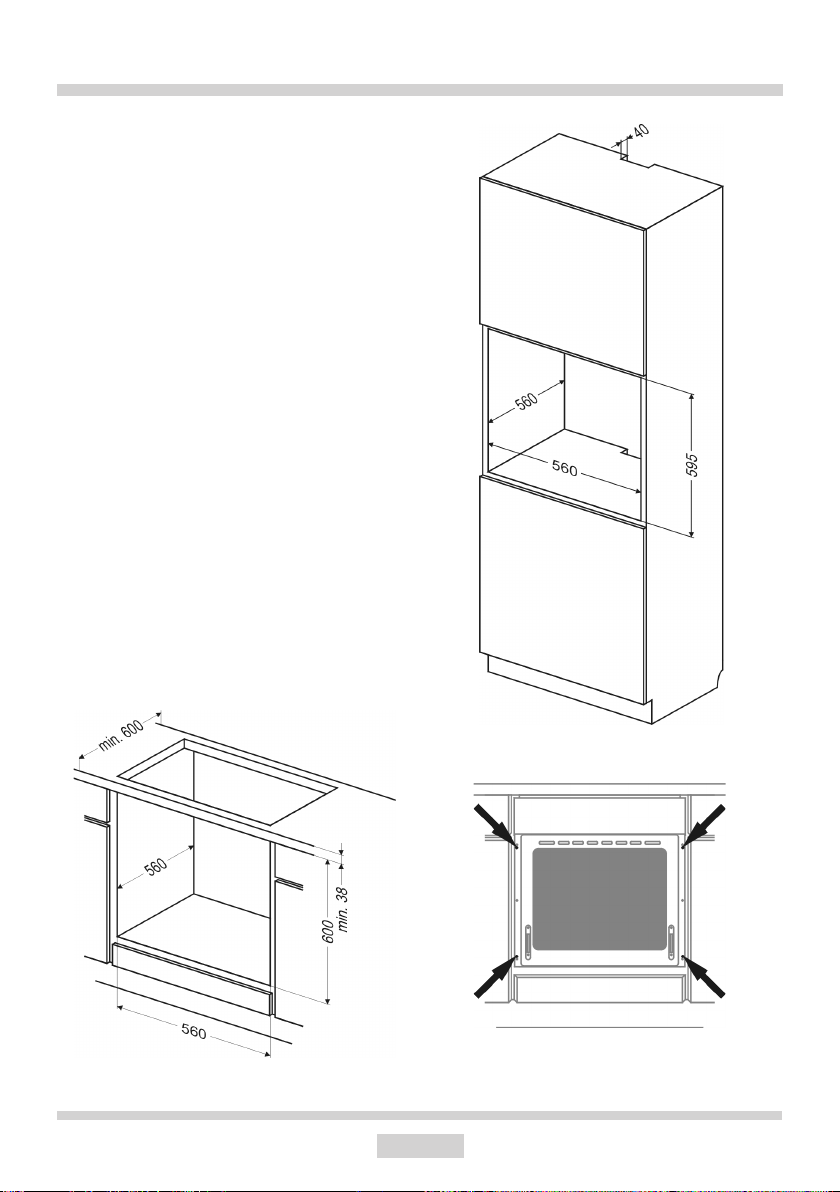

Make an opening with the dimensions
given in the diagram for the oven to be
tted.
Make sure the mains plug is disconnected
and then connect the oven to the mains
supply.
Insert the oven completely into the open-
ing without allowing the four screws in the
places shown in the diagram to fall out.
INSTALLATION
