SPEEDDOME OPTIMA LT PROGRAMMABLE DOME CAMERA 8200-0181-03, REV. C

QUICK REFERENCE GUIDE 1 of 8

SpeedDome®Optima LT

Programmable Dome

Camera

Quick Reference Guide

RASEL Series

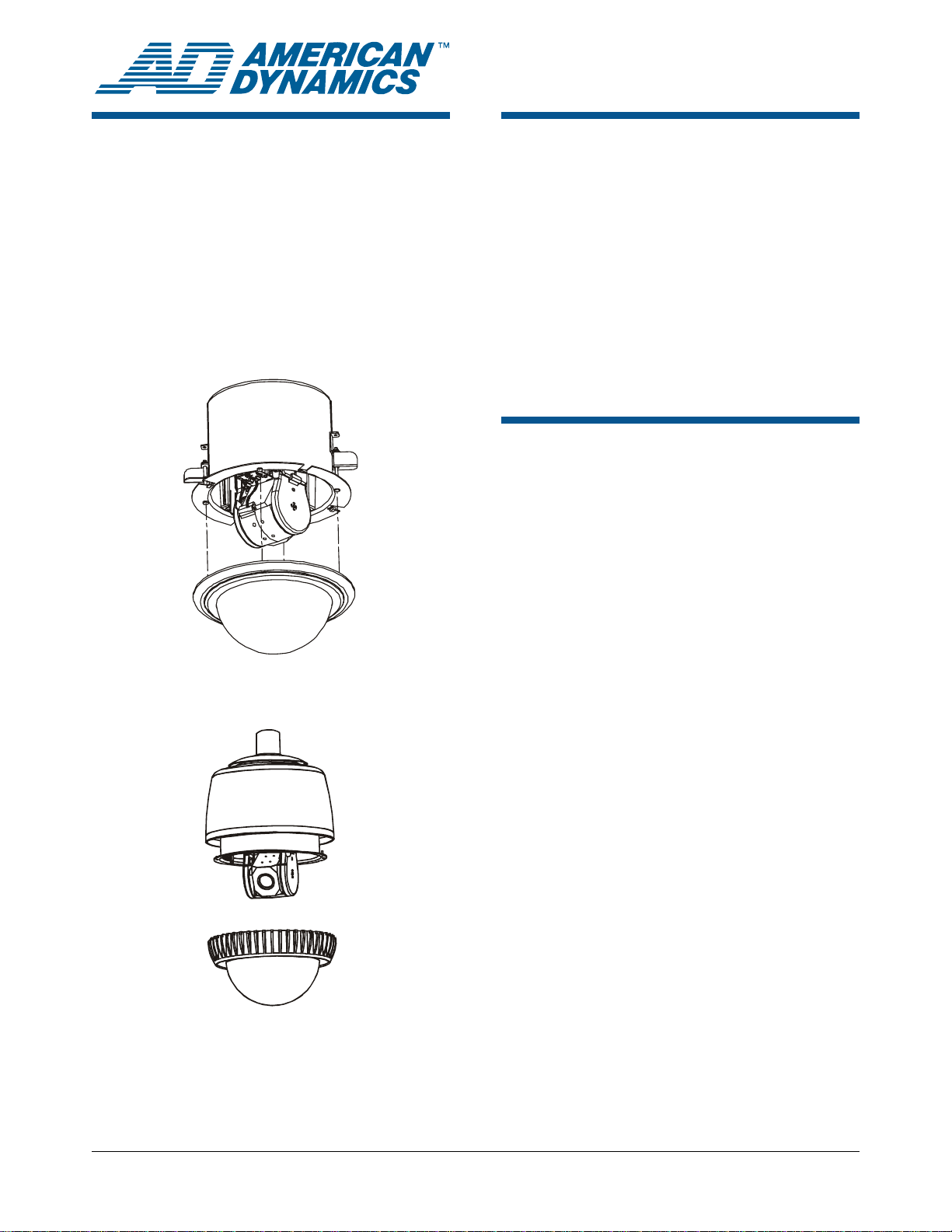

Figure 1: Hard Ceiling Mount

Figure 2: Pendant Mount

Contents

About this Guide ....................................................1

SpeedDome Optima LT Features..........................2

Controlling the Zoom Setting.................................2

Assigning the Dome’s Home Position....................3

Clearing Patterns...................................................3

DirectSet Menu Commands...................................3

Supported Controllers and Matrix Switching

Systems.................................................................4

Supported Dome Commands................................5

Declarations...........................................................8

About this Guide

This Quick Reference Guide explains the functions

supported by the SpeedDome Optima LT

programmable dome camera. It is intended to

supplement information included in the operator's

manual for your video controller or matrix switching

system.

If you need assistance...

Contact your Sales Representative.

SPEEDDOME OPTIMA LT PROGRAMMABLE DOME CAMERA 8200-0181-03, REV. C

QUICK REFERENCE GUIDE 2 of 8

SpeedDome Optima LT

Features

The SpeedDome Optima LT programmable dome

camera provides the following features:

• 22X optical zoom / 11X digital zoom

(242X maximum total zoom)

• 470 lines horizontal resolution

• Zoom Adjusted Programming (ZAP)

• Auto Focus / Auto Iris

• Auto White Balance

• Automatic Gain Control (AGC)

• Line-lock

• Up to 96 presets (system dependent)

• Three patterns

• Programmable home position

• Apple Peel

• Dome Flip (rotate 180°)

• Power-on functional tests

• LED diagnostics

• Hard ceiling or pendant mount installation

• DirectSet menu commands for specific dome

functions

In addition, the dome may be used with the

Manchester, RS-422 simplex or SensorNet

protocols.

CAUTION: The pendant mount option is

for indoor use only. Do not install the

SpeedDome Optima LT dome outdoors.

Although SpeedDome Optima LT does not provide

on-screen programming via the dome firmware, the

connected controller may be used to configure

many settings. These settings include:

• Programming presets and patterns

• Vertical phase adjustment (V-phase)

The following table provides additional information

about the supported controller functions with the

protocol used. The actual features supported may

differ for your controller.

Table 1: Protocols and supported features

Feature SensorNet

RS-422

Simplex Manchester

Maximum

Presets 96 (a) 96 (a) 64

Maximum

Patterns 3 3 3

Return to

Auto Focus/

Auto Iris (b) Yes Yes Yes

Dome Reset Yes Yes Yes

V-Phase

adjustment Yes Yes Yes

Auxiliary

output

control No No No

(a) The actual number of available presets may

differ based on the controller used.

(b) Pressing the Iris Open and Iris Close buttons

simultaneously returns to auto focus and auto

iris mode.

For specific information about the features

supported, see the operator's manual for your

controller.

Controlling the Zoom

Setting

Zoom stop settings define how the zoom function is

partitioned. Depending on the current zoom level,

the camera will either stop at the first zoom stop

setting or continue to the maximum zoom setting.

For SpeedDome Optima LT, the first zoom stop

setting is 22X (maximum optical zoom). The

maximum zoom is 242X (maximum digital zoom).

To switch between optical and digital zoom levels,

press the Zoom In (Zoom Tele) button until the first

zoom stop is reached. Release the button for at

least one second and press Zoom In again to

continue into the digital zoom range. Zooming

stops when the maximum zoom is reached.

Refer to your controller instructions for information

about the location of the zoom control buttons.

SPEEDDOME OPTIMA LT PROGRAMMABLE DOME CAMERA 8200-0181-03, REV. C

QUICK REFERENCE GUIDE 3 of 8

Assigning the Dome’s

Home Position

The home position is a preset or pattern that

automatically runs after 10 minutes of dome

inactivity. Use this setting if you want a specific

area to be under surveillance after an operator

stops moving the dome.

For SpeedDome Optima LT, the home position is

established by programming Pattern 3 with Focus

Near or Focus Far as the first command. This

indicates to the dome that pattern 3 should be used

as the home position. Any commands that follow

will be programmed as Pattern 3.

For more information about programming patterns,

refer to your controller operator’s manual.

Programming Notes

• To ensure that the home position displays the

starting position you want, adjust the pan, tilt,

and zoom before starting programming.

• If Pattern 3 has only a focus command and no

other movement commands, Pattern 3 will be

treated as a preset. The dome automatically

points to the preset location after 10 minutes of

inactivity.

• If Pattern 3 includes pan, tilt, and zoom

commands following the focus command,

Pattern 3 will be treated as a pattern. The

dome automatically begins repeating the

pattern after 10 minutes of inactivity.

Clearing Patterns

Clear patterns by re-programming the pattern to

include two focus commands (Focus Near or

Focus Far) as the only pattern commands. This

removes the previously programmed pattern and

restores the default Apple Peel pattern for the

selected pattern.

For more information about programming patterns,

refer to your controller operator’s manual.

Note: If Pattern 3 is cleared, this removes the

home position programming. The dome will not

automatically return to the specified preset or

pattern after 10 minutes of dome inactivity.

Pattern Programming Summary

Commands Result

Start Pattern programming,

followed by stop Pattern

programming

Pattern behaves

like a preset

Start Pattern 3 programming,

followed by 1 focus

command; stop Pattern

programming.

Set Home Position

as a preset

Start Pattern programming,

followed by pan, tilt, and

zoom commands; stop

Pattern programming

Pattern behaves

like a normal

pattern

Start Pattern 3 programming,

followed by 1 focus

command and pan, tilt, and

zoom commands; stop

Pattern programming.

Set Home Position

as a pattern

Start pattern programming,

followed by 2 focus

commands; stop Pattern

programming.

Clears the pattern

and restores the

default Apple Peel

Pattern.

DirectSet Menu Commands

The DirectSet Menu is a set of special commands

on newer SpeedDome series domes. These

commands provide quick access to commonly

used dome features and functions with compatible

controllers by entering the command number and

pressing the DirectSet key on the controller.

SpeedDome Optima LT supports the following

DirectSet commands:

Command Action

2+DirectSet:

Auto Iris/Auto

Focus

Resumes Auto Focus/Auto Iris

mode.

3+DirectSet:

Flip Rotates the SpeedDome 180°

from its current pointing

direction.

4+DirectSet:

Peel Pattern Runs the default Apple Peel

Pattern.

255+DirectSet:

Dome Reset * Causes the dome to reinitialize.

* Command not supported by ADTT16E due to

system limitations.

SPEEDDOME OPTIMA LT PROGRAMMABLE DOME CAMERA 8200-0181-03, REV. C

QUICK REFERENCE GUIDE 4 of 8

Supported Controllers and Matrix Switching Systems

SpeedDome Optima LT may be used with the following controllers and matrix switching systems. See notes below for specific limitations or

restrictions.

Feature

ADTT16E

Series VM32 / AD32

Series VM96 Series AD2150 /

AD2350

(1)

MegaPower

LT MegaPower

(1)

AD1650

(2) AD168/

MegaPower

168 (1)

AD2050

(1) MegaPower

1024

(1)

Supported

Protocols

SensorNet SensorNet SensorNet

RS-422 (2) Manchester SensorNet Manchester

SensorNet

RS422 (8)

Manchester

RS422 (9) Manchester

SensorNet

RS422 (9)

Manchester

RS422 (9) Manchester

RS422 (9)

Maximum

Available

Presets

96 96

Unlimited (3)

0RS422 (2) 64 Manchester

60 RS422 (9) 96 64 Manchester

96 SensorNet

96 RS422 (8)

64 Manchester

60 RS422 (9) 64 Manchester

64 SensorNet

60 RS422 (9)

64 Manchester

60 RS422 (9) 64 Manchester

60 RS422 (9)

Maximum

Available

Patterns

(4)

3 3 3 (2) 3 3 3 3 3 3 3

DirectSet

menu (5) Yes (6) No No No Yes (7) Yes (7) No No No No

NOTES:

(1) For the list of compatible keyboards, see Supported AD Keyboards on page 5.

(2) VM96 performance is limited under 2-wire RS422 simplex. Patterns and presets are not supported in RS422 simplex mode.

(3) Preset information is stored at the host, not the dome. For SensorNet and RS422 duplex, unlimited presets are supported.

(4) Patterns are limited by time and the number of available dome commands. Total time for each pattern cannot exceed 6 minutes 50 seconds.

The total number of dome commands used in the patterns cannot exceed 99.

(5) Although text overlay is not supported, the following DirectSet menu commands are supported: Return to Auto Iris/Focus, Flip, Peel and Dome

Reset. See DirectSet Menu Commands on page 3 for more information.

(6) Requires firmware version 0701-2833-0103 (EEPROM) / 0701-2834-0201 (Flash) or newer.

(7) Requires a compatible keyboard with a DirectSet key (ADCC0200 or ADCC0300).

(8) 2-wire RS422 simplex mode to be supported with the MegaPower 48+ firmware upgrade.

(9) 2-wire RS422 simplex mode to be supported with AD2083-02C code translator firmware upgrade.

SPEEDDOME OPTIMA LT PROGRAMMABLE DOME CAMERA 8200-0181-03, REV. C

QUICK REFERENCE GUIDE 5 of 8

Supported AD Keyboards

For systems using AD keyboards, the following

keys are used when Set Preset or Call Preset is

referenced:

Keyboard

Model Call

Function Set (Define)

Function (1)

AD1678C/M Shot Set Shot

(2)

AD2078 Call Set

AD2078A Call Set

AD2079 Shot Shot

AD2088 Shot Shot

ADTTE Shot Shot

ADTT Call Set

NOTES:

(1) Keyboard must be in programming mode to

use the set functions. See the keyboard

operation manual for information.

(2) Recessed pushbutton switch.

Supported Dome

Commands

Some dome commands are supported through

special keystroke combinations. This section

summarizes those commands for specific

controllers.

AD2083-02A Code Converter

See Supported AD Keyboards for button names

used on specific keyboards.

Verified with AD168 (v. 3.01) and AD2083-02A (v. 11Y9).

Dome Function Keyboard Command

Define Preset 1 - 16 1 - 16 Set Shot

Recall Preset 1 - 16 1 - 16 Call Shot

Define Pattern #1 17 Set Shot

Define Pattern #2 18 Set Shot

Define Pattern #3 19 Set Shot

End Pattern Definition 33 Set Shot

Accept (save) New Pattern 34 Set Shot

Go to Pattern #1 17 Call Shot

Dome Function Keyboard Command

Go to Pattern #2 18 Call Shot

Go to Pattern #3 19 Call Shot

Run Pattern #1 21 Call Shot

Run Pattern #2 22 Call Shot

Run Pattern #3 23 Call Shot

Review Temporary Pattern 24 Call Shot

Auto Repeat Pattern #1 25 Call Shot

Auto Repeat Pattern #2 26 Call Shot

Auto Repeat Pattern #3 27 Call Shot

Flip (rotate dome 180°) 40 Call Shot

Clear Pattern #1 41 Set Shot

Clear Pattern #2 42 Set Shot

Clear Pattern #3 43 Set Shot

Reset Dome 66 Set Shot

Enter V-Phase Adjust

Mode 67 Set Shot followed by

multiple Iris Open or

Iris Close

Exit V-Phase Adjust Mode 68 Set Shot

Return to Auto-Iris/Auto

Focus 69 Call Shot

Reset Iris 69 Set Shot

In addition, the following commands are not

supported.

• Set Switch 1 Normal Closed (51 Set Shot)

• Set Switch 1 Normal Open (52 Set Shot)

• Set Switch 2 Normal Closed (53 Set Shot)

• Set Switch 2 Normal Open (54 Set Shot)

• Set Switch 3 Normal Closed (61 Set Shot)

• Set Switch 3 Normal Open (62 Set Shot)

• Set Switch 4 Normal Closed (63 Set Shot)

• Set Switch 4 Normal Open (64 Set Shot)

SPEEDDOME OPTIMA LT PROGRAMMABLE DOME CAMERA 8200-0181-03, REV. C

QUICK REFERENCE GUIDE 6 of 8

AD2083-02B Code Converter

See Supported AD Keyboards on page 5 for

button names used on specific keyboards.

Operate Commands

The controller must be in Operate mode to use

these commands.

Dome Function Keyboard Command

Call Preset 1-16 1-16 Shot

Reset Iris 66 Shot

Flip 67 Shot

Run Pattern # 1 70 Shot

Run Pattern # 2 71 Shot

Run Pattern # 3 72 Shot

Auto Repeat Pattern #1 69 Shot, then 70 Shot

Auto Repeat Pattern #1 69 Shot, then 71 Shot

Auto Repeat Pattern #1 69 Shot, then 72 Shot

In addition, the following commands are not

supported:

• Set Auxiliary 4 OFF (63 Shot)

• Set Auxiliary 4 ON (64 Shot)

Program Commands

The controller must be in Program mode to use

these commands.

Dome Function Keyboard Command

Reset Dome 65 Shot

Program Preset 1-16 Shot

Define Pattern #1 70 Shot

Define Pattern #2 71 Shot

Define Pattern #3 72 Shot

End Pattern Definition 68 Shot

Save New Pattern 69 Shot

Clear Pattern #1 62 Shot

Clear Pattern #2 63 Shot

Clear Pattern #3 64 Shot

Enter V-phase Adjustment 67 Shot, followed by iris

open/close

Exit V-phase Adjustment 67 Shot

MegaPower 48 Matrix Switcher/

Controller System

See Supported AD Keyboards on page 5 for

button names used on specific keyboards.

Dome Function Keyboard Command

Define Pattern # 1 121 - F2

Define Pattern # 2 122 - F2

Define Pattern # 3 123 - F2

End Pattern Definition 120 - F2

Save New Pattern 130 - F2

Go to Pattern # 1 31 - F1

Go to Pattern # 2 32 - F1

Go to Pattern # 3 33 - F1

Run Pattern # 1 21 - F1

Run Pattern # 2 22 - F1

Run Pattern # 3 23 - F1

Auto Repeat Pattern # 1 41 - F1

Auto Repeat Pattern # 2 42 - F1

Auto Repeat Pattern # 3 43 - F1

Clear Pattern # 1

(SpeedDome RS-422) 131 - F2

Clear Pattern # 2

(SpeedDome RS-422) 132 - F2

Clear Pattern # 3

(SpeedDome RS-422) 133 - F2

Flip (Rotate dome 180º) 19 - F1

Reset Iris 20 - F1

Return to Auto Iris / Auto

Focus 69 - F1

Reset Dome 30 - F1

Enter Vertical Phase

Adjust Mode 38 - F2

Exit Vertical Phase Adjust

Mode 39 - F2

In addition, the following commands are not

supported:

• Set Auxiliary 4 OFF (70-F1)

• Set Auxiliary 4 ON (71-F1)

SPEEDDOME OPTIMA LT PROGRAMMABLE DOME CAMERA 8200-0181-03, REV. C

QUICK REFERENCE GUIDE 7 of 8

AD168/MegaPower 168 Matrix

Switcher/ Controller System

See Supported AD Keyboards on page 5 for

button names used on specific keyboards.

Dome Function Keyboard Command

Define Pattern # 1 121 - F2

Define Pattern # 2 122 - F2

Define Pattern # 3 123 - F2

End Pattern Definition 120 - F2

Save New Pattern 130 - F2

Go to Pattern # 1 31 - F1

Go to Pattern # 2 32 - F1

Go to Pattern # 3 33 - F1

Run Pattern # 1 21 - F1

Run Pattern # 2 22 - F1

Run Pattern # 3 23 - F1

Auto Repeat Pattern # 1 41 - F1

Auto Repeat Pattern # 2 42 - F1

Auto Repeat Pattern # 3 43 - F1

Clear Pattern # 1

(SpeedDome RS-422) 131 - F2

Clear Pattern # 2

(SpeedDome RS-422) 132 - F2

Clear Pattern # 3

(SpeedDome RS-422) 133 - F2

Flip (Rotate dome 180º) 19 - F1

Reset Iris 20 - F1

Return to Auto Iris / Auto

Focus 69 - F1

Reset Dome 30 - F1

Enter Vertical Phase

Adjust Mode 38 - F2

Exit Vertical Phase Adjust

Mode 39 - F2

In addition, the following commands are not

supported:

• Set Auxiliary 4 OFF (70-F1)

• Set Auxiliary 4 ON (71-F1)

Manchester Commands

These commands are supported by systems using

the Manchester protocol.

See Supported AD Keyboards on page 5 for

button names used on specific keyboards.

Verified with AD2050, AD2091, and AD168 with CCM

(v. 3.01)

Dome Function Keyboard Command

Program Presets 1 - 64 1- 64 Set Preset

Call Presets 1 - 64 1- 64 Call Preset

Program Pattern 1 70 Set Preset

Program Pattern 2 71 Set Preset

Program Pattern 3 72 Set Preset

Save Pattern

Programming 69 Set Preset

Cancel Pattern

Programming 68 Set Preset

Repeats following pattern 69 Call Preset

Run Pattern 1 70 Call Preset

Run Pattern 2 71 Call Preset

Run Pattern 3 72 Call Preset

Reset Dome 65 Set Preset

Resume Auto Focus / Auto

Iris 66 Call Preset

Flip (Rotate dome 180º) 67 Call Preset

Activate / Deactivate

V-phase delay setting

adjustment

67 Set Preset

SPEEDDOME OPTIMA LT PROGRAMMABLE DOME CAMERA 8200-0181-03, REV. C

QUICK REFERENCE GUIDE 8 of 8

Declarations

Regulatory Compliance

Emissions .................................... 47 CFR, Part 15

ICES-003

EN55022 Class A (CE)

Immunity ......................................EN50130-4 (CE)

Safety..........................................................UL1950

CSA C22.2 No 950

EN 60 950

FCC COMPLIANCE: This equipment complies with Part 15 of the

FCC rules for intentional radiators and Class A digital devices when

installed and used in accordance with the instruction manual. Following

these rules provides reasonable protection against harmful interference

from equipment operated in a commercial area. This equipment should

not be installed in a residential area as it can radiate radio frequency

energy that could interfere with radio communications, a situation the

user would have to fix at their own expense.

EQUIPMENT MODIFICATION CAUTION: Equipment changes or

modifications not expressly approved by Sensormatic Electronics

Corporation, the party responsible for FCC compliance, could void the

user's authority to operate the equipment and could create a hazardous

condition.

See “SpeedDome Optima LT Features” on page 2.

Other Declarations

Thank you for using American Dynamics products. We support our

products through an extensive and worldwide network of dealers. The

dealer, through whom you originally purchased this product, is your

point of contact if you have a need for service or support. Our dealers

are fully empowered to provide the very best in customer service and

support. Dealers should contact American Dynamics at (800) 507-6268

or (561) 912-6259 or on the web at www.americandynamics.net.

NOTICE: The information in this manual was current when published.

The manufacturer reserves the right to revise and improve its products.

All specifications are therefore subject to change without notice.

LIMITED RIGHTS NOTICE: For units of the Department of

Defense, all documentation and manuals were developed at private

expense and no part of it was developed using Government Funds. The

restrictions governing the use and disclosure of technical data marked

with this legend are set forth in the definition of “limited rights” in

paragraph (a) (15) of the clause of DFARS 252.227.7013. Unpublished -

rights reserved under the Copyright Laws of the United States.

TRADEMARK NOTICE: SpeedDome, American Dynamics, and the

American Dynamics logo are trademarks or registered trademarks of

Sensormatic Electronics Corporation. Other product names (if any)

mentioned herein may be trademarks or registered trademarks of other

companies.

not be copied, photocopied, reproduced, translated or reduced to any

electronic medium or machine-readable form, in whole or in part,

without prior written consent of Sensormatic Electronics.

BSL 5/2004

Autres manuels pour SpeedDome Optima LT

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels American Dynamics Caméra de sécurité

American Dynamics

American Dynamics DeltaDome II Instructions d'installation et d'utilisation

American Dynamics

American Dynamics ADCA330CN Manuel utilisateur

American Dynamics

American Dynamics SpeedDome Optima LT Instructions d'installation et d'entretien

American Dynamics

American Dynamics SpeedDome Ultra VI Instructions d'installation et d'entretien

American Dynamics

American Dynamics ADC500 Manuel utilisateur

American Dynamics

American Dynamics SensorRail IIIe ADRL3TRK Series Manuel utilisateur

American Dynamics

American Dynamics illustra 600 Instructions d'utilisation d'origine

American Dynamics

American Dynamics SpeedDome Optima LT Manuel utilisateur

American Dynamics

American Dynamics ADCA330CN Manuel utilisateur

American Dynamics

American Dynamics Tyco ADC520 Series Manuel utilisateur

American Dynamics

American Dynamics ADSDUHOC Manuel utilisateur

American Dynamics

American Dynamics SpeedDome Ultra VII EIS Instructions d'installation et d'entretien

American Dynamics

American Dynamics SpeedDome Ultra VII Manuel utilisateur

American Dynamics

American Dynamics IP speedDome Ultra 8 Manuel utilisateur

American Dynamics

American Dynamics SpeedDome Ultra III Instructions d'installation et d'entretien

American Dynamics

American Dynamics ADC531 Manuel utilisateur

American Dynamics

American Dynamics illustra 400 Manuel utilisateur

American Dynamics

American Dynamics ADC523PIR Manuel utilisateur

American Dynamics

American Dynamics Illustra Flex Series Manuel utilisateur

American Dynamics

American Dynamics RASIPPS-1 Manuel utilisateur

American Dynamics

American Dynamics AD615 Manuel utilisateur

American Dynamics

American Dynamics ADSDUHOC Manuel utilisateur

American Dynamics

American Dynamics Tyco ADC770 Manuel utilisateur

American Dynamics

American Dynamics VideoEdge IP Indoor Mini-dome 8200-2646-02... Instructions d'utilisation d'origine

Manuels Caméra de sécurité populaires d'autres marques

Okina USA

Okina USA SIR36-870VF650LP Manuel utilisateur

Divio

Divio NDR155PA Manuel utilisateur

Canon

Canon VB-C500D Manuel utilisateur

Easy Access

Easy Access EasyGuard Manuel utilisateur

Vivotek

Vivotek FD9389-EHV-v2 Manuel utilisateur

TUYA

TUYA COSMO W2 Manuel utilisateur

Eusso

Eusso UNC7500-IR Guide de configuration

urmet domus

urmet domus 1096/204 Manuel utilisateur

VC VC20 series Manuel utilisateur

Axis

Axis Q1614 Manuel utilisateur

ieGeek

ieGeek DD201 Manuel utilisateur

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuel utilisateur

Vicon

Vicon V662-D-1 Mode d'emploi

Grundig

Grundig GCH-K0274P Manuel utilisateur

Lorex

Lorex VANTAGE LBC7032 Manuel utilisateur

4xem

4xem WPT Manuel utilisateur

Samsung

Samsung SCV-3082 Manuel utilisateur

Vitek

Vitek VTC-C544 Manuel utilisateur
