Amazon B00CEH7VG8 Manuel utilisateur
B00CEH7VG8
Quick Setup Guide
Guide d’installation rapide
Schnellanleitung
クイック設定ガイド
快速入门指南
Guida di approntamento
rapido
Guía de instalación rápida
13-0813_B00CEH7VG8_67in_VideoTripod_QSG_V2_r1.ai 1 8/27/2013 4:17:01 PM13-0813_B00CEH7VG8_67in_VideoTripod_QSG_V2_r1.ai 1 8/27/2013 4:17:01 PM
2
English.................................3
Français ........................... 11
Deutsch ........................... 21
日本語 .............................. 31
....................................... 39
Italiano.............................. 47
Español ........................... 57
13-0813_B00CEH7VG8_67in_VideoTripod_QSG_V2_r1.ai 2 8/27/2013 4:17:09 PM13-0813_B00CEH7VG8_67in_VideoTripod_QSG_V2_r1.ai 2 8/27/2013 4:17:09 PM
3
Quick Setup Guide • English
AmazonBasics 67-inch Video Camera Tripod
Contents
• Tripod (with quick release plate installed)
• Carrying bag
• This Quick Setup Guide
Specications
• Max weight: 15 lbs. (6.8 kg)
13-0813_B00CEH7VG8_67in_VideoTripod_QSG_V2_r1.ai 3 8/27/2013 4:17:09 PM13-0813_B00CEH7VG8_67in_VideoTripod_QSG_V2_r1.ai 3 8/27/2013 4:17:09 PM
4
5
3
7
6
4
1
2
8
1 Quick-release mounting plate
Attach to your camera.
2 Mounting plate base
Slide the quick-release plate
into it to attach your camera
to the tripod.
3 Mounting plate locking knob
Loosen to remove the
quick-release mounting plate.
Tighten to hold it in place.
4 Safety lock tab
Push to release the quick-
release mounting plate.
5 Adjustable handles
6 Handle adjustment knobs
Loosen to raise or lower the
handles. Tighten to hold
them in place.
7 Tilt axis knob
Loosen to move the camera
vertically. Tighten to hold it in
position.
8 Level
Line up the bubble in the
bullseye to level your
camera.
Product overview
Tripod head
13-0813_B00CEH7VG8_67in_VideoTripod_QSG_V2_r1.ai 4 8/27/2013 4:17:09 PM13-0813_B00CEH7VG8_67in_VideoTripod_QSG_V2_r1.ai 4 8/27/2013 4:17:09 PM
5
3
1
2
5
4
6
1 Center column lock
Loosen to adjust the height
of the center column.
Tighten to hold the column
in position.
2 Leg angle release button
Push in to position the angle
of the leg.
3 Center column
4 Adjustable angle legs
Push in the leg release
button and move the legs
to any position, even
horizontal.
5 Leg locks
Flip open to extend the
legs. Close to hold them in
place.
6 Rubber feet with
retractable spikes
Tripod base
13-0813_B00CEH7VG8_67in_VideoTripod_QSG_V2_r1.ai 5 8/27/2013 4:17:09 PM13-0813_B00CEH7VG8_67in_VideoTripod_QSG_V2_r1.ai 5 8/27/2013 4:17:09 PM
6
123
4

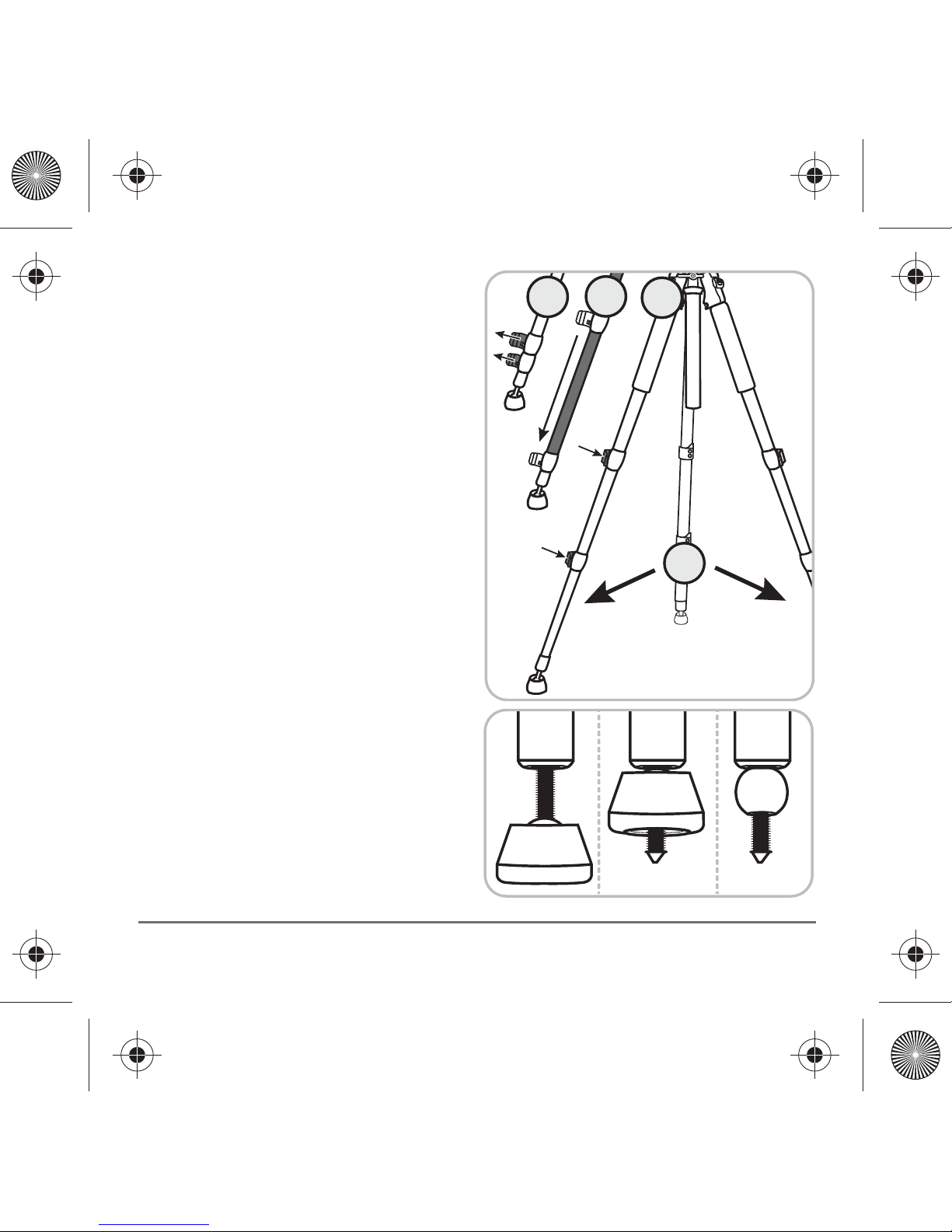

Setup
Extend the legs
1. Flip the locks open on
each leg.
2. Extend the leg sections
to the height you want.
3. Close the leg locks.
4. Extend the legs apart.
Preparing the feet
• For normal use, rotate the
rubber feet to cover the
spikes.
• For rugged outdoor areas,
rotate the rubber feet up or
remove them to enable the
spikes to stick into the
ground.
13-0813_B00CEH7VG8_67in_VideoTripod_QSG_V2_r1.ai 6 8/27/2013 4:17:09 PM13-0813_B00CEH7VG8_67in_VideoTripod_QSG_V2_r1.ai 6 8/27/2013 4:17:09 PM
7
B
A
3
1
2
Adjust the legs
Three locking angle positions.
1. Push down on the leg
slightly and push the leg
release button.
2. Raise the leg so it is
horizontal.
3. Lower the leg to one of
the preset angles. You
will hear a click to know
it is engaged.
Note: Once you go past
each preset angle, you
will need to re-press the
button to lift the leg
again.
13-0813_B00CEH7VG8_67in_VideoTripod_QSG_V2_r1.ai 7 8/27/2013 4:17:10 PM13-0813_B00CEH7VG8_67in_VideoTripod_QSG_V2_r1.ai 7 8/27/2013 4:17:10 PM
8
3
1
2
Attach your video camera
1. Loosen the mounting
plate locking knob.
2. Push the safety lock
button and slide the
quick-release mounting
plate off the tripod.
3. Securely screw the
quick-release mounting
plate into the bottom of
your camera.
Note: If the 1/4” screw is
too small, use the 5/8”
screw located under the
mounting plate. Lift the
rubber stopper from the
quick-release mounting
plate and switch screws.
bottom view
13-0813_B00CEH7VG8_67in_VideoTripod_QSG_V2_r1.ai 8 8/27/2013 4:17:10 PM13-0813_B00CEH7VG8_67in_VideoTripod_QSG_V2_r1.ai 8 8/27/2013 4:17:10 PM
9
45
1
4. Slide the quick-release
mounting plate onto the
mounting plate base. The
saftey lock engages.
5. Tighten the mounting
plate locking knob for
safety.
Using your tripod
Position the tripod handles
1. Loosen the handle knobs
and position the handles
where you want them.
2. With the teeth grooves
engaged, tighten the
handle knobs.
13-0813_B00CEH7VG8_67in_VideoTripod_QSG_V2_r1.ai 9 8/27/2013 4:17:10 PM13-0813_B00CEH7VG8_67in_VideoTripod_QSG_V2_r1.ai 9 8/27/2013 4:17:10 PM
10
Position your tripod height
Loosen the center column
lock to raise or lower your
tripod, then tighten the lock
to hold the height position.
Position your video camera angle
Loosen the tilt axis
adjustment knob to position
the angle. Tighten the knob
to hold your selected
position.
Stow your tripod
1. Remove your camera.
2. Lower the center column.
3. Collapse the legs.
4. Lower the handles.
5. Stow the tripod in the
carrying bag.
Made in China
© 2013 Amazon.com, Inc. or its afliates. All Rights reserved. Amazon and the AmazonBasics logo are trademarks of Amazon.com, Inc. or
its afliates.
