Altronix Trove1V1R Manuel utilisateur
Trove1V1R
- Trove rack enclosure with
Altronix/HID VertX®backplane (TV1R)
Access & Power Integration
Rev. TVR112818 More than just power.TM
Installing Company: _______________ Service Rep. Name: __________________________________
Address: _____________________________________________ Phone #: __________________
Installation Guide
All registered trademarks are property of their respective owners.
- 2 - Trove1V1R Installation Guide
Overview:
Altronix Trove1V1R rack mount access & power integration solution accommodates various combinations of
HID VertX®boards with or without Altronix power supplies and accessories for access systems.
Specifications:
Agency Listings:
• CE European Conformity.
Trove1V1R
Trove1R rack mount enclosure with TVR Altronix/HID VertX®backplane.
• 16 Gauge black enclosure with ample knockouts for convenient access.
• Modular 2U standard EIA 19” drawer with extendable slides up to 48”.
• Dimensions (H x W x D): 3.375” x 19.0” x 26.5” (85.8mm x 482.6mm x 673.1mm).
• Includes tamper switch (Altronix Model TS112 or equivalent) and cam lock.
TV1R
Altronix/HID VertX®backplane.
• 16 Gauge backplane.
• Dimensions (H x W x D): 18.5” x 15.25” x 0.3125” (469.9mm x 387.4mm x 7.9mm).
Optional Accessories:
• RE2: Rack Mount Battery Enclosure accommodates up to four (4) 12VDC/7AH batteries
• WM5, WM25, WM100: Magnetic Cable Tie Mounts (5, 25, 100 counts).
• LC3: 6 ft. three-wire line cord.
Backplane Accommodates a Combination of the Following:
Altronix:
• Up to two (2) eFlow4NB, eFlow6NB, eFlow102NB, eFlow104NB, ACMS8(CB) or ACM8(CB).
• Up to three (3) ACM4(CB), MOM5, PD4UL(CB), PD8UL(CB), PDS8(CB), or VR6.
HID VertX®:
• Up to six (6) V100, V200, V300, V1000 or V2000.
Hardware and Accessories:
Spacer | 7/8” Pan Head Screw | Lock Nut
Trove1V1R Installation Guide - 3 -
Installing Trove1R into Rack Tower:
Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/ANSI, and with all local
codes and authorities having jurisdiction. These products are for indoor use only and must be installed within
the protected premises.
Note: First assemble and Install Z Bracket Wire Management Accesory
(refer to Z Bracket Installation pg. 4)
1. Remove backplane from enclosure prior to installing into rack cabinet
(do not discard hardware).
2. In order to mount included UL Listed tamper switch (Altronix Model TS112 or
equivalent) turn the enclosure upside down. Punch out the knockout in
designated location, on the back of the unit, from outside of the drawer
(Fig. 1, pg. 3). Insert the tamper switch into the knockout from outside of the
drawer with the button facing outwards and spaded connectors inside the drawer.
Connect tamper switch wiring to the Access Control Panel input or the
appropriate UL Listed reporting device.
To activate alarm signal open the rack drawer.
3. Slide the rack enclosure into an open 2U location in the four post rack cabinet.
4. Utilizing proper fasteners attach front ears to the rack rails.
5. Attach the rear of the adjustable slides to the rear rails of the rack cabinet with the proper fasteners.
6. Secure the rack cover (Fig. 2a, pg. 3) and rack drawer to earth ground (Fig. 2b, pg. 3).
7. Make sure that all internal cofigurations (wiring, voltage selection, switch settings, etc.) are complete before
mounting backplane back into enclosure.
8. After all components are mounted on the backplane, attach it to the enclosure using included hardware.

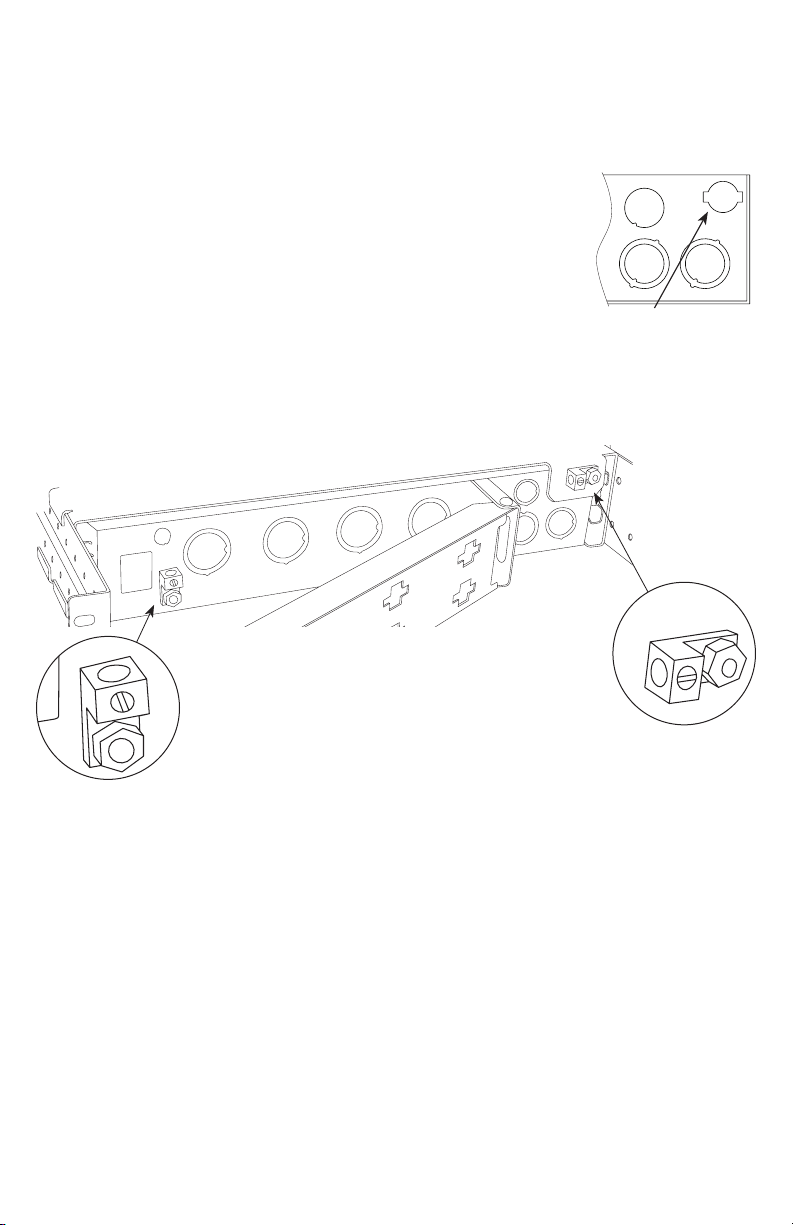

Fig. 1
Back of the drawer,
viewed from outside.
Tamper Switch
mounting location
Fig. 2
Fig. 2a
Fig. 2b
- 4 - Trove1V1R Installation Guide
Assembling and Attaching
Z Bracket Wire Management Accessory (included):
Altronix Trove Rack enclosures include Z Bracket, a convenient and reliable wire management accessory.
Hardware (included):
Ten (10) bolts and eight (8) lock nuts.
1. Carefully unpack Z Bracket. Do not discard hardware
(included) (Fig. 3, pg. 4).
2. Attach arms to each other using bolts and
lock nuts (Fig. 3a, pg. 4).
3. Attach the hinge brackets to the ends of
arms using bolts and nuts positioning
them as shown on (Fig. 3b, pg. 4).
4. Make sure that all nuts are tightened.
5. Attach the hinge bracket on the longer side of Z Bracket to the adjustable slide using bolts and lock nuts
(included) (Fig. 4, 4a, pg. 4).
6. Attach the hinge bracket on the shorter side of Z Bracket to the rear of the rack enclosure using bolts
(included).
Fig. 4
Fig. 4a
Fig. 3b
Two (2)
Fig. 3
Fig. 3a
Trove1V1R Installation Guide - 5 -
TV1R:
Configuration of Altronix Power Supply and/or Sub-Assembly Boards
1. Fasten spacers onto metal pems configuration (A) or (B) of backplane depending on the board (Fig. 5, pg. 5).
2. Position access controller module over corresponding spacers and fasten screws into spacers (Fig. 5a, pg. 5).
3. Mount backplane to enclosure with hardware.
Position Chart for the Following Models:
Altronix Power Supply/Charger or Sub-Assembly Pem Mounting
eFlow4NB, eFlow6NB, eFlow102NB, eFlow104NB, or ACM8(CB), ACMS8(CB) A
ACM4(CB), MOM5, PD4UL(CB), PD8UL(CB), PDS8(CB), PD16W(CB) or VR6 B
Fig. 5
B
B
B
A
A
Metal
Spacer
Placement
for Altronix
Power
Supplies
Metal
Spacer
Placement
for Altronix
Power
Supplies
Pem
Spacer
Backplane
Power Supply
or
Sub-Assembly
Pan Head Screw
Fig. 5a
- 6 - Trove1V1R Installation Guide
TV1R:
Configuration of HID VertX®Boards
1. Fasten spacers onto metal pems configuration (A) of backplane (Fig. 6, pg. 6).
2. Position access controller module over corresponding spacers and fasten screws into spacers (Fig. 6a, pg. 6).
3. Mount backplane to enclosure with hardware.
Access Controller Position Chart for the Following Models:
HID VertX®Sub-Assembly Pem Mounting
V100, V200, V300, V1000, V2000 A
Fig. 6
A
A
A
A
A
A
Pem
Spacer
Backplane
Pan Head Screw
HID VertX®
Board
Fig. 6a
Trove1V1R Installation Guide - 7 -
Notes:
- 8 - Trove1V1R Installation Guide
Trove1R Enclosure Dimensions:
3.375” x 19.0” x 26.5” (85.8mm x 482.6mm x 673.1mm). Shown with Z Bracket attached.
0.1”
2.5mm
1.5”
38.1mm
11.175” (283.8mm)
2.4”
61mm
4.57”
116.1mm
3.375”
85.8mm
26.5”
673.1mm
19” (482.6mm)
R 1.27” (32.3mm)
1” (25.4mm)
0.55” (14mm)
3.62”
92mm
Altronix is not responsible for any typographical errors.
––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056
IITrove1V1R I02U MEMBER
