CLARKE TECHNOLOGY Operator's Manual - Encore S20/L20 Page -17-

ENCORE

S20/L20

Section II

Parts and Service Manual

(74836B)

Order Parts Here:

www.ivie-ent.com/parts

Ph:(918)254-5161

Page -18- CLARKE TECHNOLOGY Operator's Manual -Encore S20/L20

There is no solution flow.

The solution flow does not stop.

The machine does not remove all the

water from the floor.

The batteries do not give the normal

running time.

Open the solution valve.

Remove the obstruction from the hose and the

filter.

Repair or replace the valve and the electric

wiring.

Fill the solution tank.

Check solution module

Close or Clean the solution valve.

Repair or replace the valve and the wiring.

Clean the solution valve.

Replace the seat and washer.

Check solution module.

Lower the squeegee.

(See Figure 11, page 23)

Drain the tank.

Clean the screen filter.

Remove the obstruction or repair the damage.

Check for tripped breaker. Have an authorized

service person make repairs.

See pg 49 for brush replacement intervals.

Check and connect hose.

Turn or replace the squeegee blade.

Correctly install the squeegee blade.

Adjust the pressure of the squeegee.

Replace the gaskets.

Rotate lid 180° and replace.

Clean the terminals and connectors. Replace

the damaged cables. Charge the batteries.

Add distilled water to each cell and charge the

batteries.

Charge the batteries for a full 16 hour charge.

Have an authorized service person repair the

charger.

Check voltage of each cell while discharging.

Connect the batteries.

Run in float position.

PROBLEM CAUSE ACTION

The solution valve is closed.

There is an obstruction in the solution hose

or filter.

The solution valve or electric wiring is

damaged.

The solution tank is empty.

The solution module is damaged.

The solution valve is open or dirty.

The solution valve or wiring is damaged.

The solution valve is dirty

There is a damaged seat and washer in the

solution valve.

The solution module is damaged.

The squeegee is up

The squeegee tilt is not correct.

The vacuum tank is full.

The screen filter is dirty.

There is an obstruction or damage in the

squeegee, squeegee hose or standpipe.

The vacuum motor is not running.

The vacuum motor runs slow

The squeegee hose is disconnected, or

damaged

The squeegee blade is damaged, worn, or

incorrectly installed.

The squeegee pressure is not correctly

adjusted.

The gaskets on the cover of the recovery

tank are damaged.

The recovery tank lid is on wrong.

The battery terminals are dirty or damaged.

The electrolyte level is too low.

The batteries are not fully charged.

The charger is damaged.

The battery is defective.

The batteries are disconnected.

Brush is in heavy scrub setting.

HOW TO CORRECT PROBLEMS IN THE MACHINE

CLARKE TECHNOLOGY Operator's Manual - Encore S20/L20 Page -19-

PROBLEM CAUSE ACTION

The cleaning is not even. The scrub brush or pad is worn.

There is damage to the brush assembly,

caster or the solution valve.

The brush motor is not running

The solution level is low.

The machine does not run. The machine loses power.

Key or switch is off.

Batteries are unplugged.

Battery terminals are dirty.

Batteries are discharged

Reset the circuit breaker.

Turn key or switch on.

Check the battery connections.

Check battery gauge and recharge

NOTE: If the problem continues consult an

authorized service person.

Replace the scrub brush or pad.

Have an authorized service person make

the needed repairs.

Check for tripped breaker. Reset. Check

for loose connections.

Fill the solution tank.

NOTE: If the problem continues consult an

authorized service person.

Page -20- CLARKE TECHNOLOGY Operator's Manual -Encore S20/L20

WARNING: Maintenance and repairs must be

done by authorized personnel only.

WARNING: Always empty the solution tank and

recovery tank before doing any

maintenance.

WARNING: Keep all fasteners tight.

These Maintenance Procedures Must Be Done Ev-

ery Day

Keep the machine clean, it will need fewer repairs and

have longer life.

Do These Procedures When You Begin Your Work

Period

NOTE: Always engage the parking brake (if

equipped) before servicing the machine.

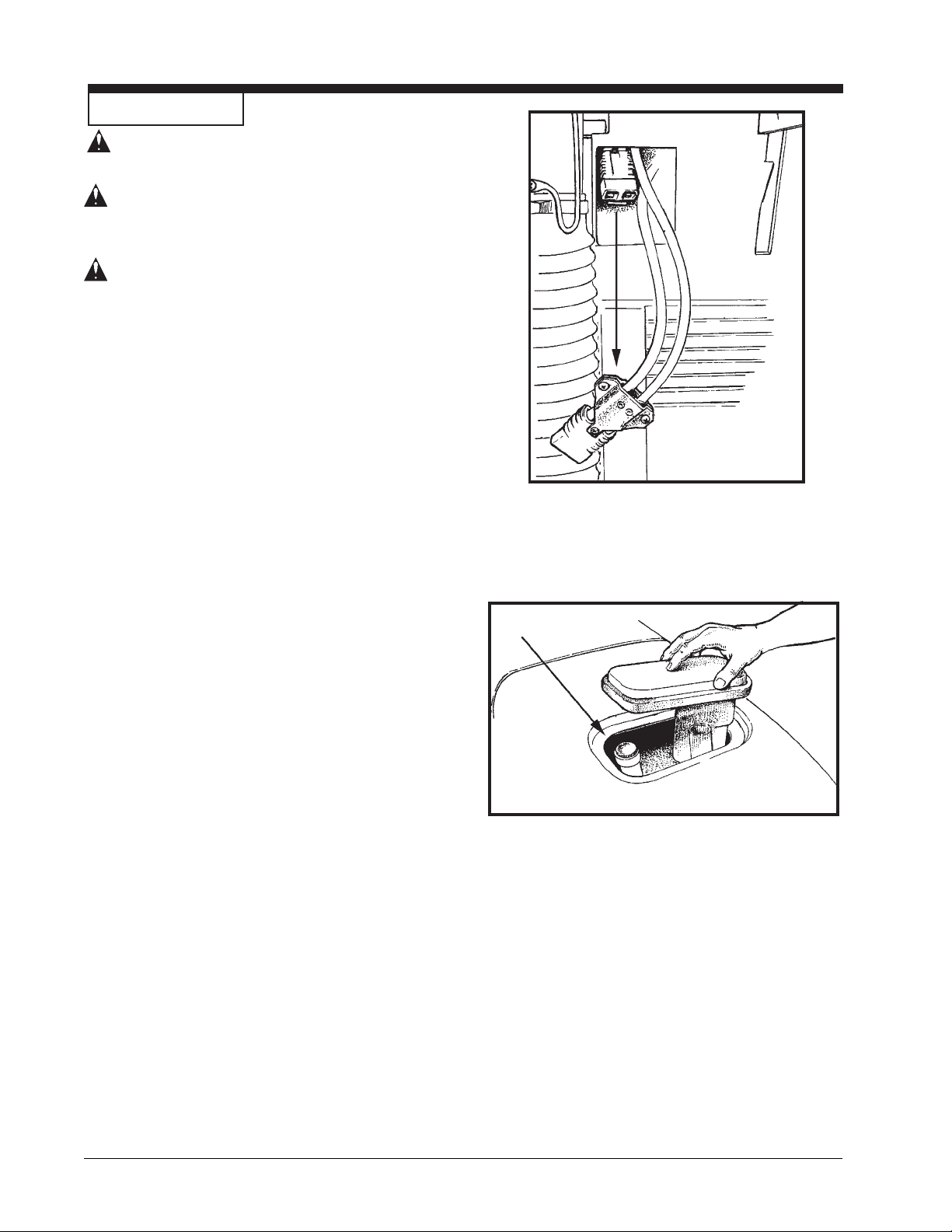

1. Disconnect the plug on the charger from the

connector on the back of the machine. See

figure 1

2. Join the connector from the batteries (1) to the

control panel cable connection. See figure 1.

3. Make sure the recovery tank lid is on correctly.

See figure 2.

4. Make sure the Screen filter over the vacuum motor

is clean and in position. See figure 2 (a)

5. Make sure the valves on the drain hoses are clean.

Tightly close the valves.

6. Make sure brush housing and skirt are in

position on the brush head.

7. Make sure the brush is in position and

installed correctly

8. Check the installation of the squeegee and

squeegee hose.

MAINTENANCE

Figure 1

Figure 2

CLARKE TECHNOLOGY Operator's Manual - Encore S20/L20 Page -21-

Do These Procedures When You End Your Work

NOTE: Always engage the parking brake (if equipped)

before servicing the machine.

1. Drain the solution tank (Figure 3 ) and the recovery

tank (Figure 4). To drain the tanks , follow this

procedure:

a. Turn the key switch “OFF”.

b. Remove the drain hose from the back of the

machine.

c. Put the end of the hose over a drain or bucket.

d. Turn the valve handle to the left. Pull the handle

out to open the drain. (Figure 5)

NOTE: Have the opening in the side of the valve away

from you when you open the valve.

e. To open the valve completely, turn the handle

to the right. Pull the handle out of valve. (Figure

2. Flush the tanks. To flush the tanks, put clean water in

the tank through the opening on top of the tank.

CAUTION: Make sure water or solution does

not enter the opening for the

vacuum motor. See figure 2.

3. If a tank or drain hose has an obstruction, use a high

pressure water hose to flush the tank or hose. Put the

water hose into the drain hose.

4. Leave the tanks and the drain valves open to dry in the

air.

5. Check the squeegee blade. Use a cloth to clean the

squeegee blade. If the squeegee blade is damaged or

worn, turn or replace the blade.

6. Check and clean the solution lid gasket. Use a mild

cleaning solution and rinse the parts in clean water.

Check the batteries and add distilled water as needed. The

correct level is within 1/4 inch of the bottom of the tube in

each cell.

CAUTION:Tap water may contain contami-

nants that will damage batteries.

Batteries must be refilled with

distilled water only.

WARNING: Lead acid batteries generate

gases which can cause an explo-

sion. NO SMOKING. Always wear

eye protection and protective

clothing when working near

batteries.

Use a clean cloth and wipe the surface of the machine.

MAINTENANCE

Figure 3

Figure 4

Figure 5

Figure 6

Page -22- CLARKE TECHNOLOGY Operator's Manual -Encore S20/L20

These Maintenance Procedures Must Be Done Every

Week:

WARNING: Maintenance and repairs must be

done by authorized personnel only.

Always empty the solution tank and

the recovery tank before doing any

maintenance. Keep all fasteners

tight.

WARNING: Always wear eye protection and pro-

tective clothing when working near

batteries. Do not put tools or other

metal objects across the battery ter-

minals or the tops of the batteries.

CAUTION: To prevent damage to the machine,

and discharge across the tops of the

batteries, do not fill the batteries

above the bottom of the tube in each

cell. Wipe any acid from the ma-

chine or the tops of the batteries. Do

not add acid to battery after installa-

tion.

WARNING: Always wear eye protection and pro-

tective clothing when working near

batteries. NO SMOKING!

1. To inspect batteries, tip up recovery tank and latch the

stop to hold the tank up. See Figure 7.

2. Disconnect the batteries. Use a cloth and a solution

of ammonia or bicarbonate of soda to wipe the top of the

batteries. Clean the battery terminals. Reconnect the

batteries.

3. Check the hoses for leaks, obstructions and other

damages.

4. Check and clean the filter screen in the solution hose.

To clean the screen, follow this procedure: (See figures

13 and 14 page 24)

a. Turn the connector to the left.

b. Remove and clean the filter screen.

c. Install the filter screen in the hose. Turn the

connector to the right to connect the hose.

5. Use a grease gun to lubricate the caster. See figure

6. Check the squeegee and the scrub brush or the pad

driver for damage.

7. Check the squeegee and the vacuum hose for damage,

leaks and obstructions.

MAINTENANCE

Figure 7

Figure 8

CLARKE TECHNOLOGY Operator's Manual - Encore S20/L20 Page -23-

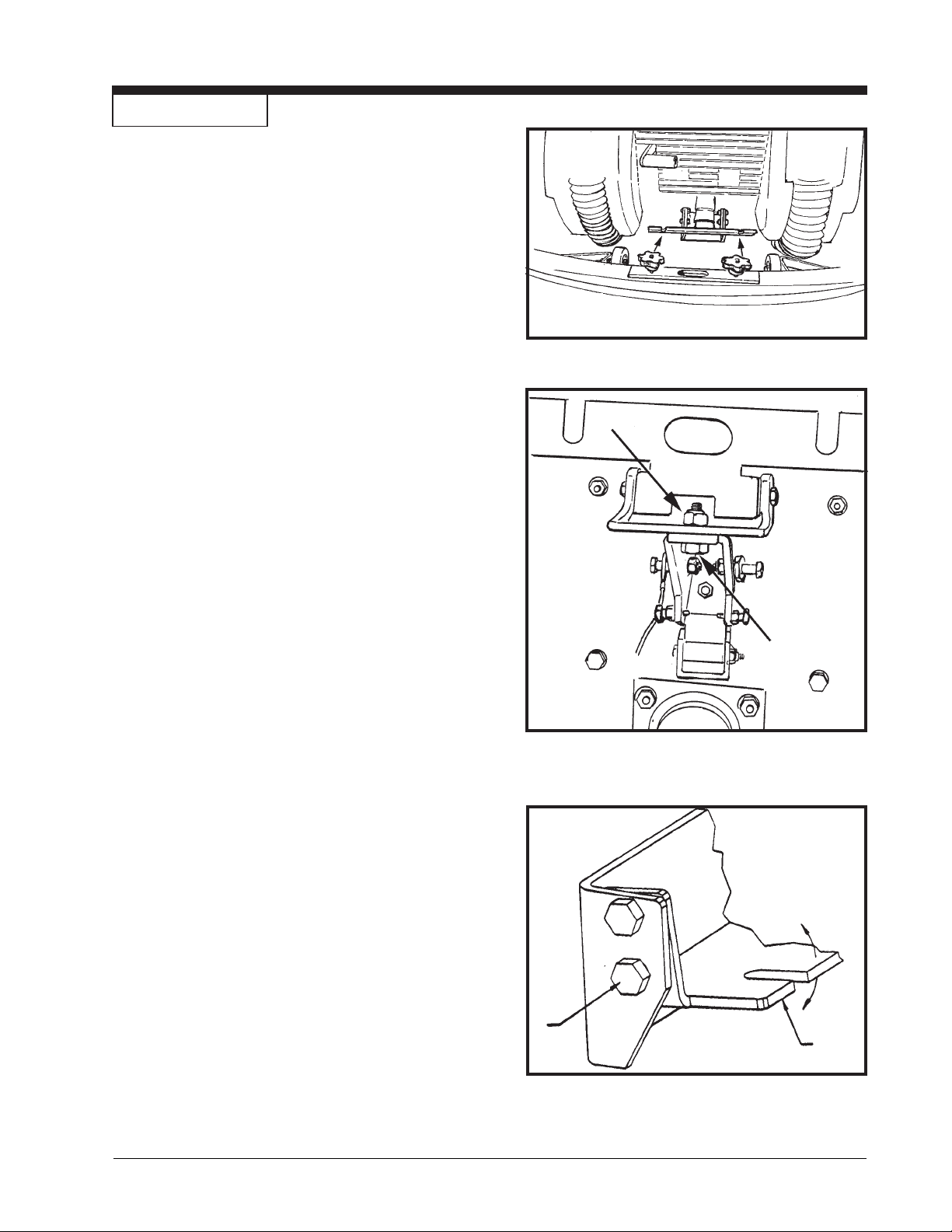

Maintenance For The Squeegee

To remove the squeegee, follow this procedure:

1. Remove the squeegee assembly by loosening the two

knobs that attach the squeegee to the machine. Pull

the squeegee assembly off. See figure 9.

2. Inspect the squeegee blade.

3. If the blade is worn, turn the blade so that a new edge

is in the wiping position.

4. Reinstall squeegee assembly on the machine.

How To Adjust The Squeegee

The following adjustments are set at the factory, however

they may require slight adjustment.

Adjusting Squeegee Pressure:

To adjust the pressure, refer to Figure 10. Proper

adjustment will produce a uniform flare along the rear

blade when the machine is moved forward. To increase

pressure, loosen bolt and slide squeegee mount down.

To decrease the pressure, loosen the bolt and slide

squeegee mount up.

Adjusting Squeegee Tilt:

The tilt of the squeegee causes the rear blade to raise up

in the center or on the ends, depending on which

direction the tilt is changed. For tilt adjustment, refer to

figure 11. Loosen left and right screw "X". In order to

bring the rear blade down in the center, tip "Y" down. To

bring both ends down, tip "Y" up. Make very small

adjustments and try it until a uniform flare is achieved.

Changing the tilt may also require readjusting the squee-

gee pressure.

Adjusting Squeegee Swing:

The factory sets the squeegee swing for using the 33"

squeegee. If you are using the optional 29" squeegee, the

stop screws (page 35, ref. # 20) must be adjusted in. This

is done by loosening the jam nut (page 35, ref. #10); turning

the screw in; and then retightening the nut. The squeegee

(29" or 33") is properly adjusted when it will swing all the

way left or right to within 3/4" of the drive wheels without

hitting them.

MAINTENANCE

Figure 9

Figure 10

Figure 11

Page -24- CLARKE TECHNOLOGY Operator's Manual -Encore S20/L20

MAINTENANCE

Figure 12

Figure 13

Figure 14

Adjusting Squeegee Blades:

When properly installed the front blade should be ap-

proximately .06 above the rear blade. See figure 12.

Adjusting Squeegee Support Wheels:

The support wheels should be set at .12 above the floor

with the rear blade touching the floor. See figure 12.

WARNING: Maintenance and repairs

must be done by authorized

personnel only .

WARNING: Electrical repairs must be

done by authorized

personnel only.

Consult your Clarke Technology Authorized Service

Person to do the service procedures.

Use only genuine Clarke Technology parts.

How to Clean the Solution Line

If the solution line becomes clogged, follow this

procedure:

1. Turn key switch "OFF" and remove the key.

2. Open brush motor cover and remove brush housing.

3. Remove brushes/pads.

4. Locate the solution shut-off valve. It is located behind

the left wheel.

5. Turn solution valve "OFF". See figure 14 (A).

6. Locate the solution filter screen. It is located on the

back of the solution valve. See figure 14 (B).

7. Unscrew the female garden hose connector from the

back of the solution valve. The filter screen is in the

female connector.

8. Remove the filter screen. See figure 14 (B).

9. Clean and replace screen.

10. Attach the female garden hose connector to the

solution valve.

11. Turn solution valve to "ON".

REAR BLADE .06

CLARKE TECHNOLOGY Operator's Manual - Encore S20/L20 Page -25-

Encore L20 5/99

Machine Variables and Accessories

00881A

Breakdown: 00880A Encore L20 Base Machine

871334 Battery, 195 AH, Wet, 12 Volt (2)

51447D 20" Polypropylene Brush

40512A 24 VDC, 25 Amp, 115V/60 Hz Battery Charger

00882A

Breakdown: 00880A Encore L20 Base Machine

871334 Battery, 195 AH, Wet, 12 Volt (2)

51453D Pad Driver

40512A 24 VDC, 24 Amp, 115V/60 Hz Battery Charger

00883A

Breakdown: 00880A Encore L20 Base Machine

871335 Battery, 195 AH, Dry, 12 Volt (2)

51447D 20" Polypropylene Brush

40513A 24 VDC, 25 Amp, 230V/50 Hz Battery Charger

00884A

Breakdown: 00880A Encore L20 Base Machine

871335 Battery, 195 AH, Dry, 12 Volt (2)

51453D Pad Driver

40513A 24 VDC, 25 Amp, 230V/50 Hz, Battery Charger

00885A

Breakdown: 00880A Encore L20 Base Machine

871376 Battery, 95 AH, Wet, 12 Volt (2)

51447D 20" Polypropylene Brush

40510A 24 VDC, 10 Amp, 115/60 Hz Battery Charger

00886A

Breakdown: 00880A Encore L20 Base Machine

871376 Battery, 95 AH, Wet, 12 Volt (2)

51453D Pad Driver

40510A 24 VDC, 10 Amp, 115/60 Hz Battery Charger

Battery Traverse - 115V

Battery Traverse - 230V

Battery Traverse 115V

Battery 230

00887A

Breakdown: 00880A Encore L20 Base Machine

871377 Battery, 95 AH, Dry, 12 Volt (2)

51447D 20" Polypropylene Brush

40511A 24 VDC, 10 Amp, 230V/50 Hz Battery Charger

00888A

Breakdown: 00880A Encore L20 Base Machine

871377 Battery, 95 AH, Dry, 12 Volt (2)

51453D Pad Driver

40511A 24 VDC, 10 Amp, 230V/50 Hz Battery Charger

Page -26- CLARKE TECHNOLOGY Operator's Manual -Encore S20/L20

Encore S20 5/99

Machine Variables and Accessories

Battery 115V

Battery Traverse - 230V

Battery 230V

Battery 115V

Battery 230V

00891A

Breakdown: 00890A Encore S20 Base Machine

871334 Battery, 195 AH, Wet, 12 Volt (2)

51447D 20" Polypropylene Brush

40512A 24 VDC, 25 Amp, 115/60 Hz Battery Charger

00892A

Breakdown: 00890A Encore S20 Base Machine

871334 Battery, 195 AH, Wet, 12 Volt (2)

51453D Pad Driver

40512A 24 VDC, 25 Amp, 115/60 Hz Battery Charger

00893A

Breakdown: 00890A Encore S20 Base Machine

871335 Battery, 195 AH, Dry, 12 Volt (2)

51447D 20" Polypropylene Brush

40513A 24 VDC, 25 Amp, 230V/50 Hz Battery Charger

00894A

Breakdown: 00890A Encore S20 Base Machine

871335 Battery, 195 AH, Dry, 12 Volt (2)

51453D Pad Driver

40513A 24 VDC, 25 Amp, 230V/50 Hz Battery Charger

00895A

Breakdown: 00890A Encore S20 Base Machine

871376 Battery, 95 AH, Wet, 12 Volt (2)

51447D 20" Polypropylene Brush

40510A 24 VDC, 10 Amp, 115V/60 Hz Battery Charger

00896A

Breakdown: 00890A Encore S20 Base Machine

871376 Battery, 95 AH, Wet, 12 Volt (2)

51453D Pad Driver

40510A 24 VDC, 10 Amp, 115V/60 Hz Battery Charger

00897A

Breakdown: 00890A Encore S20 Base Machine

871377 Battery, 95 AH, Dry, 12 Volt (2)

51447D 20" Polypropylene Brush

40511A 24 VDC, 10 Amp, 230V/50 Hz Battery Charger

00898A

Breakdown: 00890A Encore S20 Base Machine

871377 Battery, 95 AH, Dry, 12 Volt (2)

51453D Pad Driver

40511A 24 VDC, 10 Amp, 230V/50 Hz, Battery Charger

Autres manuels pour L-20

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Alto Machine de plancher

Alto

Alto SPIN 43 DS Manuel utilisateur

Alto

Alto HomeCleaner Mode d'emploi

Alto

Alto TW 1400 HD Manuel utilisateur

Alto

Alto ATS 46 Manuel utilisateur

Alto

Alto ENCORE S2426 Manuel utilisateur

Alto

Alto Vision 17E Manuel d'utilisation et d'entretien

Alto

Alto Bext-100 Manuel utilisateur

Alto

Alto American-Lincoln 6150 Manuel d'installation et d'exploitation

Alto

Alto FLOORTEC 380M Manuel utilisateur

Alto

Alto Encore L26 Manuel utilisateur

Alto

Alto IMAGE 26B Manuel utilisateur

Alto

Alto 120V Manuel utilisateur

Alto

Alto 3DS Manuel utilisateur

Alto

Alto FLOORTEC R 570 B Manuel utilisateur

Alto

Alto FM-1500HD Manuel utilisateur

Alto

Alto Vision 21i Manuel utilisateur

Alto

Alto FLOORTEC R 570 P Manuel utilisateur

Alto

Alto 3366 Manuel utilisateur

Alto

Alto ALTO 1700HD Guide de démarrage rapide

Alto

Alto Clarke Vision 17E Manuel utilisateur

Alto

Alto SSB 430 Manuel utilisateur

Alto

Alto 3366XP Manuel d'installation et d'exploitation

Alto

Alto Vision V- 00590A Manuel utilisateur

Alto

Alto ENCORE S2426 Manuel utilisateur

Manuels Machine de plancher populaires d'autres marques

Nilfisk-Advance

Nilfisk-Advance Advance SC370 17B Manuel utilisateur

Numatic

Numatic ET 4045 Manuel utilisateur

HAWK ENTERPRISES

HAWK ENTERPRISES HP1513-180BRUTE Manuel utilisateur

Mytee

Mytee 8070 Mytee-Lite Manuel utilisateur

Kärcher

Kärcher B 140 R Manuel utilisateur

Triple S

Triple S Ace 26T1 Manuel utilisateur

Nilfisk-Advance

Nilfisk-Advance SW 750 Manuel utilisateur

Tornado

Tornado Marathon 2000 98190 Manuel

Windsor

Windsor ADMIRAL Admiral 8 Manuel utilisateur

Numatic

Numatic TTB 1117/100 Manuel utilisateur

Tennant

Tennant 8210D Manuel utilisateur

Nobles

Nobles Frontier Manuel du produit

lavina

lavina 21-X Manuel utilisateur

KENT

KENT Edge 28B Manuel utilisateur

Tennant

Tennant 215 Manuel du produit

Windsor

Windsor BDP 51/2000C Manuel utilisateur

CleanFreak

CleanFreak DURA-18HD Manuel utilisateur

Nilfisk-Advance

Nilfisk-Advance Warrior 34RST Guide de l'administrateur
