Allnet ALL7008 Manuel utilisateur

ALL7008

User’s Manual

Table of Contents

System

Chapter 1

Administration ……………………………………………. 5

Admin ……………………………………………………... 7

Permitted IPs ……………………………………………..

Logout ………………………………………………….….

Software Update ………………………………………….

Chapter 2

Configure …………………………………………………..

Setting ………………………………………………….….

Date/Time ………………………………………………….

Multiple Subnet ………………………………...…………

Route Table ………………………………………………... 27

DHCP ………………………………………………………. 36

DDNS ……………………………………………...………..

Host Table ……………………………………………….… 40

Language ……………………………………………..……... 41

Interface

Chapter 3

Interface …………………………………………………...

LAN ………………………………….…………………….

WAN ………………………………….……………………

DMZ …………………………….…………………………

Policy Object

Chapter 4

Address ……………………………………………………. 59

Example ………………………………….………………… 62

Chapter 5

Service ………………………………………………….….

Custom ………………………………….…………………

Group ………………………………….…………………..

Chapter 6

Schedule …………………………………………………. 79

Chapter 7

QoS ………………………………………………….…….

Example ………………………………….……………….

Chapter 8

Authentication ……………………………………………

Auth User ………………………………….……………..

Auth User Group ………………………………….……..

101

RADIUS ………………………………….………………

105

POP3 Server ………………………………….…………. 126

Chapter 9

Content Blocking ………………………………………… 129

URL ………………………………….……………………

133

Script ……………………………….…………………….

136

P2P ………………………….……………………………

138

IM …………………………….……………………………

140

Download …………………………….…………………...

142

Chapter10

Virtual Server………………………………………………...

145

Example ……………………………….…………………..

149

Chapter11

VPN ……………………………………………………….

165

Example……………………………………………………..

172

Chapter12

Policy……………………………………………….………..

275

Example ………………………………….……………….

281

Mail Security

Chapter13

Configure …………………………………………………..

301

Mail Relay …………………………………………………

304

Chapter14

Anti-Spam ………………………………………………….

309

Example ………………………………….………………..

324

Chapter15

Anti-Virus ………………………………………………......

365

Example ………………………………….………………..

371

Anti-Attack

Chapter16

Alert Setting ……………………………………………….

381

Internal Alert ………………………………………………

386

Chapter17

Atack Alarm ………………………………………………. 391

Internal Alarm ……………………………………………..

393

External Alarm ……………………………………………… 394

Monitor

Chapter18

LOG ……………………………………………….………..

397

Traffic Log ……………………….…………………………

399

Event Log ……………………….…………………………

404

Connection Log ……………………….………………….

407

Log Backup ……………………….………………………

410

Chapter19

Alarm ……………………………………………….………

413

Traffic Alarm ……………………….………………………

414

Chapter20

Statistics …………………………………………….……..

417

WAN ……………………….……………………………….

419

Policy ……………………….………………………………

421

Chapter21

Status …………………………………………….…………

423

Interface ……………………….…………………………..

424

Authentication ……………………….……………………

426

ARP Table ……………………….………………………...

427

DHCP Clients ……………………….…………………….

428

Chapter 1 Administration

“System” is the managing of settings such as the privileges of packets that pass

through the ALL7008 and monitoring controls. The System Administrators can

manage, monitor, and configure the ALL7008 settings. But all configurations are

“read-only” for all users other than the System Administrator; those users are not

able to change any setting of the ALL7008.

Define the required fields of Administrator

Administrator Name:

The username of Administrators and Sub Administrator for the ALL7008.

The admin user name cannot be removed; and the sub-admin user can be

removed or configure.

The default Account: admin; Password: admin

Privilege:

The privileges of Administrators (Admin or Sub Admin). The username of

the main Administrator is Administrator with reading / writing privilege.

Administrator also can change the system setting, log system status, and to

increase or delete sub-administrator. Sub-Admin may be created by the

Admin by clicking New Sub Admin. Sub Admin have only read and

monitor privilege and cannot change any system setting value.

Configure:

Click Modify to change the “Sub-Administrator’s” password or click

Remove to delete a “Sub Administrator.”

Adding a new Sub Administrator

STEP 1﹒In the Admin WebUI, click the New Sub Admin button to create a

new Sub Administrator.

STEP 2﹒In the Add New Sub Administrator WebUI (Figure 1-1) and enter the

following setting:

Sub Admin Name: sub_admin

Password: 12345

Confirm Password: 12345

STEP 3﹒Click OK to add the user or click Cancel to cancel it.

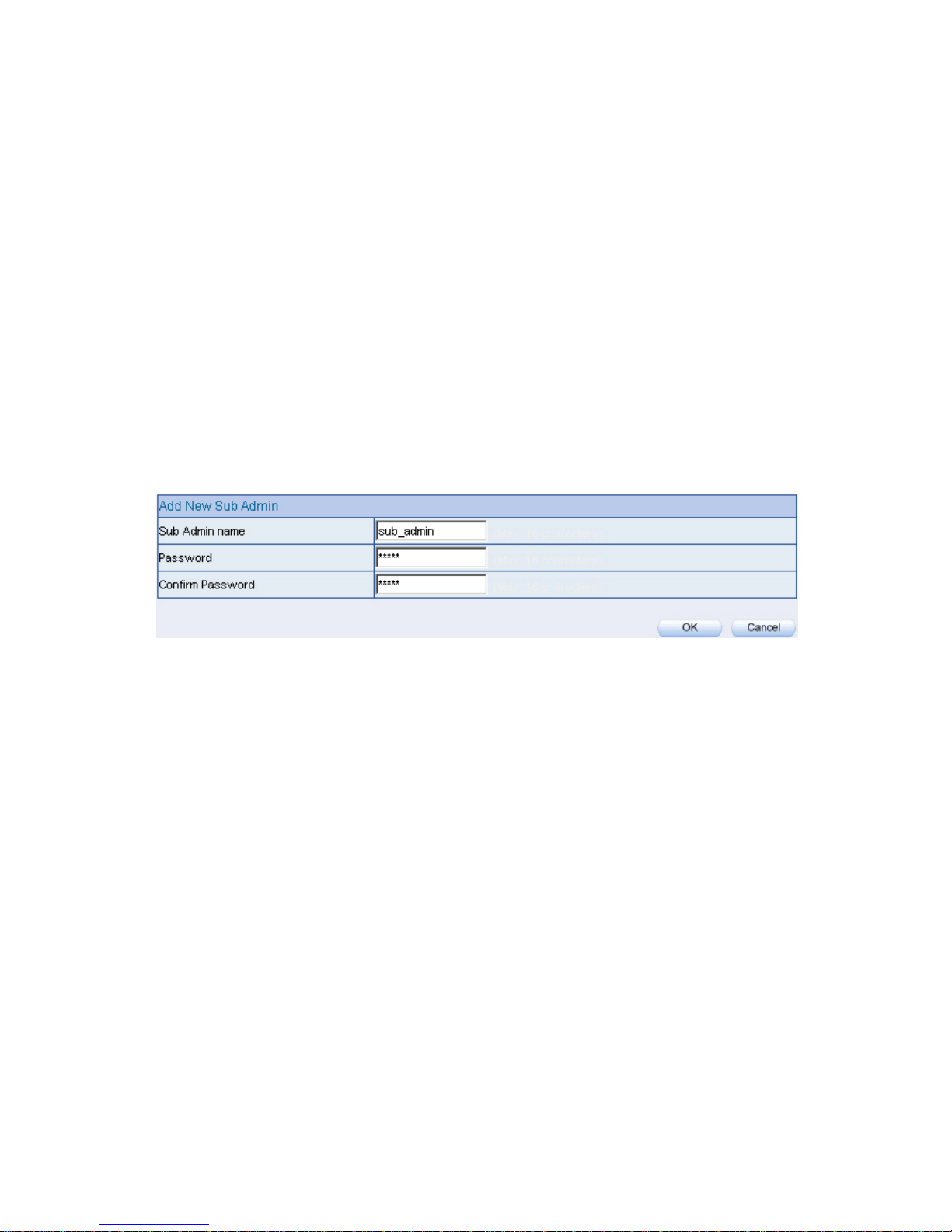

Figure1-1 Add New Sub Admin

Modify the Administrator’s Password

STEP 1﹒In the Admin WebUI, locate the Administrator name you want to edit,

and click on Modify in the Configure field.

STEP 2﹒The Modify Administrator Password WebUI will appear. Enter the

following information:

Password: admin

New Password: 52364

Confirm Password: 52364 (Figure1-2)

STEP 3﹒Click OK to confirm password change.

Figure1-2 Modify Admin Password

Add Permitted IPs

STEP 1﹒Add the following setting in Permitted IPs of Administration:

(Figure1-3)

Name: Enter master

IP Address: Enter 163.173.56.11

Netmask: Enter 255.255.255.255

Service: Select Ping and HTTP

Click OK

Complete add new permitted IPs (Figure1-4)

Figure1-3 Setting Permitted IPs WebUI

Figure1-4 Complete Add New Permitted Ips

To make Permitted IPs be effective, it must cancel the Ping and WebUI selection

in the WebUI of ALL7008 that Administrator enter. (LAN, WAN, or DMZ Interface)

Before canceling the WebUI selection of Interface, must set up the Permitted IPs first,

otherwise, it would cause the situation of cannot enter WebUI by appointed Interface.
