Models Covered by this Document

This Hardware Reference includes information on the following models:

■AT-8624T/2M 24-port 10BASE-T/100BASE-TX

■AT-8624PoE

■AT-8648T/2SP 48-port 10BASE-T/100BASE-TX

The latest Hardware Reference can be found at www.alliedtelesis.com/

support/software.

Hardware Description

This section provides an overview of the hardware features for AT-8600 Series

switches. Hardware descriptions for expansion modules are in the Expansion

Modules Installation Guide. These references can be found on the CD-ROM

provided with your switch, or can be downloaded from

www.alliedtelesis.com/support/software.

Switch Overview

RJ-45 copper ports ensure industry-standard compatibility, while two

expansion module bays add configuration flexibility.

Dimensions ■Height = 44 mm (plus 5.5 mm if the rubber feet are used)

■Width = 440 mm (excluding rack-mounting brackets)

■Depth:

• AT-8624T/2M = 223mm

• AT-8624PoE = 408mm

• AT-8648T/2SP = 254mm

■Weight = not more than 7 kg (excluding power cord and expansion

modules)

Mounting system ■1 RU 19-inch rack mounting

Environmental

conditions

■Operating temperature range: 0 to 40º C (32 to 104º F)

■Storage temperature range: -25 to 70º C (-13 to 158º F)

■Operating humidity range: 5% to 80% non-condensing

■Storage humidity range: 5 to 95% non-condensing

Regulatory

standards

■EMC: EN55022, AS/NZS CISPR22 class A, FCC CFR47 Part 15 Class A,

and VCCI Class A

■Immunity testing to EN55024

■Flicker and Harmonics testing to EN61000-3-2 and EN61000-3-3

■Safety: UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1,

EN60825-1

LEDs ■Ethernet port and System status LEDs

■Mode button

■For a complete list of LEDs and their functions, see “LEDs” on page 7.

Hardware Reference 5

C613-03080-00 REV G

Power Supply Unit ■Universal 100/240 VAC 50/60 Hz input

■Redundant DC Power connection

Switching core ■Advanced ASIC switch chip

■Wire-speed L2 and L3 IP Switching

Processing core ■200 MHz CPU

■16 MBytes RAM

■8 MBytes flash memory

Asynchronous serial

port

■Up to 115 kbps

■Standard DB9 female RS-232 connector

Expansion module

bays

Expansion module bays are included on the AT-8624T/2M and AT-8624PoE

switches.

■2 bays for expansion modules

■Support for gigabit Ethernet expansion modules

6AT-8600 Series

C613-03080-00 REV G

AT-8624T/2M Model

• 24-port 10BASE-T/100BASE-TX (RJ-45 connectors)

• Two expansion module bays

• Auto-negotiating advanced fast Ethernet switch

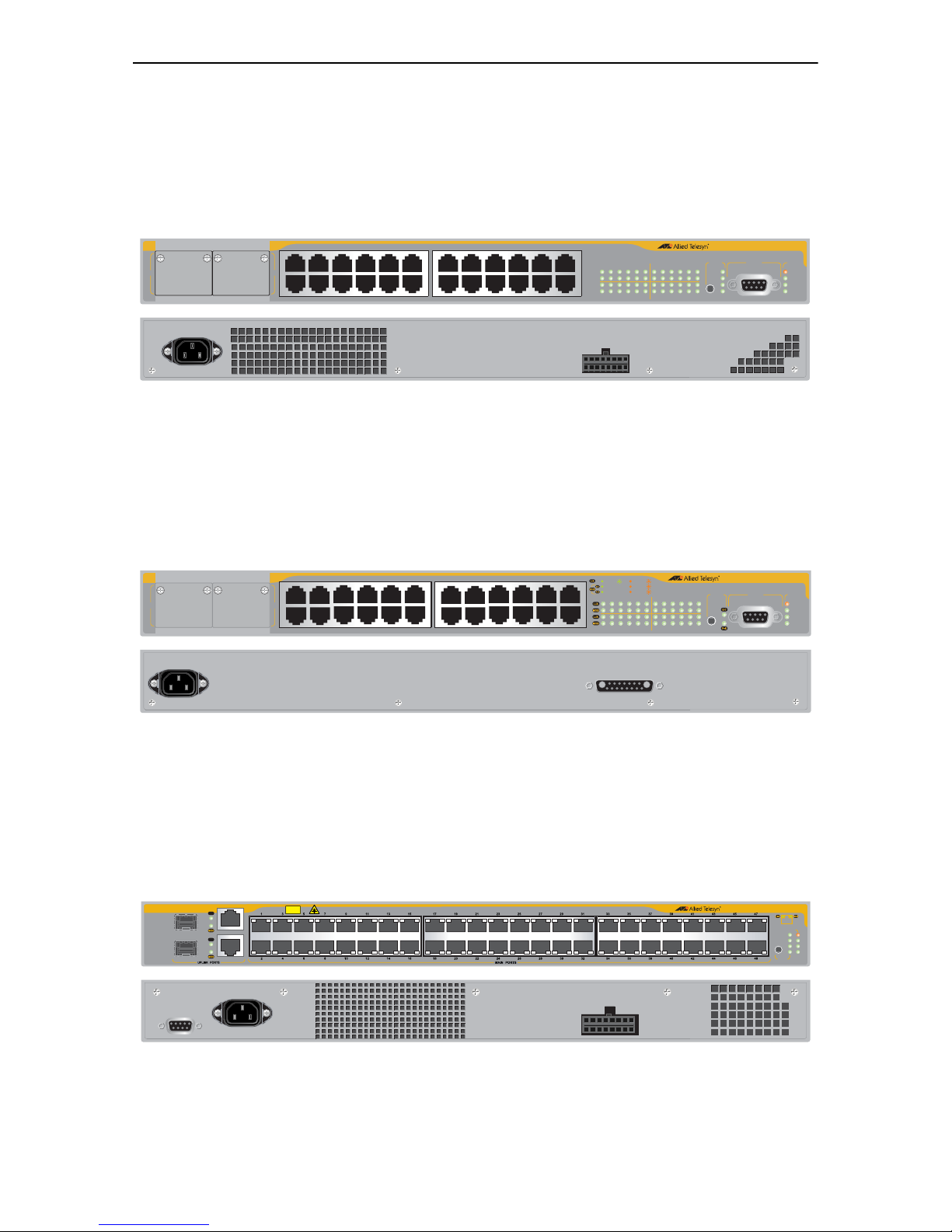

Figure 1: AT-8624T/2M front and rear panels

AT-8624PoE Model

• 24-port 10BASE-T/100BASE-TX (RJ-45 connectors)

• Two expansion module bays

• Auto-negotiating advanced fast Ethernet switch

Figure 2: AT-8624TPoE front and rear panels

AT-8648T/2SP Model

• 48-port 10BASE-T/100BASE-TX (RJ-45 connectors)

• Two Gigabit uplink ports, SFP or copper

• Auto-negotiating advanced fast Ethernet switch

Figure 3: AT-8648T/2SP front and rear panels

1 3 5 7 9 11 13 15 17 19 21 23

2 4 6 8 1012141618202224

LINK

MODE

LINK

MODE

FAULT

RPS

MASTER

PWR

13 57 911

2 4 6 8 10 12

13 15 17 19 21 23

14 16 18 20 22 24

COL

100

FULL

ACT

AT-8624T/2M Layer 3 Fast Ethernet Switch

MODE RS-232

TERMINAL PORT

STATUS

1 3 5 7 9 11131517192123

2 4 6 8 10 12 14 16 18 20 22 24

FAULT

RPS

MASTER

PWR

MODE

1357911

2 4 6 8 10 12

13 15 17 19 21 23

14 16 18 20 22 24

STATUS

RS-232

TERMINAL PORT

COL

HALF DUP

FULL DUP

ACT100 LINK 10 LINK ACT

PD ON MAX CURRENTPD ERR

AT-8624POE Layer 3 Fast Ethernet Switch

SFP

STATUS

LINK 49R MODE

LINK 50R MODE

LINK

MODE

COL

SPD

FDX

ACT

FLT

MSTR

RPS

PWR

CLASS 1

LASER PRODUCT

DO NOTSTARE

INTOBEAM

AT-8648T/2SP

Layer 3 Fast Ethernet Switch

Hardware Reference 7

C613-03080-00 REV G

Implementing PoE

The IEEE 802.3af standard, which is the IEEE standard for PoE, describes two

methods for implementing PoE over twisted pair cabling. One method uses the

same strands that carry the network traffic and the other the spare strands.

The PoE implementation on the AT-8624PoE switch transmits power over the

same strands that carry the network traffic (strands 1, 2, 3 and 6). The power

transfer does not interfere with the network traffic. The power and the network

traffic can coexist on the same strands simultaneously.

Powered devices that comply with the IEEE 802.3af standard support both

methods of power delivery. As long as a powered device is compliant with the

standard, it should be able to receive its power from the switch.

LEDs

The following tables outline how the switch and expansion modules report

faults and operational activities. Expansion modules are optional and can be

purchased separately. Contact an authorised Allied Telesis distributor or

reseller, or visit www.alliedtelesis.com for more information on expansion

modules.

System LEDs

Use the Mode Select button to toggle the Mode LEDs to the desired state.

Toggling the Mode Selection button does not affect the normal switch

operations.

LED State Description

FAULT Off Switch operation is normal.

Red The switch or management software is malfunctioning.

1 flash A switch fan has failed.

3 flashes The main PSU has failed and the RPS is now providing

power.

4 flashes The RPS Monitor is set to ON, and the RPS is not

functioning, either because it has failed or has been

switched off.

5 flashes The RPS Monitor is set to ON, but the RPS is not

connected.

7 flashes For the AT-8624T/2M and AT-8624PoE switches: An

expansion module has been inserted or removed while

the switch is powered on.

MASTER Off This LED is not supported.

RPS Green An optional redundant power supply is connected to the

switch.

OFF There is no optional redundant power supply connected

to the switch.

PWR Green The switch is receiving power and the voltage is within

the acceptable range.

Off The switch is not receiving power.

8AT-8600 Series

C613-03080-00 REV G

AT-8624T/2M switch

Link and Mode LEDs

AT-8624PoE switch

Link and Mode LEDs

LED State Description

LINK OFF There is no link between the port and the end-

node.

Green A valid link has been established between the

port and the end-node.

Mode - COL OFF No data collisions are occurring on the port.

Flashing Green Data collisions are occurring on the port.

Mode - 100 OFF The port is operating at 10 Mbps.

Green The port is operating at 100 Mbps.

Mode - FULL OFF The port is operating in half-duplex mode.

Green The port is operating in full-duplex mode.

Mode - ACT OFF There is no activity on the port.

Flashing Green There is activity on the port. It is transmitting

and/or receiving data.

LED State Description

L/A Status

(Top LED)

OFF There is no link between the port and the end-

node.

Green The port is operating at 100 Mbps.

Flashing Green There is activity on the port. It is transmitting

and/or receiving data at 100 Mbps.

Amber The port is operating at 10 Mbps.

Flashing

Amber

There is activity on the port. It is transmitting

and/or receiving data at 10 Mbps.

Mode LEDs

(Bottom LED)

OFF Either DC mode or PoE mode.

D/C Mode OFF There is no link between the port and the end-

node.

Green The port is operating in full duplex mode.

Amber The port is operating in half-duplex mode.

Flashing

Amber

The port is operating in half-duplex mode and

data collisions are occurring on the port.

PoE Mode OFF There is no powered device detected.

Green The end node is a powered device and the port

is providing power to it.

Amber The port is experiencing a problem providing

PoE to the end node.

Flashing

Amber

The port is connected to a powered device but

providing power to it would exceed the

maximum PoE power budget of the switch.

Hardware Reference 9

C613-03080-00 REV G

AT-8648T/2SP switch

Link and Mode LEDs

AT-8648T/2SP switch

10/100/1000Base-T

and SFP LEDs

AT-A45/xx Series

Expansion Module

LEDs

LED State Description

LINK OFF There is no link between the port and the end-

node.

Green A valid link has been established between the

port and the end-node.

Mode - COL OFF No data collisions are occurring on the port.

Flashing Green Data collisions are occurring on the port.

Mode - SPD OFF The port is operating at 10 Mbps.

Green The port is operating at 100 Mbps.

Mode - FDX OFF The port is operating in half-duplex mode.

Green The port is operating in full-duplex mode.

Mode - ACT Flashing Green There is activity on the port

OFF There is no activity on the port.

LED State Description

LINK OFF There is no link between the port and the end-

node.

Green A valid link has been established between the

port and the end-node.

Mode - COL OFF No data collisions are occurring on the port.

Flashing Green Data collisions are occurring on the port.

Mode - SPD OFF The port is operating at 10/100 Mbps.

Green The port is operating at 1000 Mbps.

Mode - FDX OFF The port is operating in half-duplex mode.

Green The port is operating in full-duplex mode.

Mode - ACT Flashing Green There is activity on the port

OFF There is no activity on the port.

LED State Description

LINK Steady green The port has established a valid link with the

end node.

Flashing green The port is transmitting and/or receiving data.

Duplex Steady green The port is operating in full duplex.

Steady amber The port is operating in half duplex.

Flashing amber Collisions are occurring on the port.

10 AT-8600 Series

C613-03080-00 REV G

AT-A46 Expansion

Module LEDs

AT-A47 Expansion

Module LEDs

AT-A65 Expansion

Module LEDs

LED State Description

LINK 10 Green The port has established a valid 10 Mbps link

with the end node.

LINK 100 Green The port has established a valid 100 Mbps link

with the end node.

Both LINK 10 and

LINK 100

Green The port has established a valid 1000 Mbps link

with the end node.

FULL DUPLEX Green The port is operating in full duplex.

OFF The port is operating in half duplex.

ACTIVITY Green The port is transmitting and/or receiving data.

LED State Description

LINK Steady green The port has established a valid 1000 Mbps link

with the end node.

ACTIVITY Flashing green The port is transmitting and/or receiving data.

LED State Function

10 Green The port is operating at 10Mbps.

Off The port is not operating at 10Mbps.

100 Green The port is operating at 100Mbps.

Off The port is not operating at 100Mbps.

Both 10 and 100 Green The port is operating at 1000Mbps.

FDX Green The port is operating in full duplex mode.

Off The port is operating in half duplex mode.

ACT Flashing green There is data activity on the port.

Off There is no data activity on the port.

Autres manuels pour AT-8600 Series

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Allied Telesis Changer

Allied Telesis

Allied Telesis CentreCOM AT-3726XL Manuel utilisateur

Allied Telesis

Allied Telesis AT-9000/28 Manuel utilisateur

Allied Telesis

Allied Telesis AT-GS950/48 Manuel utilisateur

Allied Telesis

Allied Telesis AT-GS950/48 Manuel utilisateur

Allied Telesis

Allied Telesis Extricom AT-EXMS-1000 Manuel utilisateur

Allied Telesis

Allied Telesis AT-9424Ts/XP AC Manuel utilisateur

Allied Telesis

Allied Telesis x510 Series Manuel utilisateur

Allied Telesis

Allied Telesis AT-FSW724 Manuel utilisateur

Allied Telesis

Allied Telesis AT-8000S/24 Manuel utilisateur

Allied Telesis

Allied Telesis SwitchBlade x908 GEN2 Manuel utilisateur

Allied Telesis

Allied Telesis PC4KVM Manuel utilisateur

Allied Telesis

Allied Telesis CentreCOM GS970M Series Manuel utilisateur

Allied Telesis

Allied Telesis AT-FS708 Manuel utilisateur

Allied Telesis

Allied Telesis x610 Series Manuel utilisateur

Allied Telesis

Allied Telesis AlliedWare Plus GS980MX Series Manuel utilisateur

Allied Telesis

Allied Telesis x310-26FT Manuel d'installation

Allied Telesis

Allied Telesis x510 Series Manuel utilisateur

Allied Telesis

Allied Telesis x530L Series Manuel utilisateur

Allied Telesis

Allied Telesis AT-220-28GS Series Manuel utilisateur

Allied Telesis

Allied Telesis AlliedWare Plus x530 Series Manuel utilisateur

Allied Telesis

Allied Telesis AT-GS900/16 Manuel utilisateur

Allied Telesis

Allied Telesis IA Series Manuel utilisateur

Allied Telesis

Allied Telesis AT-8948 Manuel d'installation et d'exploitation

Allied Telesis

Allied Telesis AlliedWare Plus x530DP Series Manuel utilisateur

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

D-Link

D-Link DES-1226G Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Ruijie

Ruijie RG-PF2920 Series Manuel d'installation et d'exploitation

Altinex

Altinex DA1914SX Manuel utilisateur

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur
