Allied Telesis 210 Manuel utilisateur

Important

This guide is written to help get you up and running as quickly as

possible using Telecom’s ADSL network.

This guide complements the ADSL Installation Guide supplied

with the unit.

Contents inside the Box :

>AT-AR210 ADSL Router

>ADSL telephone cable (RJ-11 to BT)

>USB cable

>AT-AR210 Installation Guide

>AT-AR210 CDROM

The full product manual can be downloaded from:

http://www.alliedtelesyn.net.nz/

Latest New Zealand Quick documentation and SW updates can be

downloaded from:

http://www.alliedtelesyn.net.nz/

Default Settings for New Zealand

VPI :0 (by default, do not change)

VCI :100 (by default, do not change)

Authentication :PPP using PAP

Connenction Type : PPPoA Routed (by default, do not change)

Encapsulation :Vc-Mux (by default, do not change)

DSL Configuration : G.DMT/Multi (by default, do not change)

Preparation

Before you start, make sure your computer meets the minimum requirement below:

Computer Requirements :

>USB installed on your PC/MAC

>TCP/IP protocol is installed

Note :

- For USB connection type for standalone computers, you must install USB driver to

get it done. The driver can be found on the enclosed CDROM.

Details from your ISP :

>Login name and password

e.g. [email protected]

>DNS server(s) ip address(s)

e.g. 203.96.91.1

Connecting the AR210

For a step by step guide Refer to the Installation guide on Pages 8-10 for a PC :

>Connect the telephone cable (provided) to the AR210 then connect the other end to the

ADSL port that telecom has installed. Do not connect the ADSL Router through a

Microfilter.

>Connect the USB (cable provided) to your PC’s USB port and the other end to the

AR210.

Setting up a Windows based PC

For a step by step guide of setting up a pc with USB please refer to the Installation guide

on Pages 8-13

Power on you computer.

Place the installation CD in the CD-ROM drive.

Install shield will start and you will be prompted with the installation window.

Click next to proceed with installation.

Type your username and password

from your ISP and press Next

The program will now install the files

needed for the AR210 modem to work

on your PC.

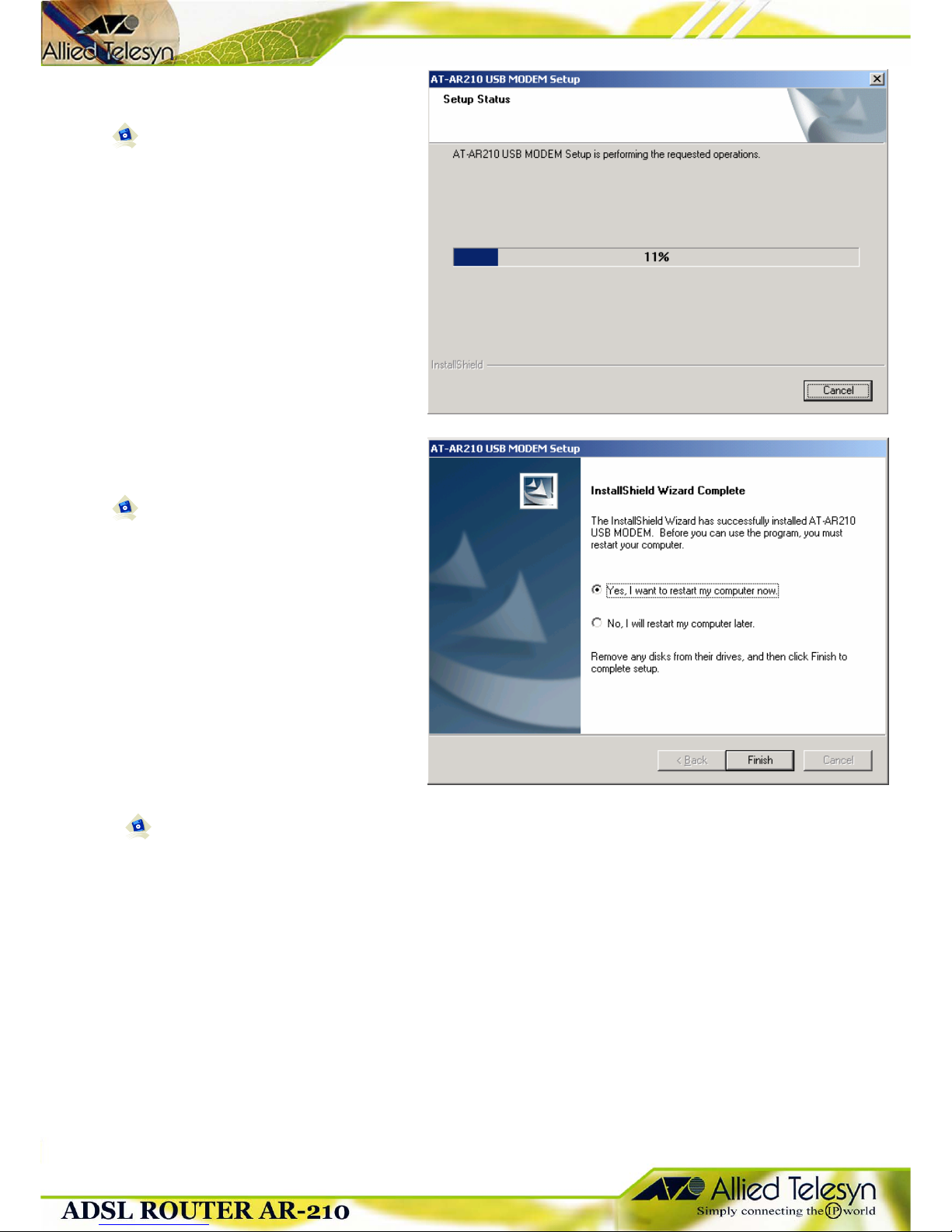

Select “Yes, I want to restart my

computer now” and press Finish.

Please Reboot your computer before going online.

Get Online

Double click the “shortcut to

AR210” on your desktop.

Type in the login name and

password supplied from your

ISP.

Press the Dial button.

The modem will now

Authenticate, Register and

connect to your ISP.

You will see a icon appear in the

bottom right that flashes as traffic

goes through.

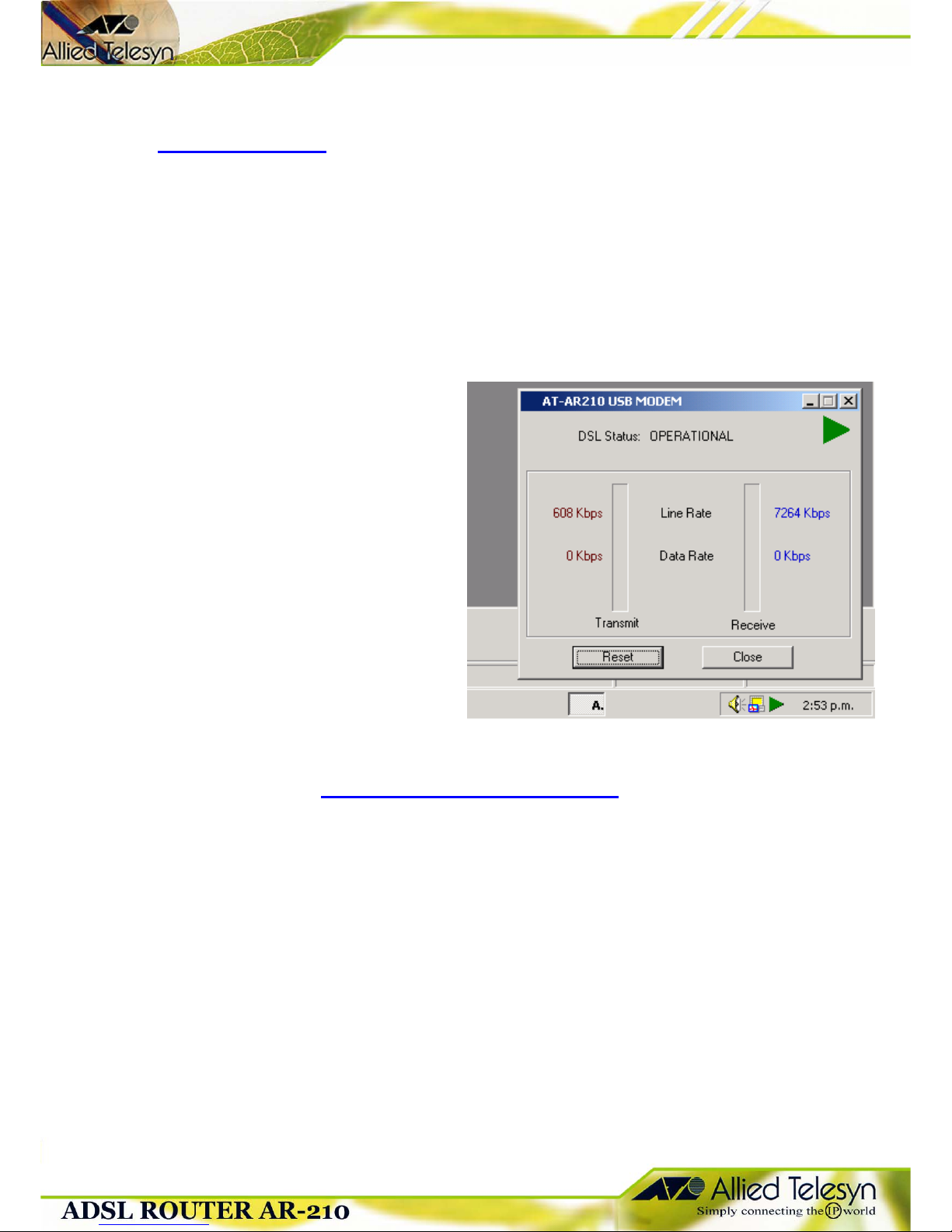

If you place your mouse pointer

over the icon you can see the

connection speed.

You are now connected to the Internet! Well Done.

Trouble Shooting

1. Problem: Error 691.

•Please check username and password. (contact your ISP).

2. No connection

•Please check the phone cable supplied is connected to the DSL port supplied by telecom.

•Please check that the USB cable supplied is plugged into the USB port on your PC and into

the AR210.

•Please check that the “PWR” and “ADSL” lights on the AR210 are lit up and steady.

•Please check that there is a Green Triangle in the tray. Double click the Triangle to see the

connection speed.

For more info please see the website for frequently asked

questions, extra guides and more trouble shooting techniques.

http://www.alliedtelesyn.net.nz

Help

Always check that the router is installed properly. Check the website for information and

how to troubleshoot the router. If you have difficulties contact your reseller or distributor for

technical assistance relating to warranties, installation and operation. They will escalate the

problem through the appropriate channels.

Allied Telesyn Distributors are

New Zealand Distributors

Connector Systems Ltd

5A Pacific Rse

Mt Wellington Auckland

Free Phone: 0508 Call CSL

Website : http://www.connectorsystems.co.nz

Email : [email protected]

Express Data NZ

Express Data NZ Ltd

Level 12, Microsoft House

3-11 Hunter Street

Wellington

Free Phone: 0800 336 427

Website : http://www.expressdata.co.nz

Email : [email protected]

Renaissance Ltd

92 Beachcroft Ave

Onehungha Auckland

Free Phone: 0800 800 905

Website : http://www.renaissance.co.nz

Email : [email protected]

Phone: 04 566 4438 or 0800 114 141 (Mon-Fri, 9am-4pm)

Email: [email protected]

Web: http://www.alliedtelesyn.net.nz

Knowledge base: http://kb.alliedtelesyn.com
