Alliance Laundry Systems H011C Manuel utilisateur

Installation

Tumble Action

Washers

H011C

NOTA: El manual en

español aparece después

del manual en inglés.

Part No. 685980R3

March 2000

Keep These Instructions for Future Reference.

(If this machine changes ownership, this manual must accompany machine.)

means without the expressed written consent of the publisher.

685980 1

Table of

Contents

Replacement Parts .............................................................................. 2

Roughing In Dimensions .................................................................... 3

Before You Start ................................................................................. 5

Tools ..................................................................................................... 5

Electrical............................................................................................... 5

Water..................................................................................................... 5

Accessories Bag.................................................................................... 5

Installing the Washer ......................................................................... 7

Step 1: Position Washer Near Installation Area ................................... 7

Step 2: Connect Water Inlet Hoses....................................................... 7

Step 3: Connect Drain Hose to Drain Receptacle................................. 8

Standpipe Installation....................................................................... 8

Sink Installation ............................................................................... 9

In-the-Wall Installation.................................................................... 9

Laundry Tub Installation.................................................................. 9

Step 4: Position and Level the Washer................................................. 10

Step 5: Remove the Shock Sleeves and Shipping Brace...................... 11

Step 6: Wipe Out Inside of Wash Drum............................................... 11

Step 7: Plug In the Washer ................................................................... 11

Step 8: Check Installation..................................................................... 11

Moving Washer to a New Location................................................... 13

Electrical Requirements..................................................................... 15

Water Supply Requirements ............................................................. 17

Water Temperature ............................................................................... 17

Water Pressure...................................................................................... 17

Risers .................................................................................................... 17

Installer Check....................................................................... Back Cover

2685980

Replacement Parts

If replacement parts are required, contact the source

from where you purchased your washer, or contact:

Alliance Laundry Systems

Shepard Street

P.O. Box 990

Ripon, WI 54971-0990

Phone (920) 748-3950

for the name and address of the nearest authorized

parts distributor.

685980

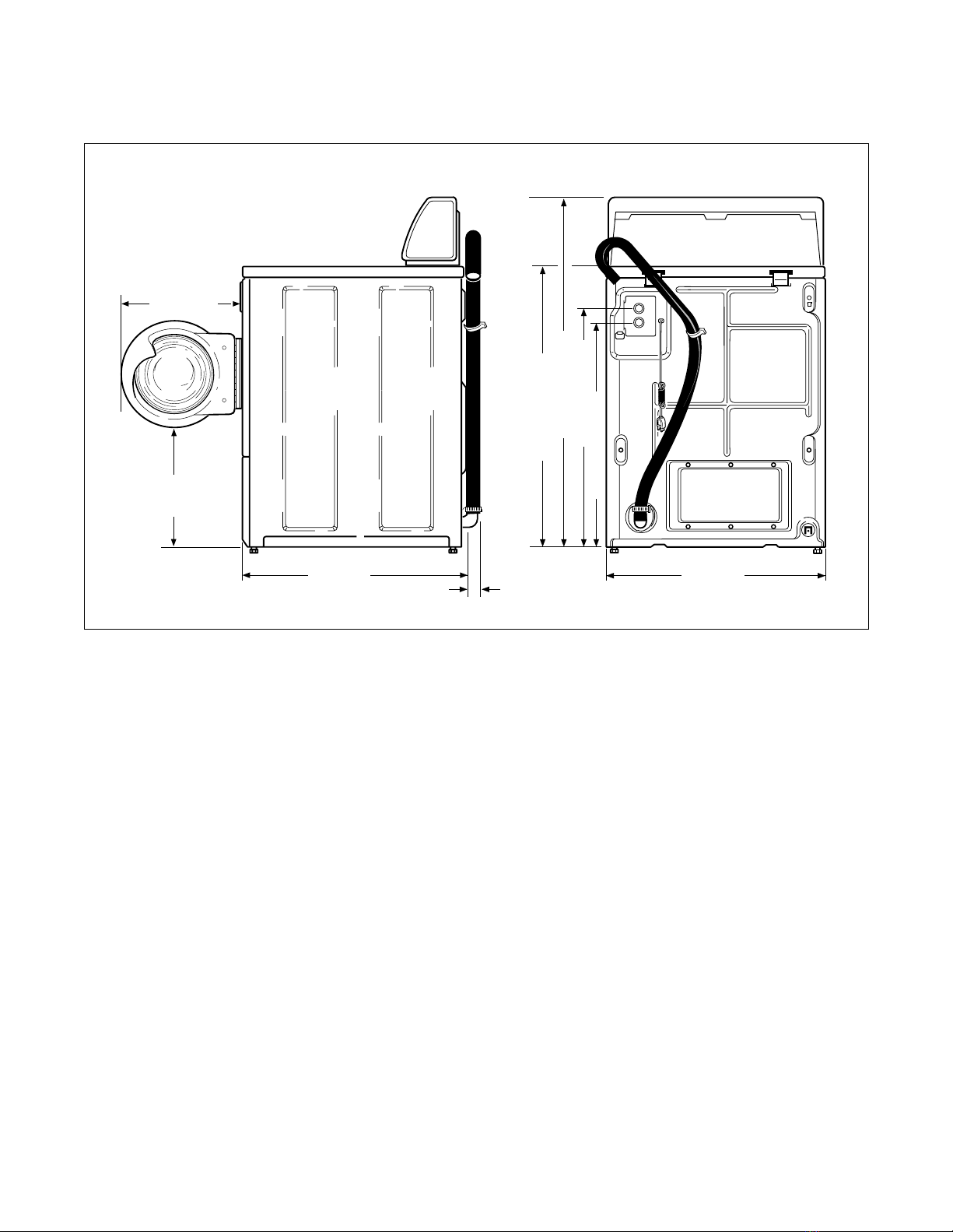

Roughing In Dimensions

H327I

28"

(71.1 cm) 2" (5.1 cm)

17.5"

(44.8 cm)

36.6" (93 cm)

14.9"

(37.9 cm)

43" (109.2 cm)

31.1" (79 cm)

29.6" (75.1 cm)

26.9"

(68.3 cm)

685980

Notes

685980

Before You Start

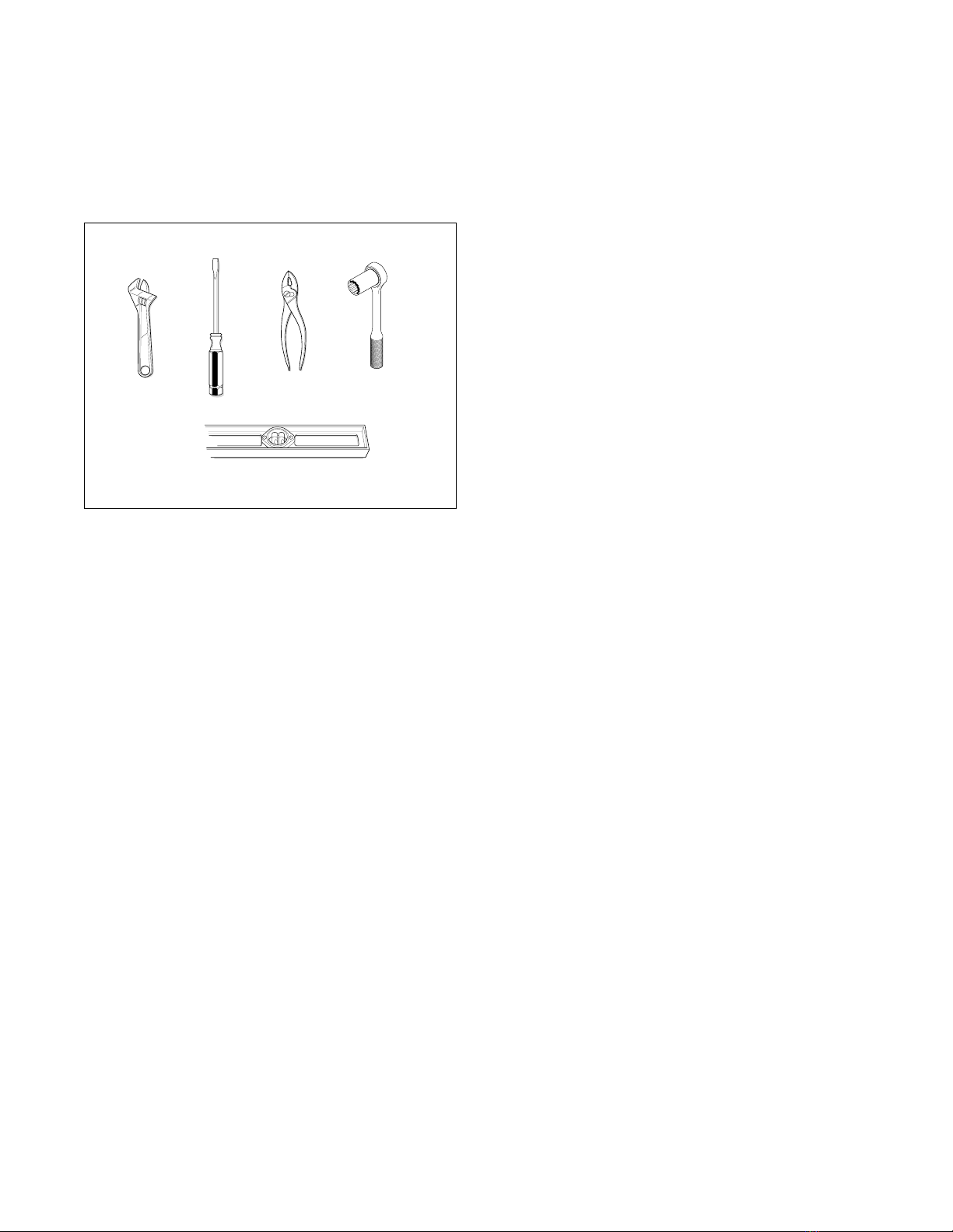

Tools

For most installations, the basic tools you will need

are:

Electrical

Refer to Serial Plate for specific electrical

requirements. For more detailed information refer to

section on Electrical Requirements.

Water

Washer needs two standard 3/4 inch (19.1 mm) water

supply faucets with a pressure between 20 and 120

pounds per square inch (138 to 827 kPa). For more

detailed information refer to section on Water Supply

Requirements.

Accessories Bag

An accessories bag has been shipped inside your

washer. It includes:

●Two inlet hoses with washers. Refer to Step 2 of

Installing the Washer.

●Four rubber feet. Refer to Step 4 of Installing the

Washer.

●Beaded tie-down strap. Refer to Step 3 of

Installing the Washer.

●Installation instructions.

●Use and Care Guide.

●Operating insert.

●Warranty bond.

●Helpful Hints insert.

●Bag for storing shipping materials.

D798I

D798i

Wrench Pliers

Level

Screwdriver Socket Wrench

685980

Notes

685980

Installing the Washer

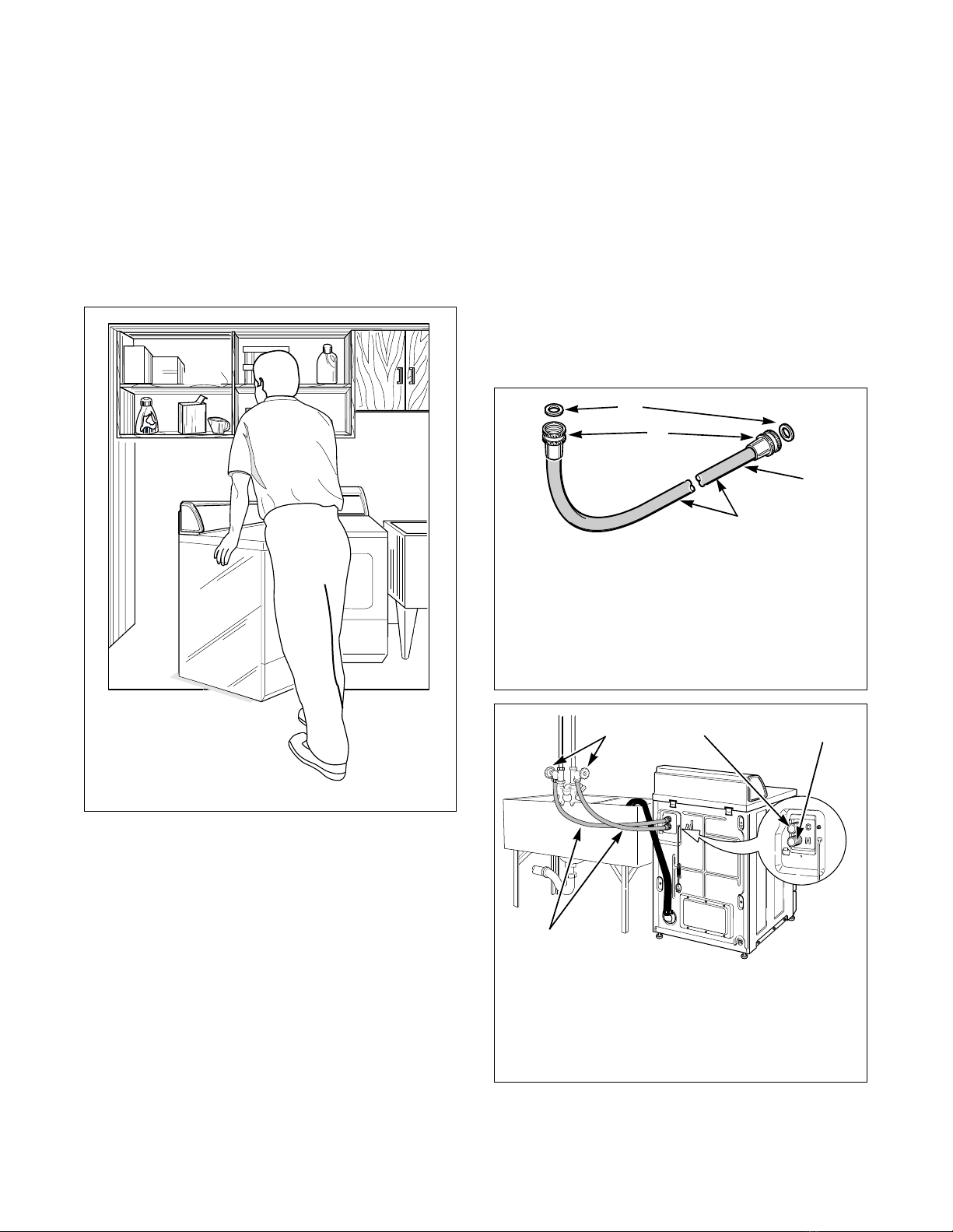

Step 1: Position Washer Near

Installation Area

IMPORTANT: Install dryer before washer. This

allows room for attaching exhaust duct.

Move washer as close to the desired area of

installation as possible.

Step 2: Connect Water Inlet

Hoses

NOTE: Refer to section on Water Supply

Requirements before connecting water inlet hoses.

Remove the four plain rubber washers from

accessories bag, and install them according to the

illustration.

Turn on the water supply faucets and flush the lines for

approximately two minutes to remove any foreign

materials that could clog the screens in the water

mixing valve.

NOTE: When installing in newly constructed or

renovated building, it is very important to flush the

lines since build-up may have occurred during

construction.

IMPORTANT: Thread hose couplings onto valve

connections finger-tight, then approximately 1/4

turn with pliers. DO NOT cross thread or

overtighten couplings.

Turn water on and check for leaks. If leaks are found,

retighten the hose couplings. Continue tightening and

rechecking until no leaks are found.

D772I

W528I

1Rubber Washer (Plain)

2Install This End of Hose to Water Supply

Faucet

3Install This End of Hose to Valve

Connections at Rear of Washer

4Inlet Hose

H328I

1Water Supply Faucets

2Cold Water Connection

3Hot Water Connection

4Water Inlet Hoses

H328I

123

Water

Mixing

Valve

Installing the Washer

685980

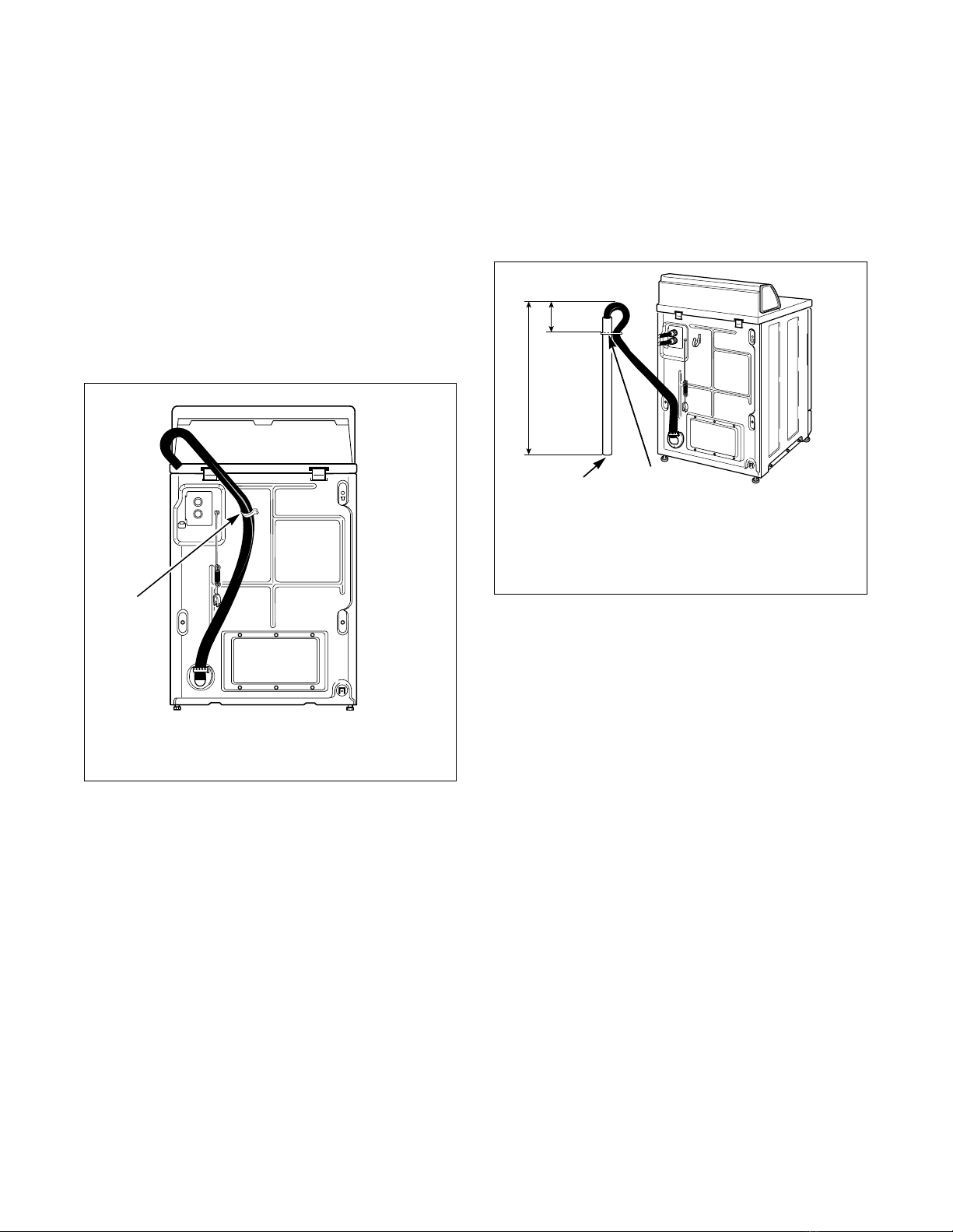

Step 3: Connect Drain Hose to

Drain Receptacle

Remove the drain hose from its shipping position on

the rear of the washer by unhooking the hose from the

retainer clamp.

Find the instructions, on the following pages, that are

appropriate for your type of drain receptacle

(standpipe, sink, wall, or laundry tub). Follow these

instructions to properly install the drain hose.

IMPORTANT: Drain receptacle must be capable of

handling a minimum of 1-1/4 inch (32 cm) outside

diameter drain hose.

Standpipe Installation

Place the drain hose into the standpipe.

Remove the beaded tie-down strap from accessories

bag and place around standpipe and drain hose and

tighten strap to hold hose to standpipe. This will

prevent the drain hose from dislodging from drain

receptacle during use.

H329I

1Retainer Clamp

H329I

H330I

124" to 36" (91.44 cm Recommended Height)

2Standpipe 2" (5.08 cm) or 1-1/2" (4 cm)

3Beaded Tie-Down Strap
