Alfa Network MATRIXPRO 2 Manuel utilisateur

MATRIXPRO 2

User manual

FCC STATEMENT

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio frequency energy

and, if not installed and used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and receiver.

•Connect the equipment into an outlet on a circuit different from that to which

the receiver is connected.

•Consult the dealer or an experienced radio/ TV technician for help.

This device complies with part 15 of the FCC Rules. Operation is subject to the

following two conditions:

1) This device may not cause harmful interference.

2) This device must accept any interference received, including interference that

may cause undesired operation.

Any changes or modifications not expressly approved by the party responsible for

compliance could void the user’s authority to operate the equipment.

NOTE:

1. THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE

CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH

MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE

EQUIPMENT.

2. The antenna(s) used for this transmitter must not be co-located of operating in

conjunction with any other antenna or transmitter.

This device complies with FCC radiation exposure limits set forth for an

uncontrolled environment. Ln order to avoid the possibility of exceeding the Fcc

radio frequency exposure limits, human proximity to the antenna shall not be less

than 21cm (8inches) during normal operation.

FCC RF Radiation Exposure Statement

This equipment complies with FCC RF radiation exposure limits set forth for an

uncontrolled environment. This device and its antenna must not be co-located or

operating in conjunction with any other antenna or transmitter.

“To comply with FCC RF exposure compliance requirements, this grant is applicable

to only Mobile Configurations. The antennas used for this transmitter must be

installed to provide a separation distance of at least 20 cm from all persons and must

not be co-located or operating in conjunction with any other antenna or transmitter.”

CE Mark Warning

This is a class B product. In a domestic environment, this product may cause radio

interference, in which case the user may be required to take adequate measures.

CONTENTS

Product introduction

1. Product interface introduction

2. Product function brief

※AP Bridge Mode

※Client Bridge Mode

※WDS Mode

How to Apply MATRIXPRO 2

3. How to Install MATRIXPRO 2

Device

4. How to Configure MATRIXPRO 2

4-1. How to Setup your PC

4-2. MATRIXPRO 2's Function

Settings

※AP Bridge Mode Setting

※Client Bridge Mode Setting

※WDS Mode Setting

Product introduction

1. Product interface introduction

Dashboard: Show the current status information about the

MATRIXPRO 2.

Wizard: Configure your MATRIXPRO 2 quickly and work it.

Network: Configure Local Network IP, Subnet Mask, etc., and

enable DHCP Server.

Wireless: Setup Wireless Settings on your MATRIXPRO 2.

System: Important settings for related information with

hardware.

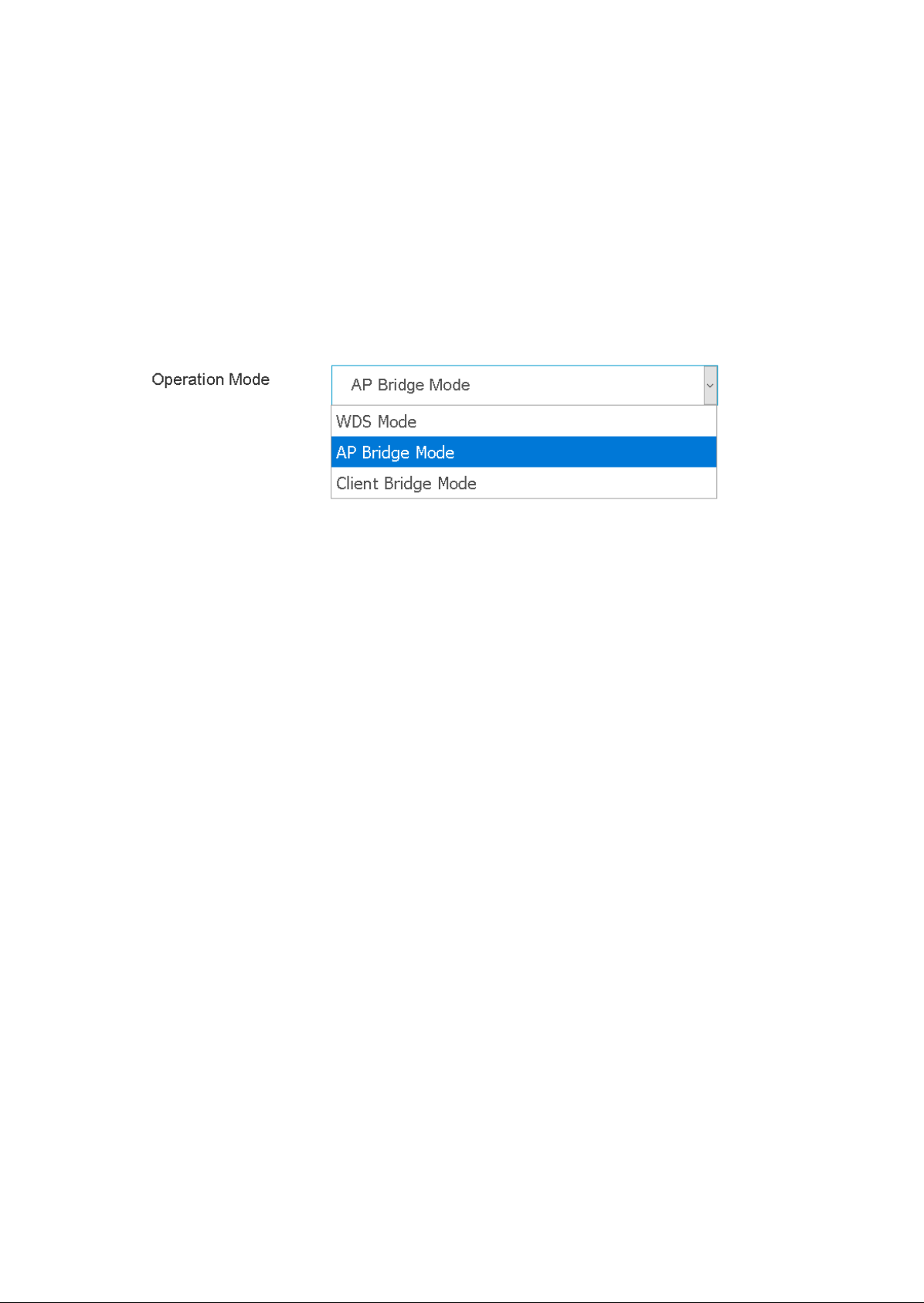

2. Product function brief

There are 3 operation Modes, AP Bridge

Mode, Client Bridge Mode, and WDS Mode

can be selected

※AP Bridge Mode: The AP Mode is the most commonly and

widely used mode of operation. Let mobile devices such as

smart phones, tablets, etc. access Internet.

※Client Bridge Mode: In Client Mode, the MATRIXPRO 2 is

receive other wireless signals; the unlimited device only be

used by connecting to the MATRIXPRO 2.

※WDS Mode: Provides service operate in one of three

modes; WDS AP Mode, WDS Client Mode, or WDS Repeater

Mode. Please refer to the detailed instructions in section 4-2.

1) WDS AP Mode: WDS AP Mode is an access point, but it

only work on other WDS Mode

2) WDS Client Mode: WDS Client, in which WDS APs

communicate with WDS Client to access them

3) WDS Repeater Mode: WDS repeater, in which WDS Aps

communicate with each other and with WDS Client. And

extend the original wireless signal.

How to Apply MATRIXPRO 2

3. How to Install MATRIXPRO 2

Device

1) Connect the PC in PoE LAN port or normal LAN port of

MATRIXPRO 2.

2) Connect the power to MATRIXPRO 2.

4. How to Configure MATRIXPRO 2

4-1. How to Setup your PC

Follow the steps below to configure in Windows OS.

1) Press on the Windows Key and Xon your Keyboard.

2) On the menu that appears and click Network Connections.

3) On the Network Connections screen; Right click on Local

Area Connection and click Properties (if your Windows OS

is Windows 10, click Change adapter settings first and

follow up the step)

4) Click Internet Protocol Version 4 (TCP/IP) then click

Properties
