Alcatel-Lucent OmniSwitch 6850

Stackable Gigabit LAN Switch Family

2 Alcatel-Lucent | OmniSwitch 6850Alcatel-Lucent | OmniSwitch 6850

The Alcatel-Lucent OmniSwitch 6850

(OS6850) Stackable LAN Switch (SLS)

family addresses the needs of modern

enterprise and triple-play networking

with ﬂexible, conﬁgurations; power-

over-Ethernet, high availability, ﬁrst-

packet wire-speed performance, and

dramatically improved network

response time.

3Alcatel-Lucent | OmniSwitch 6850

THE SWITCHES PROVIDE:

nChoice of PoE (Power-over-Ethernet) and non-PoE models

nTriple-speed 10/100/1000 interfaces and 10Gig uplinks

nFast Ethernet interfaces upgradeable to Gigabit via a software license key without

any network reconﬁguration

nGigabit fiber interfaces (SFP) supporting 100BaseX, dual-speed and

1000BaseX optical transceivers

nStacking capability for virtual chassis redundancy

nPower supply choice (AC, DC, PoE) for ﬂexible deployment

nIPv4 and IPv6 layer-2 and layer-3 switching for future-proof investment

nAdvanced quality of service (QoS) to support mission-critical and triple-play applications

THE TARGET APPLICATIONS FOR THESE VERSATILE LAN SWITCHES ARE:

nEnterprise workgroups for edge deployments / LAN wiring closets

nL3 aggregation / distribution layer switches in three-tier networks

nSmall enterprise core switching

nEthernet access and aggregation for residential / metro

triple-play applications

nConverged data / voice / video networks

Today's enterprise networks require Gigabit Ethernet

switches that are feature-rich, reliable, and capable of

supporting converged applications at low cost of ownership.

This family takes advantage of the extensive security and network management features

provided by the Alcatel-Lucent OmniVista Network Management System (NMS).

The OmniSwitch 6850 series, similar to the existing Alcatel-Lucent OmniSwitch products, uses the

Alcatel-Lucent Operating System (AOS), which ensures an easy and economical way to upgrade or

deploy a new Ethernet network. The ﬂexible conﬁguration options offered by the OmniSwitch 6850

family makes it suitable for a small/medium network in the core or at the edge of a large network.

Also, the OmniSwitch 6850 protects your investment with native support of IPv4 and IPv6 switching.

4 Alcatel-Lucent | OmniSwitch 6850

Alcatel-Lucent OmniSwitch 6850 Family

The Alcatel-Lucent OmniSwitch 6850 Stackable LAN switch family offers a variety of PoE and non-PoE

Gigabit and Fast Ethernet models.

The Alcatel-Lucent OmniSwitch 6850Ls, also referred to as the "light" models, are the only

switches on the market that offer the best layer-2/layer-3 features for 10/100 applications that

can be upgraded to Gigabit. They are stackable 10/100 Ethernet workgroup switches built on the

same hardware platform as the OS6850 models. By purchasing and installing an inexpensive

software license key, these switches turn into fully featured 10/100/1000 models.

All models in the Alcatel-Lucent OmniSwitch 6850 family are stackable, ﬁxed conﬁguration chassis in a

1U form factor. They can be optionally equipped with pluggable SFP and XFP transceivers (depending

on the model) that support short, long and very long distances.

Chassis 10/100/1000

or Gig

Combo

Port*

10 Gig

Stacking Ports

10 Gig

Uplinks

Power Supplies

Supported

OS6850-24 20 10/100/1000

4 2 -

126W AC or 120W DC

OS6850-24X 20 10/100/1000

4 2 2

126W AC or 120W DC

OS6850-48 44 10/100/1000

4 2 -

126W AC or 120W DC

OS6850-48X 48 10/100/1000

4 2 2

126W AC or 120W DC

OS6850-U24X 22 Gig SFP **

4 2 2

126W AC or 120W DC

OS6850-24L 20 10/100 ***

4 2 -

126W AC or 120W DC

OS6850-48L 20 10/100 ***

4 2 -

126W AC or 120W DC

Non-PoE Models

OS6850-P24 20 10/100/1000

4 2 -

360W AC or 510W AC

OS6850-P24X 20 10/100/1000

4 2 2

360W AC or 510W AC

OS6850-P48 44 10/100/1000

4 2 -

360W AC or 510W AC

OS6850-P48X 48 10/100/1000

- 2 2

360W AC or 510W AC

OS6850-P24L 20 10/100 ***

4 2 -

360W AC or 510W AC

OS6850-P48L 44 10/100 ***

4 2 -

360W AC or 510W AC

PoE Models

THE FOLLOWING CHART INDICATES THE DIFFERENCES IN THE OMNISWITCH 6850 MODELS.

* Combo ports are ports individually conﬁgurable to be 10/100/1000BaseT or 1000BaseX that can support SFP transceivers for short, long and very long distances.

** Gig ﬁber interfaces support Gig SFP, dual-speed SFP or 100BaseX SFP optical transceivers.

***The 10/100 RJ-45 ports can be upgraded to 10/100/1000 speed by purchasing the OS6850-24L-UPGD or OS6850-48L-UPGD software license for 24-port and

48-port models respectively.

5Alcatel-Lucent | OmniSwitch 6850

The primary as well as the backup power supplies

for the OmniSwitch 6850 models are external

and connect to the rear of the unit. A power

shelf provided with the unit, can slide into the

rear of the chassis and is used to hold either two

360W PoE, 126W AC or 120W DC power

supplies or one 510W power supply. For dual

510W conﬁgurations, the backup power supply

has to be remotely mounted.

Any power supply can be remotely connected

using a cable enabling rack mounting in the

rack using ears provided with the unit. This

feature allows the OmniSwitch 6850 to be

used in areas with reduced-depth (e.g., a

wall-mounted cabinet).

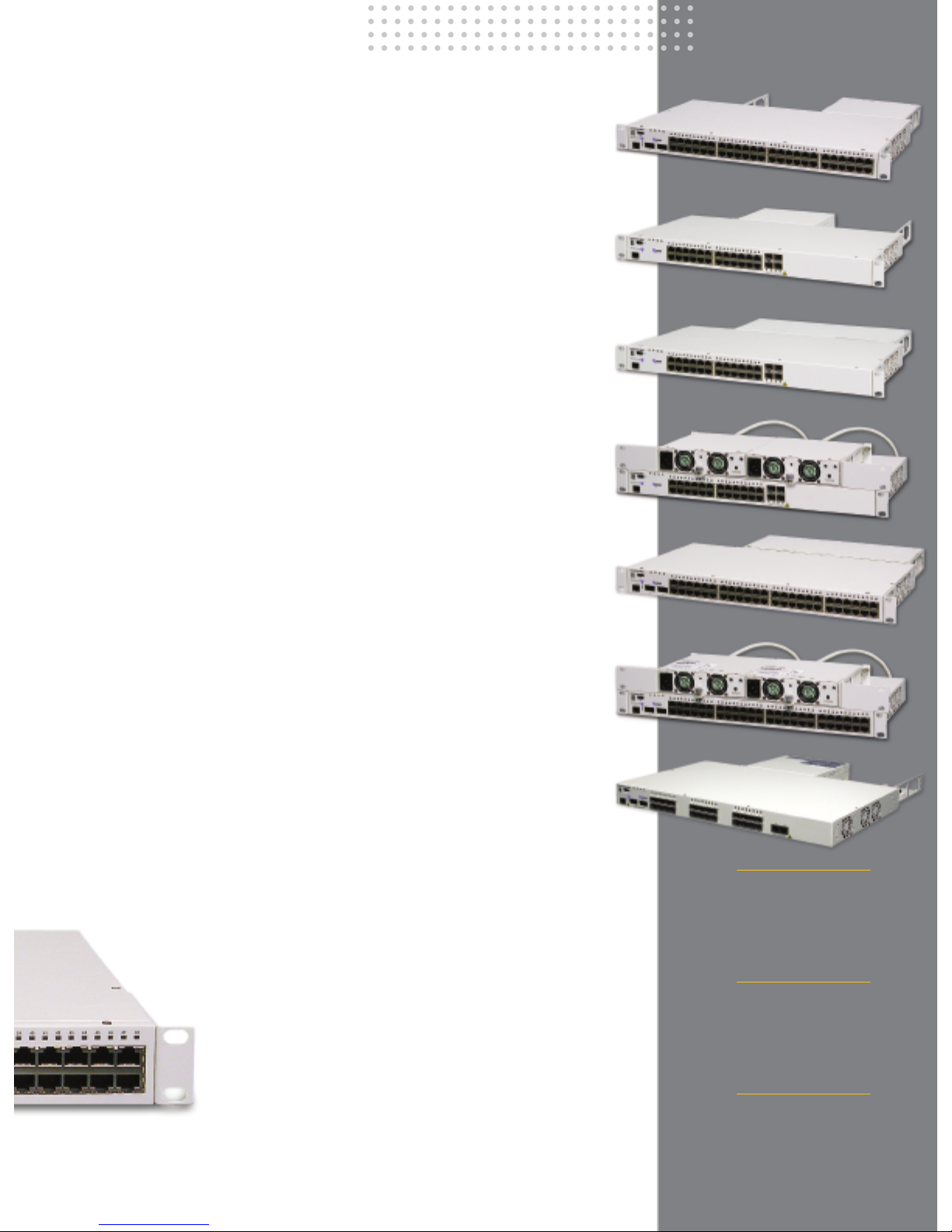

Non-PoE Models

OS6850-24

OS6850-24X

OS6850-48

OS6850-48X

PoE Models

OS6850-P24

OS6850-P24X

OS6850-P48

OS6850-P48X

Fiber Model

OS6850-U24X

Power Options

The OmniSwitch 6850 family offers customers a

vast selection of switches and power options so that

they can prevent over or under provisioning

power to their switches and save money by

not having to purchase more than they need.

All of the OmniSwitch 6850 chassis support

redundant, dual hot-swappable AC, DC or PoE

power supplies.

6 Alcatel-Lucent | OmniSwitch 6850

ONETOUCH NETWORK MANAGEMENT

The OmniSwitch 6850s are part of Alcatel-Lucent’s OmniSwitch

family - which includes core, stackable / modular edge, and

wireless LAN (WLAN) switches - that uses the AOS and are

managed by the Alcatel-Lucent OmniVista Network

Management System for simpliﬁed OneTouch manageability. By

offering the same operating system and network management

system (NMS) across all Alcatel-Lucent platforms, an existing

user is familiar with the product’s management from the very

ﬁrst day, reducing the cost of ownership by eliminating the time

needed for training on a different operating system or

management solution.

OmniSwitch administrators have three types of management

method interfaces to choose from – a command line interface

(CLI), Alcatel-Lucent WebView for web-based management,

or Alcatel-Lucent OmniVista 2500 and 2700 network

management applications that offer “one touch” point-and-

click technology. Regardless of the interface selected, each is

easy to use and offers a common look and feel for every device.

PERFORMANCE

The OmniSwitch 6850 family supports real-time voice, data, and video applications. The switches provide ﬁrst packet

wire-speed classification and processing for all packets – giving a noticeable performance boost to converged

enterprise networks. The OS6850s support advanced services such as 10GigE, PoE and IPv6, future prooﬁng today’s

investment to support the demands of tomorrow.

Product features and benefits

7Alcatel-Lucent | OmniSwitch 6850

ALCATEL-LUCENT OMNIVISTA 2770

QUARANTINE MANAGER

In addition to proactive security provided by Alcatel-

Lucent’s Access Guardian, the Alcatel-Lucent OmniVista

2770 Quarantine Manager provides reactive security by

using alerts from Alcatel-Lucent OmniSwitch and third-

party intrusion detection and prevention systems to

identify malicious attacks and then swiftly handling

them through automatic containment and remediation.

ALCATEL-LUCENT ACCESS GUARDIAN

Alcatel-Lucent’s Access Guardian is a security

framework that enables network-wide and

user-based security by automatically detecting

and authenticating the 802.1X and non-802.1X

supplicants connected to a single port, in

any combination.

This provides users proactive security by preventing

unauthorized network access or restricted access for

remediation. In addition to improved network

security, Alcatel-Lucent’s Access Guardian reduces to

zero the time a network administrator spends for

adding or moving users.

SECURITY

Alcatel-Lucent’s Access Guardian and OmniVista 2770 Quarantine Manager are components of Alcatel-Lucent’s CrystalSec

security framework that supports all of Alcatel-Lucent’s enterprise networking devices. This framework offers proactive

and reactive security solutions comprised of comprehensive switch-based security capabilities as well as integration with

security applications and appliances from industry leaders.

8 Alcatel-Lucent | OmniSwitch 6850

HIGH AVAILABILITY

The OmniSwitch 6850s virtual chassis minimizes network downtime, reduces

operational complexity and cost and increases availability for mission-critical

applications by removing single points of failure.

The OS6850s resiliency is provided through a superior architecture offering

physical and functional redundancy everywhere:

Product features and benefits

nVirtual chassis that provides management functionality and automatic election of

primary and secondary managers

nRedundant backup power supplies

nFault tolerant loop stacking

nHot swappable chassis, power supplies, SFPs and XFPs

nImage rollback to automatically re-load previous conﬁgurations and software versions

nHitless loading of optional advanced routing software without re-booting

9Alcatel-Lucent | OmniSwitch 6850

IPV6 SUPPORT

Leading industry analysts, such as

Gartner Group and Burton, have

indicated that IPv6 will be a

requirement for enterprise networks

in the near future. By including it

now, a network manager extends

the life of existing equipment and

prevents future expenses from

upgrading to IPv6.

The OmniSwitch 6850 family

provides full IPv6 support with

hardware-based forwarding for

wire-rate speeds, classification

and tunneling to address various

corporate and U.S. federal

government Department of Defense

(DoD) requirements for IPv6.

Flexibility is provided through a

choice of deploying IPv4, IPv6, or

IPv4/IPv6 without compromising

switch performance. The OS6850s

offer both native IPv6 routing and

extensive support of IPv6 tunneling

mechanisms, including conﬁgured,

6-in-4, and ISATAP tunneling.

IPv6 will eventually be a

requirement for enterprise

networks. By including it in

current purchases, a network

manager extends the life of

existing equipment and prevents

future expenses.

10 Alcatel-Lucent | OmniSwitch 6850

GIGABIT AT THE EDGE

The OmniSwitch 6850 series of switches provide a migration path to

Gigabit on the LAN edge where high speed and extensive features are

needed. The OmniSwitch 6850s have the features necessary to provide

intelligent, secure, and available networking for the most demanding

applications and user requirements.

The OmniSwitch 6850s are ideal for use at the edge because of their

compact fixed form factor design suitable for closets. Their modular

expandability, ﬂexible conﬁguration provides an easy path to scale any

workgroup up to 384 10/100/1000 ports and 16 10GigE ports in a single

stack to support campus wiring closet requirements.

The OmniSwitch 6850s support of high power as well as standard

powered PoE ports, copper non-PoE and fiber ports in any combination

in a stack provides exceptional flexibility in customizing the closet/small

core deployment to support applications ranging from just data to

triple-play converged applications.

PoE

Fiber

Cat 5

10/100/1,000

L2+/L3 Switching

OmniSwitch 6850 10/100/1,000

L2+/L3 Switching

OmniSwitch 6850

10/100/1,000

L2+/L3 Switching

OmniSwitch 6850

Core Layer

OmniSwitch 9000

Desktop to Gigabit migration

Supports triple-play application’s

high bandwidth requirements

Deployment options

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Alcatel-Lucent Changer

Alcatel-Lucent

Alcatel-Lucent OmniSwitch 6400 Series Manuel d'installation

Alcatel-Lucent

Alcatel-Lucent OmniSwitch 6850 Series Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7210 SAS Series Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 Manuel de programmation

Alcatel-Lucent

Alcatel-Lucent OmniSwitch 6800 Series Manuel d'installation

Alcatel-Lucent

Alcatel-Lucent 7210 SAS-D Feuille d'instructions

Alcatel-Lucent

Alcatel-Lucent Service Aggregation Router 7705 Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent LambdaUnite 1675 Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent OmniStack 6200 Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent OmniSwitch 6400 Series Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7210 Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent OmniSwitch 6450-P10S Manuel d'installation

Alcatel-Lucent

Alcatel-Lucent OmniSwitch 6855 Series Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7210 SAS E OS Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent CBX 3500 Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7210 SAS E OS Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent OmniSwitch 6800 Series Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent SFP Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7210 Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent OmniSwitch 6850E Series Comment utiliser

Alcatel-Lucent

Alcatel-Lucent ES4 Series Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent OmniSwitch 6855-24 Manuel d'installation

Alcatel-Lucent

Alcatel-Lucent OmniSwitch AOS Release 7 Manuel utilisateur

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

D-Link

D-Link DES-1226G Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Ruijie

Ruijie RG-PF2920 Series Manuel d'installation et d'exploitation

Altinex

Altinex DA1914SX Manuel utilisateur

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur

Cabletron Systems

Cabletron Systems GIGAswitch GSR-16 Manuel utilisateur
