Hardware Guide

OmniSwitch 2220

OmniSwitch 2220 Hardware Guide

enterprise.alcatel-lucent.com Alcatel-Lucent and the Alcatel-Lucent Enterprise logo are trademarks of Alcatel-

Lucent. To view other trademarks used by affiliated companies of ALE Holding, visit: enterprise.alcatel-

lucent.com/trademarks. All other trademarks are the property of their respective owners. The information

presented is subject to change without notice. Neither ALE Holding nor any of its affiliates assumes any

responsibility for inaccuracies contained herein.

26801 West Agoura Road

Calabasas, CA 91301

(818) 880-3500 FAX (818) 880-3505

Service & Support Contact Information

North America: 800-995-2696

Latin America: 877-919-9526

EMEA: +800 00200100 (Toll Free) or +1(650)385-2193

Asia Pacific: +65 6240 8484

Web: support.esd.alcatel-lucent.com

Email: ebg_global_supportcenter@al-enterprise.com

General InformationOmniSwitch 2220 Hardware Guide

Alcatel-Lucent Enterprise OmniSwitch 2220 Hardware Guide

April 2018 • 060524-10 Rev. A Page 3

Section 1: General Information

This document contains hardware information for the OmniSwitch 2220.

Important Documents

See below for related documents.

Note: Access to technical documentation and software is available from the Service & Support site

(https://support.esd.alcatel-lucent.com).

Document (or Item) Name Number

[1] Websmart Administrator Guide 060522-10

[2] Websmart Release Notes 033280-00

OmniSwitch 2220 Hardware InformationOmniSwitch 2220 Hardware Guide

Alcatel-Lucent Enterprise OmniSwitch 2220 Hardware Guide

April 2018 • 060524-10 Rev. A Page 4

Section 2: OmniSwitch 2220 Hardware

Information

OmniSwitch 2220 Chassis Descriptions

Model Number Description

OS2220-8 Gigabit Ethernet WebSmart chassis in a 1U form factor with 8 x 10/100/1000

Base-T ports, 2 fixed SFP (1G) ports with internal power supply.

OS2220-P8 Gigabit Ethernet WebSmart chassis in a 1U form factor with 8 x 10/100/1000

Base-T PoE ports, 2 fixed SFP (1G) ports with internal power supply (75W

power budget).

OS2220-24 Gigabit Ethernet WebSmart chassis in a 1U form factor with 24 x 10/100/1000

Base-T ports, 2 fixed SFP (1G) with internal power supply.

OS2220-P24 Gigabit Ethernet WebSmart chassis in a 1U form factor with 24 x 10/100/1000

Base-T PoE ports, 2 fixed SFP (1G) with internal power supply (190W PoE

budget).

OmniSwitch 2220 Chassis SpecificationsOmniSwitch 2220 Hardware Guide

Alcatel-Lucent Enterprise OmniSwitch 2220 Hardware Guide

April 2018 • 060524-10 Rev. A Page 5

OmniSwitch 2220 Chassis Specifications

OS2220-8

Figure 1: OS2220-8 Front/Rear

Item Description

Port / System Status LEDs / Reset Button

B (8) 10/100/1000 RJ-45 Ports

C (2) SFP Ports

D AC Power Input

OmniSwitch 2220 Chassis SpecificationsOmniSwitch 2220 Hardware Guide

Alcatel-Lucent Enterprise OmniSwitch 2220 Hardware Guide

April 2018 • 060524-10 Rev. A Page 6

OS2220-P8

Figure 2: OS2220-P8 Front/Rear

Item Description

Port / System Status LEDs / Reset Button

B (8) 10/100/1000 RJ-45 802.3at PoE Ports

C (2) SFP Ports

D AC Power Input

EFan

ABC

OmniSwitch 2220 Chassis SpecificationsOmniSwitch 2220 Hardware Guide

Alcatel-Lucent Enterprise OmniSwitch 2220 Hardware Guide

April 2018 • 060524-10 Rev. A Page 7

OS2220-24

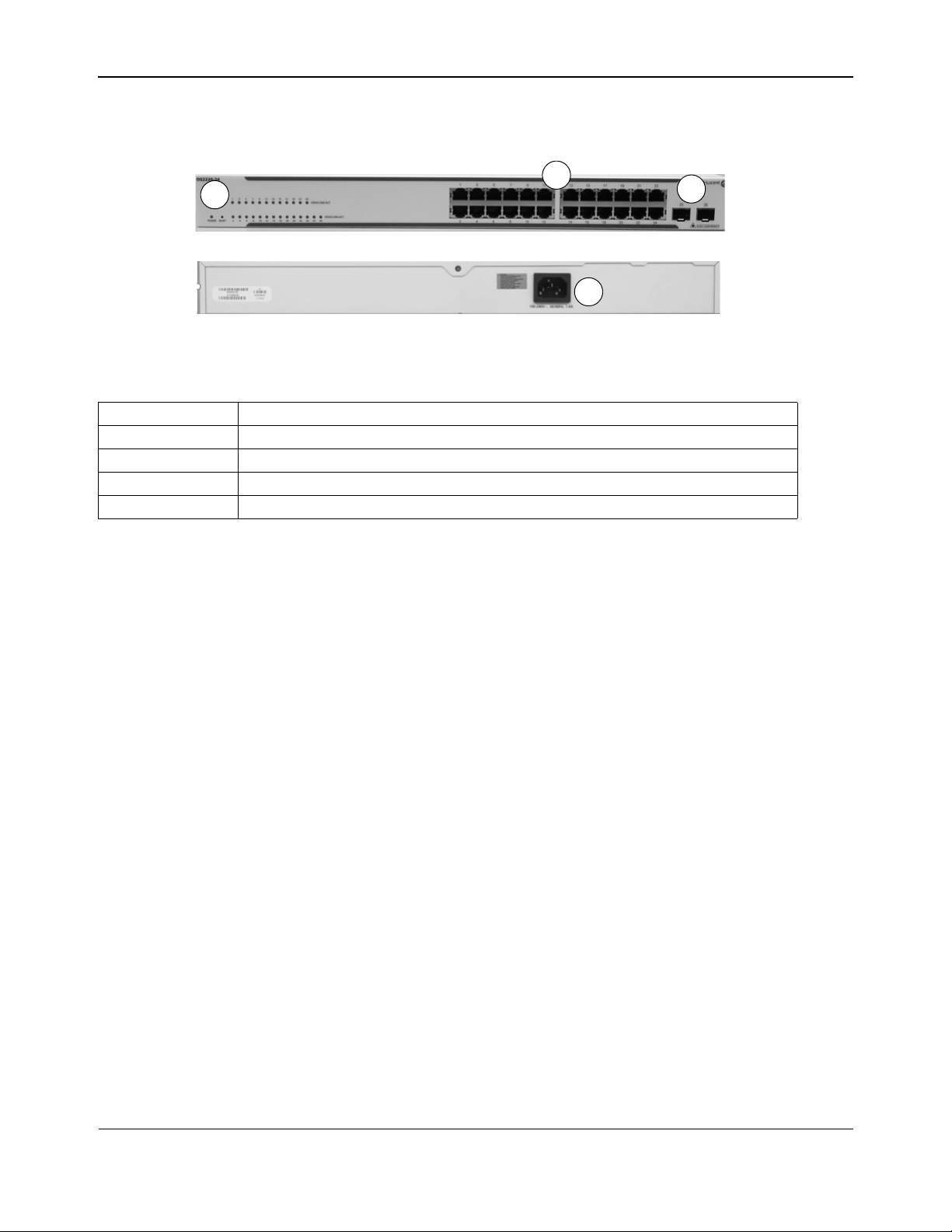

Figure 3: OS2220-24 Front/Rear

Item Description

Port / System Status LEDs / Reset Button

B (24) 10/100/1000 RJ-45 Ports

C (2) SFP Ports

D AC Power Input

OmniSwitch 2220 Chassis SpecificationsOmniSwitch 2220 Hardware Guide

Alcatel-Lucent Enterprise OmniSwitch 2220 Hardware Guide

April 2018 • 060524-10 Rev. A Page 8

OS2220-P24

Figure 4: OS2220-P24 Front/Rear

Item Description

Port / System Status LEDs / Reset Button

B (24) 10/100/1000 RJ-45 802.3at PoE Ports

C (2) SFP Ports

D AC Power Input

EFans

OmniSwitch 2220 Chassis SpecificationsOmniSwitch 2220 Hardware Guide

Alcatel-Lucent Enterprise OmniSwitch 2220 Hardware Guide

April 2018 • 060524-10 Rev. A Page 9

Chassis Specifications

Table 1: Hardware Specifications

OS2220-8 OS2220-P8 OS2220-24 OS2220-P24

RJ-45

10/100/

1000

portsll

8 8 24 24

1G Combo/SFP

uplink ports

0/2 0/2 0/2 0/2

PoE ports

08024

802.3at ports

08024

Width

33 cm

(12.99 in)

33 cm

(12.99 in)

44.0 cm

(17.32 in)

44.0 cm

(17.32 in)

Height

4.4 cm

(1.73 in)

4.4cm

(1.73 in)

4.4 cm

(1.73 in)

4.4 cm

(1.73 in)

Depth

17.5 cm

(6.89 in)

17.5 cm

(6.89 in)

25.4 cm

(10.0 in)

25.4 cm

(10.0 in)

Weight 1.51 kg

(3.32 lb)

1.83 kg

(4.03 lb)

3.74 kg

(8.25 lb)

3.74 kg

(8.25 lb)

Operating

temperature

0°C to +45°C

32°F to +113°F

0°C to +45°C

32°F to +113°F

0°C to +45°C

32°F to +113°F

0°C to +45°C

32°F to +113°F

Storage

temperature

-25°C to +70°C

-13°F to +158F

-25°C to +70°C

-13°F to +158F

-25°C to +70°C

-13°F to +158F

-25°C to +70°C

-13°F to +158F

Humidity

(operating and

storage)

5% - 95% 5% - 95% 5% - 95% 5% - 95%

Fan variable

speed)

Fan-less

1 fan

Fan-less 2 fans

PoE power

budget (watts)

N/A

75 W

N/A

192 W

Power

Specifications

100-240V; 50/

60Hz; 1A

100-240V; 50/

60Hz; 3.5-2.5A

100-240V; 50/

60Hz; 1A

100-240V; 50/

60Hz; 4A

System LEDs POWER (On) - Green

Per-port LEDs SPEED/LINK/ACTIVITY (1000Mbps) - Green

SPEED/LINK/ACTIVITY (10/100Mbps) - Yellow

POE (PD connected) - Green

POE (PoE error) - Yellow

Reset Button Press to reset chassis

OmniSwitch 2220 Chassis SpecificationsOmniSwitch 2220 Hardware Guide

Alcatel-Lucent Enterprise OmniSwitch 2220 Hardware Guide

April 2018 • 060524-10 Rev. A Page 10

Rack Mounting

1. Attach rack mount brackets to both sides of the chassis as shown. The OS2220-8/P8 models user longer

brackets to fit in a 19” rack.

2. Lift and position the switch until the rack-mount brackets are flush with the rack post, then align the holes in

the brackets and insert and secure all rack-mount screws.

Figure 5: Rack-Mounting

OS2220-8/P8 Bracket
