Albatron PI965GME Manuel utilisateur

PI965GME

All rights are reserved. No part of this publication may be reproduced, transmitted, transcribed, stored

in a retrieval system or translated into any language or computer language, in any form or by any

means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior

written permission of the company. Brands and product names are trademarks or registered

trademarks of their respective companies.

The vendor makes no representations or warranties with respect to the contents herein and especially

disclaim any implied warranties of merchantability or fitness for any purpose. Further the vendor

reserves the right to revise this publication and to make changes to the contents herein without

obligation to notify any party beforehand. Duplication of this publication, in part or in whole, is not

allowed without first obtaining the vendor’s approval in writing.

Trademark

All the trademarks or brands in this document are registered by their respective owner.

Disclaimer

We make no warranty of any kind with regard to the content of this user’s manual. The content is

subject to change without notice and we will not be responsible for any mistakes found in this user’s

manual. All the brand and product names are trademarks of their respective companies.

FCC Compliance Statement

This equipment has been tested and found to comply with the limits of a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses and can

radiate radio frequency energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications. Operation of this equipment in a residential area

is likely to cause harmful interference in which case the user will be required to correct the

interference at his own expense. However, there is no guarantee that interference will not occur in a

particular installation.

CE Mark

The device is in accordance with 89/336 ECC-ENC Directive.

Mainboard PI965GME

PI965GME

Intel®GME965 & ICH8M

Support Socket P

Intel®CoreTM 2 Duo Mobile Processors

User Manual

Dimensions (Mini-ITX form-factor):

170 mm x 170 mm ( W x L )

Operating System:

Windows®Vista/ XP/2000

er: EG10

Mainboard PI965GME

Things You Have To Know

0The images and pictures in this manual are for reference only and may vary from the

product you received depending on specific hardware models, third party components

and software versions.

0This mainboard contains very delicate IC chips. Always use a grounded wrist strap

when working with the system.

0Do not touch any IC chip, lead, connector or other components.

0Always unplug the AC power when you install or remove any device on the mainboard

or when confuguring pins and switches.

Packing List

PI965GME Mainboard

I/O Bracket

Mainboard Setup Driver & User Manual CD

Mainboard Quick Installation Guide

Symbols

Attention- Im

ortant Information

Follow the procedures below…

Refer to other sections in this manual…

Troubleshooting Tips

Mainboard PI965GME

Table of Contents

CHAPTER 1. GETTING STARTED.................................................................. 1

INTRODUCTION.......................................................................................................1

SPECIFICATION .......................................................................................................2

CONFIGURATION ....................................................................................................5

Layout of PI965GME (Right Side)........................................................................5

Layout of PI965GME (Back Side).........................................................................6

HARDWARE INSTALLATION ...................................................................................7

CPU Processor Installation ....................................................................................7

Memory Installation: DIMM2................................................................................9

Back Panel Configuration....................................................................................10

Front Panel Headers: FPSWLED1, SPK1 ...........................................................11

Connectors ...........................................................................................................12

Headers & Jumpers ..............................................................................................13

Audio Configuration ............................................................................................17

Slot.......................................................................................................................17

Power Supply Attachments..................................................................................18

CHAPTER 2. BIOS SETUP............................................................................ 19

INTRODUCTION.....................................................................................................19

MAIN MENU .........................................................................................................20

CHAPTER 3: SOFTWARE SETUP ................................................................ 22

SOFTWARE LIST ...................................................................................................22

SOFTWARE INSTALLATION...................................................................................22

CHAPTER 4: TROUBLESHOOTING............................................................. 27

APPENDIX I: SUPER 5.1 CHANNEL AUDIO EFFECT SETUP....................................30

Mainboard PI965GME

Chapter 1. Getting Started

Introduction

Thanks for choosing PI965GME Mainboard. It is based on Intel®GME965 Northbridge

chipset and Intel®ICH8M Southbridge chipset. It supports Intel®CoreTM 2 Duo Mobile

processors with FSB (Front Side Bus) frequencies of 800 MHz/ 533 MHz.

The PI965GME provides one DDRII SO-DIMM sockets. These sockets allow you to install

200-pin, non-ECC & unbuffered DDR II 667/ DDRII 533 SO-DIMMs, and they also support a

total memory capacity of 1GB.

This mainboard provides one PCI-Express interface slot up to x16 mode which is

recommended that insert a graphics card onto the PCI-Espress x16 slot. In addition, one

Mini PCI slot for use with Mini PCI expansion card is also allowed.

The PI965GME provides one IDE connector for two IDE hard drives supporting Ultra ATA

100/66/33. Moreover, this mainboard comes with Serial ATA II supporting with three SATA

II connectors which provide up to 3 Gbps data transfer rates.

This mainboard provides one VGA (=D-Sub) connector, one DVI connector, TV_OUT

connector, and four USB 2.0/1.1 ports on the back panel of your case for use. Besides,

there are four COM (Serial ports) headers, one GPI header, one GPO header, one Printer

Port (Parallel port) header, one SPDIF header and two USB 2.0/1.1 headers can be

connected with cables for compliant devices.. There are maximal eight USB2.0/ 1.1 ports

which can be set up on this mainboard.

The onboard High Definition Audio Codec (ALC883) supports high quality performance

8-channel audio play (See Appendix I). The mainboard also supports the Sony/Philips

Digital Interfaces (S/PDIF) output function and the front speaker output function.

The PI965GME also comes with two onboard 10/100/1000 Mbps Ethernet LAN chips.

There are two LAN ports on the back panel of your case that you can directly plug into

internet cables.

All the information (including hardware installation and software installation) in this

manual are for reference only. The contents in this manual may be updated without notice.

The company will not assume any responsibility for any errors or mistakes within.

Mainboard PI965GME

Specification

CPU:

Support Socket P

Support Intel®CoreTM 2 Duo Mobile processors

Support Hyper-Threading Technology

Support 800 MHz/ 533 MHz FSB (Front Side Bus) frequencies

Chipset:

Northbridge Chipset – Intel®GME965

Southbridge Chipset – Intel®ICH8M

I/O Controller – Winbond®W83627UHG

HD Audio Codec – Realtek®ALC883

Dual Gbit LAN Controllers – Marvell®88E8056

DVI Controller – Silicon®Image Sil1362

Memory:

One DDRII SO-DIMM sockets

Supports 200-pin, unbuffered & non-ECC DDRII 667/ DDRII 533 SO-DIMMs

Supports a total memory capacity of 1 GB

Onboard HD Audio Codec (ALC 883):

High performance Codec with high S/N ratio (>90 db)

Compliant with Azalia 1.0 specification

Supports 8/6/4/2 channel playback capability

Supports jack sensing and re-tasking function

Built-in Dolby Digital Live Technology

Supports Sony/ Philips Digital Interfaces (S/PDIF) output functionality

Slots:

One PCI-Express x16 interface slot for graphics card or expansion card

Mainboard PI965GME

One Mini PCI slot for Mini PCI expansion card

IDE Connectors:

One IDE connector for two IDE devices

Supports Ultra ATA 33/66/100

Supports high capacity hard disk drives

Serial ATA Connectors:

Three SATA connectors

Supports SATA 2.0 specification and with 3 Gbps data transfer rates

One SATA connector can only support one SATA HDD

Onboard LAN Chip:

10/100/1000 Mbps Ethernet LAN supported

I/O facility Connectors

Supports one PS/2 mouse port and one PS/2 keyboard port

Supports TV_OUT connector

Supports one VGA port (=D-Sub)

Supports one DVI port

Supports one RCA S/PDIF OUT port

Supports one LVDS connector, one S/PDIF header, four COM (Serial Port) headers,

one GPI header and one GPO header to connect compliant devices for use

Universal Serial Bus:

Four onboard USB 2.0/ 1.1 ports

Two front USB header comes with this mainboard for additional four USB ports

Support a maximum of eight USB ports to connect USB compliant devices

BIOS:

Phoenix-Award™ BIOS

Support APM1.2

Mainboard PI965GME

Support ACPI 2.0 power management

Green Function:

Supports Phoenix-Award™ BIOS power management function

Supports system-wake-from-power-saving-mode by keyboard or mouse touching

Shadow RAM:

Integrated memory controller provides shadow RAM functionality and supports

ROM BIOS

Flash Memory:

Supports flash memory functionality

Supports ESCD functionality

Hardware Monitor Function:

Monitors CPU/ Chassis Fan Speed

Monitors CPU and system temperature

Monitors system voltages

Mainboard PI965GME

Configuration

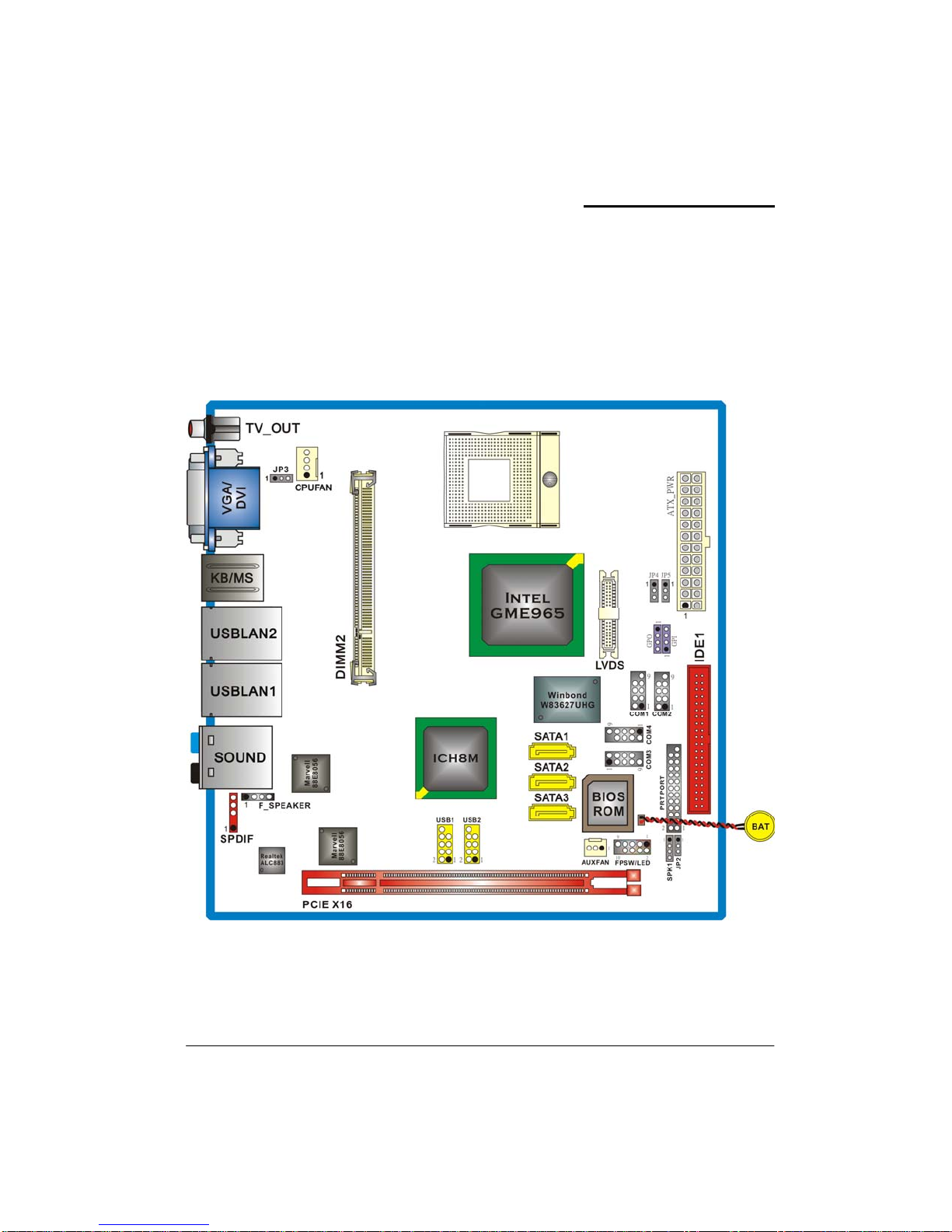

Layout of PI965GME (Right Side)

Mainboard PI965GME

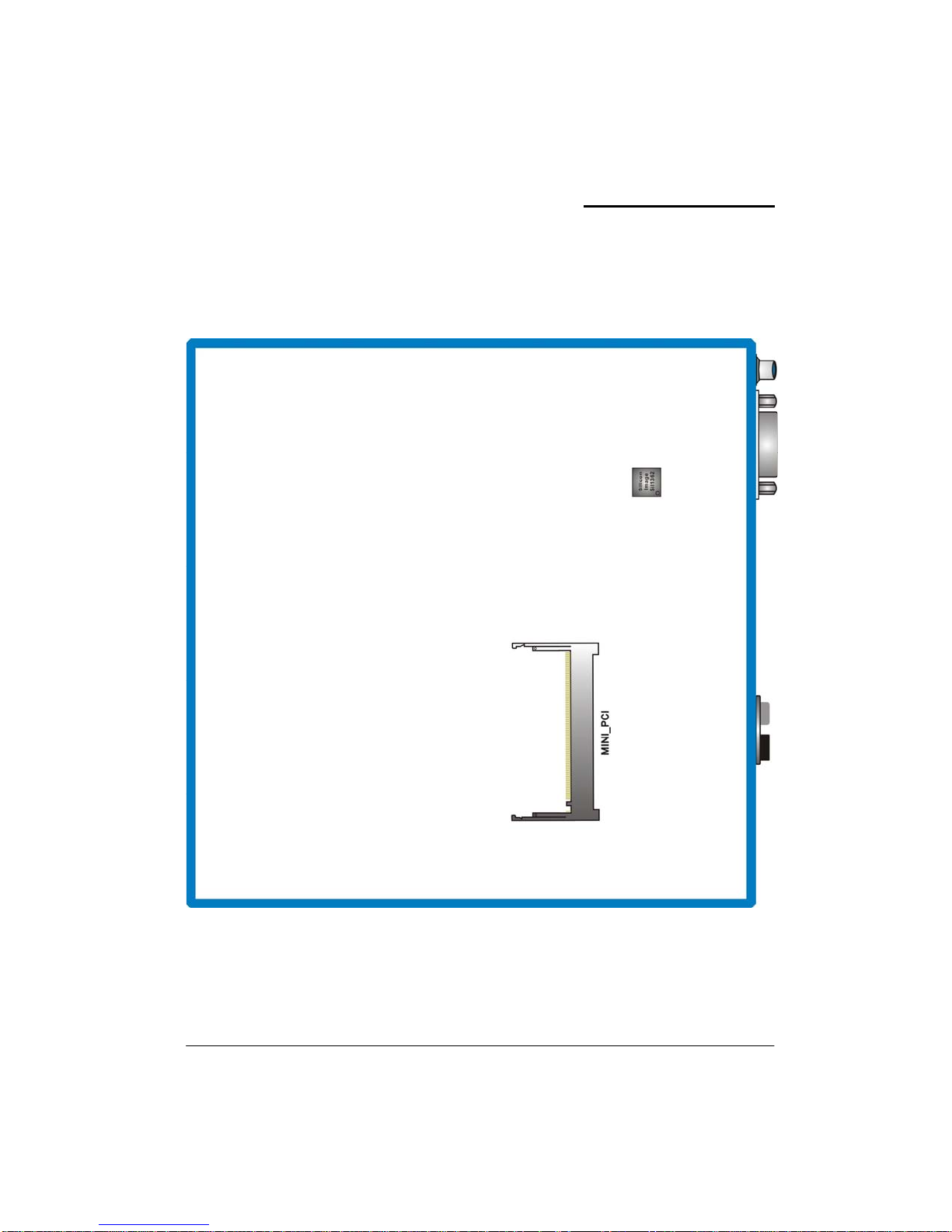

Layout of PI965GME (Back Side)
