Airlink101 AR430W Manuel utilisateur
Super G Wireless Broadband Router
Model # AR430W
Quick Installation Guide
Ver. 1A
This Quick Installation Guide only provides the basic instructions. For more
detailed information, please refer to the User’s Manual in the supplied CD.
Note: Prior to connecting the router, be sure to power off your computer, DSL/Cable
modem, and the router. You should setup the router with a wired connection first before
attempting to setup any wireless connection.
Step 1 Connectoneend ofa networkcable tothe WAN portof therouter andconnect the
otherend ofthe cable tothe DSL/Cablemodem.
Step 2 Withanothernetwork cable,connectone endof thecable toyourcomputer’snetwork
cardand connecttheother endtoone ofthe LAN (Ethernet)portsof the router.
Step 3 Power on the DSL/Cable modem and wait for the lights on the modem to settle
down.
Step 4 Power on the router by connecting one end of the supplied power adapter to the
power jack of the router and connecting the other end to an electrical outlet.
Step 5 Power on your computer.
Step 6 Makesurethe WAN,WLAN, andthe LAN port that the computeris connectedto are
lit.Ifnot trytheabove stepsagain.
ConnectingtheRouter
Section 1
Section 1
Section 2
Step 1 Go to Start, Run, type command (for Windows 95/98/ME) or cmd (for Windows
2000/XP) and click OK. You will see the command prompt as below.
Step 2 Type ping 192.168.1.1 and press Enter. You should get four reply responses back.
Step 3 If you get Request timed out, or Destination host unreachable, double-check the
network cable connection between the computer and the router and try Step 2 again. If you
still encounter problem, go to the next step; otherwise proceed to Section 3, Configure
the Router.
Step 4 For Windows 2000/XP, type ipconfig/release and press Enter.
VerifyingConnectionto theRouter
Step 5 Type ipconfig/renew and press Enter. You should get an IP address of
192.168.1.x (where xis a number between 2 - 254). Proceed to Section 3, Configure the
Router. If you don’t get an IP address, reset the router by holding in the reset button at the
back of the router for 10 seconds while it is ON and try ipconfig/renew again.
Step 6 For Windows 95/98/ME go to Start, Run, type winipcfg and click OK.
Step 7 Select your network card from the drop-down menu and click Release.
Step 8 After your IP address is released, click Renew. You should get an IP address of
192.168.1.x (where x is a number between 2 - 254). If you don’t get an IP address, reset
the router by holding in the reset button at the back of the router for 10 seconds while it is
ON and try Renew again.
Section 3
Step 1 Open the web browser and type 192.168.1.1 in the URLAddress field and press
Enter.
Step 2 Enter admin for both username and password fields and click OK.
ConfiguringtheRouter
Cable Modem
For most cable modem users, you should be able to connect to the Internet without any
configuration. If your ISP has provided you with a host name, enter it in the optional Host
Name field.
If your ISP requires a registered MAC Address, click on the Clone MAC Address button.
Click Apply and OK to save the setting.
Goto Status tab, Internet connection sectionto verify ifyou getthe valid IPaddress
information. Ifyouhavetroubleconnecting totheInternet,pleasegothrough the
Troubleshooting sectionat theend ofthis installationguide.
Step 3 Selectthe properregion, NorthAmerica orSouthAmerica,and clickApply.
Warning: Incorrectly selectingthe currentregionof operationmayresult inillegaloperation
andmaycause harmfulinterferencetoother system.Youcanrefer totheuser manual inthe
provided CD for more details.
Step 2 Enter your username and password provided by your ISP.

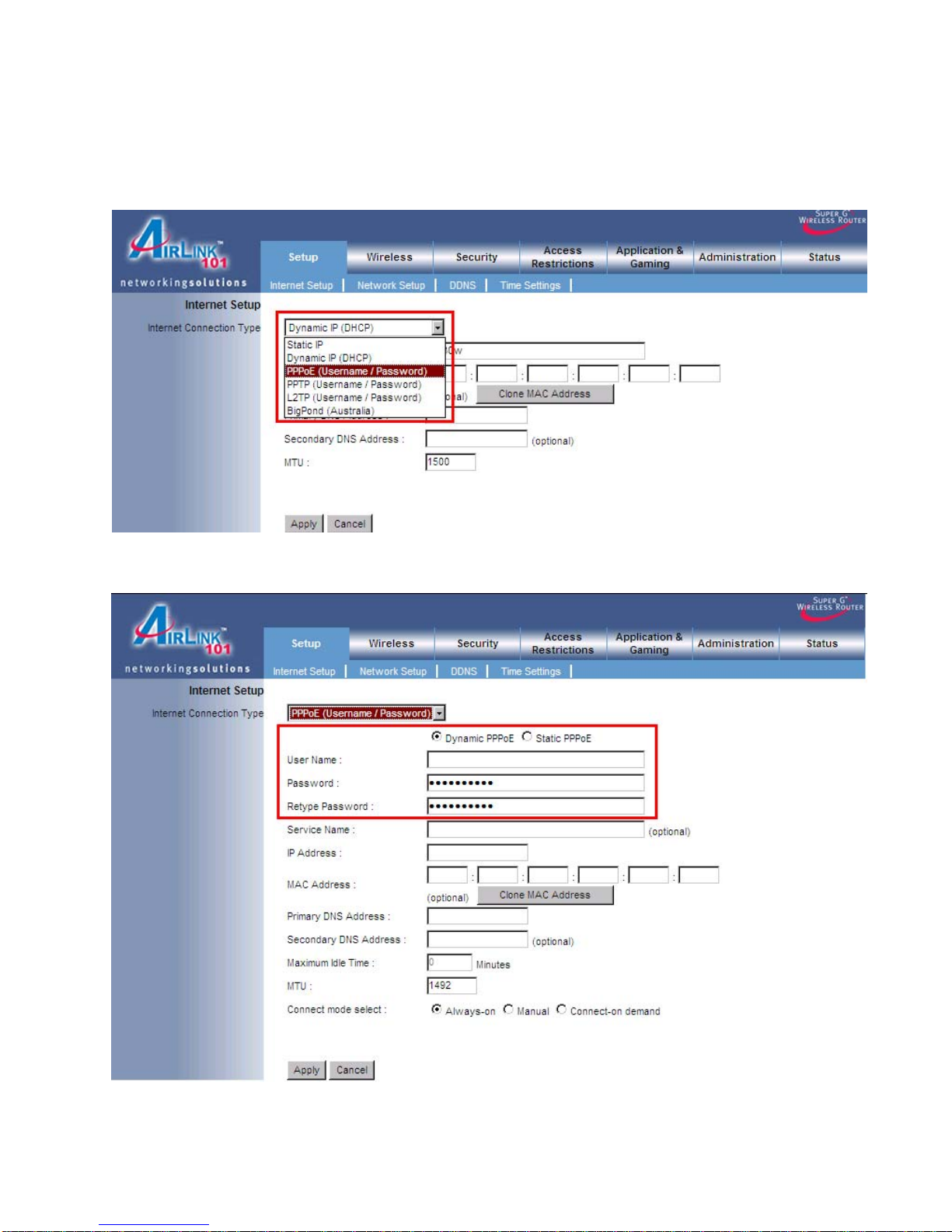

DSL
ForDSLusers,followthe stepsbelowtoconfigure therouter.
Step 1 Select PPPoE from the drop-downmenu.
Note: Dependingon theISP, youmayneed toinclude thedomainname withyour username.
Example: [email protected]
Connecting the Router Wirelessly
Below are the default wireless settings of the router. You must configure your wireless
network card to the same settings in order to establish a wireless connection to the router.
Please refer to your wireless network card’s manual on how to configure these settings.
SSID:default
Operating Mode: Infrastructure
Authentication:Open System
Channel #: 6
WEP: disabled
If you want to change the router’s wireless settings, log in to the router and select the
Wireless tab. Be sure to click Apply and OK to save the setting.
For information on changing the router’s log in password and enabling wireless encryption,
please refer to the User’s Manual in the provided CD.
Step 3 Click Apply andOK to save the setting.
Goto Status tab, Internet connection sectionto verify ifyou getthe valid IPaddress
information. Ifyouhavetroubleconnecting totheInternet,pleasegothrough the
Troubleshooting sectionat theend ofthis installationguide.
Section 4
Section 5
Troubleshooting
If you have trouble connecting to the Internet, try the following steps.
Step 1 Power off the Cable/DSL modem, router, and computer and wait for 5 minutes.
Step 2 Turn on the Cable/DSL modem and wait for the lights on the modem to settle down.
Step 3 Turn on the router and wait for the lights on the router to settle down.
Step 4 Turn on the computer.
Step 5 Reconfigure the router as described in Section 3.
Step 6 Log in to the router and select the Status tab.
Step 7 Verify that the IP Address, Default Gateway, and at least one of the DNS fields
have valid numbers assigned to them (instead of all 0’s).
If each field has a valid number assigned, the router is connected to the Internet.
Section 6
TechnicalSupport
E-mail: [email protected]
Toll Free: 1-888-746-3238
Web Site: www.airlink101.com
*Super GTM technology (108 Mbps) can only be obtained when using products with Atheros Super GTM chipset
*TheoreticalmaximumwirelesssignalratebasedonIEEEstandard802.11gspecifications.Actualdatathroughputwillvary.Network
conditions and environmental factors,includingvolumeofnetworktraffic, building materials andconstruction,mixofwireless products
used,radiofrequencyinterference(e.g.,cordlesstelephonesandmicrowaves)aswellasnetworkoverheadloweractualdatathroughput
rate.
Copyright © 2007 AirLink101. All rights reserved. AirLink101, the stylized AirLink101 logo, specific product designations, and all
other words and logos that are identified as trademarks and/or service marks are, unless noted otherwise, the trademarks and
service marks of AirLink101. All other product or service names are the property of their respective holders. AirLink101 products
are protected under numerous U.S. and foreign patents and pending applications, mask work rights, and copyrights.
