Quick Installation Guide
Model # AR525W
MIMO XR™ Wireless Broadband Router
Section 1
Connecting the Router
Note: Priortoconnectingtherouter,besuretopoweroffyourcomputer,DSL/Cablemodem,andthe
router.Toachievemaximumwirelesscoverage, tilt therouter’santennas outwardat45°angle.
Step 1 Connectoneendofanetworkcabletothe WAN port of the router and connect the other end of
the cable to the DSL/Cable modem.
Step 2 Withanothernetworkcable,connectoneend of the cable to your computer’snetwork card and
connecttheotherendtooneoftheLAN portsof the router.
Step 3 Power on the DSL/Cable modem and waitfor the lights on the modem tosettledown.
Step 4 Powerontherouterbyconnectingoneend of the supplied power adapter to the power jack of the
routerandconnectingthe other endtoanelectricaloutlet.
Step 5 Power on your computer.
Step 6 Make sure the WAN, WLAN, and the LAN port that the computer is connected to are lit. If not, try
theabovestepsagain.
This Quick Installation Guide only provides the basic instructions. For more
detailed information, please refer to the User’s Manual in the supplied CD.
Section 2
Verifying Connection to the Router
Step 1 Go to Start, Run, type command (for Windows 95/98/ME) or cmd (for Windows 2000/XP) and
clickOK.Youwillseethecommandpromptasbelow.
Step 2Type ping 192.168.1.1 and pressEnter.Youshouldgetfourreplyresponsesback.
Step 3 If you get Request timed out, or Destination host unreachable,double-checkthe network
cableconnectionbetweenthe computer and therouterandtryStep 2 again.If youstillencounter
problem, go to the next step; otherwise proceed to Section 3, Configuring the Router.
Step 4 For Windows 2000/XP, typeipconfig/release and press Enter.
Step 5Type ipconfig/renew and press Enter. You should get an IP address of 192.168.1.x (where xis
a number between 2 - 254). Proceed to Section 3, Configuring the Router. If you don’t get an IP
address,resettherouterbyholdingintheresetbuttonatthebackoftherouterfor10secondswhileitis
ONandtryipconfig/renew again.
Step 6 For Windows 95/98/ME go to Start, Run, type winipcfg and click OK.
Step 7 Selectyournetworkcardfromthedrop-downmenuandclickRelease.
Step 8After your IP address is released, click Renew. You should get an IPaddress of 192.168.1.x
(wherex isanumberbetween2-254).Ifyoudon’tgetan IP address, reset the router by holding in the
resetbuttonat the back of the router for 10secondswhileit is ON and try Renew again.
Section 3
Configuring the Router
Step 1 Open the web browser and type 192.168.1.1 intheURLAddress fieldand press Enter.
Step 2 Enter admin for both the username and password fields and click OK.
Cable Modem
Formostcablemodem users,youshouldbeable to connecttotheInternetwithout any configuration.If
yourISPhas provided you with a hostname,enteritintheoptional Host Name field. Click Apply to save
thesetting.
If your ISP requires a registered MACAddress, click on theMACAddress Clone tab, select Enabled,
andclickonthe Clone My PC’s MAC button. Click Apply tosavethesetting.
Ifyouhavetroubleconnecting to the Internet,pleaserefertotheTroubleshooting sectionatthe end of
thisguide.
DSL
ForDSLusers,followthesteps below to configuretherouter.

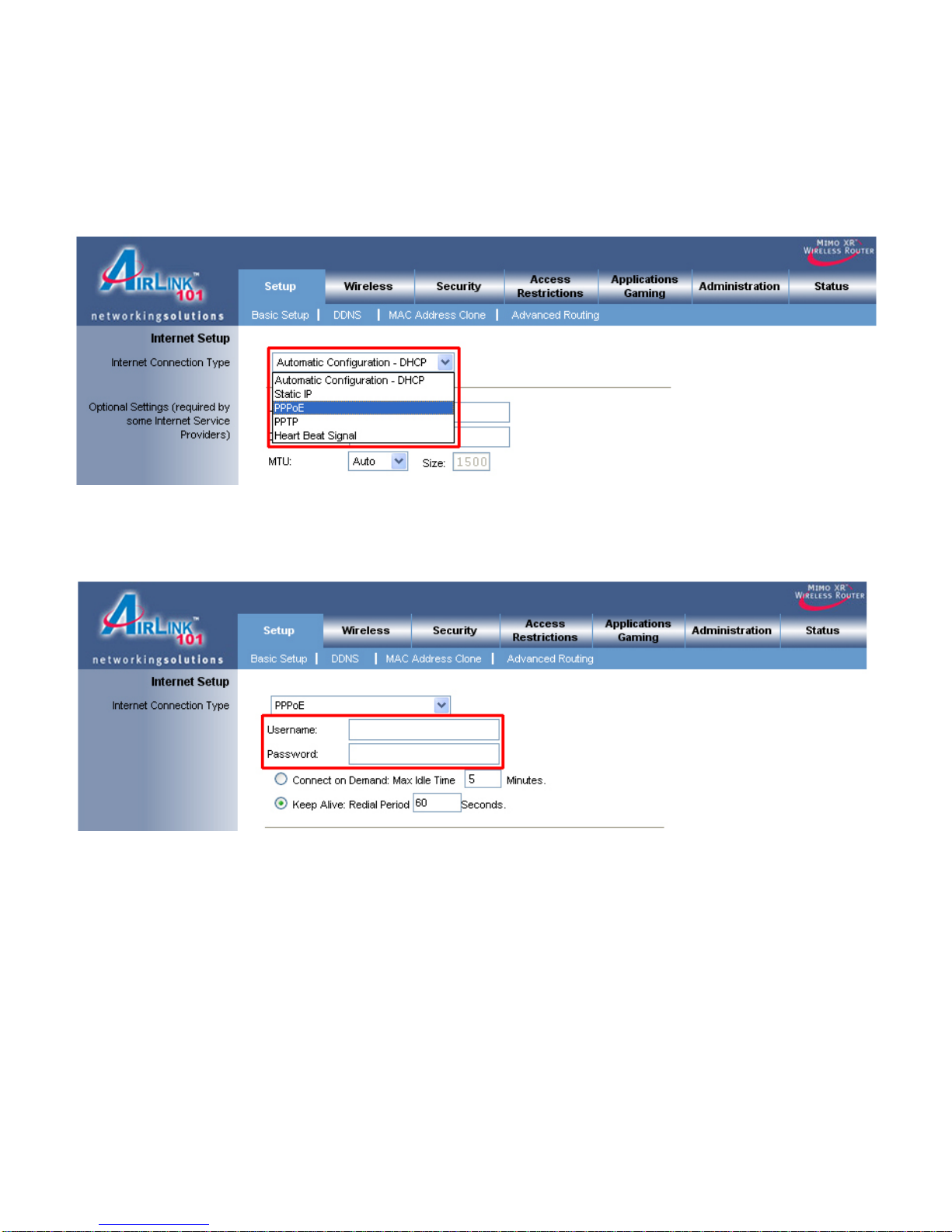

Step 1 SelectPPPoE from thedrop-downmenu.
Step 2 Enter your username and passwordprovidedbyyourISP.
Note: DependingontheISP,youmayneed to include the domainnamewithyourusername.
Example: [email protected]
Step 3Click Apply to save the setting.
Ifyouhavetroubleconnecting to the Internet,pleaserefertotheTroubleshooting sectionatthe end of
thisguide.
Section 4
Connecting to the Router Wirelessly
Belowarethedefaultwireless settings of therouter.You must configure yourwirelessnetworkcardtothe
samesettingsinordertoestablishawirelessconnectiontotherouter.Pleaserefertoyourwireless
networkcard’smanualonhow to configurethesesettings.
SSID(NetworkName):default
OperatingMode:Infrastructure
Authentication:Auto
Channel#:6
Encryption:disabled
Ifyouwanttochangetherouter’swireless settings, log in to the router andselecttheWireless tab.Be
suretoclickApply tosavethesetting.
Forinformationonchangingtherouter’slog in password and enabling wireless encryption, please refer
totheUser’sManualintheprovidedCD.
Section 5
Troubleshooting
Step 1 PowerofftheCable/DSLmodem,router, and computer and wait for5 minutes.
Step 2 Turn on the Cable/DSLmodem and wait for the lightsonthemodemtosettledown.
Step 3 Turnontherouterandwait for the lights on theroutertosettledown.
Step 4Turn onthecomputer.
Step 5 Reconfigure the router as described in Section 3.
Step 6 Log in to the router and select the Statustab.
Step 7Verify that the IPAddress,Default Gateway, and at least one of the DNS fields have valid
numbersassignedtothem(insteadofall0’s).
Ifyouhavetroubleconnectingto theInternettrythestepsbelows.
Ifyouseeall0’s, click on the IP Renew button (for Cable Modemusers)orthe Connect button (for DSL
users).
Ifeachfieldhas a valid numberassigned,therouterisconnected to the Internet.
