Airlink101 AWLL5088 Manuel utilisateur

Wireless N Ultra Mini USB Adapter

Model # AWLL5088

User’s Manual

Rev. 1.0

Table of Contents

1. Introduction ..............................................................................................................................2

1.1 Package Contents................................................................................................................2

1.2 Features...............................................................................................................................2

2. Install the Wireless Adapter .....................................................................................................3

3. Connect to the Wireless Network.............................................................................................5

4. Configure Wireless Monitor...................................................................................................13

4.1 General..............................................................................................................................13

4.2 Profile Settings .................................................................................................................14

4.3 Available Network............................................................................................................16

4.4 Status ................................................................................................................................17

4.5 Statistics............................................................................................................................18

4.6 Wi-Fi Protected Setup (WPS)...........................................................................................19

4.7 Configuring Wireless Security .........................................................................................24

4.8 Ad-hoc and Peer-to-Peer Wireless Networks...................................................................29

4.9 About ................................................................................................................................31

Appendix A - Specification ........................................................................................................32

Technical Support.......................................................................................................................33

1. Introduction

Congratulations on your purchase of the Wireless N Ultra Mini USB Adapter. The

super compact mini design gives you more flexibility and its high bandwidth combined

with extended wireless coverage delivers fast and reliable connection for all of your

networking applications. The adapter will yield a higher throughput is it is used with

other Airlink101® Wireless N products.

A full range of security features such as WEP, WPA-PSK, and WPA2-PSK will provide

you the highest level of wireless network security. The bundled wireless utility allows

you to set up the adapter with an easy-to-use user interface. The Wireless N Ultra Mini

USB Adapter works with 802.11g and 802.11b network devices ensuring compatibility

with your existing wireless products.

1.1 Package Contents

Before you begin the installation, please check the items of your package. The

package should include the following items:

•Wireless N Ultra Mini USB Adapter

•Quick Installation Guide

•Installation CD (Driver/Utility/Manual)

1.2 Features

•Higher data rate and broader coverage with Wireless N technology

•Built-in Easy Setup Button for easy connection to the existing wireless network

•WPA2, WPA, and WEP enhanced security to provide full protection for your

wireless connection

•Great for environments that need higher wireless data traffic

•Fully backward compatible with 802.11b/g

•Light-weight, super compact mini design

•RoHS compliant

2. Install the Wireless Adapter

This section provides instructions on how to install the Wireless N Ultra Mini USB

Adapter.

Step 2.1 Insert the USB adapter into an available USB slot on your computer.

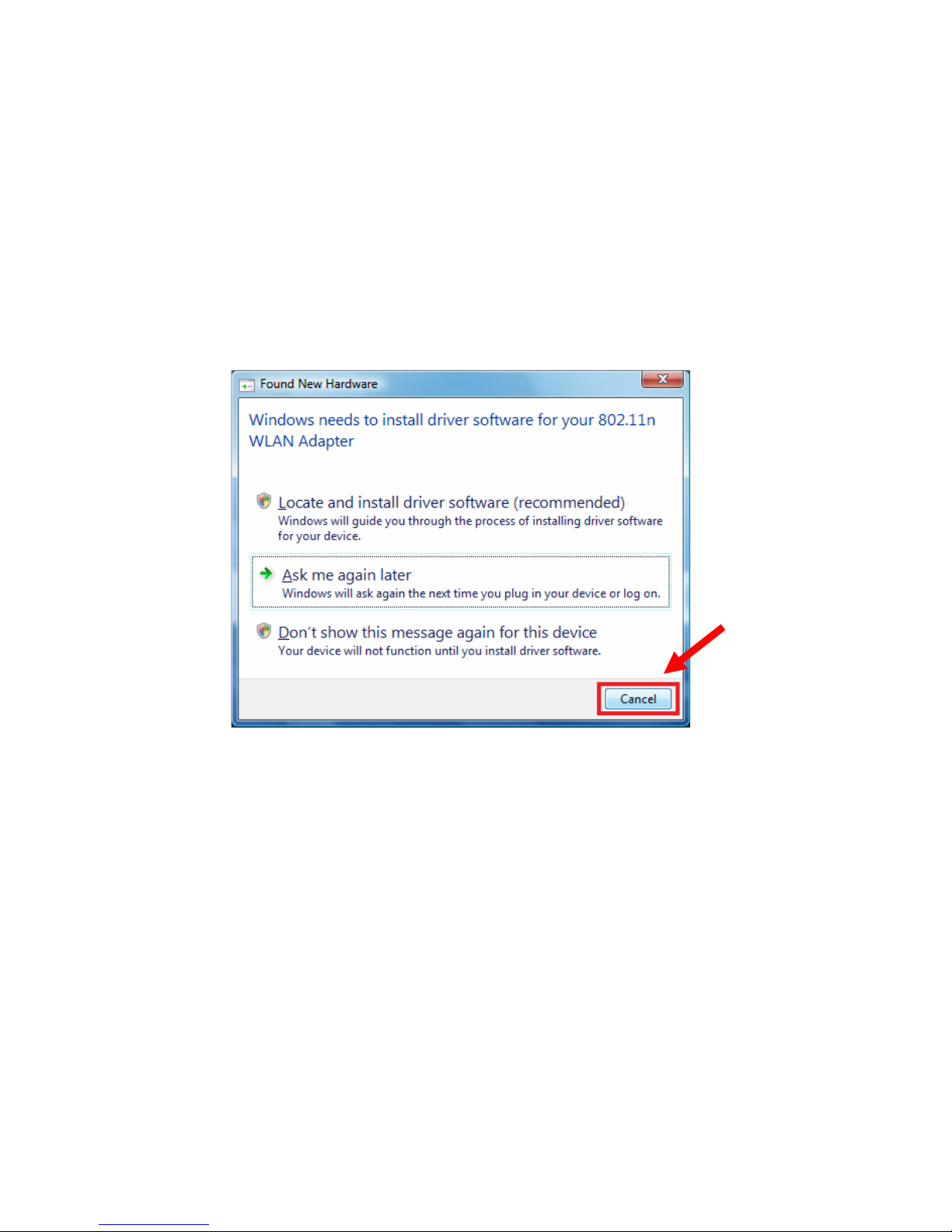

Step 2.2 Click Cancel if you see the Found New Hardware Wizard.

Windows Vista Users:

Windows XP Users:

Step 2.3 Insert the Installation CD in the CD drive.

Note:If the Autorun screen doesn’t appear automatically, go to My Computer, double

click your CD ROM drive.

Step 2.4 The Autorun screen will pop up. Select Install Utility and Driver from the

menu.

Windows 7 / Vista Users:When you get a warning message make sure you click

Allow to give permission to continue with the installation of the driver software.

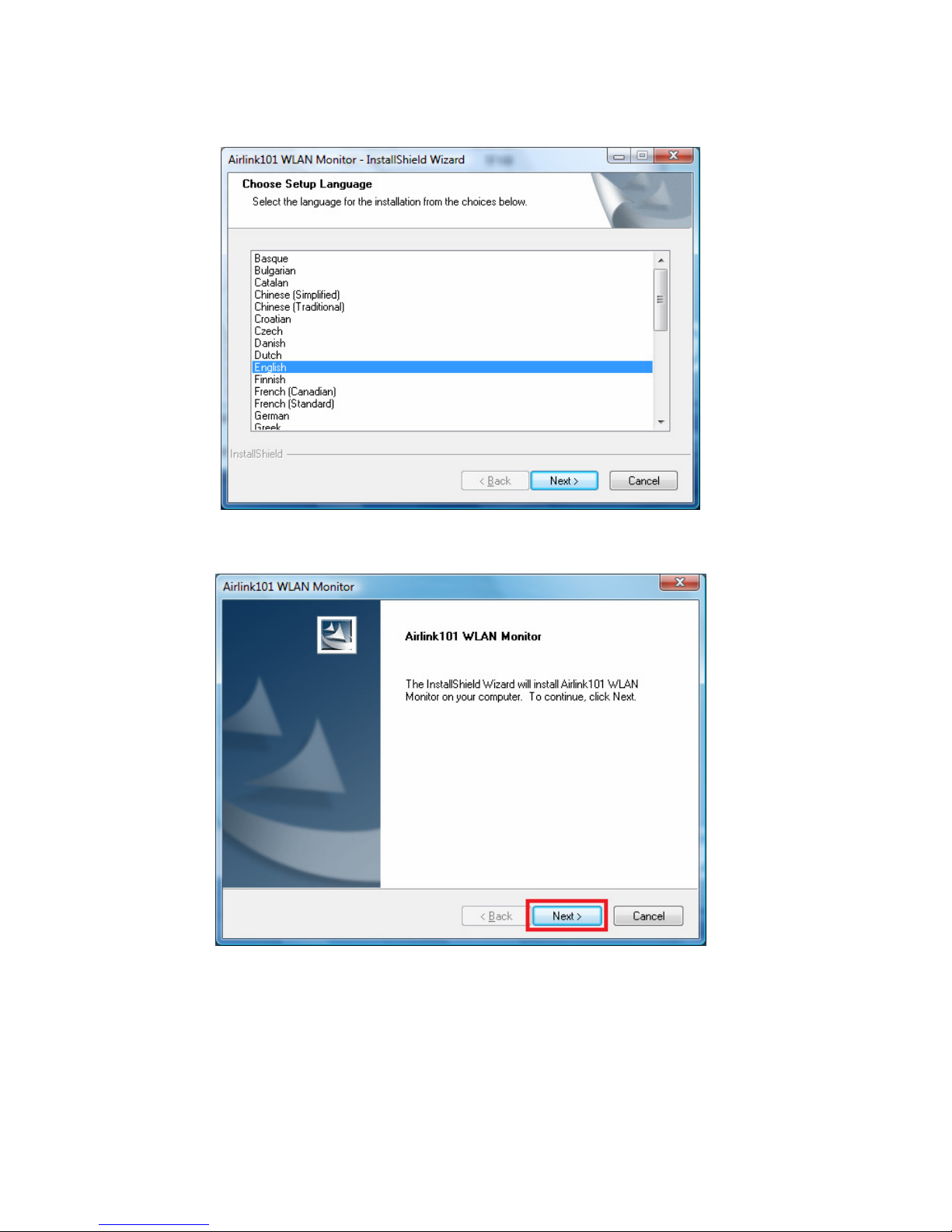

Step 2.5 Select the language and click Next.

Step 2.6 Click Next and follow the instructions on the window to finish installation.

Step 2.7 Give Permission to Window to install the driver software.

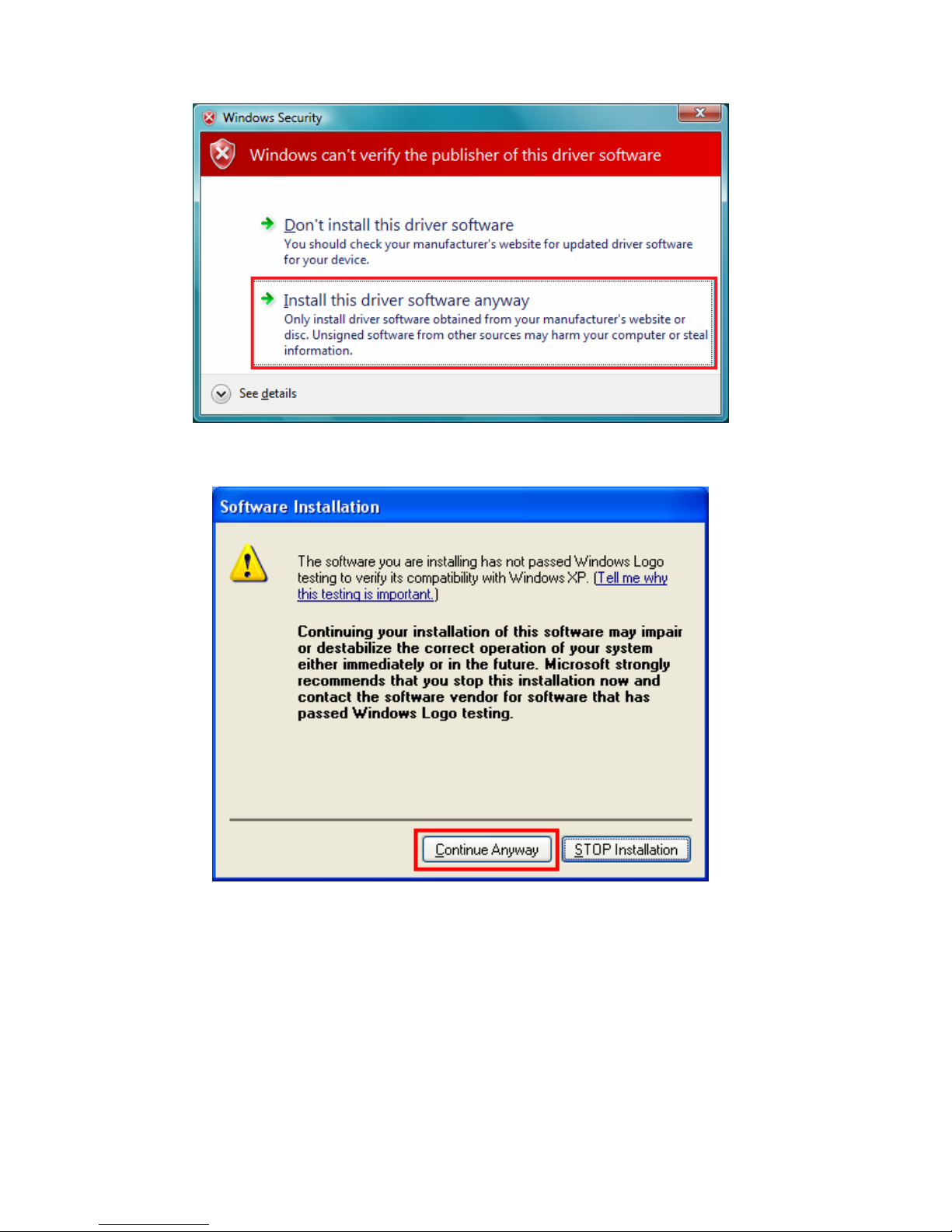

Windows 7 / Vista Users: Click the Install this driver software anyway.

Windows XP Users: Click Continue Anyway at the Windows Logo Screen.

You will see the following message when it is installing the driver for Airlink101

Wireless Adapter and the Airlink101 Wireless Monitor.

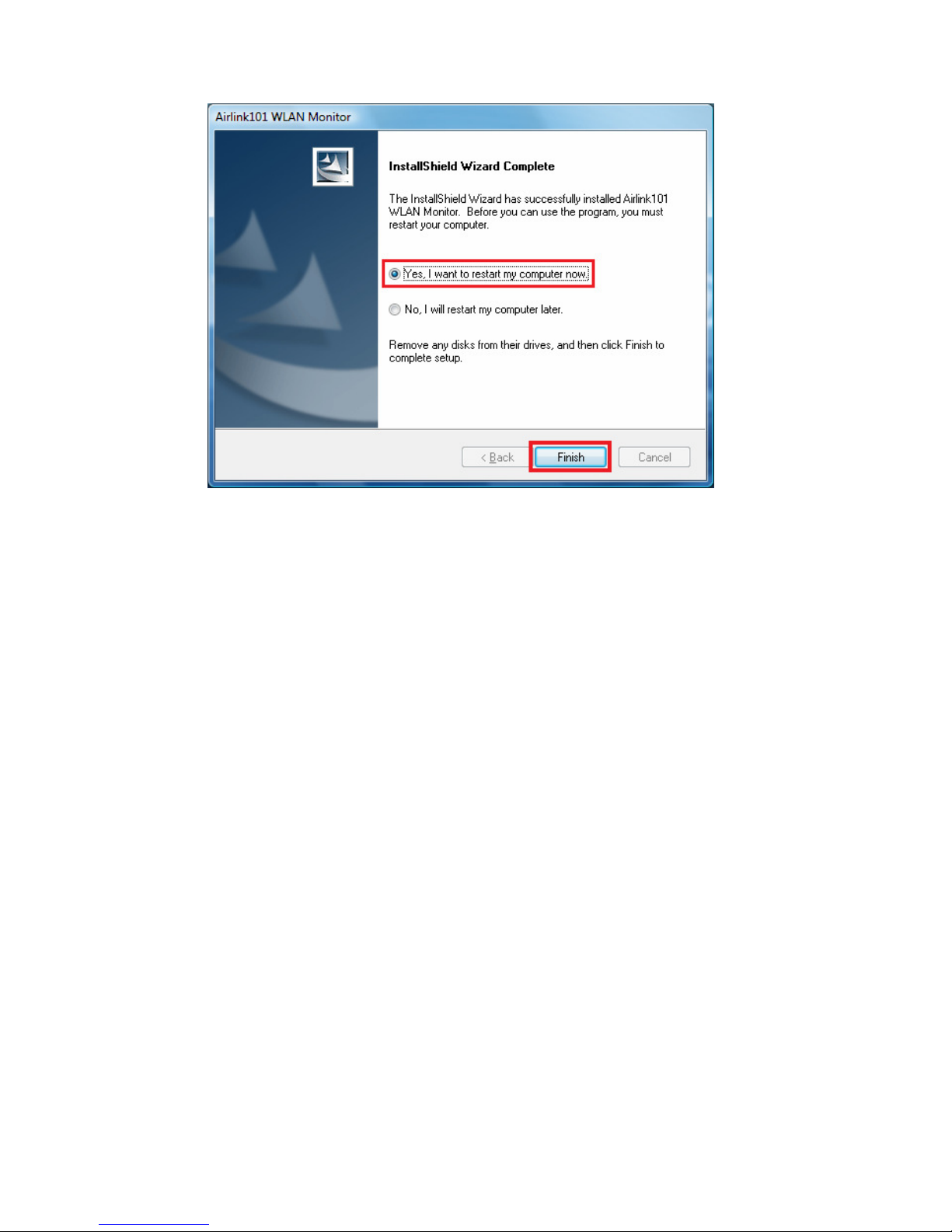

Step 2.8 Select Yes, I want to restart my computer now. Click Finish to complete

the installation.

The driver and utility have been installed successfully. Please continue to the

next chapter.

3. Connect to the Wireless Network

This section describes how to connect your wireless adapter to a wireless network.

For Windows 7 Users:

You can use the utility built in Windows 7 or Airlink101 Wireless Monitor to manage

this wireless USB adapter.

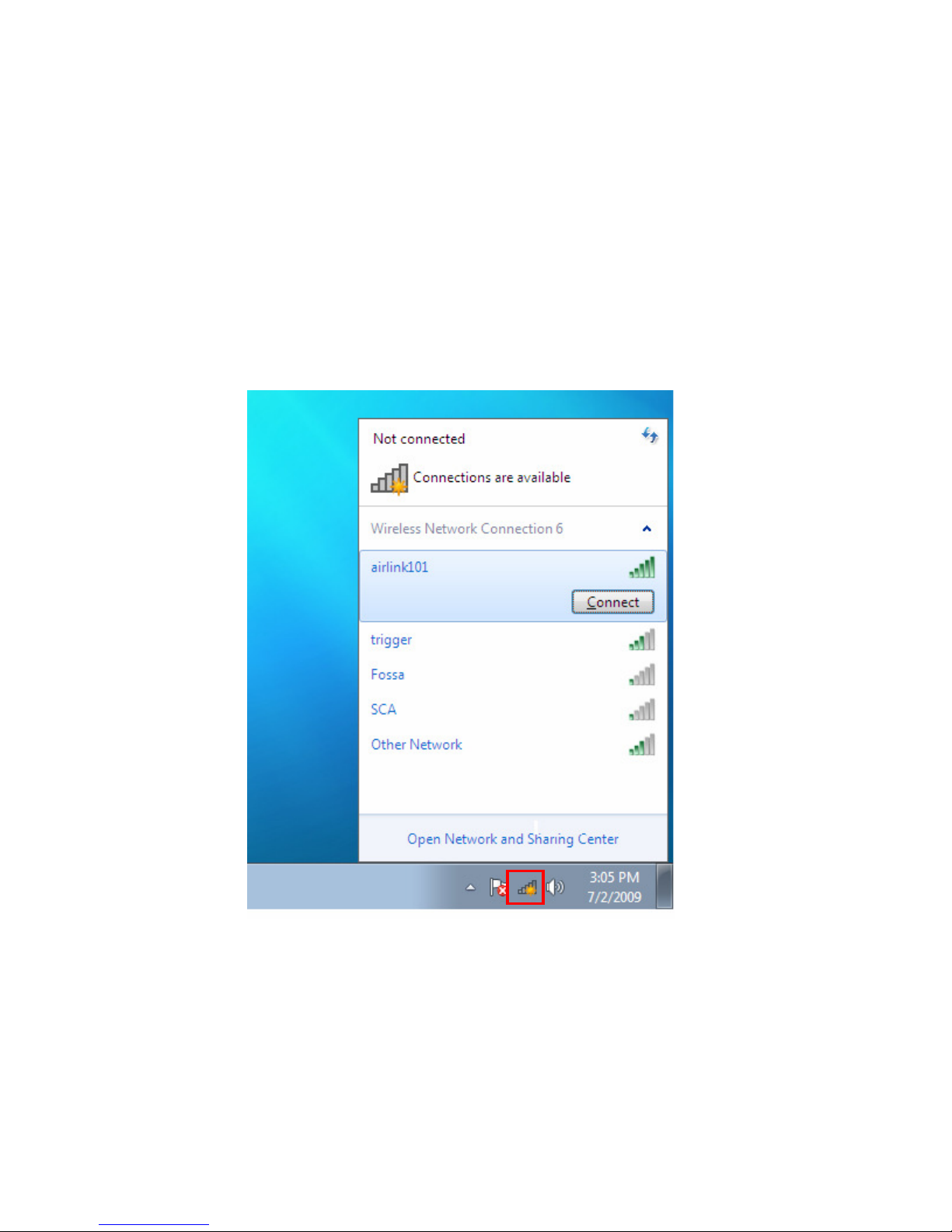

Step 3.1 Click on the wireless icon in the system tray at the bottom right-hand corner

of your screen. A list of available network will pop up. Select the one you want to

connect to and click Connect.

Step 3.2 Enter the network security key if the wireless network you are attempting to

connect to has wireless encryption enabled. Click OK. The connection should be now

established.
