Airlink101 ATVUSB01 Manuel utilisateur
Quick Installation Guide
Model #ATVUSB01
Ver. 1A
Section 1
GettingStarted
Please review the following package contents and minimum system requirements
before proceeding to install the video capture adapter. If your computer does not
meet the minimum system requirements, the video capture adapter may not work
properly.
1.1 Package Contents
Unpack your video capture adapter and make sure that all the items are intact. The
following items should be included in your package:
zAirlink101 video capture adapter
zQuick Installation Guide
zInstallation CD
1.2 Minimum System Requirements
zIntel Pentium 4 1.6GHz or above CPU
z256 MB RAM
z200 MB available hard disk space
zOne available USB port (USB 2.0 recommended)
zMicrosoft Windows 2000/XP
zVGA with DirectDraw driver supporting Overlay Surface (DirectX 8.1 supported)
zAC 97 compatible sound card
zSpeakers for audio output
zCD-ROM drive
Section 2
InstallingHardware
BeforeyouplugtheAirlink101videocaptureadapterintoyourcomputer’sUSB2.0port,pleasecheck
yourUSB2.0devicedriverfirst.IfyourUSB2.0host controller driver is not thelatestversionorprovided
byMicrosoft, we stronglyrecommendyou use our“USB2.0 Updater” utilityfromthe autorun pageonthe
CD.Itwill help you to upgrade your USB 2.0 driver to the latestversionreleasedbyMicrosoftinorder to
avoidsome compatibility issues.
Step 1 Connect the Composite In (or S-Video In) and Audio In connectors to the
output cables of your video/audio source.
Step 2 Connect the Audio Out cable of the video capture adapter to the Line In port
of your sound card.
Step 3 Connect your speakers to the Line Out port of your sound card.
Step 4 Connect the USB 2.0 connector to the USB 2.0 port of your computer.
Note: Be sure to follow the steps carefully and plug in the USB 2.0 connector last.
Section 3
InstallingVideoCaptureAdapterDriver
Before installing the driver, it is highly recommended that all background applications
such as antivirus software and system monitoring programs be disabled first.

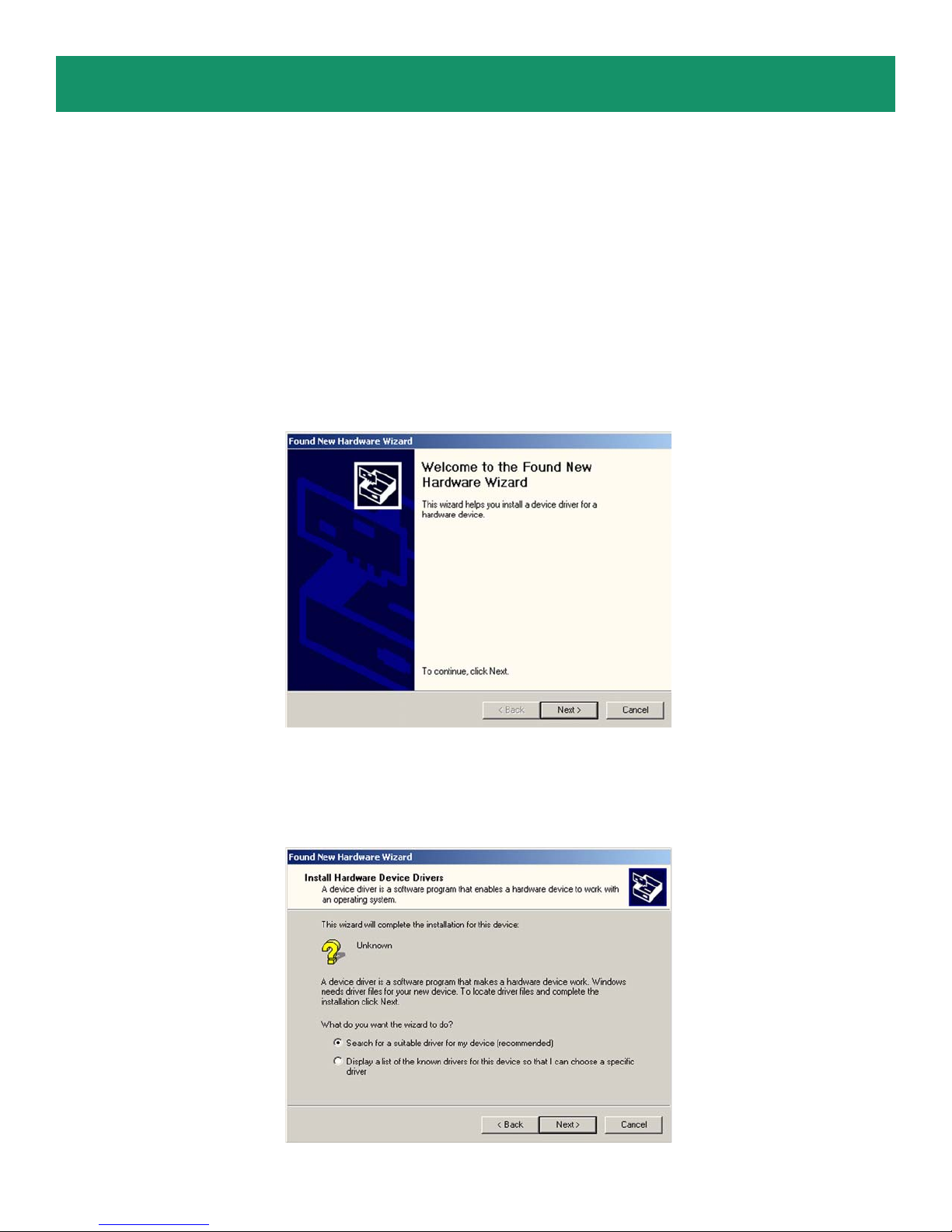

Step 1 When you plug in the video capture adapter’s USB 2.0 connector to the USB
2.0 port of your computer, the Found New Hardware Wizard will appear. Make sure
the Installation CD is still in your CD-ROM drive and click Next.
Step 2 Select Search for a suitable driver for my device and click Next. (For
Windows XP, select Install software automatically and click Next).
Step 3 Select Specify a location, deselect every other option, and click Next.
Step 4 Click Browse and browse to the Driver folder in your CD-ROM drive.
Example:D:\Driver (whereDistheletterofyour CD-ROM drive).
Step 5 Click Next to install the driver.
Step 6 Click Yes if the Microsoft Digital Signature message appears. (For
Windows XP, click Continue Anyway).
Step 7 Click Finish to complete the driver installation.
Section 4
Installing PVR-PLUS
PVR-PLUS is a set of utilities that allow you to record videos, edit video clips, burn
DVDs, and more. Before installation, it is highly recommended that all background
applications such as antivirus software and system monitoring programs be disabled
first.
Step 1 Insert the provided Installation CD and wait for the setup menu to appear.
Step 2 Select PVR PLUS at the setup menu. If the setup menu does not appear
automatically,gotoStart, Run,andtype D:\autorun.exe (where Dis theletterofyour
CD-ROM drive) and click OK.
Step 3 Click Next to begin installation.
Step 4 Click Next to accept the default Destination Location or click Browse to
choose a new location.
Step 5 Click Next to accept the default Program Folder.
Step 6 Click Finish to complete the installation.
Section 5
Using PVR-PLUS
Double-click the PVR Plus icon on your desktop to run PVR-PLUS. After you started
PVR-PLUS, you can select the application you want to use. Click on each icon to start
the application.
TVR: TVR turns your PC into a
full-featured video recorder.
MPEG Encoder: MPEG Encoder
converts DV/AVI files into MPEG/
DVD format.
Video Editor: Video Editor allows
you to edit MPEG/DVD videos.
DVD Maker: DVD Maker lets you
create VCD, SVCD, and DVD that
can be played on a PC or DVD
player.
TVR allows you to watch and record videos on your computer as well as to playback
the recordings. Click the TVR icon on the PVR-PLUS console to start TVR.
Section 6
UsingTVR
Step 1 Select your video source (Composite or S-Video) by clicking on the Input
Source Switch.
Input Source Switch
Congratulations! You have successfully set up the Airlink101 video
capture adapter. You can enjoy watching and recording videos on
your computer now. For more detailed information on how to use
TVR and other applications, please refer to the User’s Manual in
the provided Installation CD.
Step 2 Start playing videos from your video/audio source.
Section 7
TechnicalSupport
E-mail: [email protected]
Toll Free: 1-888-746-3238
Web Site: www.airlink101.com
