Agilent Technologies 3000 Series Manuel

User’s and Service Guide

Publication number D3000-97000

March 2005

3000 Series Oscilloscopes

In This Book

This book gives you the information you need to begin using the 3000 Series

Oscilloscopes. It contains the following chapters:

Getting Started Chapter 1 contains inspection, power requirements, probe

compensation instructions, cleaning instructions, and setup information.

Using the Oscilloscope Chapter 2 gives information on how to use the front

panel and the graphical user interface, and tells you how to perform various

operations with the oscilloscope.

Specifications and Characteristics Chapter 3 gives specification and

characteristics of the oscilloscope.

Service Chapter 4 gives service and performance testing information for the

oscilloscope.

Contents

Contents-1

1 Getting Started

Inspecting the Package Contents 1-2

Performing a Functional Check 1-5

Compensating Probes 1-7

Front Panel and User Interface Descriptions 1-9

Automatically Displaying a Waveform 1-12

Cleaning the Oscilloscope 1-13

2 Using the Oscilloscope

Vertical Controls 2-3

Vertical System Setup 2-4

Channel Coupling Control 2-6

Bandwidth Limit Control 2-9

Probe Attenuation Control 2-11

Invert Control 2-12

Digital Filter Controls 2-14

Math Functions Control 2-15

Reference Control 2-19

Removing Waveforms from the Display 2-21

Horizontal Controls 2-22

Horizontal System Setup 2-23

Horizontal Knobs 2-24

Horizontal Menu 2-25

Roll Mode 2-29

Trigger Controls 2-30

Trigger System Setup 2-31

Trigger Modes 2-33

Waveform Controls 2-37

Stop Acquisition 2-38

Equivalent Time Sampling 2-38

Average Acquisition 2-38

Peak Detect 2-40

Sequence Capability 2-41

Display Controls 2-43

Save and Recall Controls 2-45

Contents

Contents-2

Waveforms 2-46

Setups 2-46

Default Setup 2-46

Load 2-46

Save 2-46

Utility Controls 2-47

Mask Test 2-49

I/O Setup Menu 2-51

System Info 2-52

Self-Calibration 2-53

Self-Test 2-54

Automatic Measurement Controls 2-55

Voltage Measurements 2-56

Time Measurements 2-57

Automatic Measurement Procedure 2-58

Measurement Concepts 2-59

Cursor Measurement Controls 2-63

Manual 2-64

Track 2-66

Auto Measure 2-67

Autoscale and Run/Stop Controls 2-68

Autoscale Button 2-69

Run/Stop Button 2-71

3 Specifications and Characteristics

Specifications 3-2

Characteristics 3-3

4Service

Returning the oscilloscope to Agilent Technologies for service 4-2

Testing Performance 4-3

Before Performing Performance Verification Testing 4-5

DC Gain Accuracy Test 4-7

Analog Bandwidth - Maximum Frequency Check 4-13

Performance Test Record 4-21

Getting Started

Inspecting the Package Contents

1-2

Inspecting the Package Contents

❏Inspect the shipping container for damage.

Keep a damaged shipping container or cushioning material until you have

inspected the contents of the shipment for completeness and have checked the

oscilloscope mechanically and electrically.

❏Verify that you received the following items in the oscilloscope packaging.

• Oscilloscope

• (2) N2862A 10:1 10 MΩpassive probes (60 MHz and 100 MHz models)

• (2) N2863A 10:1 10 MΩpassive probes (150 MHz and 200 MHz models)

• CD-ROM containing user documentation

See Figure 1-1. (See table 1-1 for the power cord.) If anything is missing, contact

your nearest Agilent Technologies Sales Office. If the shipment was damaged,

contact the carrier, then contact the nearest Agilent Technologies Sales Office.

❏Inspect the oscilloscope.

• If there is mechanical damage or a defect, or if the oscilloscope does not

operate properly or does not pass performance tests, notify your Agilent

Technologies Sales Office.

• If the shipping container is damaged, or the cushioning materials show signs

of stress, notify the carrier and your Agilent Technologies Sales Office. Keep

the shipping materials for the carrier’s inspection. The Agilent Technologies

Sales Office will arrange for repair or replacement at Agilent’s option without

waiting for claim settlement.

Getting Started

Inspecting the Package Contents

1-3

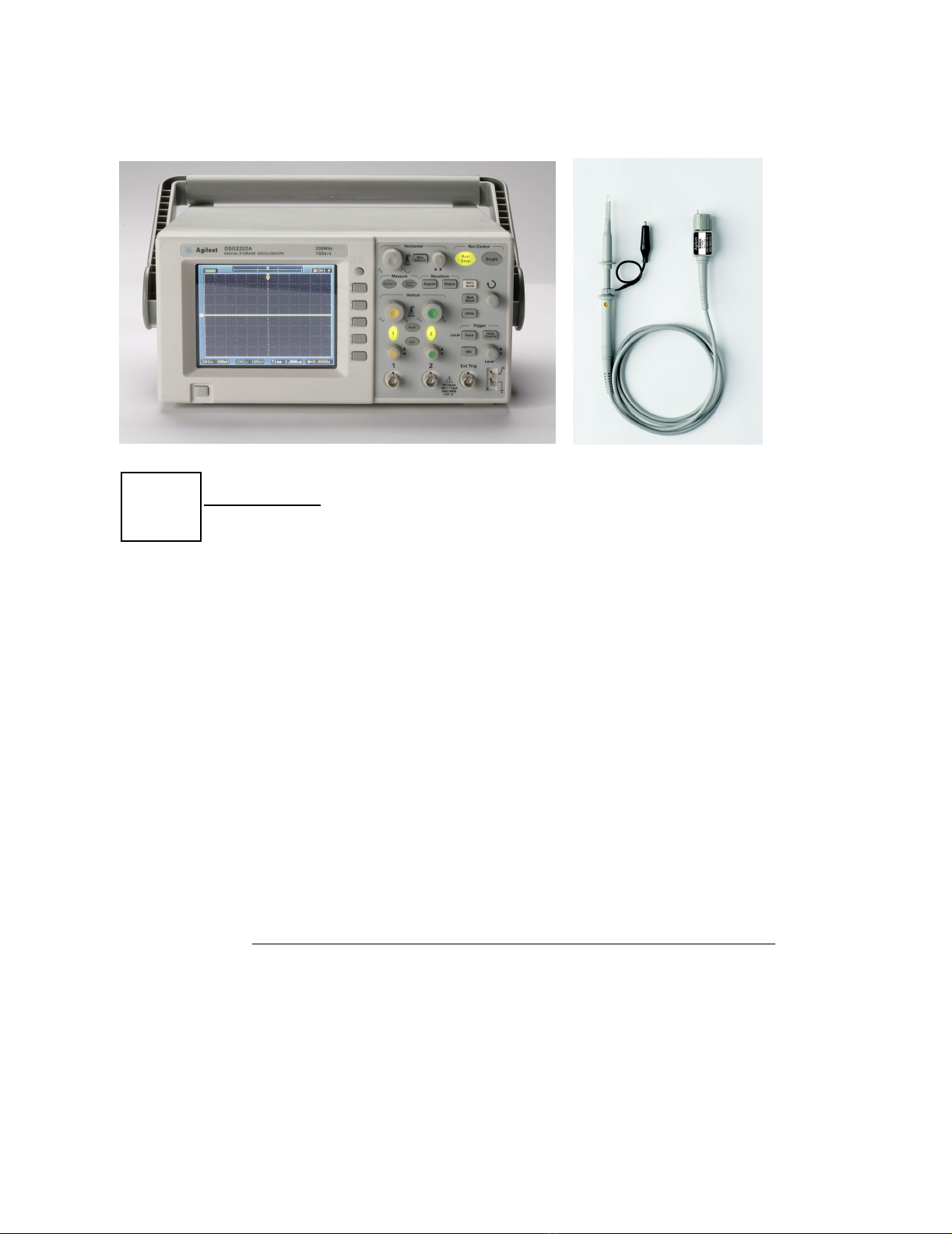

Figure 1-1

Package Contents

sCD-ROM Manuals

Getting Started

Inspecting the Package Contents

1-4

Table 1-1

Power Cords

Plug Type Cable Part

No.

Plug Description Length

(in/cm)

Color Country

250V 8120-1351

8120-1703

Straight *BS1363A

90°

90/228

Gray

Mint Gray

United Kingdom,

Cyprus, Nigeria,

Zimbabwe, Singapore

250V 8120-1369

8120-0696

Straight *NZSS198/ASC

90°

79/200

87/221

Gray

Mint Gray

Australia, New

Zealand

250V 8120-1689

8120-1692

8120-2857

Straight *CEE7-Y11

90°

Straight (Shielded)

79/200

Mint Gray

Coco Brown

East and West

Europe, Saudi Arabia,

So. Africa, India

(unpolarized in many

nations)

125V 8120-1378

8120-1521

8120-1992

Straight *NEMA5-15P

90°

Straight (Medical) UL544

90/228

96/244

Jade Gray

Black

United States,

Canada, Mexico,

Philippines, Taiwan

250V 8120-2104

8120-2296

Straight *SEV1011

1959-24507

Type 12 90°

79/200

Mint Gray

Switzerland

220V 8120-2956

8120-2957

Straight *DHCK107

90°

79/200

Mint Gray

Denmark

250V 8120-4211

8120-4600

Straight SABS164

90°

79/200

Jade Gray Republic of South

Africa

India

100V 8120-4753

8120-4754

Straight MITI

90°

90/230

Dark Gray Japan

* Part number shown for plug is the industry identifier for the plug only. Number shown for cable is the Agilent part number for the complete

cable including the plug.

Getting Started

Performing a Functional Check

1-5

Performing a Functional Check

Perform this quick functional check to verify that your oscilloscope is operating

correctly. See Figure 1-2.

1Turn on the oscilloscope. Use only power cords designed for your

oscilloscope. Use a power source that delivers 100 to 240 VAC, 47 Hz to

440 Hz. Wait until the display shows that all self-tests passed. Push the

Save/Recall button, select Setups in the top menu box and push the Default

Setup menu box.

Figure 1-2

Front Panel Controls

WARNING To avoid electric shock, be sure the oscilloscope is properly grounded.

2Input a waveform to a channel of the oscilloscope.

3Press the Autoscale button and observe the signal on the display.

Save/Recall button

Getting Started

Performing a Functional Check

1-6

CAUTION To avoid damage to the oscilloscope, make sure that the input voltage at the

BNC connector does not exceed the maximum voltage (300 Vrms maximum).
