Agilent Technologies 8753ES Manuel utilisateur

This document describes the performance

and features of the following products:

• Agilent 8753ES S-parameter vector network

analyzer

• Agilent 8753ES Option 011 vector network

analyzer without test set

• Agilent 8753ET Transmission/reflection vector

network analyzer

For more information about these analyzers,

please see the following documents:

Pub. Number

Agilent 8753ET and 8753ES 5968-5159E

Network Analyzers

Overview

Agilent 8753ET and 8753ES 5968-5158E

Network Analyzers

Configuration Guide

Agilent 8753ET/ES

8753ET and 8753ES Network

Analyzers, 30 kHz to 3 or 6 GHz

Data Sheet

Table of Contents

Definitions and Test Conditions

System Performance Summaries

Specifications and Characteristics

Measurement Throughput Summary

Options

Test Set Specifications for Option 011

Accessories

Specifications describe the instrument’s warranted

performance after a half-hour warm-up and over

the temperature range of 25° ± 5° C, unless other-

wise stated. Specifications for frequencies above

3 GHz do not apply to instruments with Option 075

(75-ohm impedance).

Supplemental characteristics are typical but non-

warranted performance parameters. These are

denoted as “typical,” “nominal,” or “approximate.”

The measurement uncertainty curves and meas-

urement port characteristics given for Agilent

Technologies 8753ES systems also apply to the

8753ES with Options 006 and 011 and the 85047A

test set (50-ohm), or the 8753ES Option 011 with

an 85046B test set (75-ohm).

Dynamic Range

System dynamic range is calculated as the differ-

ence between the receiver noise floor and the

lesser of either the source maximum output or the

receiver maximum input level. System dynamic

range applies to transmission measurements only,

since reflection measurements are limited by

directivity.

Noise floor is specified as the mean of the noise

trace over frequency. Noise floor is measured with

the test ports terminated in loads, full two-port

error correction for the 8753ES and enhanced-

response error correction for the 8753ET (with

16 averages used during isolation), 10 Hz IF band-

width (BW), maximum test port power, and no

averaging during the measurement.

Measurement Uncertainty

Measurement uncertainty curves utilize a Root

Sum Square (RSS) model for the contribution of

random errors such as noise, typical connector

repeatabilities, and test set switching; this is

combined with a worst-case model for the contri-

butions of dynamic accuracy and residual system-

atic errors.

Curves show the worst-case magnitude and phase

uncertainty for reflection and transmission meas-

urements, after a full two-port error correction for

the 8753ES and enhanced-response error correc-

tion for the 8753ET (including isolation with an

averaging factor of 16) using the specified cal kit,

with 10 Hz IF bandwidth (BW) and no averaging.

Measurement Port Characteristics

Characteristics show the residual system uncer-

tainties for uncorrected performance and after

accuracy enhancement using full two-port error

correction for the 8753ES and enhanced-response

error correction for the 8753ET. These character-

istics apply for an environmental temperature of

25° ± 5° C, with less than 1° C deviation from the

calibration temperature. Agilent 8753ET Option

004 may degrade transmission source match

as much as 2 dB, resulting in up to 0.05 dB addi-

tional uncertainty in transmission tracking.

Corrected performance indicates residual error

after calibration. It is determined by the quality

of calibration standards, system repeatability,

stability, and noise.

Uncorrected performance indicates intrinsic errors

without calibration correction applied. This is

related to the ultimate stability of a calibration.

Definitions and Test Conditions

Agilent 8753ES (50-ohm systems)

7-mm test ports

Configuration

Network analyzer 8753ES

Standard and Option 006

Calibration kit 85031B

Test-port cables 11857D

System dynamic range

30 kHz to 50 kHz 70 dB1

50 kHz to 300 kHz 90 dB1

300 kHz to 16 MHz 100 dB

16 MHz to 3 GHz 110 dB

Option 014 108 dB

3 GHz to 6 GHz 105 dB

Option 014 103 dB

Measurement Port Characteristics

Frequency Range

Corrected 30 kHz– 300 kHz– 1.3 GHz– 3 GHz–

300 kHz21.3 GHz 3 GHz 6 GHz

Directivity 55 dB 55 dB 51 dB 46 dB

Source match 55 dB 51 dB 49 dB 43 dB

Load match 55 dB 55 dB 51 dB 46 dB

Reflection ±(0.001 dB ±(0.001 dB ±(0.005 dB ±(0.020 dB

tracking +0.02 dB/°C) +0.01 dB/°C) +0.02 dB/°C) +0.03 dB/°C)

Transmission ±(0.008 dB ±(0.006 dB ±(0.009 dB ±(0.021 dB

tracking +0.02 dB/°C) +0.01 dB/°C) +0.02 dB/°C) +0.03 dB/°C)

Uncorrected

Directivity 20 dB* 35 dB 30 dB 25 dB

Source match 18 dB** 16 dB 16 dB 14 dB

Load match 18 dB** 18 dB 16 dB 14 dB

Reflection ±2.5 dB ±1 dB ±1 dB ±1.5 dB

tracking

Transmission ±2.5 dB ±1 dB ±1 dB ±1.5 dB

tracking

Crosstalk 90 dB*** 100 dB 100 dB 90 dB

*15 dB, 30 kHz to 50 kHz **10 dB, 30 kHz to 50 kHz ***60 dB, 30 kHz to 50 kHz

System Performance Summaries

1. Typical below 300 kHz.

2. Typical performance.

Reflection uncertainty

Magnitude Phase

Transmission uncertainty

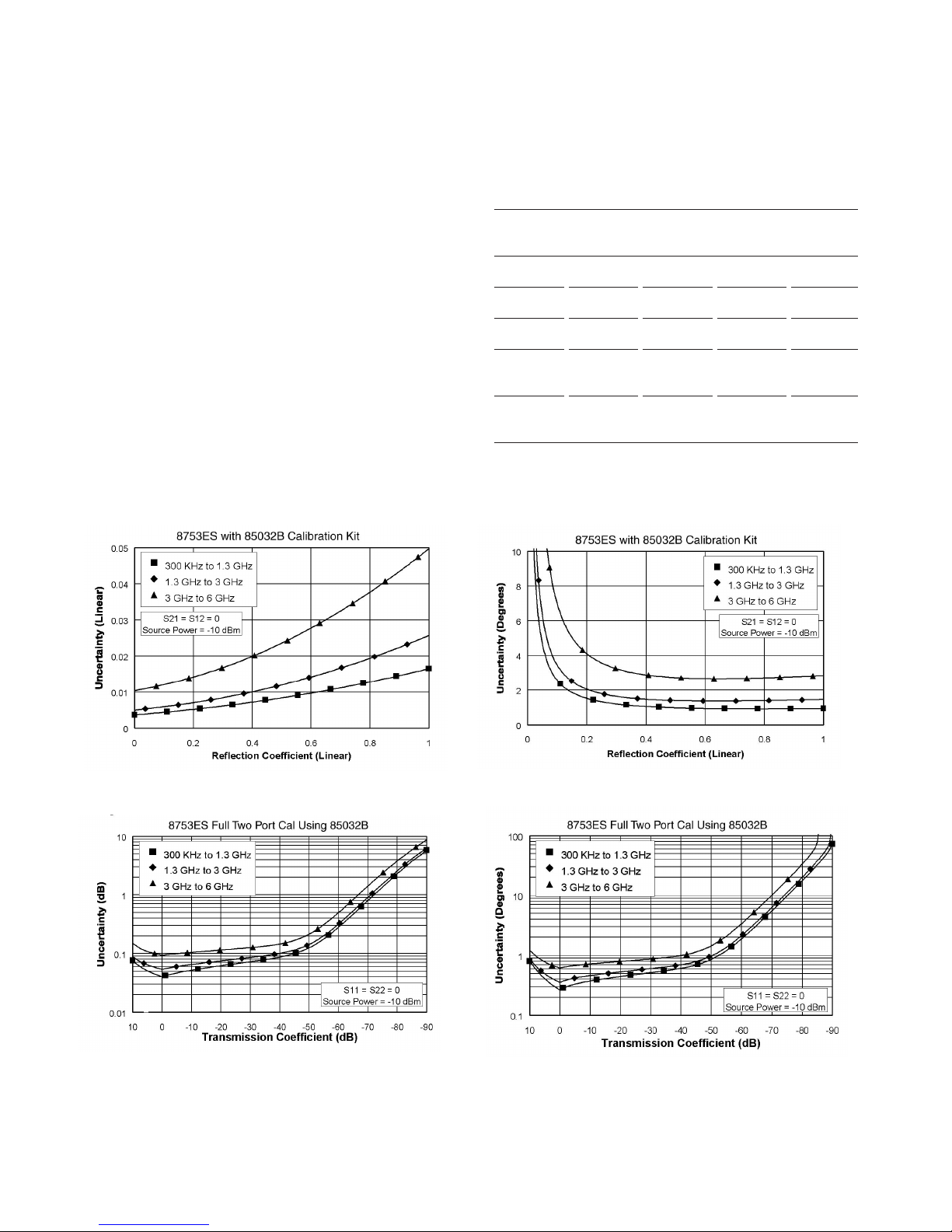

Agilent 8753ES (50-ohm systems)

Type-N test ports

Configuration

Network analyzer 8753ES

Standard and Option 006

Calibration kit 85032B

Test-port cables 11857D

System dynamic range

30 kHz to 50 kHz 70 dB1

50 kHz to 300 kHz 90 dB1

300 kHz to 16 MHz 100 dB

16 MHz to 3 GHz 110 dB

Option 014 108 dB

3 GHz to 6 GHz 105 dB

Option 014 103 dB

Measurement Port Characteristics

Frequency Range

Corrected 30 kHz– 300 kHz– 1.3 GHz– 3 GHz–

300 kHz21.3 GHz 3 GHz 6 GHz

Directivity 50 dB 50 dB 47 dB 40 dB

Source match 49 dB 42 dB 36 dB 31 dB

Load match 50 dB 50 dB 47 dB 40 dB

Reflection ±(0.005 dB ±(0.009 dB ±(0.019 dB ±(0.070 dB

tracking +0.02 dB/°C) +0.01 dB/°C) +0.02 dB/°C) +0.03 dB/°C)

Transmission ±(0.014 dB ±(0.013 dB ±(0.026 dB ±(0.065 dB

tracking +0.02 dB/°C) +0.01 dB/°C) +0.02 dB/°C) +0.03 dB/°C)

Transmission uncertainty

1. Typical below 300 kHz.

2. Typical performance.

Magnitude Phase

Reflection uncertainty

Agilent 8753ES (50-ohm systems)

3.5-mm test ports

Configuration

Network analyzer 8753ES

Standard and Option 006

Calibration kit 85033D

Test-port cables 11857D

System dynamic range

30 kHz to 50 kHz 70 dB1

50 kHz to 300 kHz 90 dB1

300 kHz to 16 MHz 100 dB

16 MHz to 3 GHz 110 dB

Option 014 108 dB

3 GHz to 6 GHz 105 dB

Option 014 103 dB

Measurement Port Characteristics

Frequency Range

Corrected 30 kHz– 300 kHz– 1.3 GHz– 3 GHz–

300 kHz21.3 GHz 3 GHz 6 GHz

Directivity 49 dB 46 dB 44 dB 38 dB

Source match 49 dB 44 dB 41 dB 37 dB

Load match 49 dB 46 dB 44 dB 38 dB

Reflection ±(0.010 dB ±(0.005 dB ±(0.007 dB ±(0.009 dB

tracking +0.02/°C) +0.01/°C) +0.02/°C) +0.03/°C)

Transmission ±(0.016 dB ±(0.014 dB ±(0.022 dB ±(0.048 dB

tracking +0.02/°C) +0.01/°C) +0.02/°C) +0.03/°C)

System Performance Summaries

1. Typical below 300 kHz.

2. Typical performance.

Transmission uncertainty

Magnitude Phase

Reflection uncertainty

Agilent 8753ES (75-Ohm Systems)

Type-N test ports

Configuration

Network analyzer 8753ES Option 075

Calibration kit 85036B

Test-port cables 11857B

System Dynamic Range

30 kHz to 50 kHz 68 dB1

50 kHz to 300 kHz 90 dB1

300 kHz to 16 MHz 96 dB

16 MHz to 3 GHz 106 dB

Measurement Port Characteristics

Frequency Range

Corrected 30 kHz–300 kHz2300 kHz–1.3 GHz 1.3 GHz–3 GHz

Directivity 48 dB 48 dB 43 dB

Source match 47 dB 41 dB 35 dB

Load match 48 dB 48 dB 43 dB

Reflection ±(0.004 dB ±(0.010 dB ±(0.019 dB

tracking +0.02 dB/°C) +0.01 dB/°C) +0.02 dB/°C)

Transmission ±(0.018 dB ±(0.016 dB ±(0.033 dB

tracking +0.02 dB/°C) +0.01 dB/°C) +0.02 dB/°C)

Uncorrected2

Directivity 20 dB* 35 dB 30 dB

Source match 16 dB** 16 dB 16 dB

Load match 15 dB** 18 dB 16 dB

Reflection ±2.5 dB ±1 dB ±1 dB

tracking

Transmission ±2.5 dB ±1 dB ±1 dB

tracking

Crosstalk 90 dB*** 100 dB 100 dB

*15 dB, 30 to 50 kHz **10 dB, 30 to 50 kHz ***60 dB, 30 to 50 kHz

1. Typical below 300 kHz.

2. Typical performance.

Transmission uncertainty

Magnitude Phase

Reflection uncertainty

Agilent 8753ES (75-ohm systems)

Type-F test ports

Configuration

Network analyzer 8753E Option 075

Calibration kit 85039B

Test-port cables 11857B

System dynamic range

30 kHz to 50 kHz 68 dB1

50 kHz to 300 kHz 90 dB1

300 kHz to 16 MHz 96 dB

16 MHz to 3 GHz 106 dB

Measurement Port Characteristics

Data is shown for a Type-F female reflection port and

a Type-F male transmission port.

Frequency Range

Corrected230 kHz–300 kHz 300 kHz–1.3 GHz 1.3 GHz–3 GHz

Directivity 45 dB 45 dB 40 dB

Source match 40 dB 40 dB 30 dB

Load match 45 dB 45 dB 40 dB

Reflection ±(0.060 dB ±(0.060 dB ±(0.024 dB

tracking +0.02 dB/°C) +0.01 dB/°C) +0.02 dB/°C)

Transmission ±(0.033 dB ±(0.019 dB ±(0.057 dB

tracking +0.02 dB/°C) +0.01 dB/°C) +0.02 dB/°C)

System Performance Summaries

1. Typical below 300 kHz.

2. Typical performance.

Transmission uncertainty

Magnitude Phase

Reflection uncertainty

1. One-port or enhanced-response calibration.

2. Enhanced-response or response-only calibration.

3. 2 dB less with Option 004.

4. Option 004 may degrade uncorrected source

match as much as 2 dB.

Transmission uncertainty

(enhanced-response calibration)

Transmission uncertainty

(response calibration)

Reflection uncertainty

(one-port calibration)

Agilent 8753ET (50-ohm systems)

Type-N test ports

Configuration

Network analyzer 8753ET Standard,

Option 006, or Option 004

Calibration kit 85032B

Test port cable Part number 8120-4781

System dynamic range

300 kHz to 16 MHz 100 dB

16 MHz to 3 GHz 110 dB

3 GHz to 6 GHz 105 dB

Measurement Port Characteristics

Frequency Range

Uncorrected 300 kHz–1.3 GHz 1.3 GHz–3.0 GHz 3.0 GHz–6.0 GHz

Directivity 30 dB 24 dB 19 dB

Source match425 dB 20 dB 14 dB

Load match 24 dB 19 dB 16 dB

Reflection ±1.0 dB ±1.0 dB ±2.0 dB

tracking

Transmission ±1.5 dB ±1.5 dB ±2.5 dB

tracking

Crosstalk 100 dB 100 dB 90 dB

Measurement Port Characteristics (continued)

Corrected

Reflection

measurements1300 kHz–1.3 GHz 1.3 GHz–3.0 GHz 3.0 GHz–6.0 GHz

Directivity 50 dB 47 dB 40 dB

Source match 42 dB 36 dB 31 dB

Load match

One-port cal 24 dB 19 dB 16 dB

Enhanced- 24 dB 19 dB 16 dB

reflection cal

Reflection ±(0.009 dB ±(0.019 dB ±(0.07 dB

tracking +0.01 dB/°C) +0.02 dB/°C) +0.03 dB/°C)

Transmission

measurements2

Source match

Enhanced- 42 dB 36 dB 31 dB

response cal

Response-only cal325 dB 20 dB 14 dB

Transmission tracking

Enhanced- ±(0.006 dB ±(0.018 dB ±(0.054 dB

response cal +0.01 dB/°C) +0.02 dB/°C) +0.03 dB/°C)

Response-only cal ±(0.033 dB ±(0.1 dB ±(0.27 dB

+0.01 dB/°C) +0.02 dB/°C) +0.03 dB/°C)

Test-Port Output Characteristics7

Frequency characteristics

Range 30 kHz to 3 GHz

Option 006 30 kHz to 6 GHz

Resolution 1 Hz

Stability9±7.5 ppm (0° to 55° C)

±3 ppm/year

Option 1D5 ±0.05 ppm (0° to 55° C),

±0.5 ppm/year

Accuracy ±10 ppm at 25° ±5° C

Power range2-85 to +10 dBm

Option 075/014 -85 to +8 dBm

Power sweep range 25 dB (typically 31 dB)

Resolution 0.01 dB

Level accuracy1,2,5 ±1.0 dB

Level linearity1,2,5 -15 dBm to +5 dBm ±0.2 dB

5 dBm to 10 dBm6±0.5 dB

Impedance950 Ω(nominal)

30 kHz to 3 GHz >16 dB RL (<1.38 SWR)

3 GHz to 6 GHz >14 dB RL (<1.50 SWR)

Option 075 75 Ω(nominal)

30 kHz to 3 GHz >16 dB RL (<1.38 SWR)

Spectral purity

2nd harmonic3<-40 dBc at 0 dBm9

<-50 dBc at -10 dBm9

Option 002 <-25 dBc at 10 dBm6

3rd harmonic4<-40 dBc at 0 dBm9

<-50 dBc at -10 dBm9

Option 002 <-25 dBc at 10 dBm6

Nonharmonic spurious9

Mixer related <-30 dBc at 10 dBm6

<-55 dBc at -10 dBm

Test-Port Input Characteristics

Frequency range 30 kHz to 3 GHz

Option 006 30 kHz to 6 GHz

Average noise level2,8

<3 GHz <-82 dBm (3 kHz BW)

<3 GHz <-102 dBm (10 Hz BW)

<3 GHz <-110 dBm (10 Hz BW) typical

3 to 6 GHz <-77 dBm (3 kHz BW)

3 to 6 GHz <-97 dBm (10 Hz BW)

3 to 6 GHz <-105 dBm (10 Hz BW) typical

Maximum input level 10 dBm

Damage level 26 dBm or 35 VDC

Impedance 50 Ω(nominal)

Option 075 75 Ω(nominal)

Frequency response2,5

300 kHz to 3 GHz ±1.0 dB

3 GHz to 6 GHz ±2.0 dB

Internally generated harmonics (Option 002)

2nd harmonic3<-15 dBc at +8 dBm

<-30 dBc at 0 dBm9

<-45 dBc at -15 dBm9

3rd harmonic4<-30 dBc at +8 dBm

<-50 dBc at 0 dBm9

<-50 dBc at -15 dBm9

Harmonic measurement accuracy10

300 kHz to 3 GHz ±1.5 dB

3 GHz to 6 GHz ±3 dB (Option 006)

Harmonic measurement dynamic range

-40 dBc (output = -10 dBm, input = <-15 dBm)9

Frequency offset mode11

Frequency range 300 kHz to 3 GHz

Option 006 300 kHz to 6 GHz

R-channel input requirements

Power level

300 kHz to 3 GHz 0 to -35 dBm

3 GHz to 6 GHz 0 to -30 dBm

LO spectral purity (typical)

Maximum spurious input <-25 dBc

Residual FM <20 kHz

LO frequency accuracy9±1 MHz at nominal frequency

Agilent 8753ES Specifications

1. Relative to 0 dBm output power.

2. Typical below 300 kHz.

3. 16 MHz to 3 GHz.

4. 16 MHz to 2 GHz.

5. Typical from 2 to 3 GHz for instruments with Option 075.

6. +8 dBm maximum with Option 075, or Option 014.

7. Test performed on port 1 only.

8. Instruments with Option 075 are degraded 2 dB.

9. Typical performance.

10. 25° ±5° C.

11. The Agilent 8753ES source characteristics and measurement accuracy in this

mode are dependent on the stability of the external LO source. The RF source

tracks the LO to maintain a stable IF signal at the R-channel receiver input.

Degradation in accuracy is negligible when using an Agilent 8642A/B, 8656B,

or E4432B RF signal generator as the LO source.

Autres manuels pour 8753ES

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Agilent Technologies Instrument de mesure

Agilent Technologies

Agilent Technologies E5072A Manuel utilisateur

Agilent Technologies

Agilent Technologies 4395A Manuel utilisateur

Agilent Technologies

Agilent Technologies U1731A Manuel utilisateur

Agilent Technologies

Agilent Technologies 4294A Manuel utilisateur

Agilent Technologies

Agilent Technologies 55B AA Manuel utilisateur

Agilent Technologies

Agilent Technologies 490 Micro GC Manuel utilisateur

Agilent Technologies

Agilent Technologies 81200 Manuel utilisateur

Agilent Technologies

Agilent Technologies 83483A Manuel utilisateur

Agilent Technologies

Agilent Technologies 35670A Manuel utilisateur

Agilent Technologies

Agilent Technologies PSA Series Manuel utilisateur

Agilent Technologies

Agilent Technologies Flow Tracker Series Manuel utilisateur

Agilent Technologies

Agilent Technologies ESA-E Series Manuel utilisateur

Agilent Technologies

Agilent Technologies 8753ET Guide de configuration

Agilent Technologies

Agilent Technologies N4962A Manuel utilisateur

Agilent Technologies

Agilent Technologies 8590L Manuel utilisateur

Agilent Technologies

Agilent Technologies PNA Series Mode d'emploi

Agilent Technologies

Agilent Technologies E8363BU/CU-068 Manuel d'installation et d'exploitation

Agilent Technologies

Agilent Technologies PSA Series Manuel d'installation et d'exploitation

Agilent Technologies

Agilent Technologies E2730A Manuel utilisateur

Agilent Technologies

Agilent Technologies E5500A Manuel utilisateur

Agilent Technologies

Agilent Technologies N1911A Manuel utilisateur

Agilent Technologies

Agilent Technologies 4500 Series Manuel utilisateur

Agilent Technologies

Agilent Technologies N5225-60114 Manuel d'installation et d'exploitation

Agilent Technologies

Agilent Technologies N1911A Mode d'emploi

Manuels Instrument de mesure populaires d'autres marques

Suaoki

Suaoki D40 Manuel utilisateur

Elster

Elster BK-G1.6 Manuel utilisateur

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuel

Duratool

Duratool D03128 Manuel utilisateur

Vega

Vega VEGAPULS 65 Manuel utilisateur

Tonghui

Tonghui TH2618B Manuel utilisateur

Tenmars

Tenmars TM-801 Manuel utilisateur

MSR

MSR 145 Manuel utilisateur

TPS

TPS WP-82 Manuel utilisateur

ELMETRON

ELMETRON CP-511 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 003C30 Manuel utilisateur

Tenma

Tenma 72-10465 Manuel utilisateur

Endress+Hauser

Endress+Hauser Proline Promag 50 Caractéristiques techniques

Siemens

Siemens SITRANS F Coriolis FCT030 Manuel de la liste des pièces

KLINGER

KLINGER CMF V Series Manuel utilisateur

EXFO

EXFO FTB-2 Manuel d'exploitation et d'entretien

Keysight

Keysight M8290A Manuel utilisateur

ADTEK

ADTEK MW-5 Manuel utilisateur
