Agilent 1260 Infinity Micro

Degasser

User Manual

1260 Infinity Micro Degasser User Manual

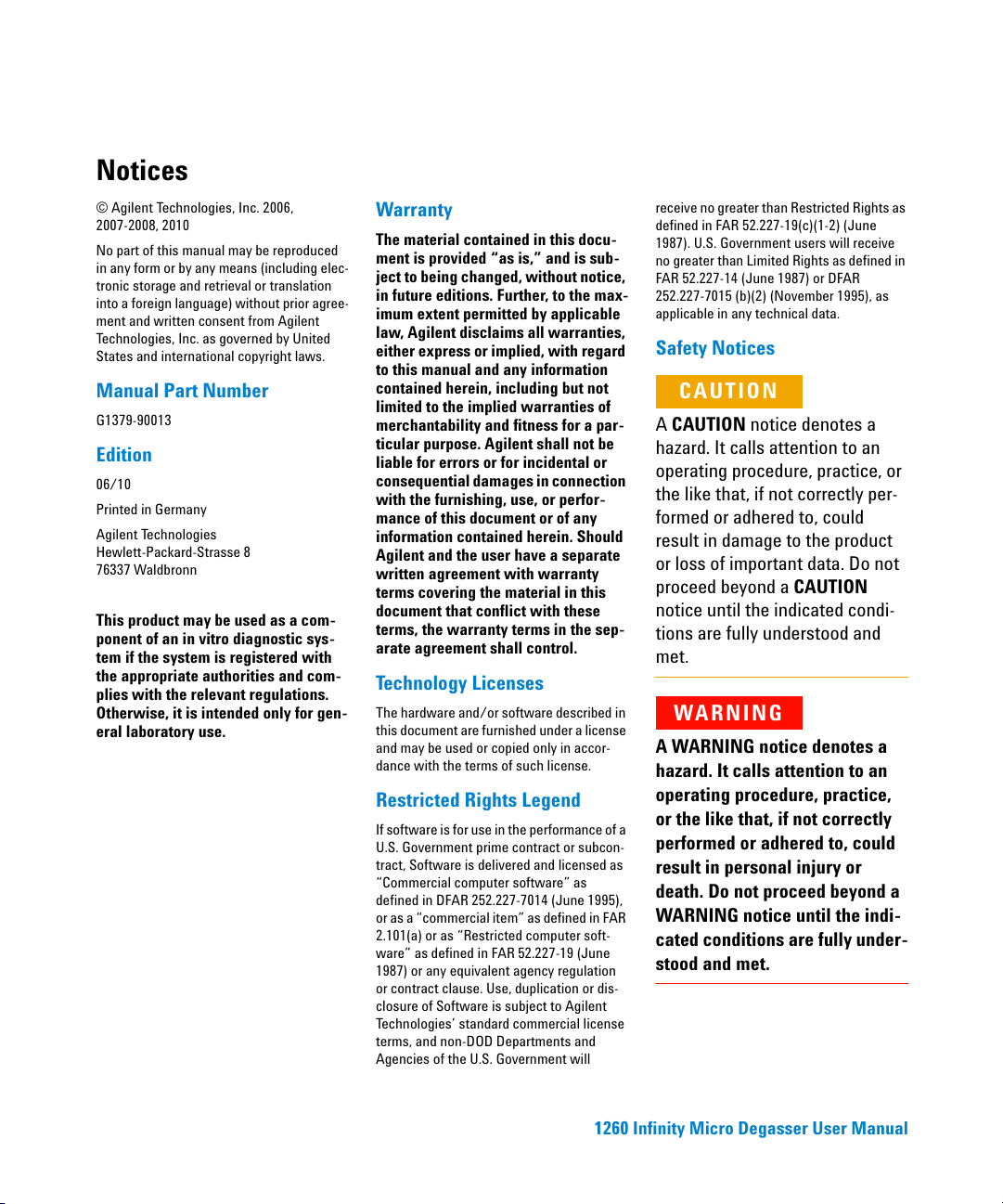

Notices

2007-2008, 2010

No part of this manual may be reproduced

in any form or by any means (including elec-

tronic storage and retrieval or translation

into a foreign language) without prior agree-

ment and written consent from Agilent

Technologies, Inc. as governed by United

States and international copyright laws.

Manual Part Number

G1379-90013

Edition

06/10

Printed in Germany

Agilent Technologies

Hewlett-Packard-Strasse 8

76337 Waldbronn

This product may be used as a com-

ponent of an in vitro diagnostic sys-

tem if the system is registered with

the appropriate authorities and com-

plies with the relevant regulations.

Otherwise, it is intended only for gen-

eral laboratory use.

Warranty

The material contained in this docu-

ment is provided “as is,” and is sub-

ject to being changed, without notice,

in future editions. Further, to the max-

imum extent permitted by applicable

law, Agilent disclaims all warranties,

either express or implied, with regard

to this manual and any information

contained herein, including but not

limited to the implied warranties of

merchantability and fitness for a par-

ticular purpose. Agilent shall not be

liable for errors or for incidental or

consequential damages in connection

with the furnishing, use, or perfor-

mance of this document or of any

information contained herein. Should

Agilent and the user have a separate

written agreement with warranty

terms covering the material in this

document that conflict with these

terms, the warranty terms in the sep-

arate agreement shall control.

Technology Licenses

The hardware and/or software described in

this document are furnished under a license

and may be used or copied only in accor-

dance with the terms of such license.

Restricted Rights Legend

If software is for use in the performance of a

U.S. Government prime contract or subcon-

tract, Software is delivered and licensed as

“Commercial computer software” as

defined in DFAR 252.227-7014 (June 1995),

or as a “commercial item” as defined in FAR

2.101(a) or as “Restricted computer soft-

ware” as defined in FAR 52.227-19 (June

1987) or any equivalent agency regulation

or contract clause. Use, duplication or dis-

closure of Software is subject to Agilent

Technologies’ standard commercial license

terms, and non-DOD Departments and

Agencies of the U.S. Government will

receive no greater than Restricted Rights as

defined in FAR 52.227-19(c)(1-2) (June

1987). U.S. Government users will receive

no greater than Limited Rights as defined in

FAR 52.227-14 (June 1987) or DFAR

252.227-7015 (b)(2) (November 1995), as

applicable in any technical data.

Safety Notices

CAUTION

A CAUTION notice denotes a

hazard. It calls attention to an

operating procedure, practice, or

the like that, if not correctly per-

formed or adhered to, could

result in damage to the product

or loss of important data. Do not

proceed beyond a CAUTION

notice until the indicated condi-

tions are fully understood and

met.

WARNING

A WARNING notice denotes a

hazard. It calls attention to an

operating procedure, practice,

or the like that, if not correctly

performed or adhered to, could

result in personal injury or

death. Do not proceed beyond a

WARNING notice until the indi-

cated conditions are fully under-

stood and met.

1260 Infinity Micro Degasser User Manual 3

Contents

1 Introduction 5

Introduction to the Micro Vacuum Degasser 6

2 Site Requirements and Specifications 7

Site Requirements 8

Physical Specifications 11

Performance Specifications 12

3 Installing the Micro Vacuum Degasser 13

Unpacking the Micro Vacuum Degasser 14

Optimizing the Stack Configuration 16

Installing the Micro Vacuum Degasser 19

Flow Connections to the Micro Vacuum Degasser 21

Operational Hints for the Micro Vacuum Degasser 24

Transporting the Micro Vacuum Degasser 27

4 Using the Micro Vacuum Degasser 29

When to Use a Micro Vacuum Degasser? 30

Solvent Information 32

5 Optimizing Performance 35

Increasing the Degasser Performance and Degassing Level 36

6 Troubleshooting and Diagnostics 37

Overview of the Degasser's Indicators 38

Status Indicators 39

Hardware Symptoms 41

7 Maintenance 45

Introduction to Maintenance and Repair 46

41260 Infinity Micro Degasser User Manual

Contents

8 Parts and Materials for Maintenance 57

Cover Parts cover 58

Sheet Metal Kit 59

Power and Status Light Pipes 60

Accessory Kit 61

9 Cable overview 63

Overview 64

Remote Cable 66

10 Appendix 69

General Safety Information 70

The Waste Electrical and Electronic Equipment "WEEE) Directive

(2002/96/EC) 73

Radio Interference 74

Sound Emission 75

Agilent Technologies on Internet 76

1260 Infinity Micro Degasser User Manual

Agilent Technologies

Introduction

Introduction to the Micro Vacuum Degasser 6

61260 Infinity Micro Degasser User Manual

1Introduction

Introduction to the Micro Vacuum Degasser

The Agilent 1260 Infinity micro vacuum degasser, model G1379B, comprises a

4-channel vacuum container, including 4 micro structured membranes, and a

vacuum pump. When the micro vacuum degasser is switched on, the control

circuit turns on the vacuum pump, which is operated with constant speed and

voltage generates a partial vacuum in the vacuum container. The pressure is

measured by a pressure sensor. The micro vacuum degasser maintains the

partial vacuum with the help of a controlled leak in the degasser’s

proportional valve and by varying size of the controlled leak within the

proportional valve, depending on the signal from the pressure sensor.

The LC pump draws the solvents from their bottles through the special plastic

membranes of the vacuum container. As the solvents pass through the vacuum

chambers any dissolved gas in the solvents permeates through the membranes

into the vacuum container. The solvents will be almost completely degassed

when leaving the outlets of the micro vacuum degasser.

Figure 1 Overview (only one of the four solvent channels is shown)

EjbeHZchdgHdakZciKVXjjbXdciV^cZg)b^XgdhigjXijgZYhjeedgiZYbZbWgVcZhKVXjjbejbe8dcigdaX^gXj^i

1260 Infinity Micro Degasser User Manual

Agilent Technologies

Site Requirements and Specifications

Site Requirements 8

Physical Specifications 11

Performance Specifications 12

81260 Infinity Micro Degasser User Manual

2Site Requirements and Specifications

Site Requirements

A suitable environment is important to ensure optimal performance of the

instrument.

Power Considerations

The module power supply has wide ranging capability. It accepts any line

voltage in the range described in Table 1 on page 11. Consequently there is no

voltage selector in the rear of the module. There are also no externally

accessible fuses, because automatic electronic fuses are implemented in the

power supply.

WARNING Hazard of electrical shock or damage of your instrumentation

can result, if the devices are connected to a line voltage higher than specified.

➔Connect your instrument to the specified line voltage only.

WARNING Module is partially energized when switched off, as long as the power cord is

plugged in.

Repair work at the module can lead to personal injuries, e.g. electrical shock, when

the cover is opened and the module is connected to power.

➔Always unplug the power cable before opening the cover.

➔Do not connect the power cable to the instrument while the covers are removed.

1260 Infinity Micro Degasser User Manual 9

Site Requirements and Specifications 2

Site Requirements

Power Cords

Different power cords are offered as options with the module. The female end

of all power cords is identical. It plugs into the power-input socket at the rear.

The male end of each power cord is different and designed to match the wall

socket of a particular country or region.

CAUTION Unaccessable power plug.

In case of emergency it must be possible to disconnect the instrument from the power

line at any time.

➔Make sure the power connector of the instrument can be easily reached and

unplugged.

➔Provide sufficient space behind the power socket of the instrument to unplug the

cable.

WARNING Absence of ground connection or use of unspecified power cord

The absence of ground connection or the use of unspecified power cord can lead to

electric shock or short circuit.

➔Never operate your instrumentation from a power outlet that has no ground

connection.

➔Never use a power cord other than the Agilent Technologies power cord designed

for your region.

WARNING Use of unsupplied cables

Using cables not supplied by Agilent Technologies can lead to damage of the

electronic components or personal injury.

➔Never use cables other than the ones supplied by Agilent Technologies to ensure

proper functionality and compliance with safety or EMC regulations.

10 1260 Infinity Micro Degasser User Manual

2Site Requirements and Specifications

Site Requirements

Bench Space

The module dimensions and weight (see Table 1 on page 11) allow you to place

the module on almost any desk or laboratory bench. It needs an additional

2.5 cm (1.0 inches) of space on either side and approximately 8 cm

(3.1 inches) in the rear for air circulation and electric connections.

If the bench should carry an Agilent system, make sure that the bench is

designed to bear the weight of all modules.

The module should be operated in a horizontal position.

Condensation

WARNING Unintended use of supplied power cords

Using power cords for unintended purposes can lead to personal injury or damage of

electronic equipment.

➔Never use the power cords that Agilent Technologies supplies with this instrument

for any other equipment.

CAUTION Condensation within the module

Condensation will damage the system electronics.

➔Do not store, ship or use your module under conditions where temperature

fluctuations could cause condensation within the module.

➔If your module was shipped in cold weather, leave it in its box and allow it to warm

slowly to room temperature to avoid condensation.

Autres manuels pour 1260 Infinity

Table des matières

Autres manuels Agilent Technologies Instrument de mesure

Agilent Technologies

Agilent Technologies 85103E Manuel utilisateur

Agilent Technologies

Agilent Technologies E5071C ENA Series Manuel utilisateur

Agilent Technologies

Agilent Technologies 5185-5991 Manuel utilisateur

Agilent Technologies

Agilent Technologies 437B Manuel utilisateur

Agilent Technologies

Agilent Technologies 2100 Bioanalyzer System Mode d'emploi

Agilent Technologies

Agilent Technologies E5062A ENA-L Series Guide de démarrage rapide

Agilent Technologies

Agilent Technologies E4406A VSA Series Manuel

Agilent Technologies

Agilent Technologies 4284A Manuel utilisateur

Agilent Technologies

Agilent Technologies Agilent 7890 Series Mode d’emploi

Agilent Technologies

Agilent Technologies 4349B Manuel utilisateur

Agilent Technologies

Agilent Technologies ENA Series Manuel utilisateur

Agilent Technologies

Agilent Technologies 4349B Manuel utilisateur

Agilent Technologies

Agilent Technologies OmniBER OTN J7232A Mode d’emploi

Agilent Technologies

Agilent Technologies TS-5410 Mode d'emploi

Agilent Technologies

Agilent Technologies E5070B ENA Series Manuel utilisateur

Agilent Technologies

Agilent Technologies 5062-8218 Manuel d'installation et d'exploitation

Agilent Technologies

Agilent Technologies 34134A Manuel utilisateur

Agilent Technologies

Agilent Technologies 6811B Manuel utilisateur

Agilent Technologies

Agilent Technologies PN 8510-16 Guide de démarrage rapide

Agilent Technologies

Agilent Technologies N9030A Manuel utilisateur

Agilent Technologies

Agilent Technologies PNA Series Manuel utilisateur

Agilent Technologies

Agilent Technologies 4284A Manuel utilisateur

Agilent Technologies

Agilent Technologies 8960 Manuel utilisateur

Agilent Technologies

Agilent Technologies E8361C Guide de démarrage rapide

Manuels Instrument de mesure populaires d'autres marques

Suaoki

Suaoki D40 Manuel utilisateur

Elster

Elster BK-G1.6 Manuel utilisateur

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuel

Duratool

Duratool D03128 Manuel utilisateur

Vega

Vega VEGAPULS 65 Manuel utilisateur

Tonghui

Tonghui TH2618B Manuel utilisateur

Tenmars

Tenmars TM-801 Manuel utilisateur

MSR

MSR 145 Manuel utilisateur

TPS

TPS WP-82 Manuel utilisateur

ELMETRON

ELMETRON CP-511 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 003C30 Manuel utilisateur

Tenma

Tenma 72-10465 Manuel utilisateur

Endress+Hauser

Endress+Hauser Proline Promag 50 Caractéristiques techniques

Siemens

Siemens SITRANS F Coriolis FCT030 Manuel de la liste des pièces

KLINGER

KLINGER CMF V Series Manuel utilisateur

EXFO

EXFO FTB-2 Manuel d'exploitation et d'entretien

Keysight

Keysight M8290A Manuel utilisateur

ADTEK

ADTEK MW-5 Manuel utilisateur
