AG Neovo HX-24 Manuel utilisateur

www.agneovo.com

NeoV™ Optical Glass - e most

trusted hard glass protection available.

Only on AG Neovo displays

A 24” performance-minded display

tted with hard glass protection and

advanced SDI inputs that promises

to work admirably in security-critical

and broadcast environments.

On top of Full HD 1920 x 1080 resolution and LED backlighting,

the HX-24 features SDI inputs that make it possible to receive

megapixel images directly from HD-SDI devices without signal

interruption or video delay. e solid protection of NeoV™ Optical

Glass and Anti-Burn-in™ technologies makes it a tting choice for a

full spectrum of professional applications and public places—from

banks to hotels and casinos. Durability stands out as a priority for

this mission-critical 24/7 apparatus—its metal casing is matched

by meticulously selected components to ensure impeccable nonstop

operations.

> 1920 x 1080 Full HD resolution

> NeoV™ Optical Glass

> Anti-Burn-in™ Technology

> AIP technology: PIP and PBP functions; 3D Comb Filter/ Deinterlace/ Noise

Reduction; Image rotation function / Freeze

> Versatile inputs: 3G SDI in/out, CVBS in/out, HDMI, DVI, VGA, Audio in

> SDI connection supports 3Gb/s, 1.5 Gb/s HD, SD SDI video inputs

> Capable of receiving digital video over 75Ω coaxial cable at great length using RG6

cable or equivalent

> SDI serial digital looping through

> Embedded audio in SDI up to 8 channels of 48kHz

> EcoSmart Sensor automatically adjusts backlight according to ambient lighting

condition

> Black-level alignment

> Durable metal housing

> Rigorous screening of the components for mission-critical 24/7 applications

HX-24

All specications are subject to change without prior notice.

All other trademarks are the property of their respective owners.

P/C: HX2400 Version 1.3, 20130701

Panel Panel Type

Panel Size

Max. Resolution

Pixel Pitch

Brightness

Contrast Ratio

Viewing Angle (H/V)

Display Colour

Response Time (GTG)

LED-Backlit TFT LCD

23.6”

FHD 1920 x 1080

0.2715 mm

300 cd/m2 (Typical)

1,000 : 1 (Typical)

170°/160° (Typical)

16.7 M

3 ms

Frequency (H/V) H.Freq

V.Freq

24kHz – 83kHz

50Hz – 85Hz

Input VGA

DVI

HDMI

SDI

CVBS

15-Pin D-Sub

24-Pin DVI-D

HDMI x 1

BNC x 1

Output SDI

CVBS

BNC x 1

Audio Aduio In

Speaker

1 x Stereo audio in for PC (audio

jack, 3.5ø)

RCA L+R for video

2W x 2

SDI Format 3G-SDI (SMPTE 424M)

HD-SDI (SMPTE 292M)

SD-SDI (SMPTE 259M)

1080p@50/60fps

1080p@24/25/30fps

1080i@50/60fps

720p@24/25/30/50/60fps

625i (PAL)/ 525i (NTSC)

SDI Audio Embedded Audio Up to 8 channels, 24bit, 48kHz

Power Power Supply

Power Requirements

Consumption

External

DC 12V

< 27W (On)

< 0.5W (Active Off)

< 0.5W (Off)

Operating

Conditions

Temperature

Humidity

0°C ~ 40°C (32°F~104°F)

10%~90% (No condensation)

Storage

Conditions

Temperature

Humidity

-20°C ~ 60°C (-4°F~140°F)

5%~95% (No condensation)

Mounting VESA FPMPMI Yes (100 x 100mm & 75 x 75mm)

Dimensions Product (W x H x D)

Packaging (W x H x D)

562 x 397 x 155 mm

(22.1” x 15.6” x 6.1”)

676 x 525 x 213 mm

(26.6” x 20.7” x 8.4”)

Weight Product Weight

Packaging weight

7.9 kg (17.4 lbs)

10.6 kg (23.4 lbs)

Regulation

Approval

Certications &

Compliance

CB, CE, RoHs, GOST-R, WEEE,

REACH

Accessories Supplied CD ROM (user manual), power cord,

power adaptor, 15-Pin D-Sub cable,

audio cable

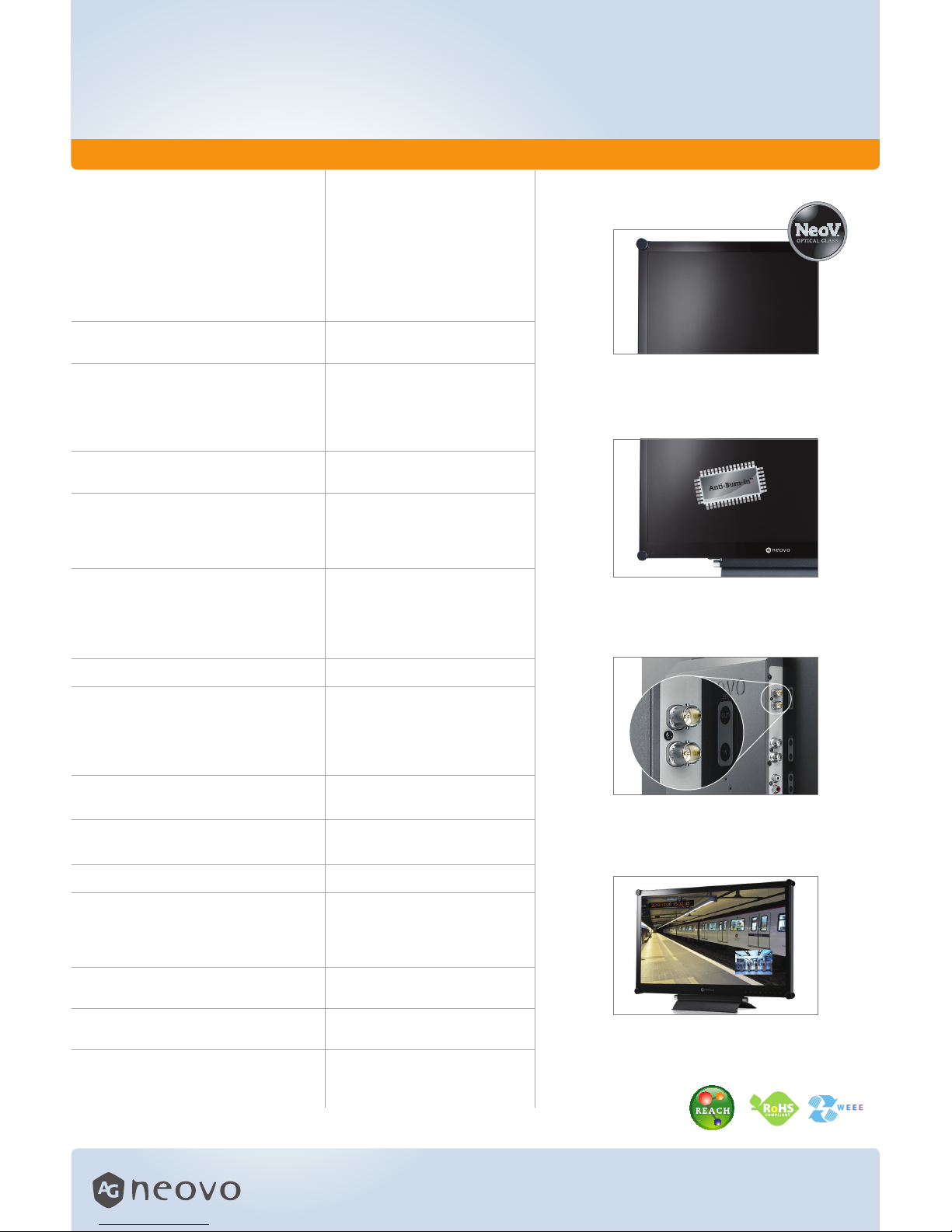

HX-24

NeoV™ Optical Glass and durable metal casing

for water, dust and scratch resistance

Viewing versatility with PIP and PBP

Anti-Burn-in™ technology prevents image sticking

Specications HX-24

SDI inputs bring forth megapixel images without

interruption
