GETTING STARTED

Your LCD monitor is versatile, ergonomic, and above all easy to use. The LCD monitor is

capable of displaying most standards, from 640 x 480 VGA to 1280 by 1024 SXGA. The

front-panel controlsallowyou to easily adjust the monitor’s display parameters to suit

your habits.

Quick Setup

FOLLOW THESE DIRECTIONS TO CORRECTLY SET UP YOUR MONITOR.

1. Remove all packing materials and wrapping fromthe monitor (page 3).

2. Place the monitor in its desired location. Ensure that there is space around the

monitor,especially the rear area near the vents.

3. With the computer turned off, connect the VGA signal cable (page 7).

4. With the monitor switched off,connect the AC adapter (page 6).

5. Turn on the computer.

6. Press the power switch on the monitor (page 4). The display should appear. If no

display appears, check Warning Messages and Troubleshooting (page 15).

7. Ensure that your computer display is set at 1024X768 pixels and 60Hz. Press the

AUTO button (page 4). The monitor optimizes the display automatically.

Note! The monitor is compliant with VESA FPMPMI standards and can be wall- or

arm-mounted. Before wall-mounting or arm-mounting, disassemble the

monitor stand.

Unpacking

After you unpack the monitor, make sure the following items are included in the box

and are in good condition:

LCD monitor

Power adapter

Power cord

Floppy/CD-ROM

(containing Windows

information file)

This user’s manual

If you find that any of these items are missing or appear damaged, contact your dealer

immediately. Do not throw away the packing material or shipping carton in case you

need to ship or store the LCD monitor in the future.

Identifying Components and Controls

The following figure shows the monitor’s power button, status LED, and On-Screen

Display (OSD) controls:

The controlsare described below:

AUTO button

Automatically adjusts the picture and performance. The

AUTO function should be used the first time you use the

monitor and after changing the resolution and/or refresh

rate of the input signal. The AUTO button also closes the

OSD.

DOWN button

Activates the OSD and navigates within the display

UP button

Activates the OSD and navigates within the display

LEFT button

Activates the OSD and navigates within the display

RIGHT button

Activates the OSD and navigates within the display

LED indicator

Indicates the monitor’s operational mode; green for

regular operation, and amber for power saving mode.

Power Switch

Turns the monitor on and off

Adjusting the Monitor’s Tilting Angle

Your LCD monitor’s vertical tilting angle can be adjusted for comfortable viewing.

To adjust the tilting angle, grasp the

top corners of the monitor with

both hands and tilt to the desired

angle.

Warning! Forcing the monitor past its maximum extension can result in

damage to the monitor.

Connecting AC Power

Refer to the following instructions for connecting AC power to the LCD monitor.

1. Plug the female end of the power cable into the AC-adapter and the male end of

the power cord into a wall socket. (The plug on the power cable will vary

according to the electrical standard for your area.)

2. Plug the adapter power connector into the LCD monitor’s DC power jack on the

rear of the monitor as shown here.

Connecting Video

1. Turn off the PC and the LCD monitor before connecting your LCD monitor to the

computer.

2. Connect the VGA cable to the PC’s VGA port.

3. Tighten the connecting screws.

CUSTOMIZING YOUR MONITOR

This section covers the LCD monitor’s On-Screen Display (OSD), and front panel control

buttons.

Adjusting the Monitor’s Display

The LCD monitor features an intuitive, menu-driven, OSD. You can access the OSD any

time that the PC is powered up. If the PC is in a power saving mode, or is powered

down, the OSD is inaccessible.

The OSD system provides a full range of customizable tools to optimize your display.

Important! While full customization is available, we strongly recommend

using the AUTO settings, which are preset to fully optimize your

monitor’s performance. Simply press the AUTO button to

engage the AUTO settings. It is also recommended that you

execute the AUTO function following any change made to your

computer display properties.

Working with OSD Groups

1. Press any of the UP, DOWN, LEFT, or RIGHT buttonsto open the OSD window.

OSD functions are divided into four Groups. Icons representing these

groups appear across the top of the OSD display. From left to right,

the OSD Groups are:

Display Adjust

Color Temperature

OSD Adjust

Misc Adjust (miscellaneous adjust)

2. To select an OSD Group, with the OSD window open, press the DOWN or UP

buttons until the desired Group’s icon is highlighted and that Group’s setting

items are listed.

3. Press the RIGHT or LEFT button once to enter the setting menu Group.

4. Use the DOWN or UP buttons to select the desired setting from the Group’s

displayed menu.

5. With the setting selected, use the RIGHT or LEFT buttons to change the

settings as listed under each setting in the following section.

6. Use the DOWN or UP buttons to select a new menu item.

7. Push the AUTO button once to save settings and return to the Group selection

menu.

8. Push the AUTO button again to exit the OSD.

9. The OSD Groups contain the following adjustment functions:

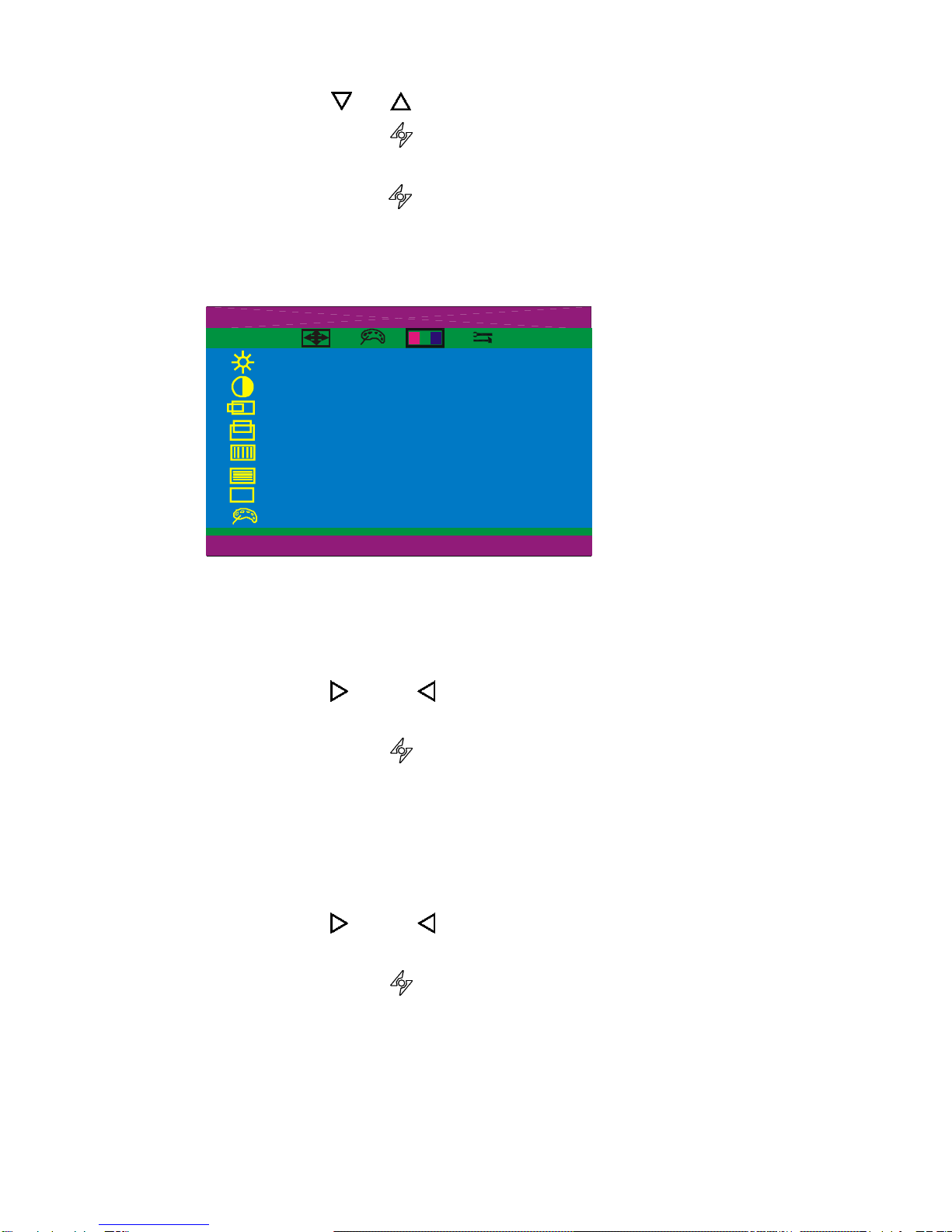

Display Adjust

DISPLAY ADJUST

1280 X 1024 / Hz ( , ) SEP

60 + +

OSD

BRIGHTNESS

CONTRAST

H-POSITION

V-POSITION

CLOCK

PHASE

AUTOADJUST

ADVANCEAUTO

Brightness & Contrast

1. To fine-tune the monitor’s brightness and contrast, select the item from the

menu.

2. Use the RIGHT and LEFT buttons to set the display as desired on the 0-100

scale that appears at the bottom of the window.

3. Push the AUTO button once to save settings and return to the Group selection

menu.

Horizontal & Vertical Position

1. To fine-tune the display’s positionon the monitor screen, selectthe item from the

menu.

2. Use the RIGHT and LEFT buttons to set the display as desired on the 0-100

scale that appears at the bottom of the window.

3. Push the AUTO button once to save settings and return to the Group selection

menu.
