TREADMILL OWNER’S MANUAL

MANUEL DU PROPRIÉTAIRE DU TAPIS ROULANT

MANUAL DEL PROPIETARIO DE LA CAMINADORA

Read the TREADMILL GUIDE before using this OWNER’S MANUAL.

Lire le GUIDE DU TAPIS ROULANT avant de se servir du présent MANUEL DU PROPRIÉTAIRE.

Lea la GUÍA DE LA CAMINADORA antes de usar este MANUAL DEL PROPIETARIO.

3 ENGLISH

40 FRANÇAIS

78 ESPAÑOL

IMPORTANT PRECAUTIONS

SAVE THESE INSTRUCTIONS

When using an electrical product, basic precautions should always be followed, including the following: Read all instructions

before using this treadmill. It is the responsibility of the owner to ensure that all users of this treadmill are adequately informed of

all warnings and precautions. If you have any questions after reading this manual, contact Customer Tech Support at the number

listed on the back panel.

This treadmill is intended for in-home use only. Do not use this treadmill in any commercial, rental, school or institutional setting.

Failure to comply will void the warranty.

This treadmill has a pre-waxed belt and should never be lubricated.

Waxing the belt can cause damage that is not covered by the warranty.

IMPORTANT

TO REDUCE THE RISK OF BURNS, FIRE, ELECTRICAL SHOCK OR INJURY TO PERSONS:

• Never use the treadmill before securing the safety tether clip to your clothing.

• If you experience any kind of pain, including but not limited to chest pains, nausea, dizziness, or shortness of breath, stop

exercising immediately and consult your physician before continuing.

• When exercising, always maintain a comfortable pace.

• Do not wear clothes that might catch on any part of the treadmill.

• Always wear athletic shoes while using this equipment.

• Do not jump on the treadmill.

• At no time should more than one person be on treadmill while in operation.

• This treadmill should not be used by persons weighing more than specified in the OWNER’S MANUAL WARRANTY SECTION.

Failure to comply will void the warranty.

• When lowering the treadmill deck, wait until rear feet are firmly on the floor before stepping on the deck.

• Disconnect all power before servicing or moving the equipment. To clean, wipe surfaces down with soap and slightly damp cloth

only; never use solvents. (See MAINTENANCE)

• The treadmill should never be left unattended when plugged in. Unplug from outlet when not in use, and before putting on or

taking off parts.

• Do not operate under blanket or pillow. Excessive heating can occur and cause fire, electric shock, or injury to persons.

• Connect this exercise product to a properly grounded outlet only.

WARNING

TO REDUCE THE RISK OF ELECTRICAL SHOCK:

Always unplug the treadmill from the electrical outlet immediately after using, before cleaning, performing maintenance and putting on or

taking off parts.

DANGER

TO REDUCE THE RISK OF BURNS, FIRE, ELECTRICAL SHOCK OR INJURY TO PERSONS:

• At NO time should pets or children under the age of 13 be closer to the treadmill than 10 feet.

• At NO time should children under the age of 13 use the treadmill.

• Children over the age of 13 or disabled persons should not use the treadmill without adult supervision.

• Use the treadmill only for its intended use as described in the treadmill guide and owner’s manual.

• Do not use other attachments that are not recommended by the manufacturer. Attachments may cause injury.

• Never operate the treadmill if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or

immersed in water. Return the treadmill to a service center for examination and repair.

• Keep power cord away from heated surfaces. Do not carry this unit by its supply cord or use the cord as a handle.

• Never operate the treadmill with the air opening blocked. Keep the air opening clean, free of lint, hair, and the like.

• To prevent electrical shock, never drop or insert any object into any opening.

• Do not operate where aerosol (spray) products are being used or when oxygen is being administered.

• To disconnect, turn all controls to the off position, then remove plug from outlet.

• Do not use treadmill in any location that is not temperature controlled, such as but not limited to garages, porches, pool rooms,

bathrooms, car ports or outdoors. Failure to comply may void the warranty.

• This treadmill is intended for in-home use only. Do not use this treadmill in any commercial, rental, school or institutional setting.

Failure to comply will void the warranty.

• Do not remove the console covers unless instructed by Customer Tech Support. Service should only be done by an authorized

service technician

It is essential that your treadmill is used only indoors, in a climate controlled room. If your treadmill has been exposed to colder

temperatures or high moisture climates, it is strongly recommended that the treadmill is warmed up to room temperature before

first time use. Failure to do so may cause premature electronic failure.

WARNING

GROUNDING INSTRUCTIONS

This product must be grounded. If a treadmill should malfunction or break down, grounding provides a path of least resistance

for electrical current to reduce the risk of electrical shock. This product is equipped with a cord having an equipment-grounding

conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in

accordance with local codes and ordinances.

Connect this exercise product to a properly grounded outlet only.

Never operate product with a damaged cord or plug even if it is working

properly. Never operate any product if it appears damaged, or has been

immersed in water. Contact Customer Tech Support for replacement or repair.

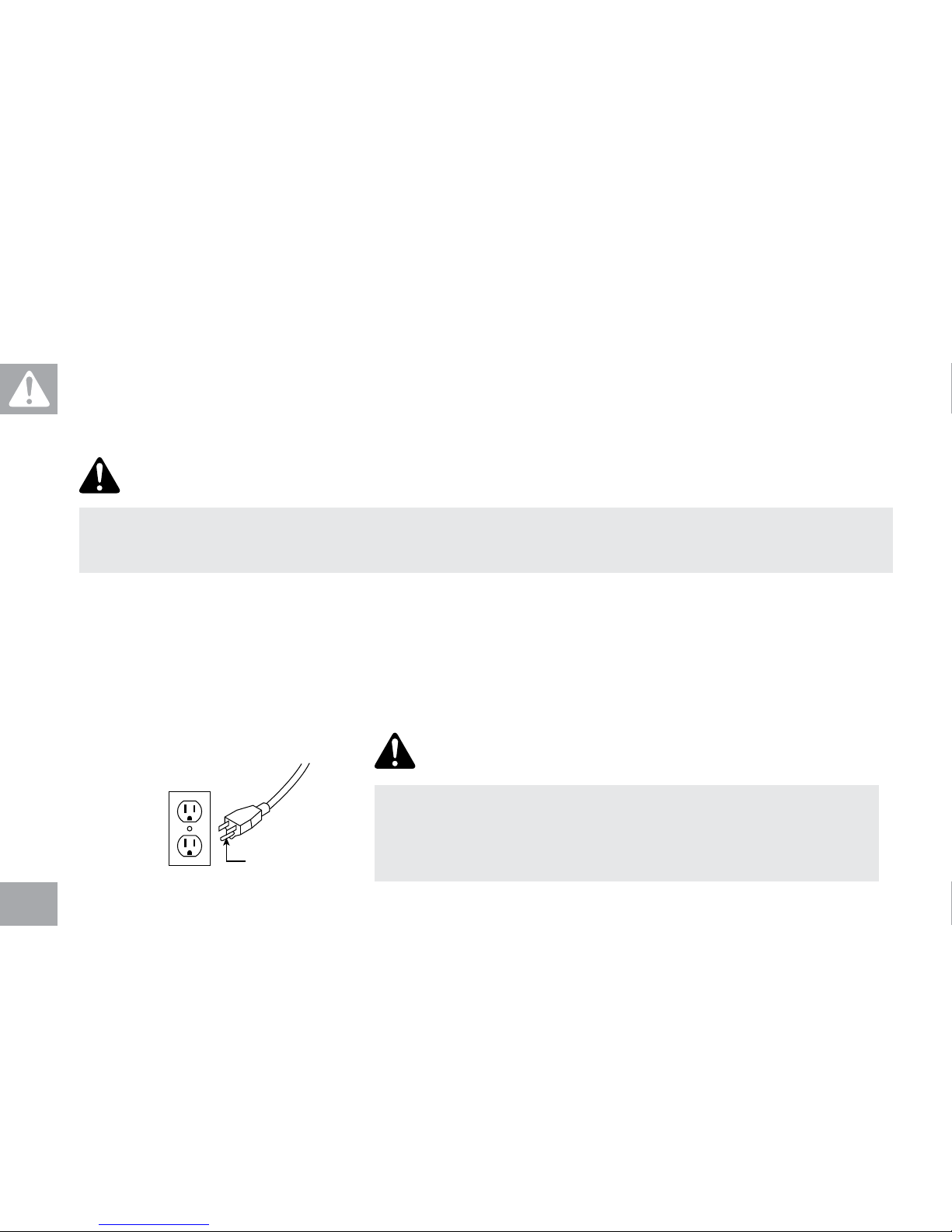

3-POLE

GROUNDED

OUTLET

GROUNDING PIN

WARNING

DANGER

Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified

electrician or serviceman if you are in doubt as to whether the product is properly grounded. Do not modify the plug provided

with the product. If it will not fit the outlet, have a proper outlet installed by a qualified electrician.

This product is for use on a nominal 110-120 Volt circuit and has a grounding plug that looks like the plug in the illustration. Make

sure that the product is connected to an outlet having the same configuration as the plug. No adapter should be used with this

product.

This product must be used on a dedicated circuit. To determine if you are on a dedicated circuit, shut off the power to that circuit and

observe if any other devices lose power. If so, move devices to a different circuit. Note: There are usually multiple outlets on one

circuit. This treadmill should be used with a minimum 15-amp circuit.

ASSEMBLY

There are several areas during the assembly process that special attention must be paid. It is very important to follow the assembly

instructions correctly and to make sure all parts are firmly tightened. If the assembly instructions are not followed correctly, the

treadmill could have parts that are not tightened and will seem loose and may cause irritating noises. To prevent damage to the

treadmill, the assembly instructions must be reviewed and corrective actions should be taken.

Before proceeding, find your treadmill’s serial number located on a white barcode sticker

near the on/off power switch and power cord and enter it in the space provided below.

ENTER YOUR SERIAL NUMBER AND MODEL NAME IN THE BOXES BELOW:

» Refer to the SERIAL NUMBER and MODEL NAME when calling for service.

SERIAL NUMBER:

MODEL NAME: AFG TREADMILL

WARNING

SERIAL NUMBER LOCATION

SPEAKERS

WATER BOTTLE HOLDER

GRIP PULSE HANDRAILS

CONSOLE

ON/OFF SWITCH

CIRCUIT BREAKER

TRANSPORT WHEEL

POWER CORD

READING RACK / AUDIO CORD CHANNEL

HANDLEBARS

CONSOLE CONTROLS AND DISPLAY WINDOWS

USB PORT AND AUDIO IN JACK

SAFETY KEY PLACEMENT

MOTOR COVER

WHEEL LOCK

SIDE RAIL

ROLLER END CAP

REAR ROLLER

TENSION/ADJUSTMENT BOLTS

CONSOLE MAST

MAIN FRAME BOOT (5.1AT shown) FOOT LOCK LATCH (UNDERNEATH DECK)

RUNNING BELT / RUNNING DECK

CAUTION AVERTISSEMENT PRECAUCIÓN

KEEP HANDS AND FEET

AWAY FROM THIS AREA.

HIGH-PRESSURE

SHOCKS COULD CAUSE

BODILY INJURY.

GARDER LES MAINS ET LES

PIEDS LOIN DE CETTE REGION.

LES AMORTISSEURS À HAUTE

PRESSION PEUVENT CAUSER

DES BLESSURES.

MANTENGA LAS MANOS Y

LOS PIES LEJOS DE ESTA

AREA. IMPACTOS DE ALTA

PRESIÓN PUEDEN CAUSAR

DAÑO CORPORAL.

CAUTION AVERTISSEMENT PRECAUCIÓN

KEEP HANDS AND FEET

AWAY FROM THIS AREA.

GARDER LES MAINS ET LES

PIEDS LOIN DE CETTE REGION.

MANTENGA LAS MANOS Y LOS

PIES LEJOS DE ESTA AREA.

ABOVE FOOT LATCH

5.1AT

SHOWN

TOOLS INCLUDED:

F8 mm T-Wrench

F5 mm T-Wrench

F5 mm L-Wrench

FScrewdriver

PARTS INCLUDED:

F1 Console Assembly

F1 Handlebar Assembly

F2 Console Mast Caps

F2 Console Masts

F2 Main Frame Boots

F1 Hardware Kit

F1 Safety Key

F1 Power Cord

F1 Audio Adapter Cable

If you have questions or if

there are any missing parts,

contact Customer Tech

Support. Contact information

is located on the back panel

of this manual.

NEED HELP?

DO NOT ATTEMPT TO LIFT THE TREADMILL! Do not move or lift treadmill

from packaging until specified to do so in the assembly instructions. You may

remove the plastic wrap from console masts.

WARNING

UNPACKING

Place the treadmill carton on a level flat surface. It is recommended that you place a

protective covering on your floor. Take CAUTION when handling and transporting this

unit. Never open box when it is on its side. Once the banding straps have been removed,

do not lift or transport this unit unless it is fully assembled. Unpack and assemble the unit

where it will be used. Never grab hold of any portion of the incline frame and attempt to

lift or move the treadmill. Lift the treadmill from the roller end caps area while a second

person removes the parts packed under the treadmill.

FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN INJURY!

WARNING

NOTE: During each assembly step, ensure that ALL nuts and bolts are in place and

partially threaded in before completely tightening any ONE bolt.

NOTE: A light application of grease may aid in the installation of hardware. Any grease,

such as lithium bike grease is recommended.

PRE ASSEMBLY

5.1AT

ONLY

BOLT (A)

20 mm

Qty: 6

SPRING WASHER (B)

8.2 mm

Qty: 6

ARC WASHER (C)

8.2 mm

Qty: 6

SCREW (D)

12 mm

Qty: 8

SCREW (L)

20 mm

Qty: 2

HARDWARE FOR STEP 1 :

SCREWS (L)

MAIN FRAME BOOT

MAIN FRAME

SCREWS (D)

5.1AT ASSEMBLY STEP 1

* This step is for 5.1AT models only. For 3.1AT models,

proceed to page 12.

A Cut the yellow banding straps and lift the running

deck upward to remove all contents from underneath

the running deck.

B Open HARDWARE FOR STEP 1.

C Place MAIN FRAME BOOTS over MAIN FRAME as

shown.

D Attach MAIN FRAME BOOTS to MAIN FRAME

using 8 SCREWS (D) from above and 2 SCREWS

(L) from the front.
