Instruction Manual P/N: 54-12208
Make: BMW Model: 335i (F30) Year: 12-13 Engine: L6-3.0L (Turbo) N55
Label Qty. Description Part Number

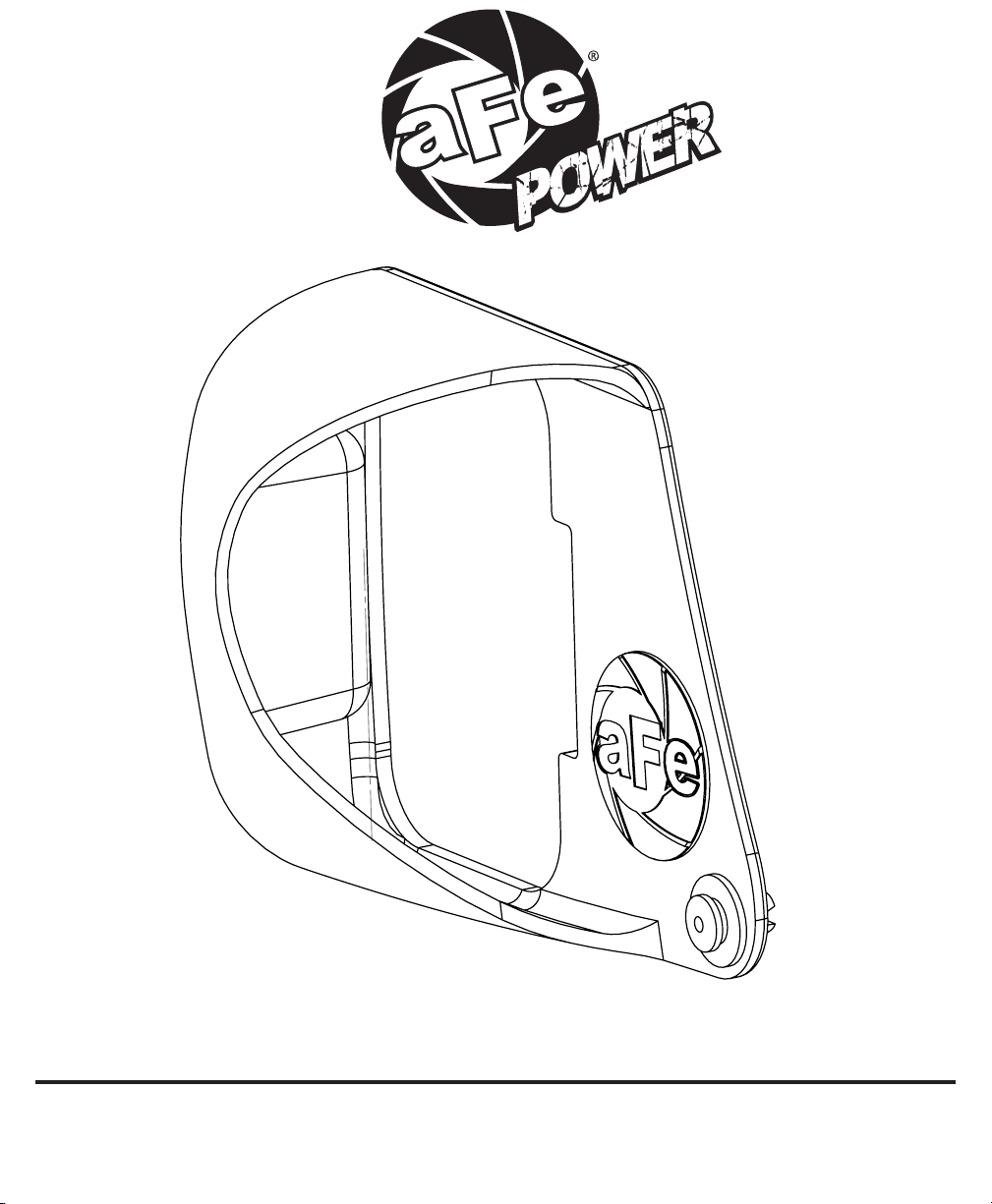

A 1 Scoop 05-12208B1
B 1 Retainer Clip 05-01197
Note: Legal in California for use on race vehicles only. The use of this device on vehicles used on public
streets or highways is strictly prohibited in California and others states that have adopted California
emission regulations.
• Please read the entire instruction manual before proceeding.
• Ensure all components listed are present.
• If you are missing any of the components, call customer support at 951-493-7100.
• Ensure you have all necessary tools before proceeding.
• Do not attempt to work on your vehicle when the engine is hot.
• Disconnect the negative battery terminal before proceeding.
• Retain factory parts for future use.
Page 2
Label Qty. Description Part Number
A 1 Scoop 05-12208B1
B 1 Retainer Clip 05-01197
aFepower.com
Page 3
A
B
Refer to Figure A for step 1

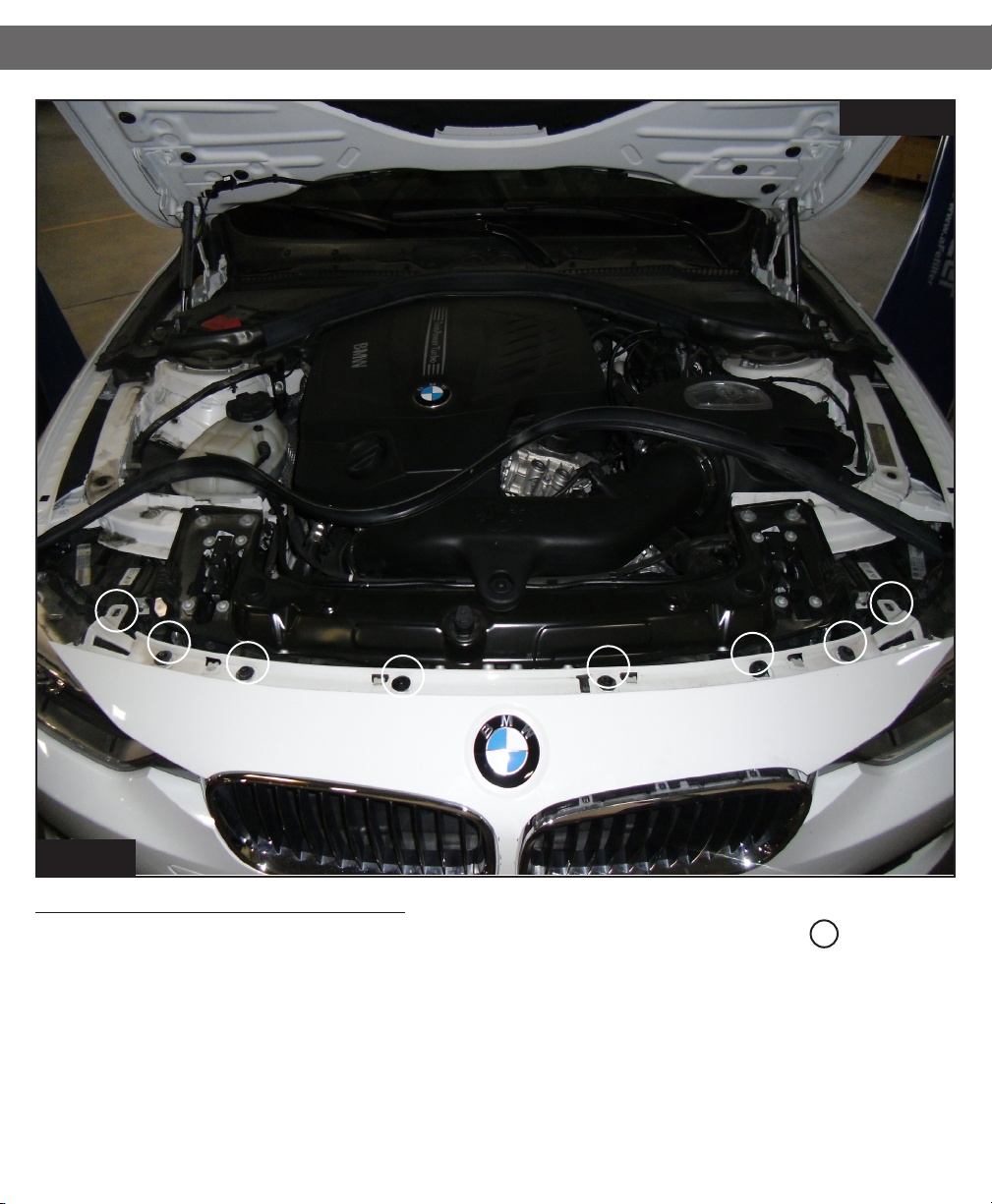

Step 1: Remove the seal trim on the front bumper rail 1 .
REMOVAL
Page 4
1
Figure A
Refer to Figure B for steps 2-3

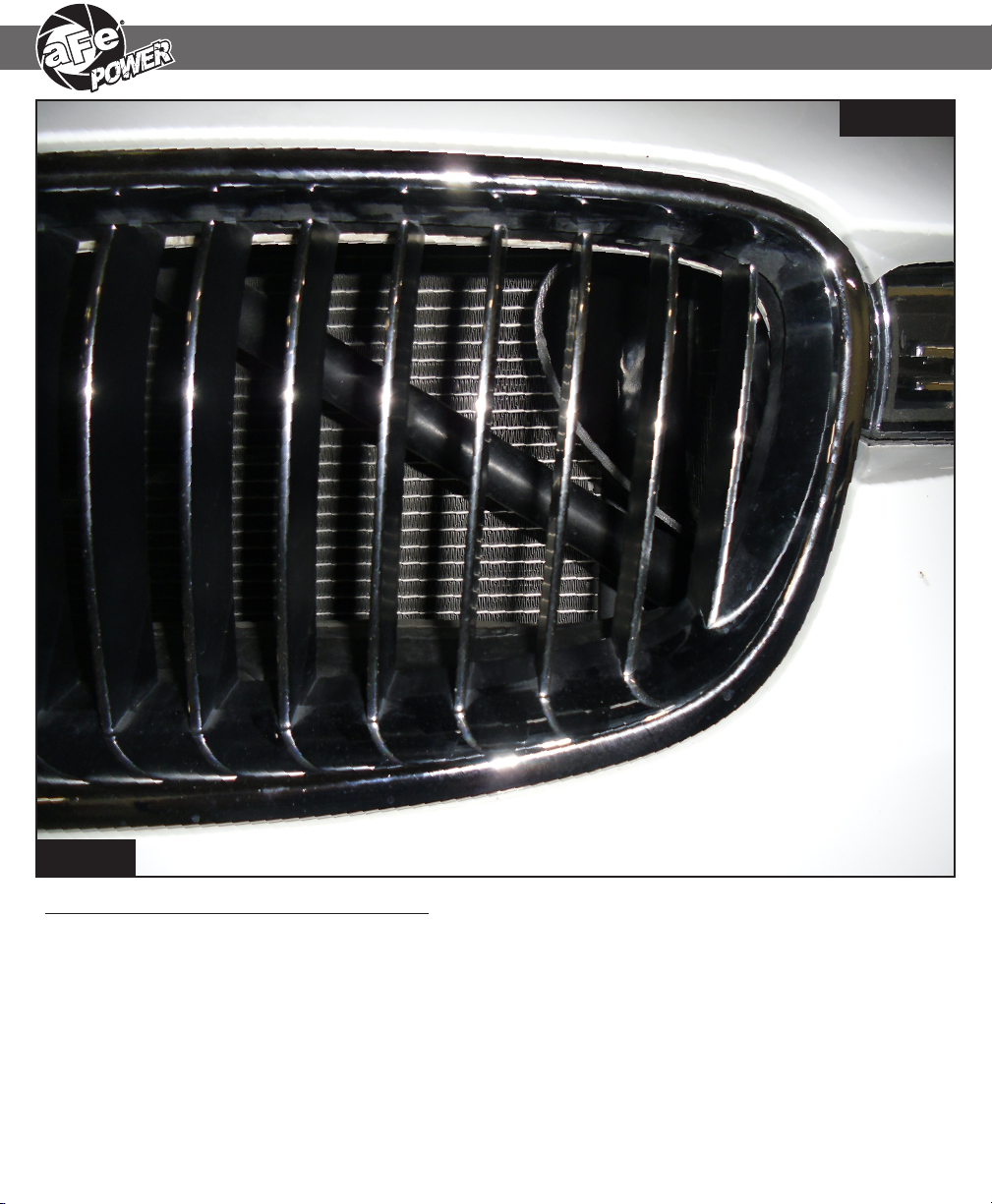

Step 2: Remove the (5) T25 and the (2) T20 screws securing the top part of the bumper 2 .
Step 3: Gently pull forward the top edge of the front bumper. Slide your hand inside to access the press
tabs holding the driver side kidney grill.
REMOVAL
aFepower.com
Page 5
222222
22
Figure B
Refer to Figure C for steps 4-5

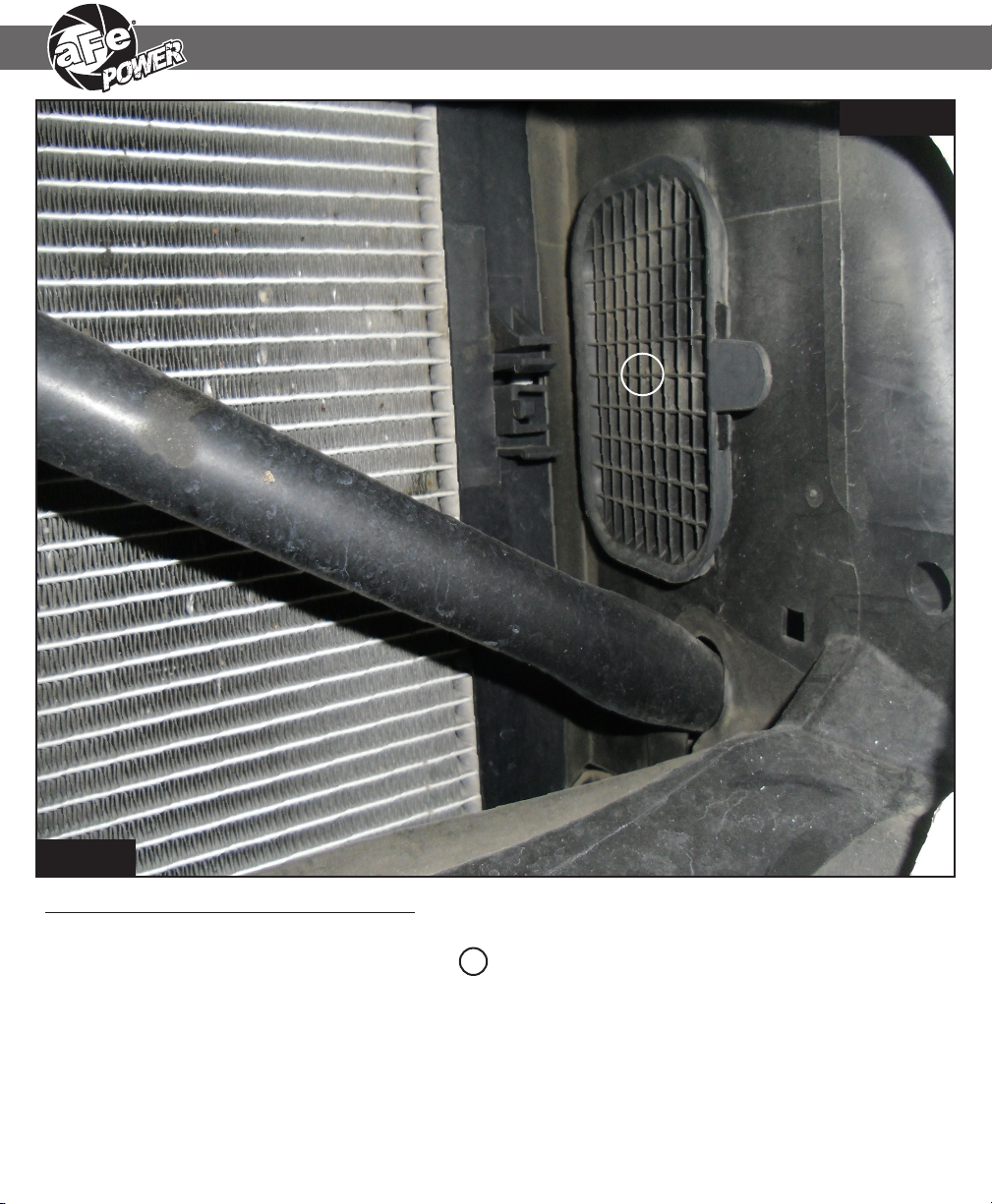

Step 4: Remove the factory driver side kidney grill.
Step 5: Remove the factory grill off the air inlet 3 .
Figure C
REMOVAL
Page 6
3
aFepower.com
Page 7
7
Page left blank intentionally
Refer to Figure D for steps 6-8

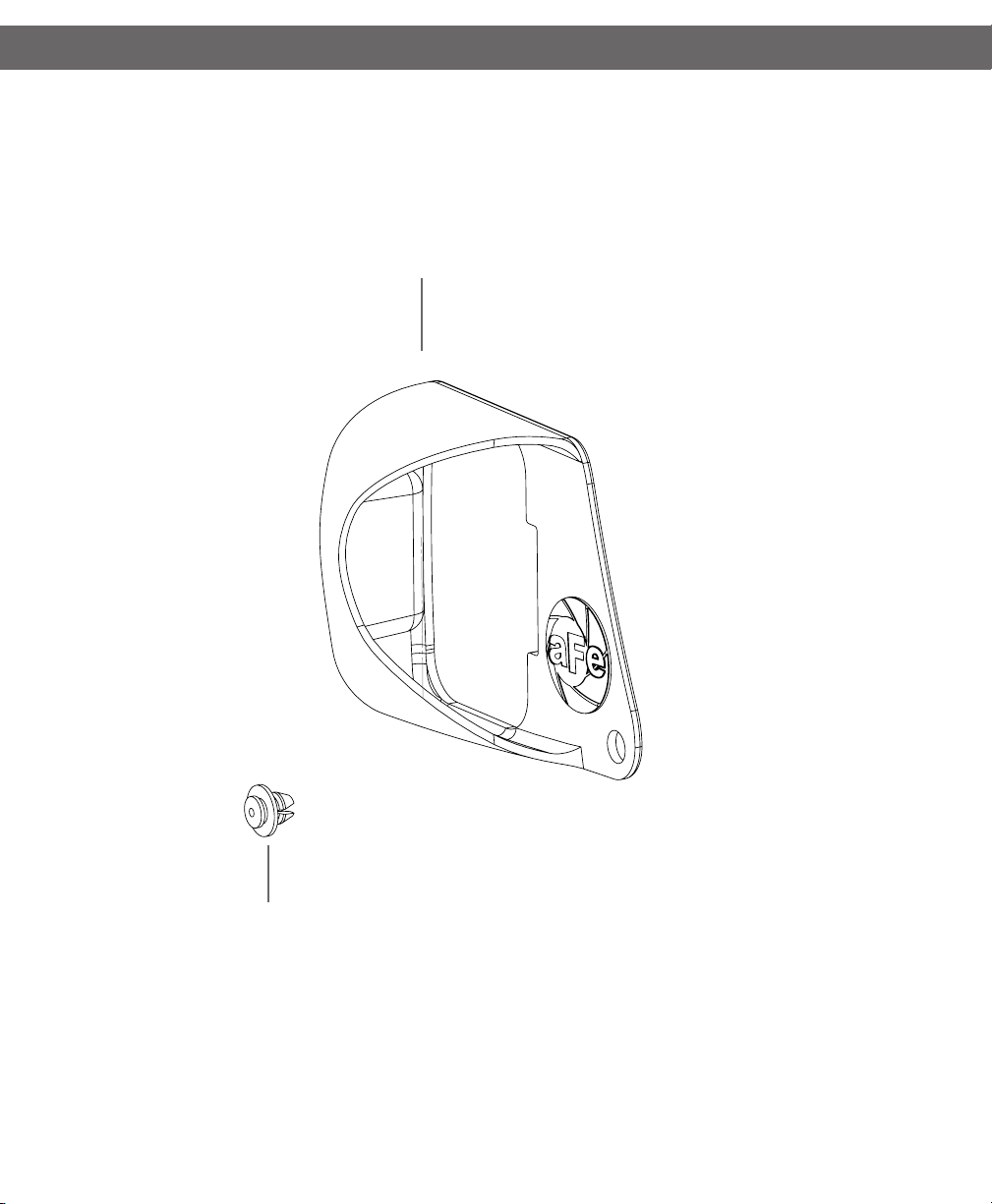

Step 6: Install the aFe air scoop over the air inlet.
Step 7: Re-install the factory grill over the air inlet 4 .
Step 8: Install the retainer clip furnished 5 .
INSTALL
4
5
Figure D
Page 8Page
Page left blank intentionally
Refer to Figure E for steps 9-11
Step 9: Re-install the factory kidney grill.
Step 10: Re-install your factory bumper screws and seal trim onto the front bumper rail.
Step 11: Your installation is now complete.
Figure E
INSTALL
Page 9 aFepower.comaFepower.com
Page
Page left blank intentionally
To purchase any of the items above, view airflow charts, dyno graphs, photos, and video; please go to aFepower.com.
Page 10
P/N: 45-16315
P/N: 51-82202
P/N: 40-10083 P/N: 54-82202
Pro 5R Intake System
Performance Package
Pro DRY S Intake System
aFe Power Hat
aFe Key Chain
P/N: 40-10103
P/N: 77-46304
SCORCHER Module
