AES global StyluscomV2 Series Mode d’emploi

P a g e | 1

Installation & User Manual

For

StyluscomV2

Wired Video Intercom System

Models StylusAB, StylusABK, StylusAS

Manual Version 1

P a g e | 2

Contents

Overview of system

…………….Pg 3

Site survey

…………….Pg 3

Monitor overview

…………….Pg 4

Surface mounting the monitor

…………….Pg 5

Plasterboard / drywall fixing

…………….Pg 5

Door/gate station mounting

…………….Pg 6

Wiring gate station to monitor

…………….Pg 7

Keypad module in detail

…………….Pg 7

Connecting extra monitors

…………….Pg 8

Connecting a CCTV camera

…………….Pg 9

Monitor settings

…………….Pg 9

Answering a call & granting access

…………….Pg 11

Viewing gate/door

…………….Pg 11

Basic keypad programming

…………….Pg 12

Full keypad programming

…………….Pg 12

Using the keypad

…………….Pg 14

Sound and volumes

…………….Pg 14

Troubleshooting

…………….Pg 15

P a g e | 3

Overview of System

Please read this entire manual before attempting to install this system.

This system should only be installed by a professional automatic gate installer or access control

specialist dealer. It is recommended that the system be set up, configured, commissioned and

tested on a workshop bench before taken to site for installation.

Site Survey

Check cabling conforms to the recommended diagrams below BEFORE installing the system. If

necessary, test the devices at either end before fully mounting to walls etc to avoid un-necessary

cost.

CAT5 –30m

Poly/Poly underground –30m

Multi pair telephone wire –30m

24v PSU

0-2m (0.5mm)

2-4m (0.75mm)

4-8m (1.0mm)

24v PSU

0-2m (0.5mm)

2-4m (0.75mm)

4-8m (1.0mm)

CAT5 –300m

Poly/Poly underground –150m

Multi pair telephone wire –50m

1 Power Supply

Install

2 Power Supply

Install

CAT5

(8m)

CAT5

(8m)

TIP:

Achieve up to 15m between monitors by

using 2x1mm cable for power between

monitors

P a g e | 4

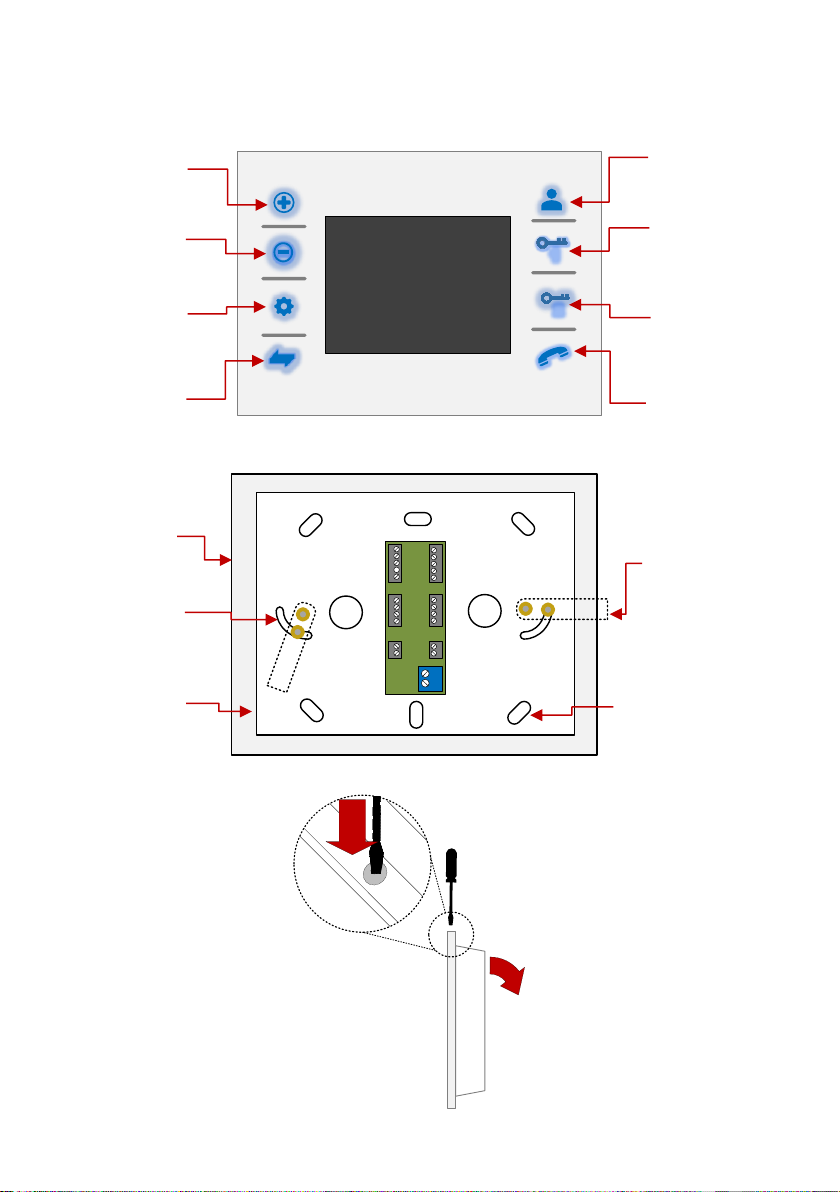

Monitor Overview

14.45

19-02 Tues

1. 2.

Monitor mode,

change view

between devices

Trigger Relay 1

(Must be in call or

monitor mode)

Trigger Relay 2

(Must be in call or

monitor mode)

Answer/end call

Increase volume

in call

Decrease

volume in call

Settings

Transfer call

Plasterboard

mounting bracket

(recessed mount)

Surface mounting

holes

Outer edge

Plasterboard

bracket swivel

groove

Rear recess

mountable

section

Front View

Rear View

P a g e | 5

Surface Mounting the Monitor

Plasterboard / Dry wall Fixing

1. 23.

Professional install only!

Side View

165mm

115mm

Rotate the clips behind the

plasterboard with a screw

driver, then tighten in place until

they gently grip against the

plasterboard. After wiring is

complete, the monitor can be

clipped into place.

Top View

P a g e | 6

Door / Gate Station Mounting

Mount the intercom at the desired height for pedestrian or car users. The camera angle

is wide at 110 degrees to cover most scenarios.

Loosen top 2 screws only

Hinge front door

Side View

Tip: Do not drill holes in the wall with the intercom in positon, otherwise dust may get

around the camera window and impair the camera view.

P a g e | 7

Wiring Gate Station to Monitor

24v

GND

CMD

VID+

VID-

AUD

GND

N/C

COM

N/O

COM

N/C

VID1+

VID1-

AUD

GND

CMD1

24v DC

GND

24v DC GND

Camera bypass

Phono input for optional

external camera

Camera

module

MIC & Speaker

Volume Adjust

(keep to minimum)

Relay 2

Relay 1

Micro SD

card holder

Indoor Monitor

Door/Gate Station

N/O

N/C

COM

NO / NC

COM

Full/Auto

Illumination

Relay 2

N/O & N/C changeover

24v DC

(pre-wired)

Egress

(connect N/O exit

button)

Not used

Relay 3

Relay 1

Relay 2

Keypad

Module

in Detail

TIP:

Both the keypad AND the

audio module relays need

connected to a lock or

gate opener.

P a g e | 8

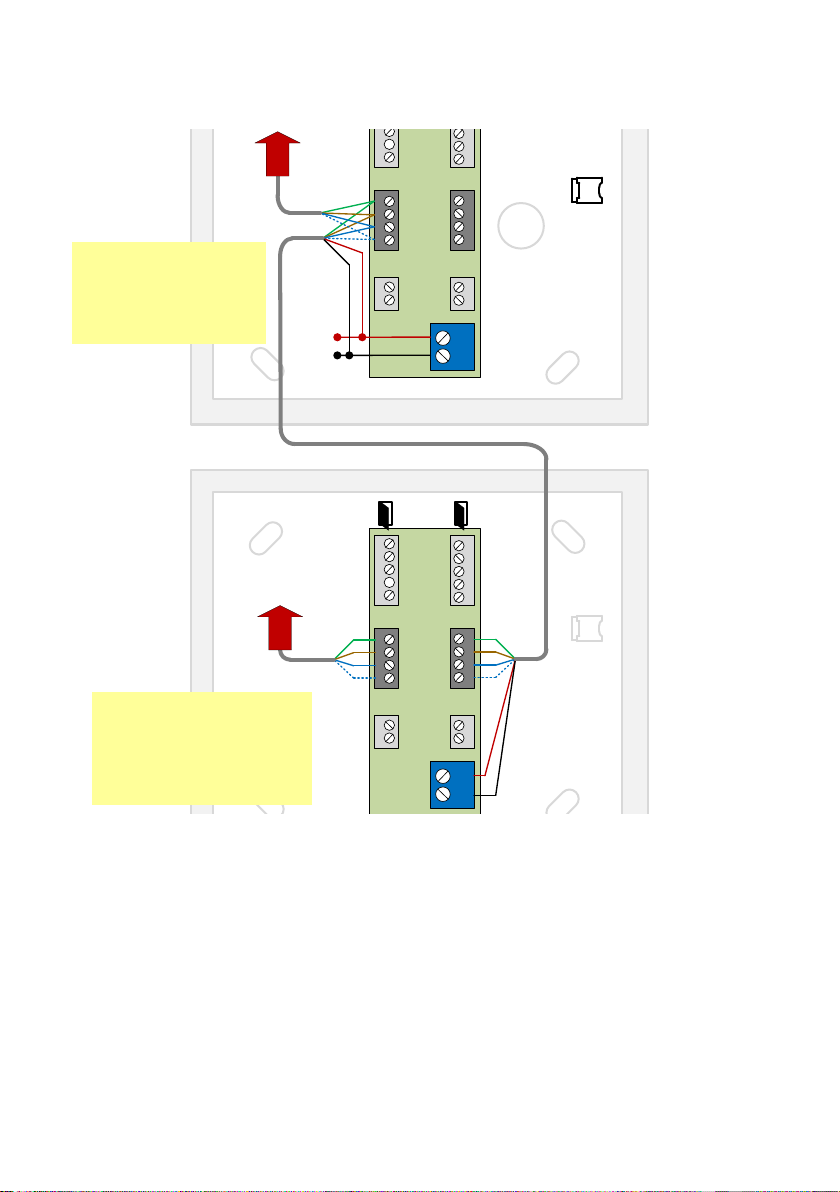

Connecting Extra Monitors

---Data---

---Video---

---Audio---

----GND----

Slave INSlave OUT

CAM1CAM2

24v DC

GND

---Data---

---Video---

---Audio---

----GND----

Slave INSlave OUT

CAM1CAM2

24v DC

GND

SLAVE

MASTER

STATION

TIP:

Use CAT5 between

monitors if possible, and

2x1mm cable for longer

power cable distances.

TIP:

Connect more than 1

to Slave OUT port on

master

SLAVE

STATION

P a g e | 9

Connecting a CCTV Camera

Monitor Settings

CAM1CAM2

12v DC

14.45

19-02 Tues

CAT5

100m

Convertor Balun

TIP:

One device can have motion

detection recording activated in the

menu. You may choose between

Door1, Door2, Cam1, Cam2

Toggle/

navigate

Confirm

Go back

Use standard

analogue type

camera

P a g e | 10

Mode

Master / Slave (set main monitor to

MASTER and all others to SLAVE).

Door 2 Status

ON / OFF (turn OFF if there is only one

door unit).

Door 1 unlock time

02-10 secs. For gates and strike lock

use 2 seconds. For mag locks use

longer time.

Door 2 unlock time

02-10 secs. For gates and strike lock

use 2 seconds. For mag locks use

longer time.

Record mode

Record / Snapshot

(Either record video or save snapshot

image on trigger).

Motion Detection

Set to record video or snap shot from

either Door1, Door2, Cam1, Cam2.

Message

Turn ON or OFF voice message option

for missed callers.

Motion Detection Duration

Set record length on motion detection

from 10-60 seconds.

Language

Time & Date

Information

(Set language)

(Set date, date format, and time)

(Software version, software update, format SD card)

Ring tone select

Ring volume select (can adjust for different time zones)

MODE

RING

SYSTEM

ALARM

Alarm section not used in this particular model
