AES global CellCOM PRIME Instructions de montage

P a g e | 1

Installation & User Instructions

CellCOM PRIME Standalone GSM Range

PROFESSIONAL INSTALL ONLY

Suitable for Firmware Version 2.2.3

The manufacturer cannot legally offer technical support to non-qualified gate

or door installers. End users should employ the services of a professional

install company to commission or support this product!

Tip: Site Survey BEFORE you begin.

See pages 3-4

P a g e | 2

Index

Section

Pages

PHASE 1 –SITE SURVEY

3 - 4

Site Survey (LAN)

PHASE 2 –PRODUCT OVERVIEW

5 –22

Overview of Call Points

6 - 11

More Detail….

12 - 17

PCB Module Overview

Sellable Code Table

18 –19

Technical Specifications

21 - 22

PHASE 3 - SETUP

23 - 28

Preparation Before Configuration

Inserting the SIM & Power Connections

Status LED’s

Check Reception

Set APN (for VOLTE / 4G service)

PHASE 4 - INSTALLATION

29 - 37

How to Achieve & Maintain IP55 Rating

Power & Solar Power

Battery Backup Option

Inserting the SIM & Power Connections

Relay Wiring Examples

Connecting Slave Devices

35-37

PHASE 5 –APP PROGRAMMING

38 - 40

Set APN (for VOLTE / 4G service)

How to Use the AES PRO APP

PHASE 6 –USING THE INTERCOM

41- 44

Calling a Resident & Using Keypad Codes & Prox IDs

Receiving A Call and Using Caller ID

Manager Controls of Gate / Door

PHASE 7 –AFTERCARE

45 - 57

Troubleshooting

46 - 48

Firmware Updates

49 - 53

App Updates / Intercom Maintenance /

Environmental Information

Documentation Feedback

Warranty

56-57

P a g e | 3

PHASE 1

Site Survey

P a g e | 4

Important things you Need to Know..

Please read this entire manual before

installing this product.

To be installed by certified and qualified

personnel / gate automation dealer only. Not

for DIY install!

Ensure there is a good 4G signal on site. 4G

units will fall back to 3G service in some

countries.

Set up, on a bench in the workshop

BEFORE going to the site. Program the unit

in the comfort of your workbench and call

technical support should you have

questions.

This product requires a regular voice & SMS

SIM card. Do not use a data-only SIM, as

this will not work in the unit.

To make voice calls on a 4G system

and get optimum service, your SIM and

provider will need to offer VOLTE support

(Voice over LTE) otherwise the unit will be

forced to fall back to 3G or 2G service to

make calls.

Manufacturer warranty does NOT cover

lighting/storm damage. In lightning prone

areas, you MUST fit external surge

protection and the lightning rod to maintain a

warranty on this product.

P a g e | 5

PHASE 2

Product Overview

P a g e | 6

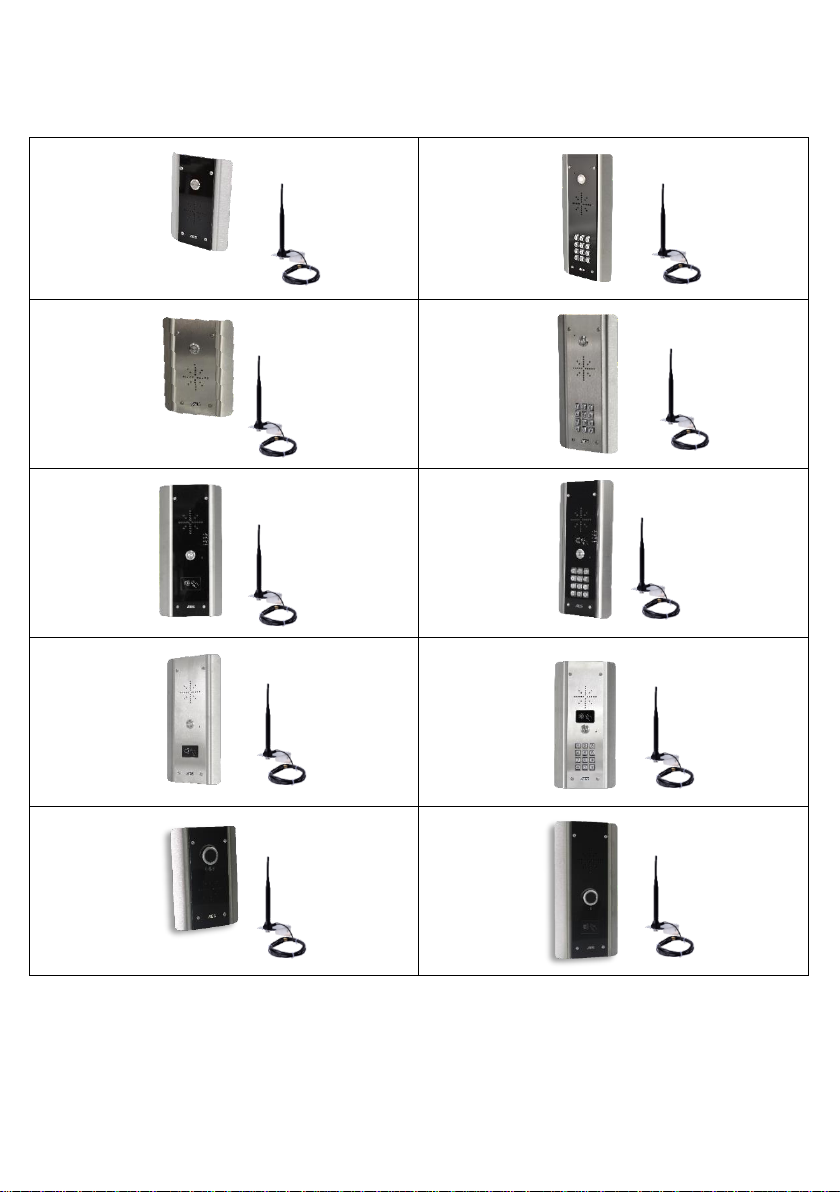

Overview of Switches

Antenna Integrated

P a g e | 7

Overview of Intercoms(Architectural Design)

Antenna Separate

P a g e | 8

Overview of Intercoms(Imperial Design)

Antenna Separate

P a g e | 9

Overview of Intercoms(Pedestal Design)

Antenna Integrated

P a g e | 10

Overview of Intercoms(Flush Design)

Antenna Separate
