AerPOS AP-3615 Manuel utilisateur

Version 0.5

AP-3615

15” Bezel Free Performance POS Terminal

This document is copyrighted,

2012. All rights are reserved. Firich Enterprises Co., Ltd reserves

the right to make improvements of the product described in this manual at any time without notice.

No part of this manual may be reproduced, copied, translated, or transmitted in any form or by

any means without the prior written permission from Firich Enterprises Co., Ltd. Information

provided in this manual is intended to be accurate and reliable. However, Firich Enterprises Co.,

Ltd assumes no responsibility for its use, nor for any infringements upon the rights of third parties,

which may result from its use.

The material in this document is for product information only and is subject to change without

notice. While reasonable efforts have been made in the preparation of this document to assure its

accuracy, Firich Enterprises Co., Ltd, assumes no liabilities resulting from errors or omissions in

this document, or from the use of the information contained herein.

Record of Revision

Date Specs Ver.

Description Note

V0.0 Initial

2012/09/02

V0.1 Initial Charles

V0.2

2012/12/13

V0.3 New Touch Utility Added

IO selection update Vince

2013/05/11

V0.4 Remark COM3 simple com only has RX,TX

CashDrawer Provides Linux Sample code Vince

2013/06/26

V0.5 FEC P-CAP Utility update Vince

Safety and Warranty

1. Read these safety instructions carefully.

2. Keep this user's manual for later reference.

3. Disconnect this equipment from any AC outlet before cleaning. Do not use liquid or spray

detergents for cleaning. Use a damp cloth.

4. For pluggable equipment, the power outlet must be installed near the equipment and must be

easily accessible.

5. Keep this equipment away from humidity.

6. Put this equipment on a reliable surface during installation. Dropping it or letting it fall could

cause damage.

7. The openings on the enclosure are for air convection. Protect the equipment from overheating.

DO NOT COVER THE OPENINGS.

8. Make sure the voltage of the power source is correct before connecting the equipment to the

power outlet.

9. Position the power cord so that people cannot step on it. Do not place anything over the power

cord.

10. All cautions and warnings on the equipment should be noted.

11. If the equipment is not used for a long time, disconnect it from the power source to avoid

damage by transient over-voltage.

12. Never pour any liquid into an opening. This could cause fire or electrical shock.

13. Never open the equipment. For safety reasons, only qualified service personnel should open

the equipment.

14. If any of the following situations arises, get the equipment checked by service personnel:

a. The power cord or plug is damaged.

b. Liquid has penetrated into the equipment.

c. The equipment has been exposed to moisture.

d. The equipment does not work well, or you cannot get it to work according to the user’s manual.

e. The equipment has been dropped and damaged.

f. The equipment has obvious signs of breakage.

15. DO NOT LEAVE THIS EQUIPMENT IN AN UNCONTROLLED ENVIRONMENT WHERE

THE STORAGE TEMPERATURE IS BELOW -20°C (-4°F) OR A BOVE 60°C (140°F). IT MAY

DAMAGE THE EQUIPMENT.

Introduction 1

AerPOS ( AP-3615 ) Introduction.........................................................................................1

A Quick Tour for AP-3615....................................................................................................2

AP-3615 Dimension......................................................................................................3

Rear I/O Panel Connectivity.................................................................................................4

Aer POS AP-3615 Packing List............................................................................................5

Hardware Installation and Upgrading 6

2.5” Hard Disk Drive Installation...........................................................................................6

MSR / Finger Print Reciever / RFID / iButton Installation .....................................................7

MB / Heatsink & Smart Fan / Memory Installation................................................................8

Memory (DDRIII RAM) & CPU Installation / MB Pin Define, Battery and Clear CMOS

Setting.................................................................................................................................9

COM Port Power Setting....................................................................................................10

Integrated VFD / LCM Installation......................................................................................11

15” / 11.6” 2

Display Installation ......................................................................................12

15” 1

Touch Display Installation & Swapping ...................................................................13

OSD Function and Adjustment...........................................................................................14

Cash Drawer Installation....................................................................................................15

Software Installation and Setup 16

Chipset Driver Installation..................................................................................................17

Intel Chipset Installation Utilities for Windows XP .......................................................17

Intel Chipset Installation Utilities for Windows 7..........................................................18

.Net Framwork 3.0 Tool Installation....................................................................................19

.Net Framework 3.0 Tool for Windows XP ..................................................................19

VGA Driver Installation.......................................................................................................21

VGA driver installation for Windows XP ......................................................................21

VGA driver installation for Windows 7.........................................................................23

Intel Management Engine Components Driver Installation.................................................25

VGA driver installation for Windows 7.........................................................................25

LAN Driver Installation.......................................................................................................27

Realtek RT8111E LAN Driver Installation for Windows XP.........................................27

Realtek RT8111E LAN Driver Installation for Windows 7............................................28

Audio Driver Installation.....................................................................................................29

Realtek ALC887 Audio Driver Installation for Windows XP & Windows 7....................29

FEC Project – Capacitive Touch Utility (Raydium Controller).............................................30

EETI TouchKit Tools Installation........................................................................................39

EETI TouchKit Installation for Windows XP.................................................................39

EETI TouchKit Installation for Windows 7 ...................................................................42

TouchKit Control Panel......................................................................................................45

Wireless LAN Driver Installation.........................................................................................46

Wireless LAN Driver Installation for all Windows Operating Systems (Optional) .........46

Specifications 47

AP-3615 Specifications......................................................................................................47

Troubleshooting 48

Touch Panel Does Not Work.......................................................................................48

OSD Panel Cannot Work Precisely.............................................................................48

Cannot Detect SATA Storage HDD/SSD ....................................................................48

LAN Is Not Functioning Properly.................................................................................49

COM1 ~ COM5 Are Not Functioning Properly.............................................................49

Cash Drawer Port Is Not Functioning Properly............................................................49

Appendix A: 50

Smart Management Tool User Guide 50

AerPOS Series AP-3615

AerPOS ( AP-3615 ) Introduction

AerPOS is the perfect combination of reducing the Total Cost Ownership and enhanced quality

requirement for POS system. With the design base on quality, space-effective and performance,

its modularized design helps user no matter on the maintenance but the further upgrade in a very

easy way.

Main Features:

•The high quality of resistive touch or durable tempered glass of projective capacitive

touch both are IP65 front panel compliant.

•Desktop solution with high performance is perfect for heavy loading environment.

Mobile platform aims for green and energy saving requirement

•Modularized design and easy maintenance for the key parts of its system , such as

storage device, CPU module and touch display.

•With various devices support and sufficient I/O connectivity requirements.

•Integrated VFD and the 2

15” / 11.6” LCD display.

AerPOS Series AP-3615

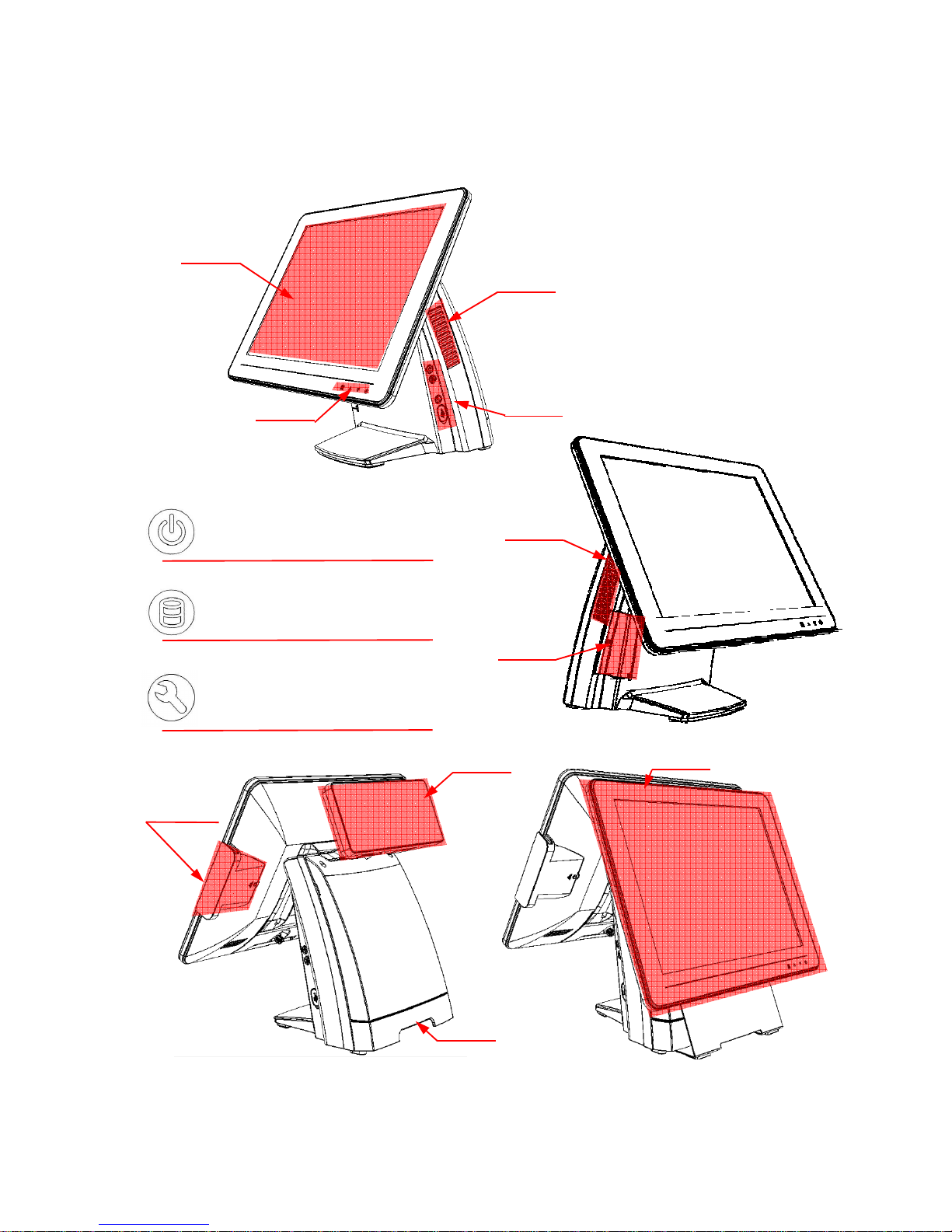

A Quick Tour for AP-3615

15” Touch Display

Power Switch

HDD LED

Smart Management Button

USB Port

Display OSD

2.5” SATA Drive

Access

VFD / LCM

MSR

Finger Print Receiver

RFID

i-Button

Cable Access

11.6” / 15” 2

Display

Power Switch / Status

Blue LED: Power ON

Red LED: Power Off / Standby

HDD / SATA Status

Orange LED: Operation

Validation Hole (Cool Air in)

Validation Hole

(Hot Air Out)

Smart Management

Connection button

AerPOS Series AP-3615

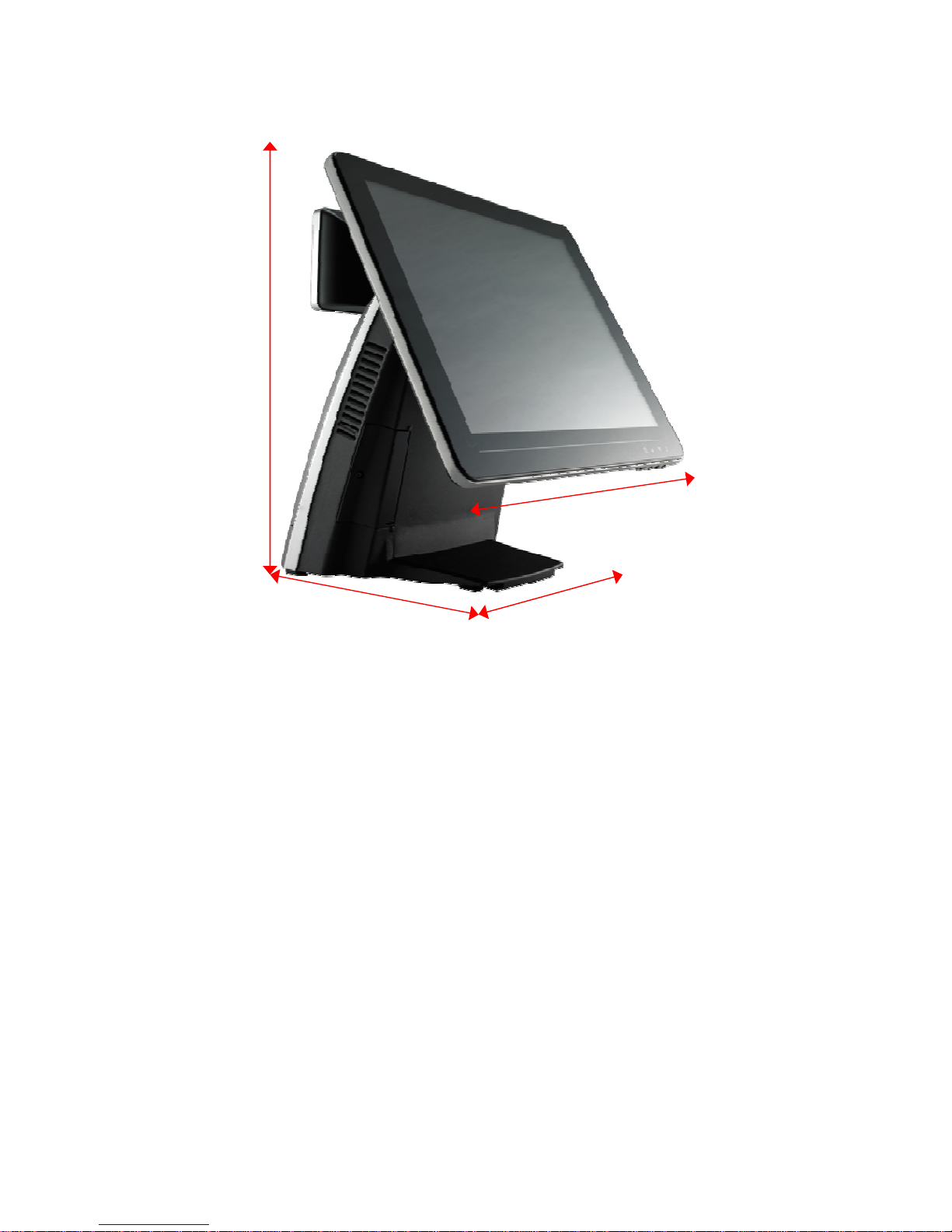

AP-3615 Dimension

D: 235mm

W: 240mm

H: 360mm

W: 370mm

AerPOS Series AP-3615

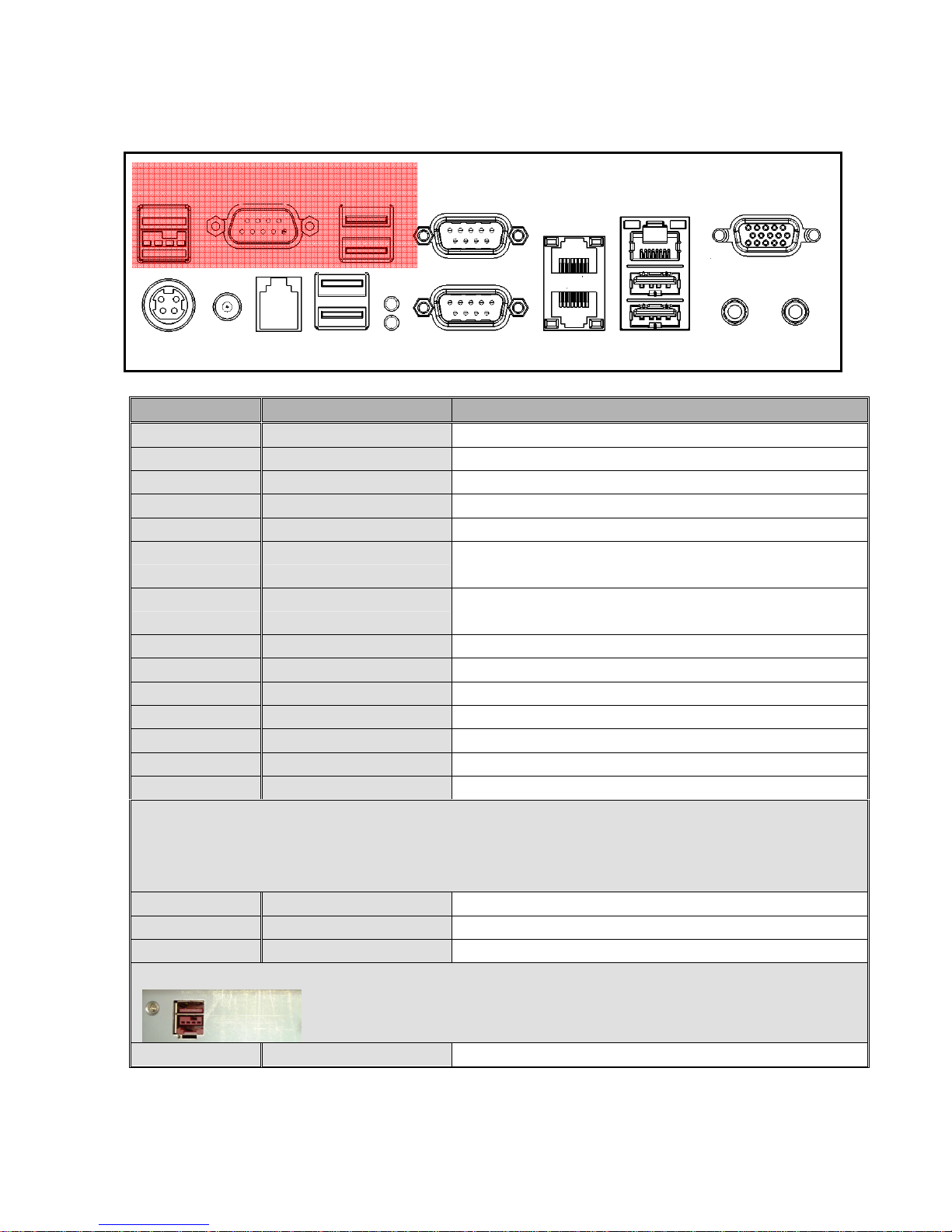

Rear I/O Panel Connectivity

I/O Port Connector Type Description

VGA D-sub 15 Connect 2

LCD screen or CRT monitors

Line Out Earphone connector Connect speakers to this port

Mic In Microphone Connector Connect microphone to this port

LAN RJ-45 Connect to Ethernet

USB A type USB Connect to standard A type USB devices

COM 3 RJ-45 Serial port COM 3— RX, TX only (simple COM)

RI—NA LED ; 5V—Green Light ; 12V – Orange Light

COM 4 RJ-45 Serial port COM 4

RI—NA LED ; 5V—Green Light ; 12V – Orange Light

COM 1 D-sub9 Serial Port COM 1

COM 2 D-sub9 Serial Port COM 2

COM Status LED RI—NA LED ; 5V—Green Light ; 12V – Orange Light

USB A type USB Connect to standard A type USB devices

Cash Drawer RJ-11 Connect to 12V Cash Drawer

DC out DC out connector 12V DC out put connect to 12V peripherals or devices

DC IN DC IN connector Connect the 12V power adaptor to this port

(Optional 1) Second IO Board is only available as pre-installed in FEC factory

Power USB Power USB 12V Standard Power USB 12V Peripherals

COM 5 D-sub9 (optional) Serial Port COM

USB A type USB x 2 Connect to standard A type USB devices

(Optional 2) Second IO Board is only available as pre-installed in FEC factory

Power USB Power USB 24V Standard Power USB 24V Peripherals

COM 1

COM 2

COM 3

COM 4

LAN

USB

VGA

USB

Cash

Drawer

DC Out Mic In Line Out

DC IN

COM2

Status

COM1

Status

COM 5 USB

Power USB

12V

AerPOS Series AP-3615

Before you unplug the power USB cable from I/O panel, please ensure unplug the A/C Cord in

advanced.

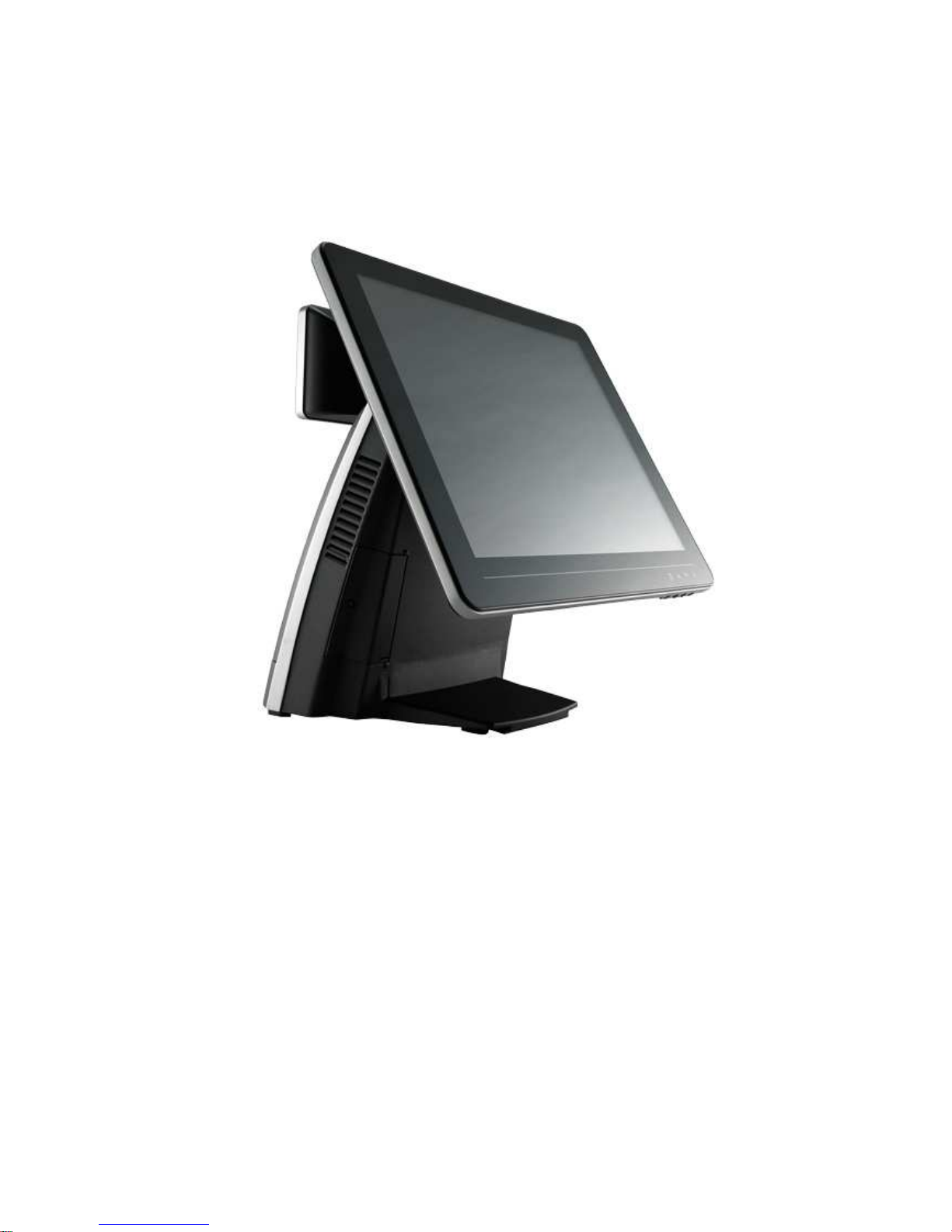

Aer POS AP-3615 Packing List

Standard Optional & Peripherals

15” AP-3615 AerPOS Touch Terminal 1

Optional IO Board

12V 150W Power Adaptor 2

RJ-45 to D-sub9 Convert Cable

AC Power Cable 3

MSR / RFID / Finger Print Receiver / I-Button

20x2 VFD / 20x2 LCM / 240x64 LCM

15” / 11.6” 2

Display Bracket

Wireless Lan Module
