REVERSIBLE / CHILLER - HEAT PUMPS - 

WRL 200-400-500

WRL-H 200-400-500



WATER/WATER

• HIGH EFFICIENCY

• MAXIMUM WATER OUTLET TEMPERATURE 55 °C

• DESUPERHEATER

• SUITABLE FOR GEOTHERMAL APPLICATIONS



U8131286304002





AERMEC S.p.A. reserves the right at any moment to make any modifications considered necessary to improve our products and is not obliged to add these modifications

to machines that have already been fabricated, delivered or are under construction.

Dear Customer,

Thank you for choosing an AERMEC product. This product is the result of many years of experience and

in-depth engineering research, and it is built using top quality materials and advanced technologies.

In addition, the CE mark guarantees that our appliances fully comply with the requirements of the

European Machinery Directive in terms of safety. We constantly monitor the quality level of our

products, and as a result they are synonymous with Safety, Quality, and Reliability.

Product data may be subject to modifications deemed necessary for improving the product without the

obligation to give prior notice.

Thank you again.

AERMEC S.p.A

IWRLI2_13.04_5890700_00

Sommario

1. Receipt of the product and installaon............................................. 5

1.1. Receipt and handling ........................................................................ 5

1.2. Selecon and place of installaon ................................................... 5

1.3. Handling ........................................................................................... 5

1.4. Minimum technical spaces ............................................................... 5

2. Wrl dimensions tables....................................................................... 6

3. An-vibraon posion ...................................................................... 7

4. Posion/dimension connecon wrl .................................................. 8

5. Weights and barycentres .................................................................. 9

5.1. No pump version............................................................................... 9

5.2. System side pump version ................................................................ 9

5.3. External side pump version............................................................. 10

5.4. System + external side pumps version............................................ 10

6. Electric connecons ........................................................................ 11

6.1. Recommended electric cable secon ............................................. 11

6.2. Electric power connecon to the electrical mains.......................... 11

7. Control and commissioning ............................................................ 12

7.1. Preparaon for commissioning....................................................... 12

7.2. Machine commissioning ................................................................. 12

7.3. Season changeover ......................................................................... 12

7.4. Electrical data.................................................................................. 12

8. Extraordinary maintenance............................................................. 13

9. Roune maintenance...................................................................... 13

INDEX

IWRLI2_13.04_5890700_00

 RECEIPT OF THE PRODUCT AND

INSTALLATION

 RECEIPT AND HANDLING

The machine is sent from the factory wrapped with

estincoil placed on a loading pallet.

Before handling the unit, verify the lifting capacity of

the machines used.

Handling must be performed by qualified, suitably

equipped staff.



- Whenever it is envisioned to lift the machine

with belts, so as not to damage the structure,

place protections between the belts and the

framework. It is prohibited to stop below the unit

during lifting.

- 



- 





 CANNOT

 SELECTION AND PLACE OF INSTALLATION

The WRL water/water INDOOR heat pump with

gas side inversion (R410A) is sent from the factory

already inspected and only requires electric and

hydraulic connections in the place of installation.

Before beginning installation consent with client and

pay attention to the following recommendations:

•The support surface must be capable of

supporng the unit weight.

•The safety distances between the units

and other appliances or structures must be

scrupulously respected.

•The unit must be installed by a skilled tech-

nician in compliance with the naonal law

in force in the country of desnaon.

•It is mandatory to foresee to the necessary

technical space in order to allow ROUTINE

AND EXTRAORDINARY MAINTENANCE in-

tervenons.

• Remember that whilst operaonal the chill-

er can cause vibraons; therefore “VT”an-

vibraon mounts (accessories) are recom-

mended, xed on the base according to the

assembly layout.

• Fix the unit, checking that it is level.

600mm

23,6 in

600mm

23,6 in

600mm

23,6 in

600mm

23,6 in



DRAWINGS

ONLY INDICATIVE

THE UNIT HAS TO BE INSTALLED

IN TECHNICAL ROOMS,

OR ROOMS WHICH HAVE AT



 HANDLING

 MINIMUM TECHNICAL SPACES

IWRLI2_13.04_5890700_00

 WRL DIMENSIONS TABLES





DIMENSIONS WRL 500



POSITION

  200 400

800 800

A1 845 845

B 1270 1270

B1 1380 1380

C 1320 1320

31,5 31,5

A1 33,3 33,3

B 50,0 50,0

B1 54,3 54,3

C 52,0 52,0

POSITION

  500

800

A1 845

B 1270

B1 1380

C 2060

31,5

A1 33,3

B 50,0

B1 54,3

C 81,1

IWRLI2_13.04_5890700_00





DIMENSIONS WRL 500



 

D E F

POSITION

  200 400

75 75

E 1170 1170

F 75 75

3,0 3,0

E 46,1 46,1

F 3,0 3,0

POSITION

  500

E 1899

F 78

3,1

E 74,8

F 3,1

IWRLI2_13.04_5890700_00

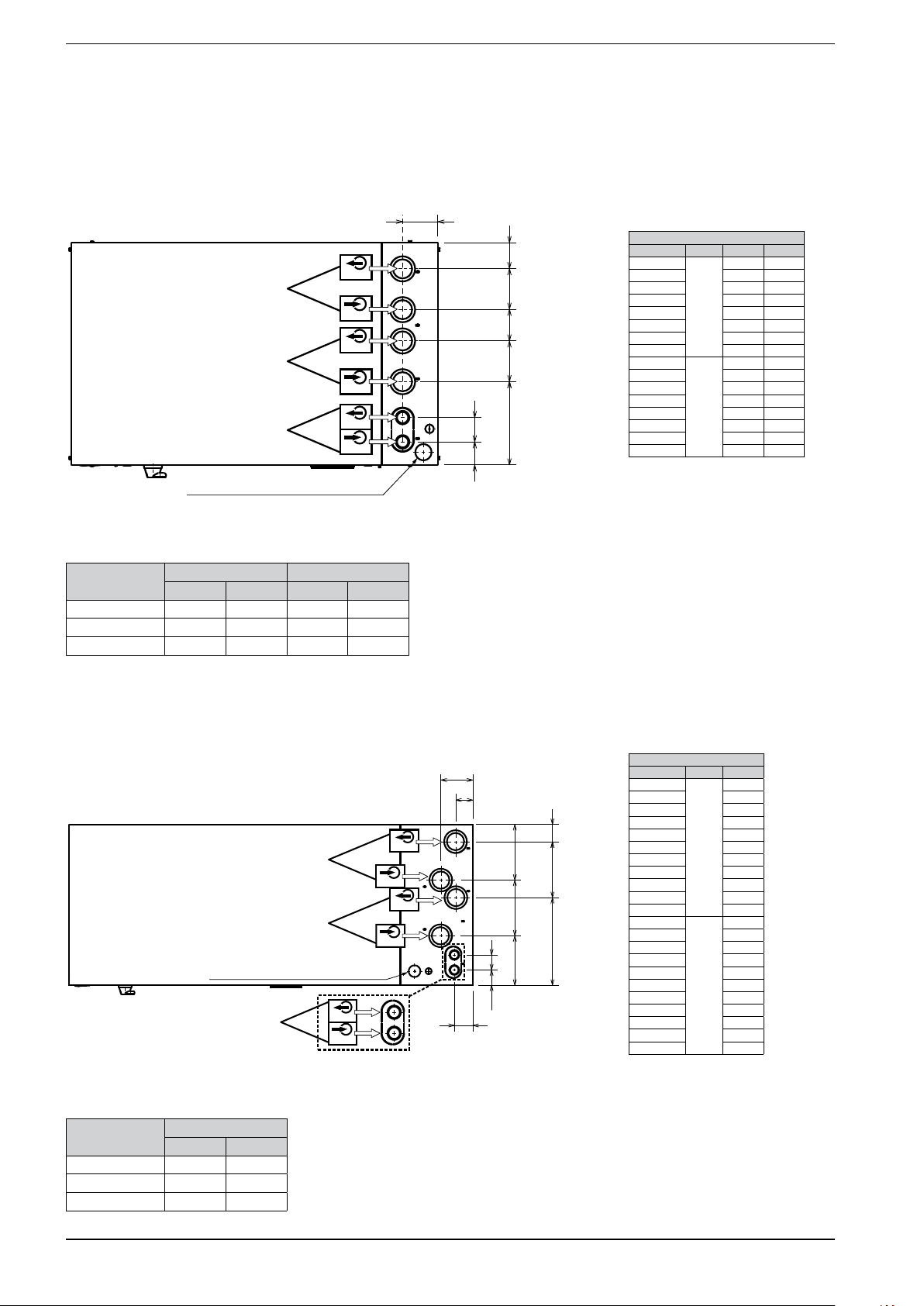

 POSITION/DIMENSION CONNECTION WRL

OUT



EVAPORATOR

CONDENSER

DESUPERHEATER



WRL 200 400

IN OUT IN OUT

Evaporator 2” 2” 2” 2”

Condenser 2” 2” 2” 2”

Desuperheater 1”½ 1”½ 1”½ 1”½



WRL 500

IN OUT

Evaporator 2”½ 2”½

Condenser 2”½ 2”½

Desuperheater 1”½ 1”½

OUT



EVAPORATOR

CONDENSER

DESUPERHEATER





DIMENSIONS WRL 500



POSITION

  200 400

127 127

H 94 94

I 146 146

L 114 114

M 146 146

N 300 300

O87 87

P 83 83

5,0 5,0

H 3,7 3,7

I 5,7 5,7

L 4,5 4,5

M 5,7 5,7

N 11,8 11,8

O3,4 3,4

P 3,3 3,3

POSITION

  500

Q 159

R 85

S 87

T 277

U436

V277

W 277

X 246

Y75

Z 76

3,6

Q 6,3

R 3,3

S 3,4

T 10,9

U17,2

V10,9

W 10,9

X 9,7

Y3,0

Z 3,0

IWRLI2_13.04_5890700_00

A B





 NO PUMP VERSION

 SYSTEM SIDE PUMP VERSION

DIMENSIONS WRL 500



 WEIGHTS AND BARYCENTRES

WRL

  



   

Gx  Gx  Gx  Gx  A B C D

kg lb mm mm in in kg lb mm mm in in % % % %

200 325 716 424 600 17 24 349 770 417 620 16 24 27% 26% 24% 23%

400 387 853 424 542 17 21 411 907 419 562 16 22 29% 28% 21% 21%

500 528 1164 400 995 16 39 560 1235 396 1024 16 40 27% 24% 26% 23%

WRL

  



   

Gx  Gx  Gx  Gx  A B C D

kg lb mm mm in in kg lb mm mm in in % % % %

200 365 804 396 649 16 26 389 858 393 664 15 26 27% 23% 27% 23%

400 438 966 395 602 16 24 463 1020 392 617 15 24 29% 25% 25% 22%

500 585 1289 381 1034 15 41 616 1359 378 1059 15 42 27% 22% 28% 23%

WRL-H

  



   

Gx  Gx  Gx  Gx  A B C D

kg lb mm mm in in kg lb mm mm in in % % % %

200 324 715 391 599 15 24 348 767 378 619 15 24 29% 24% 26% 21%

400 386 852 397 541 16 21 410 904 385 561 15 22 31% 26% 23% 19%

500 541 1192 395 1003 16 39 574 1265 390 1032 15 41 27% 23% 27% 23%

WRL-H

  



   

Gx  Gx  Gx  Gx  A B C D

kg lb mm mm in in kg lb mm mm in in % % % %

200 364 804 370 648 15 26 388 855 360 663 14 26 29% 21% 29% 21%

400 438 966 373 601 15 24 461 1017 365 616 14 24 30% 23% 27% 20%

500 597 1316 376 1040 15 41 631 1390 373 1065 15 42 27% 21% 29% 23%

IWRLI2_13.04_5890700_00

A B





DIMENSIONS WRL 500



 EXTERNAL SIDE PUMP VERSION

WRL

  



   

Gx  Gx  Gx  Gx  A B C D

kg lb mm mm in in kg lb mm mm in in % % % %

200 365 804 425 649 17 26 389 858 419 664 17 26 25% 25% 25% 25%

400 438 966 426 602 17 24 463 1020 421 617 17 24 27% 27% 23% 23%

500 585 1289 406 1034 16 41 616 1359 402 1059 16 42 26% 23% 27% 24%

WRL-H

  



   

Gx  Gx  Gx  Gx  A B C D

kg lb mm mm in in kg lb mm mm in in % % % %

200 364 804 399 648 16 26 388 855 387 663 15 26 27% 23% 27% 23%

400 438 966 404 601 16 24 461 1017 394 616 15 24 29% 25% 25% 22%

500 597 1316 401 1040 16 41 631 1390 396 1065 16 42 26% 23% 27% 24%

 SYSTEM + EXTERNAL SIDE PUMPS VERSION

WRL

  



   

Gx  Gx  Gx  Gx  A B C D

kg lb mm mm in in kg lb mm mm in in % % % %

200 405 892 403 689 16 27 429 946 399 700 16 28 25% 22% 28% 25%

400 490 1080 402 649 16 26 514 1134 399 660 16 26 26% 24% 26% 24%

500 641 1413 388 1066 15 42 673 1484 385 1087 15 43 26% 21% 29% 24%

WRL-H

  



   

Gx  Gx  Gx  Gx  A B C D

kg lb mm mm in in kg lb mm mm in in % % % %

200 404 892 379 688 15 27 428 943 369 699 15 28 26% 21% 30% 23%

400 489 1079 383 648 15 26 513 1131 374 659 15 26 28% 22% 28% 22%

500 654 1441 383 1071 15 42 687 1515 380 1093 15 43 26% 21% 29% 24%
