AEMC instruments 1510 Manuel utilisateur

WITH AEMC

INSTRUMENTS

ENVIRONMENTAL TESTERS

Air Quality Logger

Model 1510

ENGLISH

User Manual

No part of this documentation may be reproduced in any form or by any means (including electronic

storage and retrieval or translation into any other language) without prior agreement and written consent

from Chauvin Arnoux®, Inc., as governed by United States and International copyright laws.

Chauvin Arnoux®, Inc. d.b.a. AEMC®Instruments

15 Faraday Drive • Dover, NH 03820 USA

Tel: (800) 945-2362 or (603) 749-6434 • Fax: (603) 742-2346

This documentation is provided “as is,” without warranty of any kind, express, implied, or otherwise.

Chauvin Arnoux®, Inc. has made every reasonable e󰀨ort to ensure that this documentation is accurate;

but does not warrant the accuracy or completeness of the text, graphics, or other information contained

in this documentation. Chauvin Arnoux®, Inc. shall not be liable for any damages, special, indirect,

incidental, or inconsequential; including (but not limited to) physical, emotional or monetary damages

due to lost revenues or lost prots that may result from the use of this documentation, whether or not the

user of the documentation has been advised of the possibility of such damages.

Chauvin Arnoux®, Inc.

d.b.a AEMC®Instruments

www.aemc.com

Statement of Compliance

Chauvin Arnoux®, Inc. d.b.a. AEMC® Instruments

certies that this instrument has been calibrated

using standards and instruments traceable to

international standards.

We guarantee that at the time of shipping your

instrument has met the instrument’s published

specications.

An NIST traceable certicate may be requested

at the time of purchase, or obtained by returning

the instrument to our repair and calibration

facility, for a nominal charge.

The recommended calibration interval for this

instrument is 12 months and begins on the date of

receipt by the customer. For recalibration, please

use our calibration services. Refer to our repair and

calibration section at www.aemc.com/calibration.

Serial #:

Catalog #: 2138.08 / 2138.09

Model #: 1510

Please ll in the appropriate date as indicated:

Date Received:

Date Calibration Due:

TABLE OF CONTENTS

1. INTRODUCTION..................................................................6

1.1 PRECAUTIONS FOR USE ........................................................ 7

1.2 RECEIVING YOUR SHIPMENT................................................ 7

1.3 ORDERING INFORMATION..................................................... 7

1.3.1 Accessories ........................................................................ 8

1.3.2 Replacement Parts............................................................. 8

2. PRODUCT FEATURES.......................................................9

2.1 INSTRUMENT REAR PANEL & BATTERY INSTALLATION ... 9

2.2 INSTRUMENT FRONT PANEL............................................... 10

2.3 INSTRUMENT FUNCTIONS................................................... 10

2.4 TURNING THE INSTRUMENT ON/OFF................................ 11

2.5 FUNCTION BUTTONS ............................................................ 11

2.6 DISPL AY ................................................................................... 12

3. OPERATION ...................................................................... 13

3.1 MAKING A MEASUREMENT .................................................. 13

3.1.1 Selecting Temperature Units............................................. 13

3.2 PORTABLE MODE .................................................................. 13

3.3 1D AND 3D MODES................................................................. 13

3.3.1 1D and 3D Modes Activation ............................................ 14

3.3.2 Visible and Audible Warnings .......................................... 15

3.4 ECO (ENERGY SAVING) MODE ............................................ 16

3.5. P_REC (PROGRAMMED RECORDING) MODE ................. 17

3.6. MIN MAX FUNCTION............................................................. 17

3.7. HOLD FUNCTION ................................................................... 18

3.8. M_REC (MANUAL RECORDING) FUNCTION .................... 19

3.9. BACKLIGHT ............................................................................ 19

3.10 A L A R M B U Z Z E R .................................................................... 20

3.11. ERROR MESSAGES ............................................................. 20

3.11.1. OL (Overload) Symbol.................................................... 20

3.11.2. Err (Error) Symbol .......................................................... 20

3.11.3. MEM_FULL (Memory Full) Symbol ............................... 21

4. DATAVIEW®......................................................................22

4.1. D ATAV I E W ®INSTALL ATION .................................................. 22

4.2. CONNECTING THE INSTRUMENT TO A COMPUTER ..... 22

5. SPECIFICATIONS .............................................................24

5.1. REFERENCE CONDITIONS.................................................. 24

5.2. MEASUREMENT CHARACTERISTICS ............................... 24

5.2.1. CO2Measurements ......................................................... 24

5.2.2. Inuences on the Measurements of CO2.................................... 24

5.2.3. Temperature Measurements ........................................... 24

5.2.4. Humidity Measurement ................................................... 25

5.2.5. Inuence of the temperature on the relative humidity

measurement............................................................................. 25

5.3. MEASUREMENT MODES ..................................................... 26

5.4. POWER SUPPLY .................................................................... 26

5.5. RECORDING........................................................................... 26

5.6. ENVIRONMENT CONDITIONS............................................. 26

5.7. MECHANICAL CHARACTERISTICS .................................... 27

5.8. COMPLIANCE WITH INTERNATIONAL STANDARDS ...... 27

5.9. ELECTROMAGNETIC COMPATIBILITY .............................. 27

6. MAINTENANCE ................................................................28

6.1. CLEANING............................................................................... 28

6.2. BATTERY REPLACEMENT ................................................... 28

6.3 REPAIR AND CALIBRATION ................................................. 29

6.4 TECHNICAL ASSISTANCE .................................................... 30

6.5 LIMITED WARRANTY............................................................. 30

6.5.1 Warranty Repairs.............................................................. 31

6 Air Quality Logger Model 1510 - User Manual

1. INTRODUCTION

Thank you for purchasing an AEMC®Instruments Air Quality Logger

Model 1510.

For the best results from your instrument and for your safety, you must read

the enclosed operating instructions carefully and comply with the precautions

for use. Only qualied and trained operators should use this product.

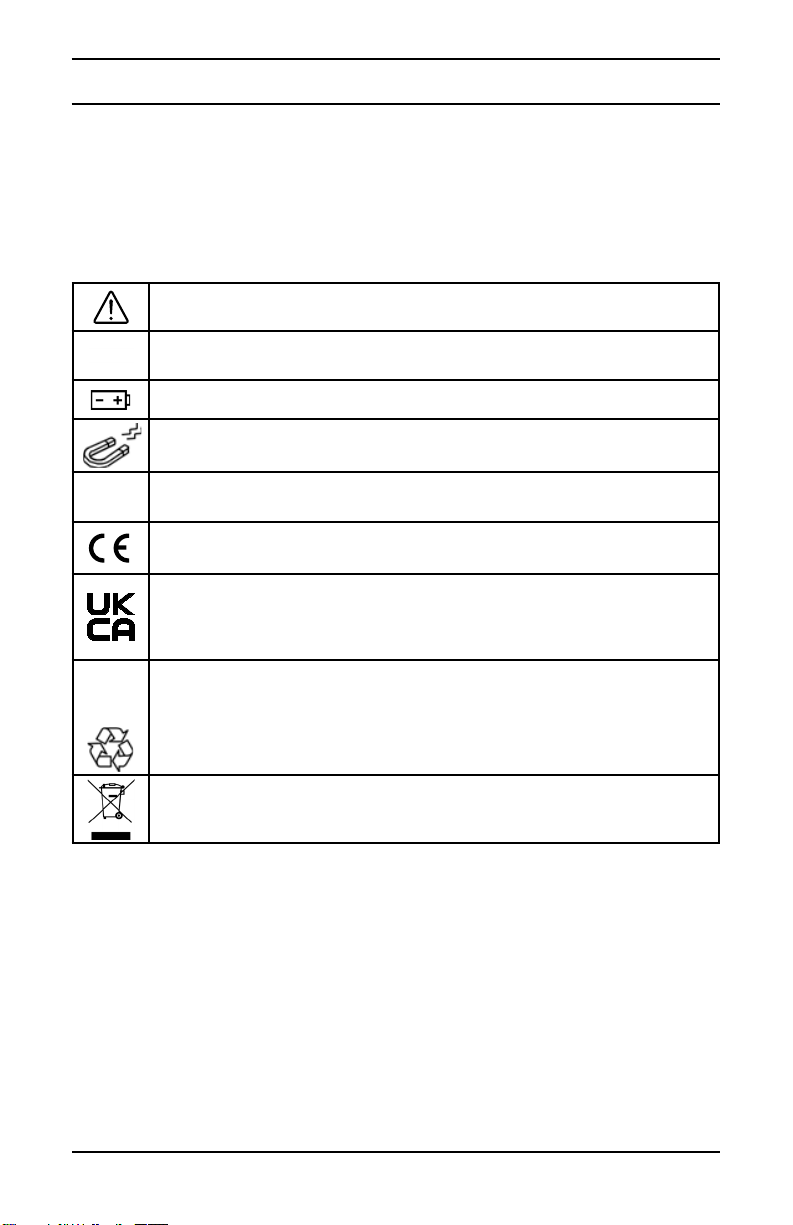

Symbols and Denitions

CAUTION - Risk of Danger! Indicates a WARNING. Whenever this symbol

is present, the operator must refer to the user manual before operation

Indicates Important information to acknowledge

Battery

Magnet

The product has been declared recyclable

This product complies with the Low Voltage & Electromagnetic Compatibility

European directives (73/23/CEE & 89/336/CEE)

The UKCA marking certies that the product is compliant with the

requirements that apply in the United Kingdom, specically regarding

Low-Voltage Safety, Electromagnetic Compatibility, and the Restriction of

Hazardous Substances.

Chauvin Arnoux®and AEMC®Instruments have adopted an Eco-Design

approach in order to design this instrument. Analysis of the complete

lifecycle has enabled us to control and optimize the e󰀨ects of the product

on the environment. In particular this instrument exceeds regulation

requirements with respect to recycling and reuse

In the European Union, this product is subject to a separate collection

system for recycling electrical and electronic components in accordance with

directive WEEE 2002/96/EC

Denition of Measurement Categories (CAT)

CAT IV corresponds to measurements performed at the primary electrical supply

(< 1000 V).

Example: primary overcurrent protection devices, ripple control units, and

meters.

CAT III corresponds to measurements performed in the building installation at the

distribution level.

Example: hardwired equipment in xed installation and circuit breakers.

CAT II corresponds to measurements performed on circuits directly connected to

the electrical distribution system.

Example: measurements on household appliances and portable tools.

Air Quality Logger Model 1510 - User Manual 7

1.1 PRECAUTIONS FOR USE

This instrument is compliant with safety standard IEC 61010-2-030,

for voltages up to 5 V with respect to ground. Failure to observe the

following safety instructions may result in electric shock, re, explosion,

and damage to the instrument and/or the installation in which it is

located.

■The operator and/or the responsible authority must carefully read and

clearly understand all precautions to be taken prior to using the instrument.

Thorough knowledge and awareness of electrical hazards are essential

when using this instrument.

■Observe the conditions of use, including temperature, relative humidity,

altitude, pollution degree, and location of use.

■Do not use the instrument if it appears damaged, incomplete, or improperly

closed.

■Before each use, check the condition of the housing and accessories. Any

item on which the insulation is deteriorated (even partially) must be set

aside for repair or disposal.

■Never make measurements in atmospheres contaminated by solvents,

which could damage the sensor.

■All troubleshooting and metrological checks must be done by accredited

personnel.

1.2 RECEIVING YOUR SHIPMENT

Upon receiving your shipment, make sure that the contents are

consistent with the packing list. Notify your distributor of any missing

items. If the equipment appears to be damaged, le a claim immediately

with the carrier and notify your distributor at once, giving a detailed

description of any damage. Save the damaged packing container to

substantiate your claim.

1.3 ORDERING INFORMATION

Air Quality Logger Model 1015 (gray)........................................ Cat. #2138.08

Air Quality Logger Model 1015 (white) ...................................... Cat. #2138.09

Both models include soft carrying pouch, (2) AA batteries, 6 ft USB cable,

quick start guide, USB drive with DataView®software and user manual.

8 Air Quality Logger Model 1510 - User Manual

1.3.1 Accessories

Adapter, Bluetooth USB for Simple Logger II 4-Channel

Models, 6417, 1510 & L452 ....................................................... Cat. #2126.45

Wall Mount for Models 1520 & L452 (gray or black) ................. Cat. #2138.61

Desk Stand for Model 1510 (white) ........................................... Cat. #2126.62

Calibration Kit for Model 1510 (includes calibration software CD).. Cat. #2138.63

Metal Carrying Case ................................................................. Cat. #2138.65

Wall Mount for Model 1510 (white) ............................................ Cat. #2126.67

Adapter - USB Wall Plug ........................................................... Cat. #2153.78

1.3.2 Replacement Parts

Cable - Replacement 6 ft (1.8 m) USB ...................................... Cat. #2138.66

Soft Carrying Pouch.................................................................. Cat. #2154.71

Order Accessories and Replacement Parts Directly Online

Check our Storefront at www.aemc.com/store for availability

Air Quality Logger Model 1510 - User Manual 9

2. PRODUCT FEATURES

2.1 INSTRUMENT REAR PANEL & BATTERY INSTALLATION

The instrument accepts (2) AA or LR6 alkaline batteries.

Rear panel:

1. Non-skid pads

2. Tear-drop notch to hang instrument

3. Battery compartment cover

4. Magnets for mounting to a metallic surface

To change the batteries:

1. Press the tab of the battery compartment cover and lift it clear.

2. Remove the battery compartment cover.

3. Insert the new batteries, ensuring correct polarity.

4. Close the battery compartment cover; ensuring it is completely and correctly.

closed.

10 Air Quality Logger Model 1510 - User Manual

2.2 INSTRUMENT FRONT PANEL

1. Temperature and humidity

sensors

2. LCD display

3. MODE/temperature units button

4. Backlight/ECO mode button

5. Record button

6. ON/OFF button

7. CO2sensor

8. Activate/deactivate buzzer

9. HOLD/Bluetooth enable/disable

button

10. MAX/MIN button

2.3 INSTRUMENT FUNCTIONS

The Model 1510 measures:

■Concentration of carbon dioxide (CO2) in the air

■Ambient temperature

■Relative humidity

The instrument uses these measurements to determine and display the

current comfort level.

DataView®with the Data Logger Control Panel software can be

installed on a computer to allow you to congure the instrument, view

measurements in real time, download data from the instrument, and

create reports.

Table des matières

Autres manuels AEMC instruments Instrument de mesure

AEMC instruments

AEMC instruments MA194-24-BK Manuel utilisateur

AEMC instruments

AEMC instruments MN312 Manuel utilisateur

AEMC instruments

AEMC instruments SIMPLE LOGGER L100 Manuel utilisateur

AEMC instruments

AEMC instruments 1015 Manuel utilisateur

AEMC instruments

AEMC instruments PowerPad IV 8345 Manuel utilisateur

AEMC instruments

AEMC instruments MD304 Manuel utilisateur

AEMC instruments

AEMC instruments 6536 Manuel utilisateur

AEMC instruments

AEMC instruments 6550 Manuel utilisateur

AEMC instruments

AEMC instruments 6528 Manuel utilisateur

AEMC instruments

AEMC instruments MR6292 Manuel utilisateur

AEMC instruments

AEMC instruments SL261 Manuel utilisateur

AEMC instruments

AEMC instruments DIGITAL FLEXPROBE 400D-6 Manuel utilisateur

AEMC instruments

AEMC instruments MN125 Manuel utilisateur

AEMC instruments

AEMC instruments 6526 Manuel utilisateur

AEMC instruments

AEMC instruments 5050 Instructions d'utilisation et de sécurité

AEMC instruments

AEMC instruments Clamp-On 3705 Manuel utilisateur

AEMC instruments

AEMC instruments MN134 Manuel utilisateur

AEMC instruments

AEMC instruments 6550 Manuel utilisateur

AEMC instruments

AEMC instruments JM865A Manuel utilisateur

AEMC instruments

AEMC instruments 6501 Manuel utilisateur

AEMC instruments

AEMC instruments CA7027 Manuel utilisateur

AEMC instruments

AEMC instruments MN09 Manuel utilisateur

AEMC instruments

AEMC instruments 6527 Manuel utilisateur

AEMC instruments

AEMC instruments SR701 Manuel utilisateur

Manuels Instrument de mesure populaires d'autres marques

Suaoki

Suaoki D40 Manuel utilisateur

Elster

Elster BK-G1.6 Manuel utilisateur

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuel

Duratool

Duratool D03128 Manuel utilisateur

Vega

Vega VEGAPULS 65 Manuel utilisateur

Tonghui

Tonghui TH2618B Manuel utilisateur

Tenmars

Tenmars TM-801 Manuel utilisateur

MSR

MSR 145 Manuel utilisateur

TPS

TPS WP-82 Manuel utilisateur

ELMETRON

ELMETRON CP-511 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 003C30 Manuel utilisateur

Tenma

Tenma 72-10465 Manuel utilisateur

Endress+Hauser

Endress+Hauser Proline Promag 50 Caractéristiques techniques

Siemens

Siemens SITRANS F Coriolis FCT030 Manuel de la liste des pièces

KLINGER

KLINGER CMF V Series Manuel utilisateur

EXFO

EXFO FTB-2 Manuel d'exploitation et d'entretien

Keysight

Keysight M8290A Manuel utilisateur

ADTEK

ADTEK MW-5 Manuel utilisateur
