AEG PERFEKT GLIDE 30-REC Manuel utilisateur

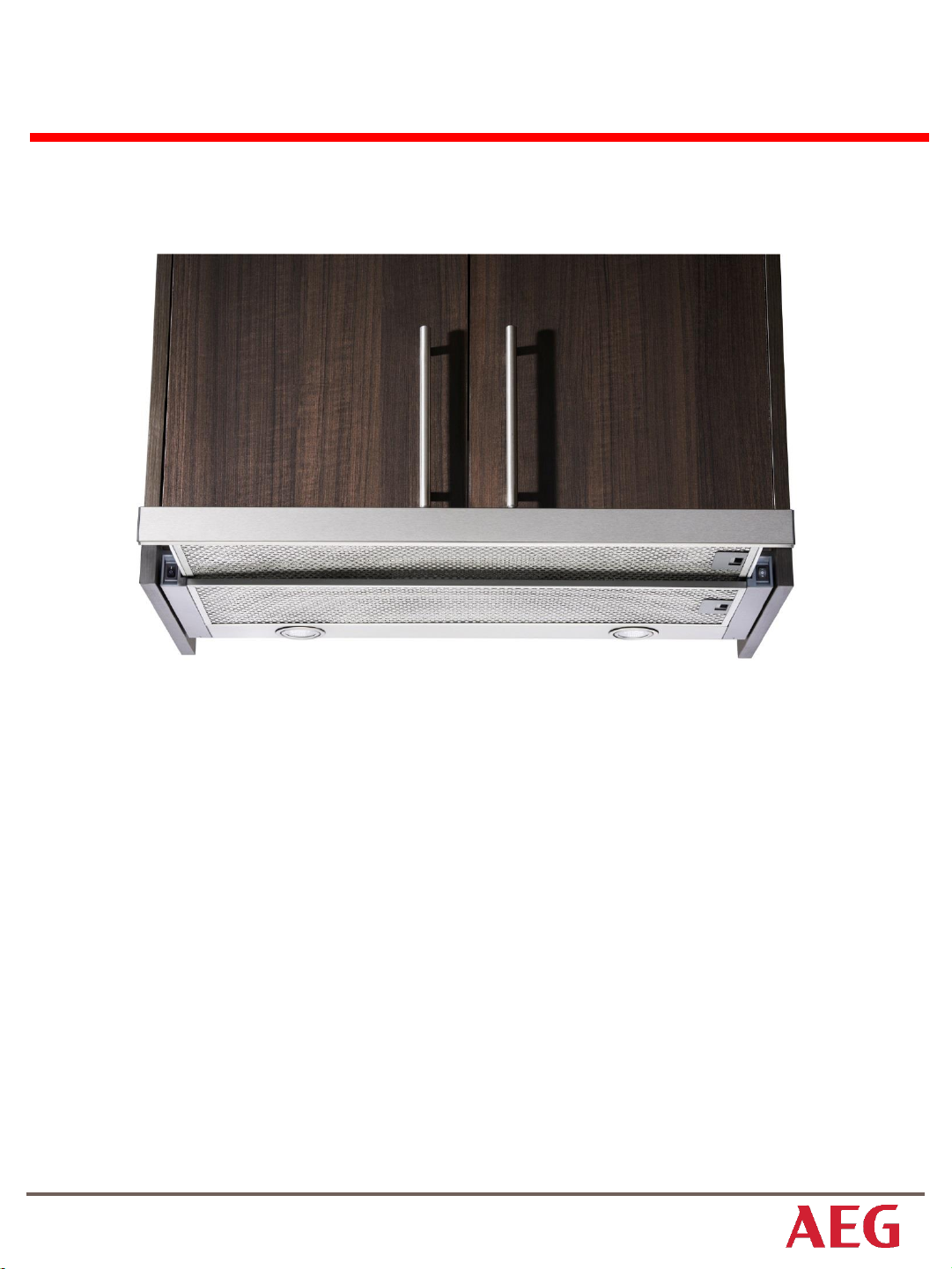

PERFEKT GLIDE 30-REC
30” Built-in Telescopic Range Hood
Specifications are subject to change without notice
V1.2
PERFEKT GLIDE 30-REC
30” Built-in Telescopic Range Hood
•D: 11” x W: 2913/16”
•D: 280mm x W: 758mm
RANGE HOOD DIMENSIONSRANGE HOOD FEATURES
•30” (76cm) stainless steel built-in glide-out range hood
•Recirculating
•LED lighting (3,200 Lumens)
•2 speed adjustment
•2 x dishwasher safe honey comb filters
•Electronic switch controls
•Quiet (7 sones/56dB) 300 CFM motor
•115 Volt, 60Hz, 15AMP
•AEG Range Hoods are supplied with a Canadian
cord and plug
•Electrical cord located 65/16” (160mm) from the
top right corner of the unit at the rear
ELECTRICAL REQUIREMENTS
Specifications are subject to change without notice
V1.2
Specifications

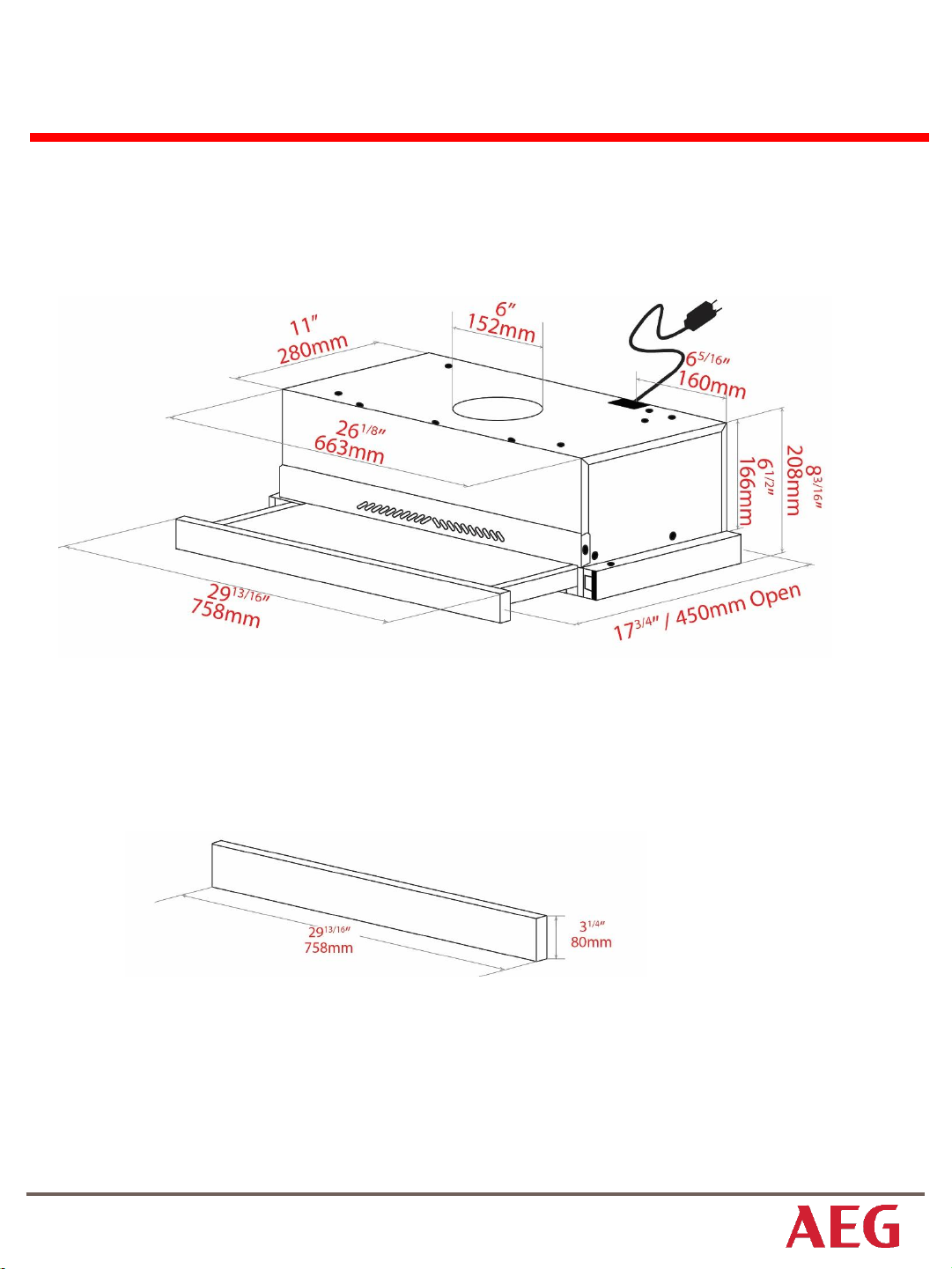

PERFEKT GLIDE 30-REC
D: 11” x W: 2913/16”
D: 280mm x W: 758mm
RANGE HOOD DIMENSIONS
FRONT PANEL - DUCTED
Specifications are subject to change without notice
V1.2
FRONT VIEW SIDE VIEW
69/16”
166mm
Shelf Supports
Range hood
81/4”
210mm
External Gable
External Gable
Specifications
PERFEKT GLIDE 30-REC
30”
762mm
CABINET BOX DESIGN - (RECICULATING)
Specifications are subject to change without notice
V1.2
Specifications
PERFEKT GLIDE 30-REC

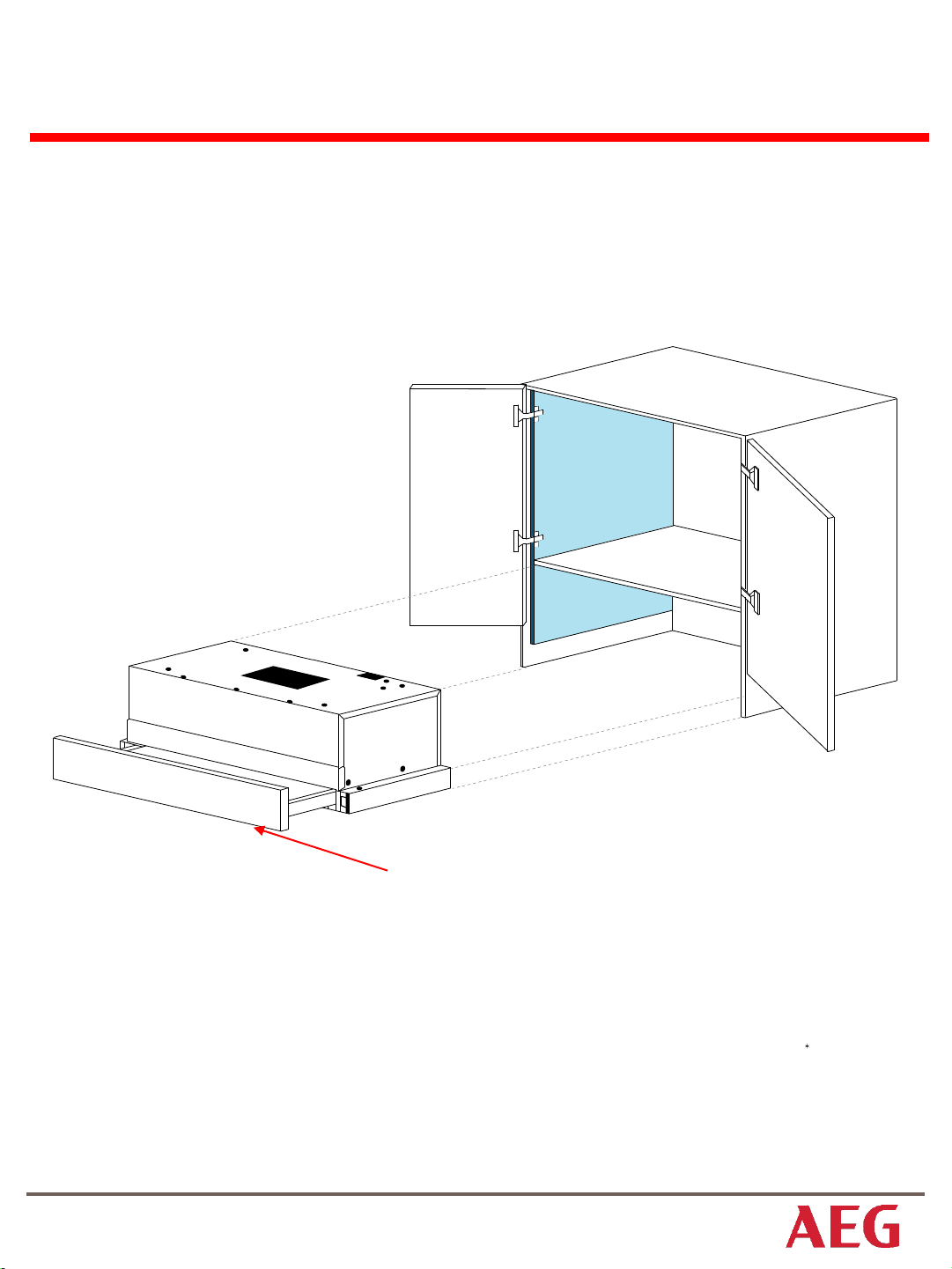

•1. Pull the glide forward
•2. Remove the 4 screws holding the glide to the panel
•3. Install the matching front panel using the 4 screws
*Custom panel provided by customer
NOTE: Removing the front stainless steel trim
FRONT PANEL INSTALLATION
Specifications are subject to change without notice
V1.2
Specifications
PERFEKT GLIDE 30-REC

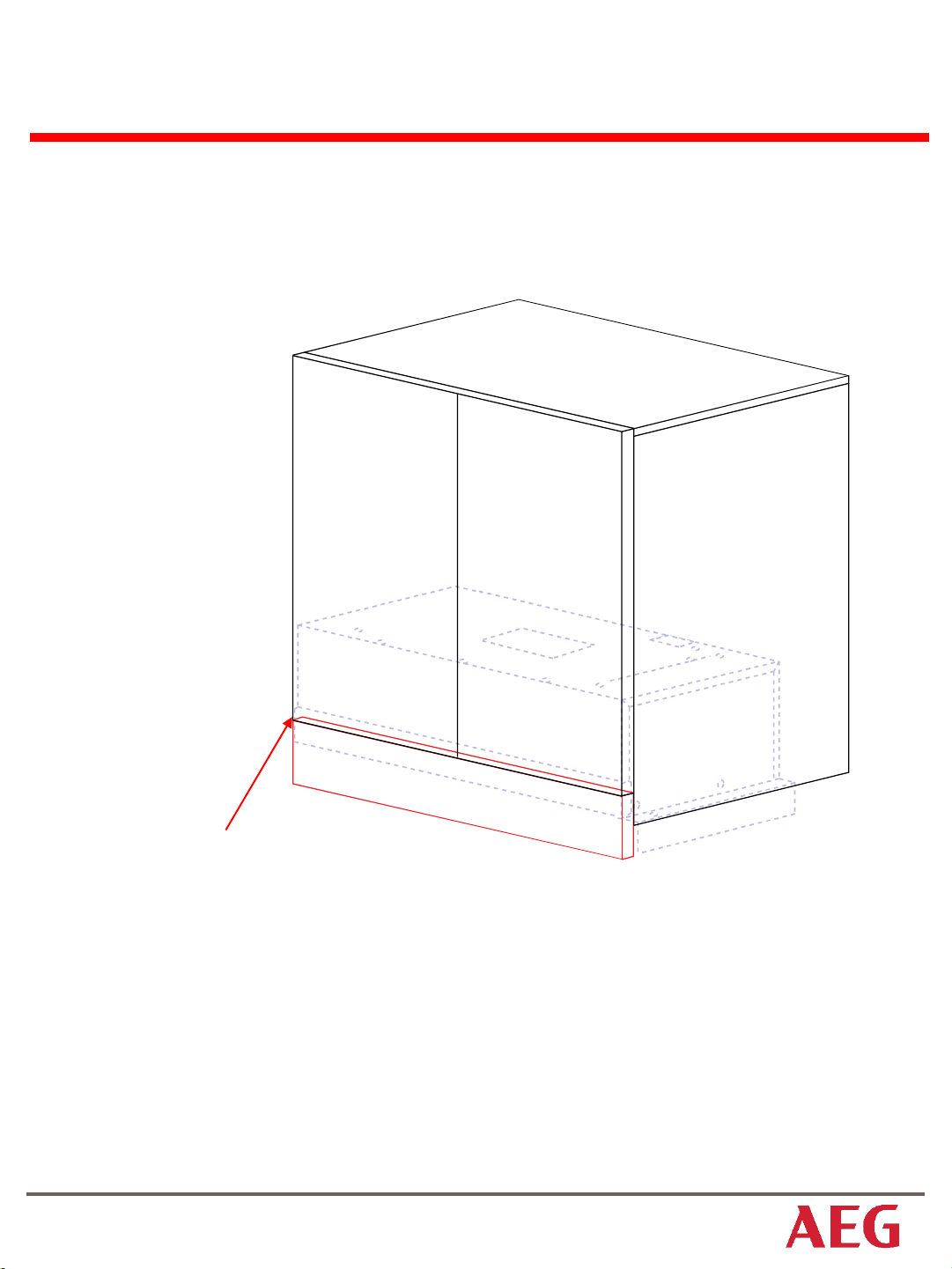

•Ensure that the cabinet door panel is
shortened to accommodate the
larger sized Range Hood Front Panel
NOTE: Cabinet Door Panel Height
Specifications are subject to change without notice
V1.2
Specifications

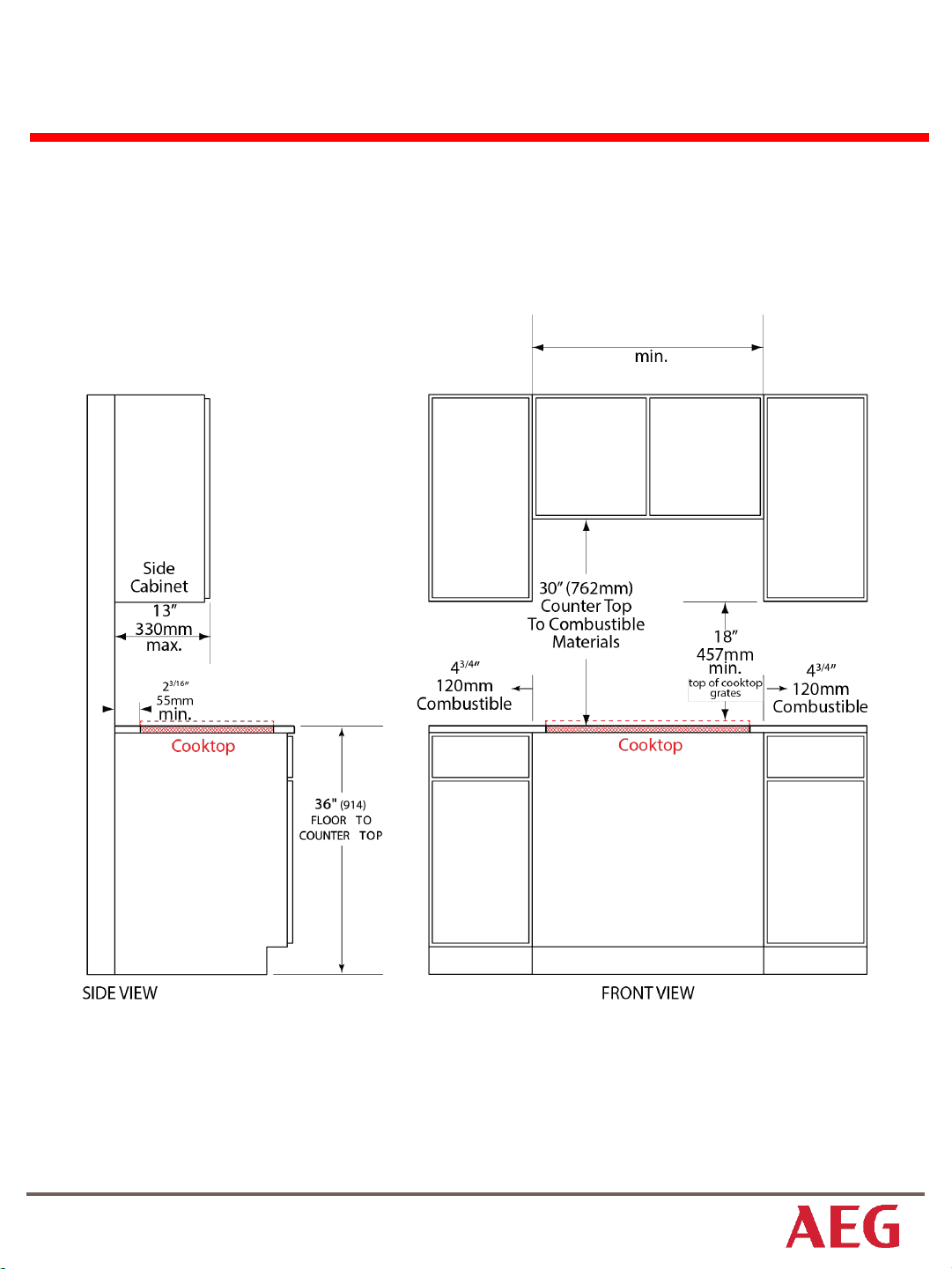

RECOMMENDED CABINET MINIMUM CLEARANCE
(GAS COOKING SURFACE)
PERFEKT GLIDE 30-REC
30”
762mm
Specifications are subject to change without notice
V1.2
Specifications
RECOMMENDED CABINET MINIMUM CLEARANCE
(ELECTRIC / INDUCTION COOKING SURFACE)
24” (610mm)
PERFEKT GLIDE 30-REC
30”
762mm
AEG Appliances are designed and manufactured to the highest standards.
Each appliance is covered by a comprehensive 2-yearpartsand labour warranty.
Refer to product warranty policy for complete terms and conditions.
AEG appliances are imported and distributed in North America by
Euro-Line Appliances Inc.Formore information, please visit one of our showroomsor
www.euro-line-appliances.com /www.elawest.com
871 Cranberry Court
Oakville, ON L6L 6J7 Canada
905 829 3980
1 800 421 6332
101-1014 Homer Street
Vancouver, BC V6B 2W9 Canada
604 235 3980
1 855 ELA WEST (352 9378)
marketing@euro-line-appliances.com
B742
FOR PARTS ANDSERVICE
Euro-Parts & Service
39822 Belgrave Road, Belgrave, ON. N0G 1E0
18006788352 (Canada) •18005614614 (U.S.)
www.euro-parts.ca •parts@euro-parts.ca • service@euro-parts.ca
