Introduction

Extractor version

●The hood is supplied as an extractor unit and can also be used with

a filtering function by fitting activated carbon filters (special

accessory).

●You will need original AEG activated carbon filters for this function

(see Special Accessories).

●The air is forced out through a hose fitted to the top of the hood

A. Fig. 1.

●The outlet hose must have a diameter of 120 mm (special

accessory) for the filtering version.

●Fit the connection ring above the hood with two screws then fir an

exhausting pipe long enough to reach the outside. Fig. 1.

●If the cooking vapour is passed through an outside wall, you will

need an MKZ telescopic wall pipe (with intake and ventilation) E-

Nr.: 610 899 004 (120 mm Ø) from our range of special

accessories.

Fig. 1

Filter version

●The air is filtered through an activated carbon filter and passed back

into the kitchen through the top outlet duct grids.

●You will need an original AEG activated carbon filter for the

filtering function. (See Special Accessories).

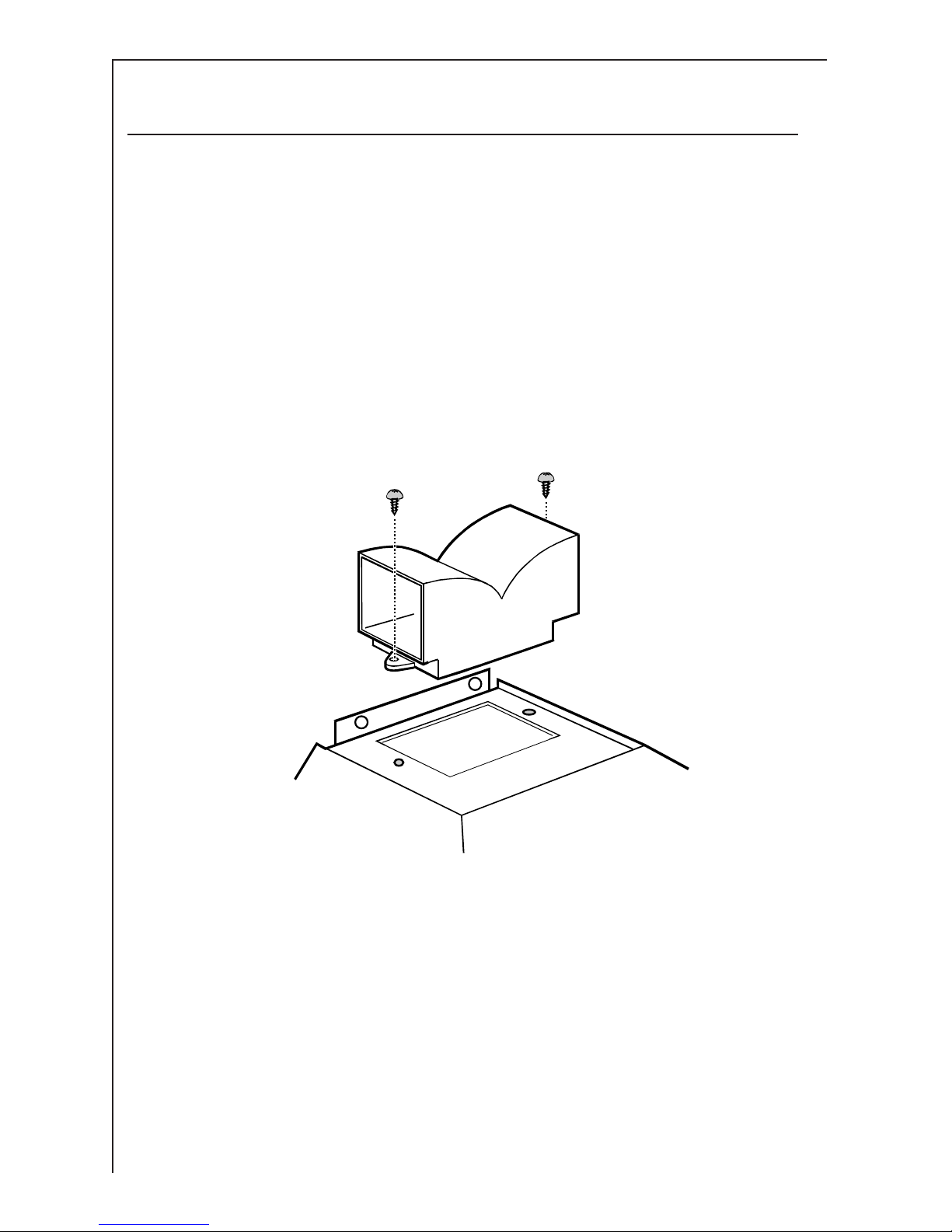

●Fix the deflector with two screws Ø3,5x6,5. Fig. 2.

Fig. 2

Electrical connections

Safety warnings for electrician

It must be ensured that the voltage and current indicated on the rating plate

agree with the voltage of the user to electricity supply.

If the appliance has been equipped with a mains lead with a moulded-on type plug,

the following regulations must be comply with:

The plug moulded on to the lead incorporates a fuse. For replacement, use a 5

amp BS1362 fuse. Only ASTA approved or certified fuses should be used. If the

fuse cover/carrier is lost, a replacement cover/carrie must be obtained from an

electrical goods retailer. If the socket outlets are not suitable for the plug fitted to

the appliance, then the plug must be cut off and destroyed for safety reasons, and

an appropriate plug be fitted.

When wiring the plug ensure that all strands of wire are securely retained in each

terminal. Do not forget to tighten the mains lead clamp on the plug.

Electrical connections

230 V - using fixed power supply line with plug.

240 V - using fixed power supply line (Great Britain).

Fuse rating 13 amps

(The unit should only be connected up by an authorized electrician).

See rating plate for further information.

It is recommended that the socket for the plug is sited above the cooker hood

or above the overhead cabinet.

This has 2 advantages:

1) The socket is not visible.

2) The appliance can easily be unplugged when necessary.

If a fixed connection is required the cooker hood should be connected by an

electrical installer registered with a competent electricity company. An isolating

device is to be provided on the fixed wiring side. Switches with a contact opening

of more than 3mm apply as isolating devices.

These include-automatic cut-out switches, fuses and contactors (VDE 0730, s.

7, Part1).

Electrical connection for the UK

Appliances with 2 wires

The appliance must be connected to fixed wiring with a double

pole switched fused spur outlet with or without pilot lamp.

We strongly recommend the appliance to be connected only by a

qualified electrician who is a member of the NICEIC who will com-

ply with the IEE and any local regulations.

NOTE:

The terminology DOUBLE POLE means that both the live and the

neutral supplies are switched and disconnected at the same time.

The terminations labelled SUPPLY are for the connection for the

internal house wiring and the terminations labelled LOAD are for

the appliance.

IMPORTANT

The wires of the mains lead supplied with this appliance are

coloured in accordance with the following code:

Blue-Neutral

Brown-Live

As the colours of the flexible cord of this appliance may not

correspond with the coloured markings identifying the ter-

minals in the plug, proceed as follows: The wire which is col-

oured brown must be connected to the terminal which is

marked with the letter L or coloured red.

The wire which is coloured blue must be connected to the

terminal which is marked with the letter N or coloured black.

LOAD

SUPPLY

LOAD

NSUPPLY

DP 13A, 250V

BLUE

(NEUTRAL) BROWN

(LIVE)

FUSE ON

Technic Details

Dimensions (825 D):

Height x Width x Depht (in cm) 84-117 x 59,9 x 51.5

Dimensions (8259 D):

Height x Width x Depht (in cm) 84-117 x 89,9 x 51.5

Weight (825 D):

Net: 10,7 kg

Gross: 16,2 kg

Weight (8259 D):

Net: 13,1 kg

Gross: 19,6 kg

Maximum absorbed power: 250W

Motor absorption: 1 x 170 W

Lighting: 2 x 40 W

Length of the cable: 100 cm

Fan powers (speed), speed in compliance with DIN 44971

Extractor version:

1 179 m3/h

2 219 m3/h

3 336 m3/h

i 402 m3/h

Filter version:

1 102 m3/h

2 150 m3/h

3 252 m3/h

i 265 m3/h

Flange: 120 mm Ø

Installation

Safety warnings for kitchen unit installer

●When used as an extractor unit, the hood must be fitted

with a 120mm diameter hose.

●If the fumes must be forced out through the wall, you

must obtain a MKZ sizable wall exhaust pipe (with

external exhaust and air intake), E-Nr.- 610 899 004 (Ø 120

mm) which is one of our optional parts.

●When installing the hood, make sure you respect

the following minimum distance from the top edge

of the cooking hob/ring surfaces:

electric cookers 600 mm

gas cookers 650 mm

coal and oil cookers 700 mm min.

●The air outlet must not be connected to chimney flues or

combustion gas ducts. The air outlet must under no cir-

cumstances be connected to ventilation ducts for rooms in

which fuel-burning appliances are installed.

●It is advisable to apply for authorization from the relevant

controlling authority when connecting the outlet to an

unused chimney flue or combustion gas duct.

The air outlet installation must comply with the

regulations laid down by the relevant authorities.

●When the unit is used in its extractor version, a

sufficiently large ventilation hole must be provided, with

dimensions that are approximately the same as the outlet

hole.

●National and regional building regulations impose a

number of restrictions on using hoods and fuel-burning

appliances connected to a chimney, such as coal or oil

room-heaters and gas fires, in the same room.

●The national decree on fuel-burning systems specifies a

maximum depression of 0.04 bar in such rooms.

●Hoods can only be used safely with appliances connected

to a chimney if the room and/or flat (air/environment

combination) is ventilated from outside using a suitable

ventilation hole approximately 500-600 cm2 large to

avoid the possibility of a depression being created during

operation of the hood.

If you have any doubts, contact the relevant controlling

authority or building inspectors office.

●Since the rule for rooms with fuel burning appliances is

outlet hole of the same size as the ventilation hole, a

hole of 500-600 cm2, which is to say a larger hole, could

reduce the performance of the extractor hood.

●If the hood is used in its filtering function, it will operate

simply and safely in the above conditions without the

need for any of the aforementioned measures.

●When the hood is used in its extractor function, the

following rules must be followed to obtain optimal

operation:

 short and straight outlet hose

 keep bends in outlet hose to a minimum

 never install the hoses with an acute angle, they must

always follow a gentle curve only

 keep the hose as large as possible (120 mm Ø min.).

●Failure to observe these basic rules will drastically reduce

the performance and increase the noise levels of the

extractor hood.
