advidia M-87-V Manuel utilisateur
V1.00
Network Fixed Dome Cameras
Quick Guide
M-87-V
1
Waterproof Requirements
Please waterproof cables in accordance with the following instructions. User shall
assume all responsibility for device damage caused by water due to improper
waterproof measures.
NOTE!
l Before you start, connect all the needed cables and cut off the copper wires for
the cables that you don't use.
l Please use self-adhesive waterproof tape (supplied with some products) to
protect the cables.
l Use waterproof components to protect the network cable. Waterproof the
power cable separately if you don’t use it. The video cable does not need
waterproof treatment.
1. Use insulation tape (not included in the package) to insulate the connection part
of each cable.
!
2. Waterproof the cables with self-adhesive waterproof tape.
(1) Fully stretch the waterproof tape at both ends.
(2) Wrap the connection part and the cable ends tightly with waterproof tape.
Make sure the tape is fully stretched during the process.
(3) Tighten the tape at both ends to prevent water leakage.
Connection part
Insulation tape
2
!
3. Install the supplied waterproof components to the network cable in sequence.
!
CAUTION!
You need to mount the rubber ring onto the network cable interface first.
4. If your camera has a DC cable and you will not use it, insert the plug into the
interface.
!
5. (Optional) After the waterproof treatment is completed, put the cables into a
waterproof junction box (purchased separately).
CAUTION!
l The cable connector must not be exposed and must be kept away from water.
l Restore and fasten the device after dismounting.
l Place the power adapter in a power distribution box.
Wrap the unused cables together into a bundle
Tighten Tighten
Waterproof tape
Tighten
DC interface
Plug
3
1 Packing List
Contact your local dealer if the package is damaged or incomplete. The attachments
may vary with models, please see the actual model for details.
No.
Name
Qty
Unit
1
Camera
1
PCS
2*
Waterproof components（1）
1
Set
3*
Screw components（2）
1
Set
4*
Mount accessory （3）
1
Set
5
User manual
1
Set
Remarks:
* means optional and supplied with certain models only.
(1)Including one or more waterproof components such as tape and plug.
(2)Including one or more accessories such as screws and hex key.
(3)Including one or more items from drilling template, bracket adapter, anti-static
gloves, etc.
2 Safety Instructions
Installation and removal of the unit and its accessories must be carried out by
qualified personnel. You must read all of the safety instructions before installation
and operation.
2.1 Precautions
l Use a power adapter or a PoE device that meets requirements. Otherwise, the
device may be damaged.
l Be careful not to blur, scratch, damage the dome cover or leave fingerprints on
it because this could decrease image quality. Keep the protective film on the
dome cover until installation is complete.
l Make sure the length of the power cable between the power adapter and the
camera is not too long, otherwise the voltage of the camera is lowered, causing
the camera to work abnormally. If it is required to lengthen the power cable,
lengthen the cable between the power adapter and the mains.
4
l Do not overbend the cables during the installation, otherwise, poor cable
contact may cause malfunction.
l When connecting to an external interface, use an existing connection terminal,
and ensure that the cable terminal (latch or clamp) is in good condition and
properly fastened. Ensure that the cable is not tense during mounting, with a
proper margin reserved to avoid poor port contact or loosening caused by shock
or shake.
l During transportation, special attention is required to protect the transparent
dome cover from friction, scratch and stain, etc. Do not remove the protective
film from the cover until mounting is finished. Remove the protective film before
powering on the device.
l Make sure the wall or ceiling is strong enough to support the weight of the
camera. If dust falls during mounting, take off the dome cover and keep it away
from dust. Install the dome cover after the base is installed.
l Contact professionals for maintenance information. Do not attempt to
dismantle the device by yourself. We shall not assume any responsibility for
problems caused by unauthorized repair or maintenance.
2.2 Maintenance
l If there is dust on the front glass surface, remove the dust gently using an oil-
free brush or a rubber dust blowing ball.
l If there is grease or a dust stain on the front glass surface, clean the glass surface
gently from the center outward using anti-static gloves or an oil-free cloth. If the
grease or the stain still remains, use anti-static gloves or an oil-free cloth dipped
with detergent and clean the glass surface gently until it is clean.
l Do not use organic solvents (such as benzene and alcohol) to clean the
transparent dome cover.
3 Appearance
3.1 Dimensions
The following figure shows device dimensions. The appearance may vary with device
model.
5
3.2 Cable Connection
The appearance and tail cable may vary with device model.
1. Audio input/Audio output/GND
2. Alarm input(IN,GND)/ Alarm
output(N,P)
3. Power interface
4. Ethernet interface
134.0mm
(5.3")
Φ
111.3mm
(4.4")
4.6mm
(0.18")
Φ
3
4
2
1
6
3.3 Internal Structure
NOTE!
Use a pin to press and hold the Reset button for about 15 seconds to restore factory
default settings. Perform this operation within 10 minutes after the device is
powered on or the reset will fail otherwise.
4 Mount Your Camera
4.1 (Optional) Insert Micro SD Card
Insert a SD card into the slot to use the local storage function. For detailed
specifications of recommended SD cards, contact your dealer or technical support.
Hot plugging is not recommended.
4.2 Ceiling Mount
The following part takes ceiling mount as an example. Wall mount is similar to ceiling
mount and therefore is omitted here. The figures are for your reference only.
Safety wire
Transparent
dome cover
Micro SD
card slot
Reset
button
Micro SD
Reset CVBS
7
1. Locate the positions of the holes. Paste installation positioning stickers on the
ceiling and lead the cables through the hole on the wall.
!
2. Mount your camera.
!
3. Adjust the monitoring direction of the lens. Tighten the screws after vertically
adjusting the lens.
!
Paste the drill template and lead the
cables through the hole. Use a Ø6mm-
6.5mm drill bit to drill 30 mm-depth
guide holes according to the template.
Knock the plastic rivets into the
guide holes and ensure that they
are tightened up.
1
2
1Connect all cables of the ceiling
and your camera.
Lead self-tapping screws
through the guide holes in the
camera base, and fix your
camera on the ceiling by using
a screwdriver.
2
Lens base
Rotate the lens base
horizontally.
1
Fastening screw
2Loosen the fastening
screws and rotate the
lens vertically.
Lens
Rotate the lens horizontally.
3
8

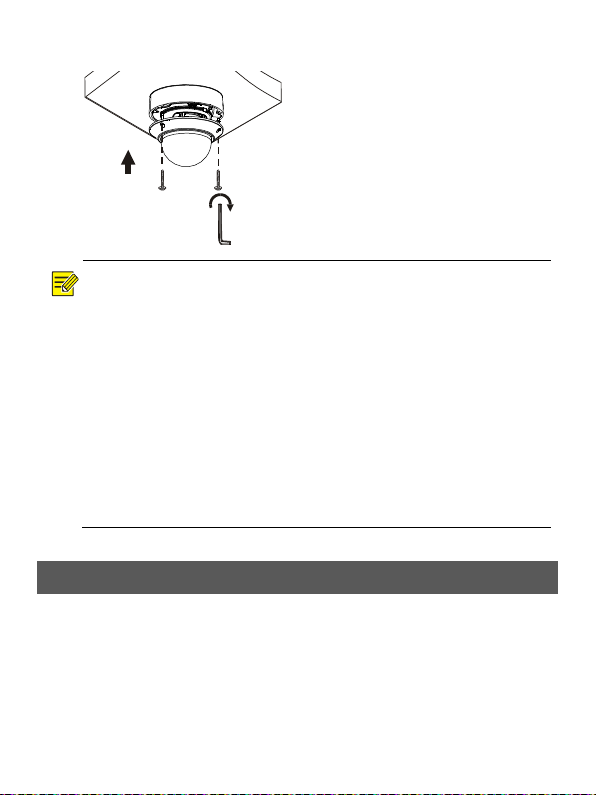

4. Mount the transparent dome cover.
!
NOTE!
l The preceding installation process is concealed installation, during which holes
are drilled in the ceiling and tail cable is led out from the top of the camera.
Cables are connected and frapped at the ceiling side to prevent messy cables
from affecting camera mounting. If open installation is adopted, tail cable is led
out from one side of the camera and can be routed from the side groove of the
camera.
l If necessary, wire the tail cables through pipes (for example 3/4 NPS threaded
pipes), and screw the pipes into the threaded hole of the device to complete
the connection.
l After mounting the dome housing, check that the two cross-recessed pan-head
screws on the edge of the dome housing are tightened up to ensure that the
camera is properly sealed. For details, see Mount the transparent dome
housing.
5 Startup
After you have installed the device, connect one end of the power adapter
(purchased separately) to power supply, and then connect the other end to the
power interface to start up the device.
Align the screw holes
in the base, and
tighten the three torx
screws on the edge of
the transparent dome
cover to fix it.
9
6 Access Your Camera
1. Open your Web browser, enter the camera's IP address in the address bar, and then
press Enter. The default IP is 192.168.1.13.
2. In the login page, enter the default username and password (admin/123456), then
click Login.
NOTE!
l DHCP is enabled by default. If a DHCP server is used in your network, your
camera may be assigned an IP address, and you need to use the assigned IP
address to log in.
l You may need to install a plug-in at your first login. Please follow the on-screen
instructions to complete the installation and then open the browser again to
log in.
l The default password is intended only for your first login. To ensure security,
please change the password after your first login. You are strongly
recommended to set a strong password of at least nine characters including all
three elements: digits, letters and special characters.
l If the password has been changed, please use the new password to log in.
